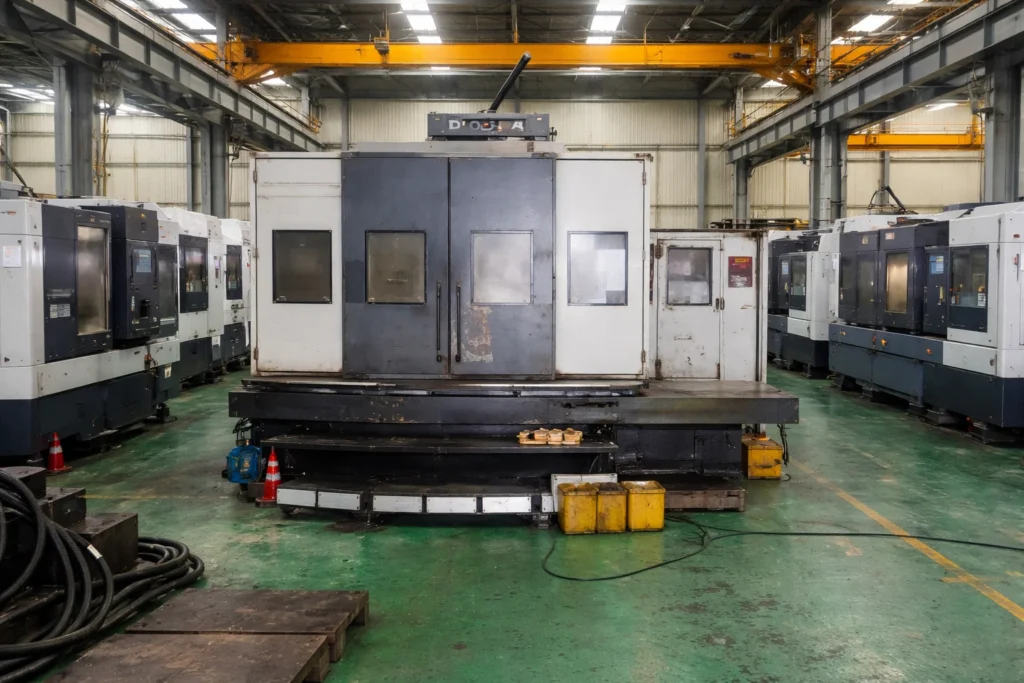

The used Doosan DBC-130CX is a heavy-duty CNC horizontal table-type boring mill designed for high-precision machining of large and heavy components. It is an upgraded “CX” version of the standard DB/DBC 130 series, offering improved rigidity, enhanced spindle performance, and better thermal stability for demanding industrial applications.
This machine features a 130 mm spindle, a rigid box-type structure, and a precision rotary table with full B-axis indexing, allowing multi-face machining in a single setup. It is well suited for deep boring, heavy milling, and large-part machining in industries such as energy, aerospace, and heavy equipment manufacturing.
When buying a used DBC-130CX, key inspection points include spindle condition, quill wear, rotary table backlash, and axis accuracy over long travels, as these machines are typically used in heavy-duty environments.
DOOSAN DBC-130CXSPECIFICATIONS
DOOSAN DBC-130CX – AXIS TRAVELS
X-Axis Travel: ~3000 mm
Y-Axis Travel: ~2000 mm
Z-Axis Travel: ~1600 mm
W-Axis (Quill): ~700 mm
B-Axis: 360° Rotary Table
Designed for Large-Part Machining
DOOSAN DBC-130CX – CAPACITY
Table Load Capacity: ~15,000 kg
Large Work Envelope
Suitable for Heavy Components
Multi-Side Machining Capability
Ideal for Large Castings
Inspect Load Condition Carefully
DOOSAN DBC-130CX – SPINDLE
Spindle Diameter: 130 mm
Max Spindle Speed: 2,500–3,000 RPM
Spindle Taper: CAT 50 / BT50
Motor Power: ~25–30 kW
High Torque Output
Designed for Heavy Cutting
DOOSAN DBC-130CX – TABLE
Table Size: ~1800 × 1600 mm
Rotary Table (B-Axis)
Indexing Accuracy: 0.001°
Heavy-Duty Construction
Supports Large Fixtures
Inspect Table Accuracy
DOOSAN DBC-130CX – TOOL TURRET
Tool Changer Type: Automatic Tool Changer
Tool Capacity: 40–60 Tools
Tool Taper: CAT 50
Max Tool Weight: ~25 kg
Arm-Type ATC
Verify Tool Change Reliability
DOOSAN DBC-130CX – FEEDRATES
Rapid Traverse X/Y/Z: ~10–12 m/min
Rapid Traverse W: ~6 m/min
Smooth Axis Motion
Optimized for Boring Operations
Stable Under Heavy Load
Verify Axis Backlash
DOOSAN DBC-130CX – COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant Available (~20 bar)
Flood Coolant System
Chip Conveyor Included
Designed for Heavy Chip Removal
Large Coolant Tank
Maintain Clean System
DOOSAN DBC-130CX – CONTROL SYSTEM
CNC Control: Fanuc 18i-MB (Common)
Optional Siemens / Heidenhain
Multi-Axis Control Capability
User-Friendly Interface
Supports Complex Programs
Verify Control Condition
DOOSAN DBC-130CX – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 220–440 VAC
Approx Power: ~40–70 kVA
Air Requirement: ~6–8 bar
High Power Consumption
Ensure Facility Support
DOOSAN DBC-130CX – DIMENSIONS
Machine Length: ~8970 mm
Machine Width: ~7600 mm
Machine Height: ~5000 mm
Machine Weight: ~43,000 kg
Requires Large Floor Space
Heavy Foundation Required
DOOSAN DBC-130CX – GENERAL INFORMATION
Machine Type: CNC Horizontal Boring Mill
Table-Type Configuration
4-Axis (X, Y, Z, W + B Rotary)
130 mm Spindle Class
Enhanced CX Series Design
High Rigidity Structure
Ideal for Heavy Industrial Machining
INDUSTRIES THAT USE DOOSAN DBC-130CX
Energy
Aerospace
Heavy Equipment
Oil & Gas
Shipbuilding
General Engineering
TYPICAL PARTS DOOSAN DBC-130CX CAN PRODUCE
Gearbox Housings
Turbine Components
Pump & Valve Bodies
Machine Frames
Structural Components
Large Castings
WHY CHOOSE DOOSAN DBC-130CX
Proven Heavy-Duty Performance
High Torque Spindle Capability
Multi-Side Machining Efficiency
Deep Boring Capability
Rigid & Stable Construction
Reliable for Large-Part Production
WHY BUY USED DOOSAN DBC-130CX
Buying a used Doosan DBC-130CX is ideal for shops that require a combination of power, precision, and reliability in large-part machining.
The biggest advantage of the “CX” version is improved performance over earlier DB/DBC models, including better rigidity and higher spindle efficiency.
Its rotary table allows multi-side machining without repositioning, reducing setup time and improving accuracy. The machine is capable of both heavy roughing and precise finishing operations.
HOW MUCH DOES A USED DOOSAN DBC-130CXCOST?
Pricing depends on year, condition, configuration, and installed options.
Typical pricing ranges:
2007–2012 models: around $120,000 to $220,000
2012–2018 models: around $180,000 to $320,000
Well-equipped machines: can exceed $350,000
Machines with larger ATC capacity, through-spindle coolant, and advanced controls will command higher prices.
