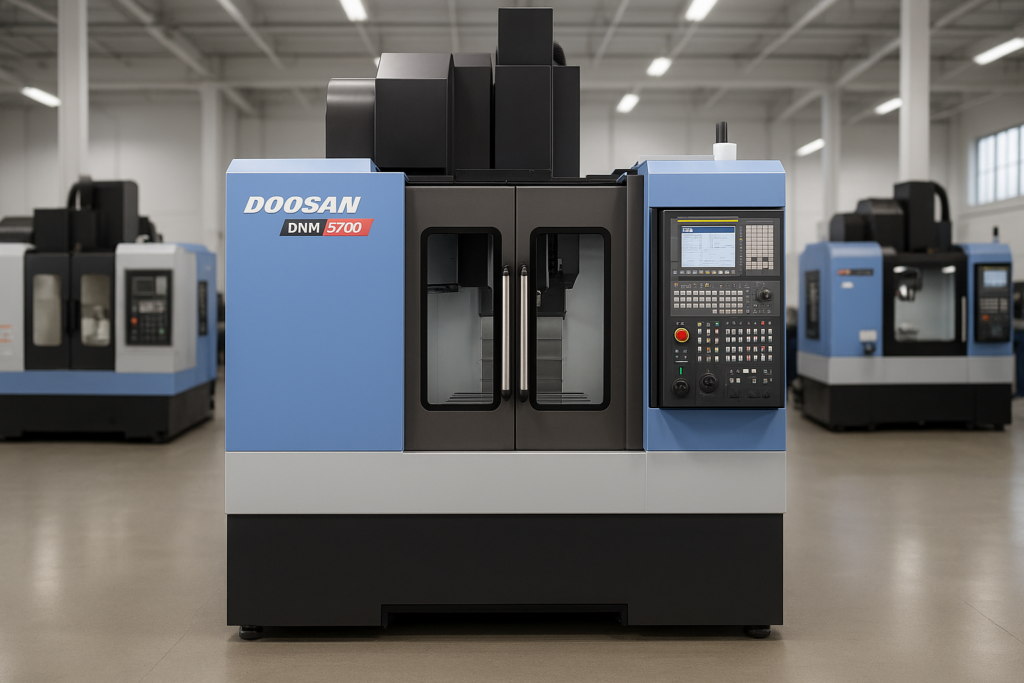

The DOOSAN DNM 5700 is a high-performance vertical machining center designed for precision milling and versatile manufacturing applications. Built with a rigid and thermally stable cast-iron structure, the DNM 5700 delivers excellent accuracy and vibration damping, making it suitable for both light and heavy cutting operations. Its generous work envelope and long travel distances allow it to accommodate a wide range of part sizes, making it a reliable choice for job shops and production environments that require flexibility and consistent performance.
The machine is equipped with a powerful spindle capable of high-speed machining as well as high-torque cutting, enabling it to process materials such as aluminum, steel, and other engineering alloys with excellent surface finishes. The DOOSAN Fanuc or Siemens CNC control systems provide intuitive operation, reliable performance, and seamless integration with CAD/CAM software, allowing operators to optimize machining cycles and improve productivity. Features such as a high-capacity tool magazine, rapid traverse rates, and optional probing systems further enhance efficiency and reduce setup times.
The DNM 5700 is widely used for producing precision components in automotive, aerospace, general engineering, and mold-making industries. Its combination of accuracy, durability, and user-friendly operation makes it a cost-effective solution for manufacturers seeking a reliable vertical machining center for high-quality and high-volume production.
DOOSAN DNM 5700SPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 1,050 mm (41.3 in)
Y-Axis Travel: 570 mm (22.4 in)
Z-Axis Travel: 510 mm (20.1 in)
Table Size: 1,200 mm × 570 mm
Table Load Capacity: 1,000 kg (2,204 lbs)
SPINDLE
Taper: BT40 (optional Big Plus)
Max Spindle Speed: 12,000 rpm
Spindle Power: 18.5 kW (24.8 hp)
Drive Type: Direct drive (standard)
Max Torque: ~117.8 Nm
TOOL MAGAZINE
Tool Capacity: 30 tools (standard)
Tool-to-Tool Time: 1.2 seconds
Max Tool Diameter: 80 mm (adjacent) / 125 mm (non-adjacent)
Max Tool Length: 300 mm
Max Tool Weight: 8 kg
FEEDRATES
Rapid Traverse (X/Y/Z): 36 / 36 / 30 m/min
Cutting Feedrate: Up to 10 m/min
COOLANT & CHIP HANDLING
Coolant Tank Capacity: ~350 liters
Through-Spindle Coolant: Optional (20–30 bar)
Chip Conveyor: Standard hinged type
Air Blow and Washdown Nozzles: Included
CONTROL SYSTEM
FANUC 0i-MF or Siemens 828D
USB and Ethernet Connectivity
Rigid Tapping and Look-Ahead Functions
Optional: Tool Load Monitoring, Adaptive Feed Control
DOOSAN DNM 5700 – GENERAL INFORMATION
Model: Doosan DNM 5700
Machine Type: Vertical Machining Center (3-Axis)
Structure: C-frame design with rigid box-type casting
