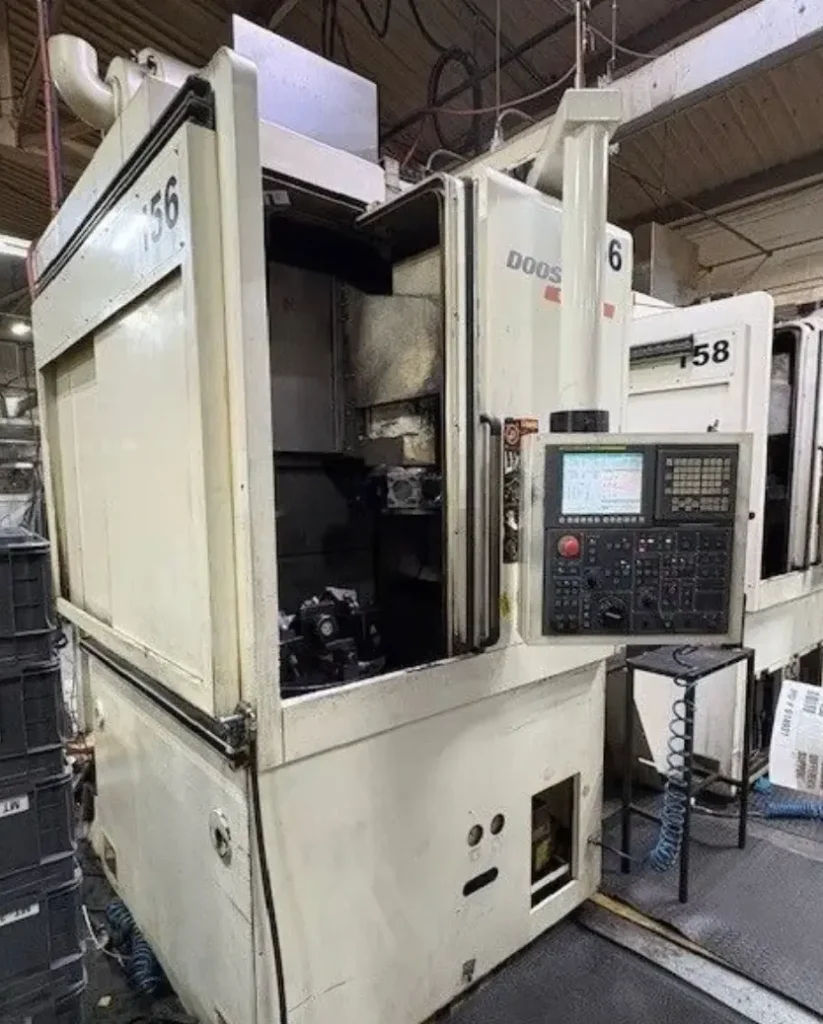

USED DOOSAN PUMA V400M – 2012

The DOOSAN PUMA V400M – 2012 is a high-performance CNC vertical turning center designed to provide exceptional rigidity, precision, and multitasking capability for manufacturers machining medium to large diameter components. As part of the highly respected Puma V-Series, the V400M combines the advantages of vertical turning technology with integrated milling functionality, allowing manufacturers to complete complex parts in fewer setups while maximizing floor space efficiency.

Unlike conventional horizontal lathes, the vertical spindle configuration of the Puma V400M uses gravity to support heavy workpieces, improving stability during machining operations and reducing workholding challenges. This design makes the machine particularly effective for large flanges, bearing housings, valve bodies, brake drums, gear blanks, pump casings, and other round components commonly found in industrial manufacturing environments. The machine’s compact footprint allows shops to process larger parts while consuming significantly less floor space than many comparable horizontal turning centers. The Puma V-Series is designed around a rigid Meehanite cast iron structure, cartridge-style spindle, and box guideway construction to maintain stability during heavy cutting operations.

The V400M is equipped with live tooling capability, enabling turning, drilling, milling, tapping, and boring operations within a single machine setup. This flexibility helps manufacturers reduce cycle times, improve accuracy, and eliminate secondary operations. The machine’s powerful spindle and rigid turret design allow it to process steel, stainless steel, cast iron, aluminum, bronze, titanium, and other demanding materials with confidence.

Common industries utilizing the Puma V400M include aerospace manufacturing, automotive production, heavy equipment manufacturing, energy equipment production, oil and gas machining, industrial pump manufacturing, valve manufacturing, mining equipment production, and general contract machining. Typical applications include pump housings, bearing rings, wheel hubs, brake components, hydraulic housings, gear blanks, compressor parts, and precision industrial components.

The 2012 DOOSAN PUMA V400M remains highly desirable in the used CNC market because it offers vertical turning efficiency, live-tool multitasking capability, robust construction, and excellent long-term reliability at a fraction of the cost of a new machine.

---

DOOSAN PUMA V400M – AXIS

Specification	Value
Number of Axes	3 Axis
Axis Configuration	X, Z, C
Machine Type	CNC Vertical Turning Center
C-Axis Capability	Standard
Live Tooling Capability	Standard
Spindle Orientation	Vertical

---

DOOSAN PUMA V400M – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	10.6 in
Z-Axis Travel	19.2 in
Maximum Turning Diameter	19.5 in
Maximum Turning Height	18.1 in
Rapid Traverse X	787 IPM
Rapid Traverse Z	787 IPM

---

DOOSAN PUMA V400M – CAPACITY / TABLE

Specification	Value
Chuck Size	18 in
Maximum Turning Diameter	19.5 in
Maximum Turning Height	18.1 in
Maximum Table Load	1,100 lbs
Workholding Type	Hydraulic Chuck
Part Configuration	Vertical Workholding

---

DOOSAN PUMA V400M – SPINDLE

Specification	Value
Maximum Spindle Speed	3,000 RPM
Spindle Power	30 HP
Maximum Torque	539 ft-lb
Spindle Type	Cartridge Style Precision Spindle
Spindle Orientation	Vertical
Thermal Stability Design	Standard

---

DOOSAN PUMA V400M – TOOL CHANGER

Specification	Value
Turret Stations	12
Live Tool Positions	12
Live Tool Speed	4,000 RPM
Tool Selection	Automatic
Tooling Interface	BMT-65

---

DOOSAN PUMA V400M – CONTROL SYSTEM

Specification	Value
CNC Control	FANUC i-Series
Programming Capability	Turning and Milling
Network Connectivity	Available
USB Connectivity	Available
Conversational Programming	Available
Production Monitoring	Available

---

DOOSAN PUMA V400M – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Coolant Filtration	Integrated
Chip Conveyor	Standard
Coolant Tank	Large Capacity
Automatic Chip Removal	Standard
Mist Collection	Optional

---

DOOSAN PUMA V400M – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 35 kVA

---

DOOSAN PUMA V400M – DIMENSIONS

Specification	Value
Machine Length	58 in
Machine Width	85 in
Machine Height	126 in
Machine Weight	13,200 lbs

---

DOOSAN PUMA V400M – GENERAL INFORMATION

Specification	Value
Manufacturer	Doosan Machine Tools
Model	Puma V400M
Year	2012
Machine Category	CNC Vertical Turning Center
Control System	FANUC
Construction	Meehanite Cast Iron
Typical Materials	Steel, Cast Iron, Aluminum, Stainless Steel
Production Type	Medium to Heavy Duty Turning

---

INDUSTRIES THAT USE DOOSAN PUMA V400M

• Aerospace Manufacturing
• Automotive Manufacturing
• Heavy Equipment Manufacturing
• Energy Industry
• Oil & Gas Equipment Manufacturing
• Pump Manufacturing
• Valve Manufacturing
• Mining Equipment Production
• Industrial Machinery Manufacturing
• Contract Machining

---

TYPICAL PARTS DOOSAN PUMA V400M CAN PRODUCE

• Pump Housings
• Bearing Rings
• Valve Bodies
• Wheel Hubs
• Brake Components
• Compressor Housings
• Gear Blanks
• Hydraulic Components
• Flanges
• Industrial Couplings
• Rotating Assemblies
• Mining Equipment Components

---

WHY CHOOSE DOOSAN PUMA V400M

The DOOSAN PUMA V400M is designed for manufacturers that need the advantages of vertical turning combined with milling capability in a compact and productive machine platform. Its vertical spindle configuration allows heavy workpieces to be supported naturally by gravity, reducing fixturing complexity and improving machining stability. This design is particularly beneficial when machining large-diameter components that may be difficult to secure on traditional horizontal lathes.

One of the machine’s most significant advantages is its multitasking capability. The integrated live tooling system enables turning, drilling, milling, and tapping operations to be completed in a single setup. This reduces part handling, improves dimensional accuracy, and shortens overall production cycles.

The machine’s Meehanite cast iron construction provides excellent rigidity and vibration dampening during heavy cutting operations. Combined with box guideway construction and a powerful spindle system, the V400M delivers outstanding performance when machining difficult materials and demanding workpieces. The rigid machine structure also contributes to long-term accuracy and reliability.

The compact footprint of the machine provides another important benefit. Many manufacturers struggle with limited floor space, and the vertical design allows the V400M to process larger parts while occupying less space than many comparable horizontal turning centers. This makes it attractive for both job shops and production environments.

The FANUC control system offers proven reliability, intuitive operation, and widespread service support. Operators benefit from familiar programming environments, advanced diagnostics, and strong integration with modern manufacturing systems.

For manufacturers seeking a productive and reliable vertical turning center capable of handling both turning and milling operations, the Puma V400M remains one of the most versatile machines in its class.

---

WHY BUY USED DOOSAN PUMA V400M

Purchasing a used DOOSAN PUMA V400M provides manufacturers with access to advanced vertical turning technology at a significantly lower cost than purchasing a new machine. Because vertical turning centers with live tooling capability represent a substantial investment when purchased new, the used machinery market offers an excellent opportunity to acquire premium equipment while preserving capital.

One of the primary benefits of buying used is cost savings. A well-maintained Puma V400M can deliver years of reliable production while costing substantially less than a comparable new machine. The resulting savings can be allocated toward tooling, automation, facility improvements, or additional machinery purchases.

The machine’s robust construction further increases its value in the used market. Built around a heavy-duty cast iron structure with proven mechanical systems, the V400M is designed for long service life in demanding production environments. Many machines continue operating successfully for decades when properly maintained.

Availability is another major advantage. New machine purchases often involve lengthy lead times due to manufacturing schedules and customization requirements. Used machines are frequently available for immediate purchase and installation, allowing manufacturers to increase production capacity quickly.

Many used V400M machines include valuable options such as live tooling packages, chip conveyors, high-pressure coolant systems, probing systems, and upgraded tooling packages. These features can significantly enhance productivity while reducing future investment requirements.

The machine’s ability to combine turning and milling operations in one platform also contributes to strong demand in the used marketplace. Manufacturers continue seeking solutions that reduce setups and improve workflow efficiency, making the V400M an attractive long-term investment.

For companies machining medium to large diameter components, a used Puma V400M offers exceptional value, flexibility, and productivity.

---

HOW MUCH DOES A USED DOOSAN PUMA V400M COST?

The value of a used DOOSAN PUMA V400M depends on machine condition, spindle hours, maintenance history, installed options, tooling packages, and overall market demand. Because the machine combines vertical turning and milling capabilities, pricing tends to remain strong within the used CNC marketplace.

Machine condition is generally the most important pricing factor. Machines with documented maintenance records, lower operating hours, and excellent mechanical condition typically command higher values. Buyers often prioritize machines that have received regular preventive maintenance because they present lower operational risk.

Installed options can significantly influence resale value. Features such as live tooling packages, probing systems, high-pressure coolant systems, upgraded software, tooling packages, chip management systems, and automation interfaces often increase market pricing. These additions improve machine versatility and reduce future upgrade costs.

Market demand also plays a major role. Manufacturers in aerospace, energy, automotive, and industrial equipment industries continue requiring vertical turning centers capable of efficiently machining large-diameter components. Machines that combine turning and milling functions often maintain stronger resale values because they improve productivity and reduce setup requirements.

Additional ownership costs should also be considered. Transportation, rigging, installation, tooling, and operator training can vary depending on machine location and facility requirements.

Based on current used market listings, a 2012 DOOSAN PUMA V400M commonly sells in the range of approximately $55,000 to $120,000, depending on machine condition, spindle hours, installed options, tooling packages, and overall configuration. Well-maintained machines equipped with live tooling, chip conveyors, and extensive tooling packages typically command values toward the upper end of the range.

When evaluating value, buyers should focus not only on purchase price but also on the machine’s ability to improve workflow efficiency, reduce setups, increase throughput, and support long-term manufacturing requirements. These benefits continue to make the DOOSAN PUMA V400M one of the most desirable vertical turning centers available in the used CNC machinery market.
