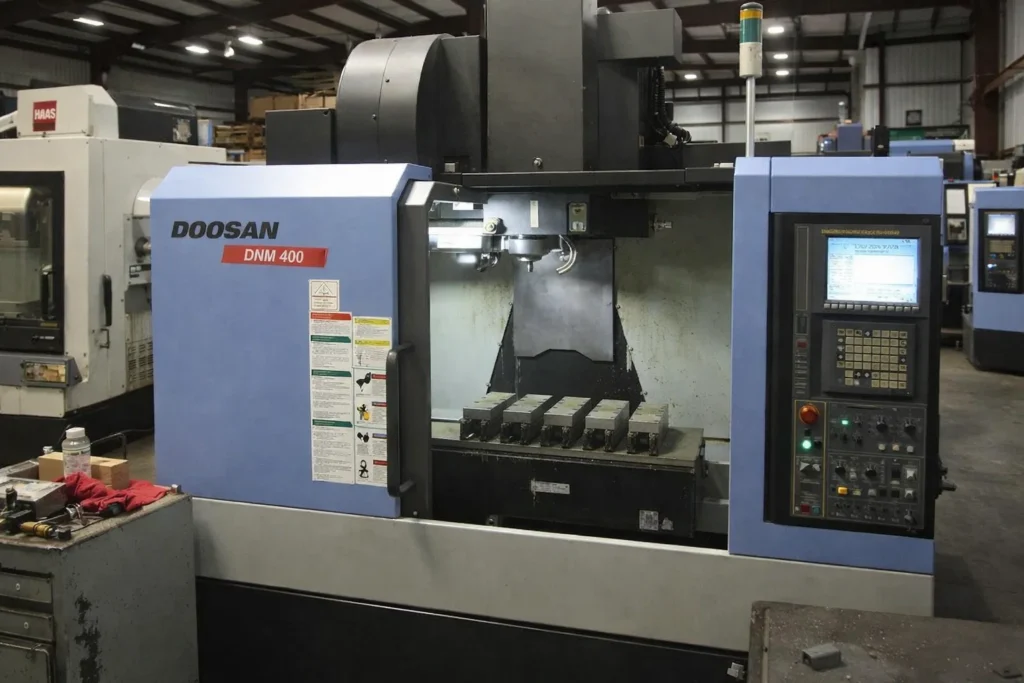

The Doosan DNM 4000 is a compact, high-speed CNC vertical machining center (VMC) designed for precision machining, high productivity, and space-efficient manufacturing environments. It is part of the newer DNM series and is specifically engineered for shops that require full machining capability in a smaller footprint without compromising performance.
This machine features a rigid Meehanite cast iron structure combined with roller-type linear guideways, ensuring excellent stability, reduced vibration, and long-term accuracy. The DNM 4000 is equipped with a direct-coupled BIG-PLUS CAT 40 spindle capable of speeds up to 12,000 RPM and delivering approximately 18.5 kW (25 HP) of power and 117–118 Nm of torque. This design eliminates belt losses, improves surface finish, and enhances cutting efficiency across a wide range of materials.
With travels of approximately 520 × 400 × 480 mm, the machine is ideal for small to medium-sized parts. Despite its compact size, it offers high rapid traverse rates of up to 48 m/min on all axes, making it extremely productive for high-cycle machining.
The DNM 4000 is commonly equipped with FANUC controls and includes features such as through-spindle coolant, thermal compensation, and tool monitoring, making it suitable for industries like aerospace, medical, die & mold, and precision engineering.
DOOSAN DNM 400SPECIFICATIONS
DOOSAN DNM 400 – AXIS TRAVELS
X-Axis Travel: ~762 mm (30″)
Y-Axis Travel: ~435 mm (17″)
Z-Axis Travel: ~510 mm (20″)
Compact Work Envelope
Ideal for Small to Medium Parts
High Precision Movements
DOOSAN DNM 400 – CAPACITY
Table Size: ~920–1200 × 400–435 mm
Max Table Load: ~600 kg
Suitable for Medium Components
Strong Workholding Capability
Ideal for Job Shops
Balanced Capacity
DOOSAN DNM 400 – SPINDLE
Max Spindle Speed: 8,000–12,000 RPM
Spindle Taper: CAT / BT 40
Motor Power: ~15–20 kW
Direct / Belt Drive Options
Good Torque Output
Versatile Machining
DOOSAN DNM 400 – TABLE
Table Configuration: Fixed Table
Working Surface: ~920–1200 × 400–435 mm
T-Slot Table
Rigid Construction
Supports Fixtures & Vises
Stable Setup
DOOSAN DNM 400 – TOOL TURRET
Tool Changer Type: Automatic
Tool Capacity: 24–30 Tools
Tool Change Type: Side Mount
Tool Taper: CAT 40
Fast Tool Changes
Reliable ATC System
DOOSAN DNM 400 – FEEDRATES
Rapid Traverse X/Y: ~30–36 m/min
Rapid Traverse Z: ~24–30 m/min
Smooth Axis Motion
Stable Cutting Performance
Optimized for Productivity
Consistent Accuracy
DOOSAN DNM 400 – COOLANT & CHIP MANAGEMENT
Flood Coolant System
Optional Through-Spindle Coolant
Dual Chip Conveyors / Augers
Efficient Chip Removal
Easy Maintenance
Clean Operation
DOOSAN DNM 400 – CONTROL SYSTEM
CNC Control: Fanuc i-Series
User-Friendly Interface
Reliable Performance
Easy Programming
Widely Supported
Industry Standard
DOOSAN DNM 400 – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 200–240 VAC
Approx Power: ~30–40 kVA
Air Requirement: ~6–7 bar
Efficient Power Usage
Suitable for Most Shops
DOOSAN DNM 400 – DIMENSIONS
Machine Length: ~2100–2900 mm
Machine Width: ~1900–2500 mm
Machine Height: ~2500–2700 mm
Machine Weight: ~5000–5500 kg
Compact Footprint
Easy Installation
DOOSAN DNM 400 – GENERAL INFORMATION
Machine Type: Vertical Machining Center (VMC)
Linear Guideway Construction
Compact Design
High Reliability
Designed for General Machining
Easy to Maintain
INDUSTRIES THAT USE DOOSAN DNM 400
Automotive
Aerospace
General Engineering
Job Shops
Tool & Die
Precision Manufacturing
TYPICAL PARTS DOOSAN DNM 400 CAN PRODUCE
Precision Brackets
Mold Components
Fixtures & Jigs
Valve Bodies
Machine Components
Aluminum & Steel Parts
WHY CHOOSE DOOSAN DNM 400
Compact and Efficient
Reliable Performance
Versatile Applications
Easy to Operate
Low Maintenance
Strong Value in Used Market
WHY BUY USED DOOSAN DNM 400
Buying a used Doosan DNM 4000 is a strong investment for shops looking for modern performance, high speed, and compact efficiency at a reduced cost.
One of the biggest advantages of this machine is its compact footprint with full machining capability. It is specifically designed for lean manufacturing cells and space-constrained environments, allowing shops to maximize floor utilization without sacrificing productivity.
Another key benefit is its high-speed performance. With rapid traverse rates of 48 m/min and a direct-drive spindle, the machine delivers fast cycle times, improved surface finishes, and longer tool life. This makes it ideal for high-volume production of small precision parts.
The DNM 4000 also includes advanced features such as thermal compensation, adaptive feed control, and tool load monitoring, which help maintain accuracy and protect tooling during extended operations. Additionally, the use of FANUC controls ensures ease of programming, strong reliability, and global service support.
HOW MUCH DOES A USED DOOSAN DNM 400COST?
The cost of a used Doosan DNM 4000 varies depending on year, condition, spindle hours, and included options.
Typically, used machines range between $40,000 and $90,000, depending on configuration and condition. Machines with options such as through-spindle coolant, probing systems, and automation readiness (robot integration, pallet systems) tend to be priced higher.
Since the DNM 4000 is a relatively newer model compared to older DNM series machines, it generally commands a higher resale value due to its advanced features, faster speeds, and improved efficiency.
Overall, it offers excellent value for manufacturers seeking a modern, compact, high-speed machining center.
