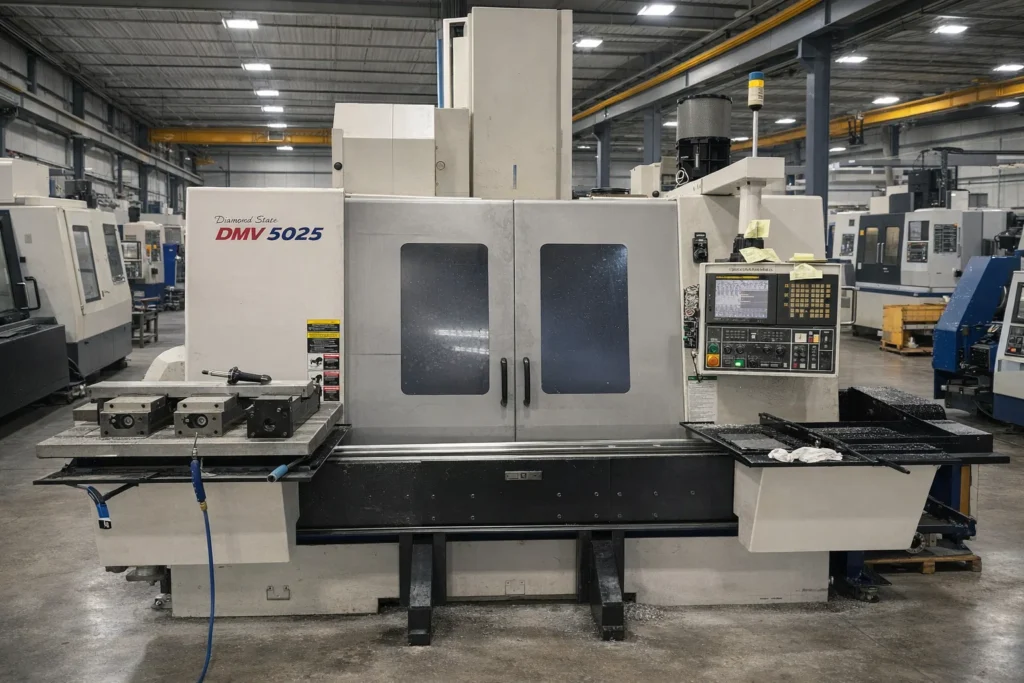

The Doosan DMV 5025 is a mid-to-large size CNC vertical machining center (VMC) designed for high-precision machining, medium-to-heavy duty cutting, and production applications. It is part of Doosan’s DMV series, known for combining robust construction with reliable performance, making it a popular choice in job shops and manufacturing facilities.
This machine features a rigid cast iron structure, often paired with box guideways, providing excellent vibration damping and stability during aggressive cutting operations. The DMV 5025 is equipped with a CAT 40 spindle capable of speeds up to 12,000 RPM, delivering a strong balance between torque and high-speed machining.
With travels of approximately 50″ × 25″ × 25″, the machine offers a large work envelope suitable for machining medium to large components. It also includes an automatic tool changer (typically 24 tools) and is commonly fitted with Fanuc CNC controls, ensuring ease of operation and wide industry support.
The DMV 5025 is widely used in industries such as automotive, aerospace, and general manufacturing due to its durability, precision, and ability to handle a wide range of materials including steel, aluminum, and cast iron.
DOOSAN DMV 5025SPECIFICATIONS
DOOSAN DMV 5025 – AXIS TRAVELS
X-Axis Travel: ~1270 mm (50″)
Y-Axis Travel: ~635 mm (25″)
Z-Axis Travel: ~635 mm (25″)
Large Work Envelope
Ideal for Medium to Large Parts
High Precision Movements
DOOSAN DMV 5025 – CAPACITY
Table Size: ~1400 × 650 mm
Max Table Load: ~800–1000 kg
Suitable for Large Components
Strong Workholding Capability
Ideal for Production
Heavy-Duty Capacity
DOOSAN DMV 5025 – SPINDLE
Max Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Motor Power: ~20 HP
Optional High Torque Versions
Balanced Speed & Power
Versatile Machining
DOOSAN DMV 5025 – TABLE
Table Configuration: Fixed Table
Working Surface: ~1400 × 650 mm
T-Slot Table
Rigid Construction
Supports Large Fixtures
Stable Setup
DOOSAN DMV 5025 – TOOL TURRET
Tool Changer Type: Automatic
Tool Capacity: 24 Tools
Tool Change Type: Side Mount Twin Arm
Tool Taper: CAT 40
Fast Tool Changes
Reliable ATC System
DOOSAN DMV 5025 – FEEDRATES
Rapid Traverse X/Y: ~30 m/min
Rapid Traverse Z: ~20 m/min
Smooth Axis Motion
Stable Cutting Performance
Optimized for Productivity
Consistent Accuracy
DOOSAN DMV 5025 – COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant Available
Flood Coolant System
Chip Conveyor / Auger
Efficient Chip Removal
Designed for Continuous Operation
Clean Machining Environment
DOOSAN DMV 5025 – CONTROL SYSTEM
CNC Control: Fanuc 21i Series
User-Friendly Interface
Reliable Performance
Easy Programming
Widely Supported
Industry Standard
DOOSAN DMV 5025 – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 220–240 VAC
Approx Power: ~40–50 kVA
Air Requirement: ~6–7 bar
Efficient Power Usage
Suitable for Most Shops
DOOSAN DMV 5025 – DIMENSIONS
Machine Length: ~3300 mm
Machine Width: ~2800 mm
Machine Height: ~3100 mm
Machine Weight: ~7,500–8,000 kg
Large Footprint
Stable Installation
DOOSAN DMV 5025 – GENERAL INFORMATION
Machine Type: Vertical Machining Center (VMC)
Box Way Construction (Common)
Large Work Envelope
High Rigidity
Designed for Heavy Cutting
Reliable Performance
INDUSTRIES THAT USE DOOSAN DMV 5025
Automotive
Aerospace
General Engineering
Heavy Manufacturing
Tool & Die
Precision Machining
TYPICAL PARTS DOOSAN DMV 5025 CAN PRODUCE
Large Fixtures
Mold Components
Structural Parts
Machine Components
Automotive Parts
Aluminum & Steel Parts
WHY CHOOSE DOOSAN DMV 5025
Large Machining Capacity
Strong and Rigid Design
Reliable Fanuc Control
Versatile Applications
Ideal for Heavy Cutting
Excellent Used Market Value
WHY BUY USED DOOSAN DMV 5025
Buying a used Doosan DMV 5025 is a smart choice for manufacturers looking for a reliable and capable vertical machining center without the cost of a new machine.
One of the biggest advantages of this machine is its large work envelope combined with strong rigidity. The box-way construction (on many models) provides excellent stability, allowing for heavy cutting and consistent accuracy over long production runs.
Another key benefit is its versatility. With a 24-tool automatic tool changer and a 12,000 RPM spindle, the DMV 5025 can handle a wide variety of machining tasks—from roughing large parts to finishing precision components.
Additionally, the use of Fanuc controls ensures ease of programming, strong reliability, and widespread availability of parts and service. Many used machines also come equipped with valuable options such as through-spindle coolant, chip conveyors, and probing systems, which further enhance productivity.
Its combination of size, power, and reliability makes it an excellent choice for both job shops and production environments.
HOW MUCH DOES A USED DOOSAN DMV 5025COST?
The cost of a used Doosan DMV 5025 depends on factors such as year, condition, spindle hours, and included options.
Typically, used machines range between $30,000 and $70,000, depending on configuration and condition. Older models from the early 2000s are generally on the lower end, while well-maintained machines with upgrades such as through-spindle coolant, probing, or higher spindle speeds can command higher prices.
Originally, new machines were priced around $120,000 to $180,000 depending on options, which makes the used market particularly attractive for buyers seeking value.
Overall, the DMV 5025 offers excellent value for manufacturers needing a larger, more capable VMC at a competitive price.
