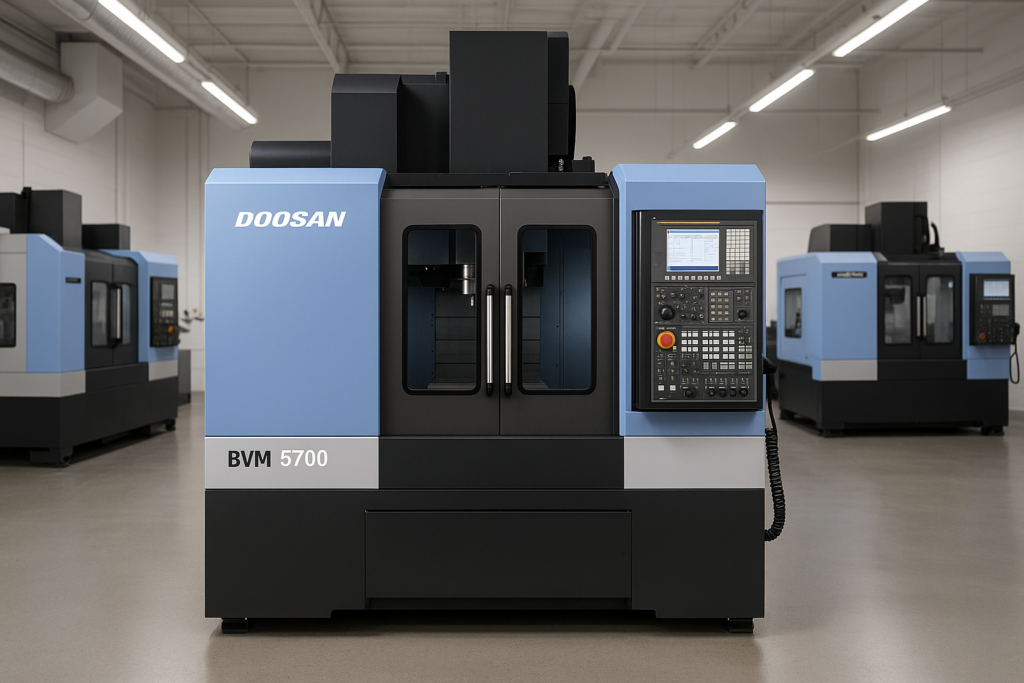

The DOOSAN BVM 5700 is a robust vertical machining center designed for high-precision milling and reliable performance in demanding production environments. Built with a rigid cast-iron structure and advanced thermal stability design, the BVM 5700 provides excellent vibration damping and consistent dimensional accuracy, making it suitable for both heavy cutting and high-speed machining applications. Its generous work envelope and long axis travels allow it to accommodate a wide range of part sizes, offering flexibility for job shops and production facilities alike.
The machine is equipped with a powerful spindle that delivers both high torque and high-speed capability, enabling efficient machining of materials such as aluminum, steel, cast iron, and engineering alloys. Controlled by Fanuc or Siemens CNC systems, the BVM 5700 offers intuitive programming, precise motion control, and seamless CAD/CAM integration to optimize machining cycles and improve productivity. Features such as a high-capacity tool magazine, rapid traverse speeds, and optional probing systems help reduce setup times and increase overall throughput.
The DOOSAN BVM 5700 is widely used in automotive, aerospace, general engineering, and mold and die applications for producing precision components with tight tolerances. Its combination of accuracy, durability, and user-friendly operation makes it a dependable and cost-effective vertical machining solution for modern manufacturing environments.
DOOSAN BVM 5700SPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 1,050 mm (41.3 in)
Y-Axis Travel: 570 mm (22.4 in)
Z-Axis Travel: 460 mm (18.1 in)
Table Size: 1,200 × 570 mm
Max Table Load: 1,000 kg (2,204 lbs)
SPINDLE
Type: Built-in Direct Drive
Spindle Taper: HSK-A63
Max Speed: 20,000 rpm
Power: 22 kW (29.5 hp)
Max Torque: ~95 Nm
TOOL MAGAZINE
Tool Capacity: 30 tools (optional 60)
Tool Type: HSK-A63
Max Tool Diameter: 75 mm (adjacent), 125 mm (non-adjacent)
Max Tool Length: 300 mm
Max Tool Weight: 7 kg
FEEDRATES
Rapid Traverse (X/Y/Z): 48 / 48 / 36 m/min
Cutting Feedrate: Up to 20 m/min
Guideways: Roller-type linear guideways
COOLANT & CHIP MANAGEMENT
Coolant Tank: ~300 liters
Through-Spindle Coolant: Optional, up to 70 bar
Chip Conveyor: Standard (hinged belt or scraper)
Oil Skimmer and Mist Collector: Optional
CONTROL SYSTEM
FANUC 0i-MF Plus (standard)
Siemens 828D / Heidenhain (optional)
USB, Ethernet, probing, tool load monitoring
DOOSAN BVM 5700 – GENERAL INFORMATION
Model: Doosan BVM 5700
Machine Type: Bridge-Type Vertical Machining Center
Structure: Dual-column, bridge-type design for extreme rigidity
