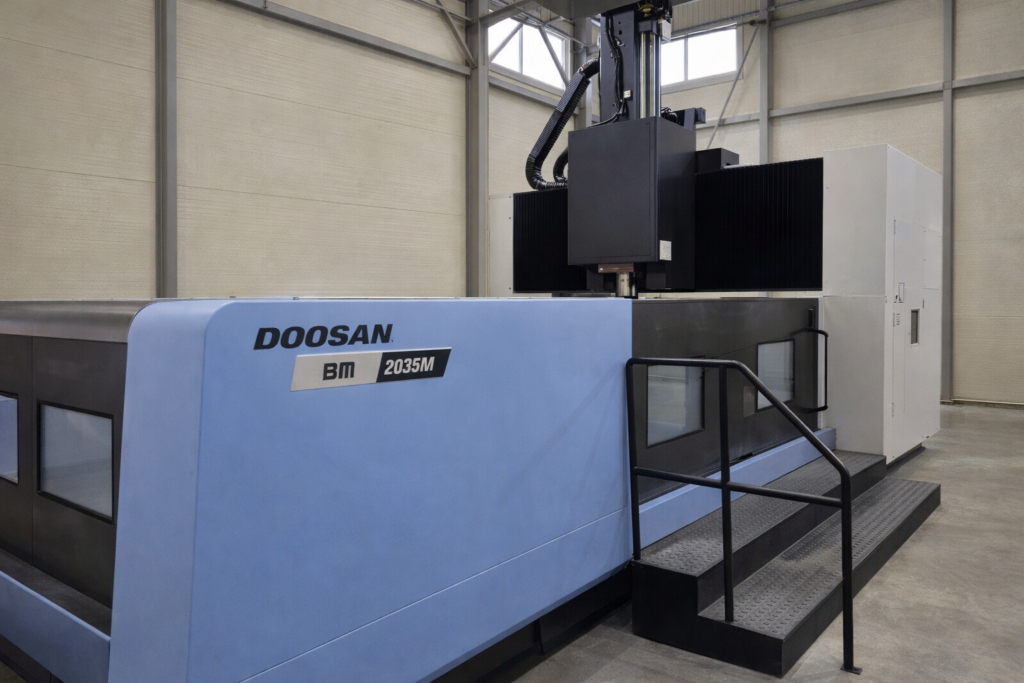

The used Doosan BM 2035M is a large double-column (bridge-type) CNC vertical machining center built for machining oversized and heavy components with high rigidity and precision. It is commonly used in industries such as aerospace, mold & die, energy, and heavy equipment manufacturing where large work envelopes and stable cutting performance are critical.
This machine features a rigid bridge construction with LM roller guideways and a high-torque built-in spindle, allowing it to handle both aggressive roughing and fine finishing operations. The BM 2035M is designed to maintain accuracy across long travels, supported by thermal compensation systems and precision feedback components.
When buying a used BM 2035M, it is important to inspect spindle health, alignment across full axis travel, tool changer condition, and structural wear, as these machines are typically used for demanding large-part production.
DOOSAN BM 2035MSPECIFICATIONS
DOOSAN BM 2035M – AXIS TRAVELS
X-Axis Travel: 3500 mm
Y-Axis Travel: 2050 mm
Z-Axis Travel: 800 mm
Large Double-Column Travel Range
Designed for Oversized Components
Verify Accuracy Across Full Stroke
DOOSAN BM 2035M – CAPACITY
Max Workpiece Weight: ~10,000 kg
Max Workpiece Height: ~1000 mm
Distance Between Columns: ~2200 mm
Suitable for Heavy Workpieces
Ideal for Large Plates & Structures
Check Table and Load Condition
DOOSAN BM 2035M – SPINDLE
Max Spindle Speed: ~12,000 RPM
Spindle Taper: BIG PLUS CAT 50 / BT50
Motor Power: ~30 kW (~40 HP)
Torque: ~420 Nm
High Torque Built-In Spindle
Inspect Spindle Condition Carefully
DOOSAN BM 2035M – TABLE
Table Size: ~3500 × 1850 mm
Table Load Capacity: ~10,000 kg
Large Machining Surface
Supports Multi-Part Fixtures
Suitable for Heavy Components
Inspect Flatness and Wear
DOOSAN BM 2035M – TOOL TURRET
Tool Changer Type: Automatic Tool Changer (ATC)
Tool Capacity: ~40 Tools
Tool Taper: CAT 50
Max Tool Length: ~400 mm
Arm-Type ATC System
Check Tool Changer Operation
DOOSAN BM 2035M – FEEDRATES
Rapid Traverse (X/Y/Z): ~16 m/min
Stable Motion Over Long Travels
Suitable for Heavy Milling
Good for Roughing & Finishing
Feed Depends on Setup
Verify Axis Performance
DOOSAN BM 2035M – COOLANT & CHIP MANAGEMENT
Chip Conveyor Typically Included
Designed for Large Chip Volume
Through-Spindle Coolant Optional
Large Coolant Tank System
Suitable for Long Cycle Runs
Clean System Improves Efficiency
DOOSAN BM 2035M – CONTROL SYSTEM
CNC Control: Fanuc / Siemens / Heidenhain Options
Advanced Machining Capabilities
User-Friendly Interface
Supports Complex Programs
Reliable Industrial Controls
Verify Control Condition
DOOSAN BM 2035M – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Typical Voltage: 220–440 VAC
Approx Power: ~40–60 kVA
Air Requirement: ~6–8 bar
Stable Power Supply Required
Verify Shop Compatibility
DOOSAN BM 2035M – DIMENSIONS
Machine Length: ~9540 mm
Machine Width: ~4960 mm
Machine Height: ~4770 mm
Machine Weight: ~35,500 kg
Requires Large Floor Space
Ensure Proper Installation Area
DOOSAN BM 2035M – GENERAL INFORMATION
Machine Type: Double Column CNC Vertical Machining Center
Series: BM Series
Bridge-Type Construction
Designed for Large-Part Machining
High Rigidity Structure
Suitable for Heavy Industrial Use
Built for Precision Over Long Travels
INDUSTRIES THAT USE DOOSAN BM 2035M
Aerospace
Automotive
Mold & Die
Heavy Equipment
Energy
General Manufacturing
TYPICAL PARTS DOOSAN BM 2035M CAN PRODUCE
Large Plates
Mold Bases
Structural Frames
Heavy Fixtures
Aerospace Panels
Precision Large Components
WHY CHOOSE DOOSAN BM 2035M
Extra-Large Work Envelope
High Load Capacity
Rigid Double-Column Design
High Torque Spindle
Excellent Stability for Large Parts
Ideal for Heavy-Duty Machining
WHY BUY USED DOOSAN BM 2035M
Buying a used Doosan BM 2035M is ideal for shops that require large-format machining with high rigidity. The double-column design ensures consistent accuracy across large surfaces while minimizing vibration.
Another major advantage is productivity. With a powerful spindle and large table capacity, the machine allows machining of large components in fewer setups, improving efficiency.
Its versatility across industries and ability to handle both heavy roughing and precision finishing makes it a strong investment for high-capacity machining operations.
HOW MUCH DOES A USED DOOSAN BM 2035MCOST?
Pricing for a used Doosan BM 2035M depends on year, condition, spindle configuration, control system, and installed options.
Typical pricing ranges:
2012–2016 models: around $180,000 to $300,000
2016–2020 models: around $250,000 to $380,000
2020–2025 models: around $350,000 to $500,000+
Machines equipped with probing systems, high-speed spindles, linear scales, and automation options will typically command higher prices.
