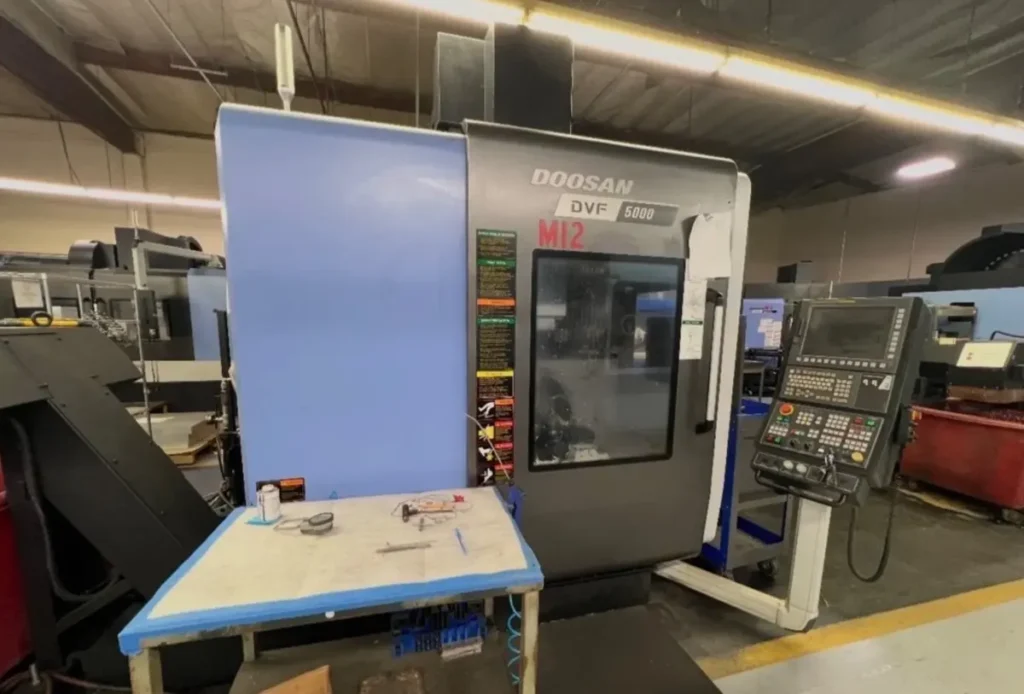

USED DOOSAN DVF 5000 – 2020

The Doosan DVF 5000 – 2020 is a premium simultaneous 5-axis vertical machining center engineered to meet the demanding requirements of modern precision manufacturing. Designed and manufactured by Doosan Machine Tools, now known globally as DN Solutions, the DVF 5000 combines advanced multi-axis machining technology, high-speed spindle performance, and exceptional machine rigidity to deliver superior productivity and precision. As manufacturers increasingly seek to reduce setup times and produce more complex components, the DVF 5000 has become one of the most popular 5-axis machining centers in its class.

The machine utilizes a trunnion-style rotary table that enables simultaneous movement across five axes, allowing operators to access multiple surfaces of a workpiece during a single machining cycle. This significantly reduces the need for multiple fixtures and setups, resulting in improved dimensional accuracy, shorter production times, and lower overall manufacturing costs. The machine’s design is particularly beneficial for producing intricate components that require machining from several angles while maintaining tight tolerances.

Built on a rigid cast iron platform, the DVF 5000 offers excellent vibration dampening and thermal stability, ensuring consistent performance even during aggressive cutting operations. The machine is equipped with a high-speed direct-drive spindle capable of handling a wide range of materials, including aluminum, stainless steel, titanium, tool steel, Inconel, brass, copper, and engineering plastics. This versatility allows manufacturers to utilize the machine across diverse applications and industries.

The DVF 5000 is widely used in aerospace, medical device manufacturing, automotive, defense, energy, mold and die, and precision engineering industries. Manufacturers rely on the machine to produce complex parts such as turbine blades, aerospace brackets, medical implants, impellers, mold inserts, and precision housings. Its combination of speed, accuracy, and flexibility makes it suitable for both prototype development and high-volume production environments.

The used market for the 2020 Doosan DVF 5000 remains exceptionally strong because it provides modern 5-axis machining capabilities at a significantly lower investment than a new machine. Buyers benefit from acquiring advanced manufacturing technology while reducing capital expenditures. With its proven reliability, advanced features, and strong reputation in the industry, the DVF 5000 continues to be one of the most sought-after used 5-axis machining centers available today.

---

DOOSAN DVF 5000 – AXIS

Specification	Value
Number of Axes	5 Axis
Axis Configuration	X, Y, Z, B, C
Simultaneous Machining	Full 5-Axis
Machine Design	Trunnion Style
Rapid Traverse Rate	1,575 IPM

---

DOOSAN DVF 5000 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	24.6 in
Y-Axis Travel	17.7 in
Z-Axis Travel	15.7 in
B-Axis Rotation	+110° / -30°
C-Axis Rotation	360° Continuous
Maximum Workpiece Diameter	21.7 in
Maximum Workpiece Height	17.7 in

---

DOOSAN DVF 5000 – CAPACITY / TABLE

Specification	Value
Table Diameter	19.7 in
Maximum Table Load	882 lbs
Table Type	Trunnion Rotary Table
Table Surface	Precision Ground
Rotary Axis Drive	Direct Drive

---

DOOSAN DVF 5000 – SPINDLE

Specification	Value
Spindle Type	Direct Drive
Maximum Spindle Speed	18,000 RPM
Spindle Taper	BIG PLUS CAT40
Spindle Power	30 HP
Maximum Torque	118 Nm
Spindle Cooling	Oil-Cooled

---

DOOSAN DVF 5000 – TOOL CHANGER

Specification	Value
Standard Tool Capacity	60 Tools
Optional Capacity	120 Tools
Tool Changer Type	Automatic Tool Changer
Maximum Tool Diameter	3.1 in
Maximum Tool Length	11.8 in
Tool-to-Tool Time	Approx. 1.3 Seconds

---

DOOSAN DVF 5000 – CONTROL SYSTEM

Specification	Value
CNC Control	Fanuc 31i-B5
Simultaneous 5-Axis Control	Standard
Programming Capability	ISO G-Code
Ethernet Connectivity	Standard
USB Interface	Standard

---

DOOSAN DVF 5000 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
Through Spindle Coolant	Available
Coolant Filtration	Integrated
Chip Removal	Chip Conveyor
Coolant Tank Capacity	High Capacity

---

DOOSAN DVF 5000 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V / 400V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 40 kVA

---

DOOSAN DVF 5000 – DIMENSIONS

Specification	Value
Machine Length	Approx. 114 in
Machine Width	Approx. 87 in
Machine Height	Approx. 114 in
Machine Weight	Approx. 16,500 lbs

---

DOOSAN DVF 5000 – GENERAL INFORMATION

Specification	Value
Manufacturer	Doosan Machine Tools
Model	DVF 5000
Year	2020
Machine Type	5-Axis Vertical Machining Center
Construction	Heavy-Duty Cast Iron
Typical Materials	Aluminum, Steel, Titanium, Plastics
Production Type	Precision Multi-Axis Manufacturing

---

INDUSTRIES THAT USE DOOSAN DVF 5000

• Aerospace Manufacturing
• Medical Device Manufacturing
• Defense Industry
• Automotive Manufacturing
• Energy Industry
• Mold & Die Manufacturing
• Precision Engineering
• Electronics Manufacturing
• Contract Machining
• Research & Development

---

TYPICAL PARTS DOOSAN DVF 5000 CAN PRODUCE

• Aerospace Brackets
• Turbine Blades
• Impellers
• Medical Implants
• Surgical Instruments
• Mold Inserts
• Precision Housings
• Automotive Components
• Defense Components
• Energy System Components
• Prototype Parts
• Complex Multi-Sided Components

---

WHY CHOOSE DOOSAN DVF 5000

The Doosan DVF 5000 has become one of the most respected compact 5-axis machining centers because it successfully combines productivity, flexibility, and precision in a single machine platform. Manufacturers that invest in 5-axis technology are often looking to reduce setups, improve part quality, and increase throughput, and the DVF 5000 excels in all of these areas.

One of the machine’s most valuable features is its simultaneous 5-axis capability. Traditional machining often requires multiple setups to access different surfaces of a part. Each setup introduces potential errors and increases production time. The DVF 5000 allows manufacturers to complete complex components in a single setup, improving accuracy while dramatically reducing cycle times. This capability is particularly valuable for aerospace, medical, and mold manufacturing applications where precision is critical.

The machine’s trunnion-style table provides exceptional rigidity and accessibility. Operators can easily reach complex features while maintaining stable cutting conditions. Combined with the high-speed 18,000 RPM spindle, the machine delivers excellent surface finishes and efficient material removal rates across a wide range of materials.

Another reason manufacturers choose the DVF 5000 is its compact footprint. While offering advanced 5-axis capabilities, the machine occupies less floor space than many competing systems. This allows manufacturers to maximize production capacity without requiring significant facility expansion.

The Fanuc control system further enhances productivity by providing reliable operation, advanced programming capabilities, and compatibility with modern CAM software. Shops benefit from shorter setup times, improved machine utilization, and greater process consistency.

The combination of modern technology, proven reliability, and outstanding machining performance makes the Doosan DVF 5000 an ideal solution for manufacturers seeking to increase competitiveness while maintaining exceptional quality standards.

---

WHY BUY USED DOOSAN DVF 5000

Purchasing a used Doosan DVF 5000 offers manufacturers a practical and cost-effective path into advanced 5-axis machining. New simultaneous 5-axis machining centers require substantial capital investment, which may not fit every company’s budget. A used DVF 5000 allows manufacturers to access sophisticated machining technology at a significantly reduced acquisition cost while maintaining excellent performance and productivity.

The 2020 model remains highly desirable because it incorporates modern machine design, advanced controls, and current-generation spindle technology. Unlike older machining platforms that may lack the speed, accuracy, and software capabilities required for today’s manufacturing environment, the DVF 5000 remains highly competitive and capable of supporting demanding production requirements.

One of the greatest advantages of purchasing used equipment is immediate availability. New machine purchases often involve long lead times associated with manufacturing schedules and delivery timelines. Used machines can frequently be acquired and installed much faster, allowing companies to increase production capacity and respond to customer demands without delay.

The machine’s reputation for reliability is another major benefit. Doosan has established itself as one of the leading machine tool manufacturers in the world, known for producing durable and dependable equipment. The DVF 5000 is built with a rigid cast iron structure, quality components, and proven engineering principles that support long-term performance and reduced maintenance costs.

Many used machines are also sold with valuable upgrades already installed. Tooling packages, probing systems, through-spindle coolant, expanded tool magazines, chip conveyors, and automation interfaces can add significant value while reducing future investment requirements.

For manufacturers seeking to expand their machining capabilities while maintaining financial flexibility, a used Doosan DVF 5000 offers an outstanding balance of performance, reliability, and cost savings.

---

HOW MUCH DOES A USED DOOSAN DVF 5000 COST?

The cost of a used Doosan DVF 5000 varies depending on several factors including machine condition, spindle hours, maintenance records, tooling packages, installed options, geographic location, and overall market demand. Because the machine remains a highly desirable 5-axis machining platform, resale values continue to be strong throughout the used CNC machinery market.

Machine condition is often the most important factor affecting value. Machines with lower spindle hours, complete maintenance documentation, and excellent cosmetic and mechanical condition typically command premium prices. Buyers often prefer equipment that has been maintained according to manufacturer recommendations because these machines generally provide lower ownership risk and longer service life.

Installed options can significantly influence pricing as well. Machines equipped with advanced probing systems, tool setters, through-spindle coolant, larger tool magazines, pallet systems, automation interfaces, and software enhancements often sell for substantially more than standard configurations. These features improve productivity and reduce setup time, making them highly attractive to prospective buyers.

Market demand continues to support strong pricing for the DVF 5000. As more manufacturers transition toward multi-axis machining, demand for reliable and proven 5-axis platforms remains high. This demand contributes to healthy resale values and strong market activity.

Transportation, rigging, installation, and commissioning costs should also be considered when evaluating a machine purchase. Although these costs vary depending on location and facility requirements, they can represent a meaningful portion of the total investment.

In today’s used CNC equipment market, a 2020 Doosan DVF 5000 typically sells within a range of approximately $180,000 to $350,000, depending on condition, spindle hours, tooling, accessories, and installed options. Machines with low operating hours, extensive tooling packages, and advanced automation features may command prices above this range.

When evaluating value, manufacturers should focus not only on acquisition cost but also on the long-term productivity benefits the machine can provide. The DVF 5000’s ability to reduce setup times, improve part quality, eliminate secondary operations, and increase overall manufacturing efficiency often generates substantial returns on investment. These advantages continue to make the Doosan DVF 5000 one of the most desirable used 5-axis machining centers available in the global CNC marketplace.
