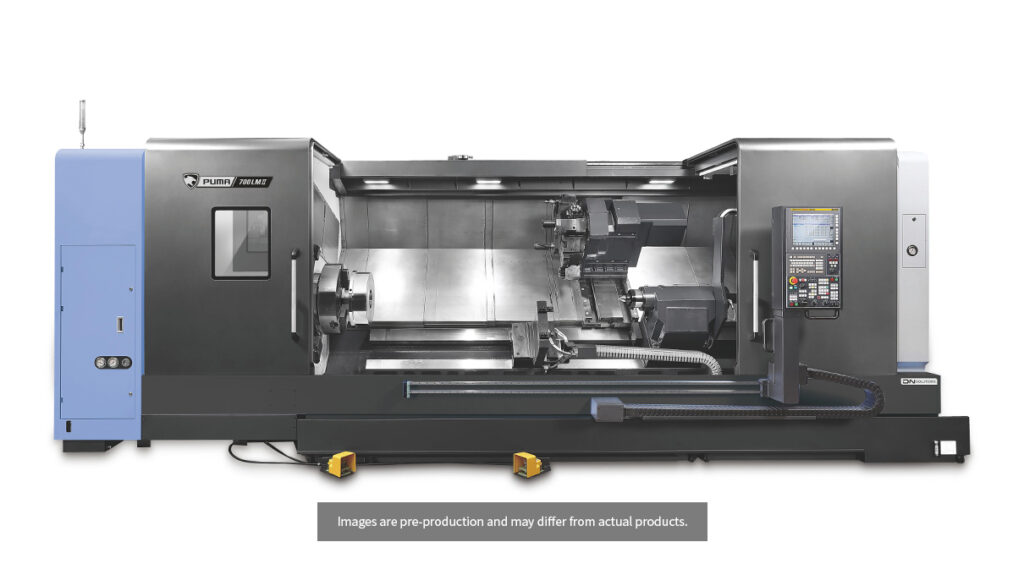

USED DN SOLUTIONS PUMA 800XLM II

The DN SOLUTIONS PUMA 800XLM II is a heavy-duty extra-long-bed CNC turning center with integrated live tooling capabilities, engineered for manufacturers that require large-scale turning and milling operations within a single machine platform. As one of the most versatile models in the PUMA 800 II Series, the PUMA 800XLM II combines exceptional turning capacity, extended workpiece support, powerful spindle performance, and live tooling functionality to deliver outstanding productivity for demanding industrial applications. The machine is ideally suited for industries such as oil and gas, power generation, shipbuilding, mining, transportation, heavy equipment manufacturing, and industrial machinery production where large and complex parts require multiple machining operations.

The PUMA 800XLM II is built on a rigid cast iron machine structure with hardened box guideways that provide exceptional stability during heavy-duty machining. Its extra-long-bed configuration allows manufacturers to machine shafts, rollers, hydraulic cylinders, marine propulsion components, drilling equipment, and structural machine parts measuring over 16 feet in length. By enabling complete machining in a single setup, the machine helps reduce alignment errors, improve part accuracy, and increase overall production efficiency.

One of the key advantages of the PUMA 800XLM II is its live tooling capability. Unlike standard CNC lathes that perform only turning operations, the PUMA 800XLM II can execute drilling, tapping, milling, slotting, and other secondary machining operations directly on the machine. This eliminates the need to transfer workpieces to additional machining centers, reducing setup times and improving throughput. The combination of C-axis spindle positioning and live tooling significantly enhances manufacturing flexibility and enables the production of more complex components.

The machine is equipped with a high-torque gearbox spindle capable of handling difficult materials including stainless steel, alloy steel, cast iron, titanium, and high-strength industrial alloys. Combined with the machine’s heavy-duty construction, this spindle provides excellent cutting performance for both roughing and finishing operations.

Typically controlled by a FANUC CNC system, the PUMA 800XLM II offers advanced turning and milling functionality, diagnostics, tool management features, and production monitoring capabilities. Optional equipment such as programmable tailstocks, steady rests, high-pressure coolant systems, chip conveyors, and automation solutions further enhance productivity.

The used CNC machine market continues to show strong demand for the DN SOLUTIONS PUMA 800XLM II because it offers exceptional machining flexibility, extended turning length, and proven industrial reliability at a significantly lower cost than comparable new equipment.

---

DN SOLUTIONS PUMA 800XLM II – AXIS

Specification	Details
Number of Controlled Axes	3 Axis + C-Axis
X-Axis	Cross Slide Axis
Z-Axis	Longitudinal Turning Axis
C-Axis	Spindle Positioning and Interpolation
Live Tool Capability	Yes

---

DN SOLUTIONS PUMA 800XLM II – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	18.5 in (470 mm)
Z-Axis Travel	200.8 in (5,100 mm)
X-Axis Rapid Traverse	472 IPM (12 m/min)
Z-Axis Rapid Traverse	394 IPM (10 m/min)
Maximum Turning Diameter	35.4 in (900 mm)
Maximum Turning Length	198.8 in (5,050 mm)

---

DN SOLUTIONS PUMA 800XLM II – CAPACITY / TABLE

Specification	Details
Chuck Size	32 in Hydraulic Chuck
Maximum Swing Over Bed	41.3 in (1,050 mm)
Maximum Turning Diameter	35.4 in (900 mm)
Maximum Turning Length	198.8 in (5,050 mm)
Spindle Bore Capacity	Up to 14.7 in (375 mm)
Work Holding	Hydraulic Chucks, Faceplates, Soft Jaws, Hard Jaws, and Custom Fixtures

---

DN SOLUTIONS PUMA 800XLM II – SPINDLE

Specification	Details
Maximum Spindle Speed	750 RPM
Spindle Power	74 HP (55 kW)
Maximum Torque	5,957 ft-lb (8,076 Nm)
Spindle Type	Heavy-Duty Gearbox Spindle
Spindle Nose	A2-15

---

DN SOLUTIONS PUMA 800XLM II – TOOL CHANGER

Specification	Details
Turret Type	Live Tool Servo Turret
Number of Tool Stations	12 Stations
Rotary Tool Speed	3,000 RPM
Tool Configuration	Static and Live Tool Holders
Tool Indexing	Automatic Servo Indexing

---

DN SOLUTIONS PUMA 800XLM II – CONTROL SYSTEM

Specification	Details
CNC Control	FANUC Series Control
Programming	G-Code Programming with Turning and Milling Functions
Operator Interface	Color LCD Display
Features	C-Axis Machining, Tool Management, Diagnostics, and Production Monitoring

---

DN SOLUTIONS PUMA 800XLM II – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	Flood Coolant System
High-Pressure Coolant	Optional
Chip Removal	Automatic Chip Conveyor
Coolant Filtration	Multi-Stage Filtration System
Enclosure	Full Heavy-Duty Enclosure

---

DN SOLUTIONS PUMA 800XLM II – POWER REQUIREMENTS

Specification	Details
Electrical Requirement	220V / 380V / 440V Three Phase
Connected Load	Approximately 95–125 kVA
Pneumatic Requirement	Clean Dry Compressed Air

---

DN SOLUTIONS PUMA 800XLM II – DIMENSIONS

Specification	Details
Machine Length	Approximately 390 in (9,900 mm)
Machine Width	Approximately 118 in (3,000 mm)
Machine Height	Approximately 112 in (2,850 mm)
Machine Weight	Approximately 60,000 lbs (27,200 kg)

---

DN SOLUTIONS PUMA 800XLM II – GENERAL INFORMATION

Specification	Details
Manufacturer	DN SOLUTIONS
Model	PUMA 800XLM II
Machine Type	Extra-Long Bed CNC Turning Center with Live Tooling
Machine Condition	Used
Typical Operations	Turning, Facing, Boring, Threading, Drilling, Milling, Tapping, Grooving, and Finishing
Automation Compatibility	Tailstocks, Steady Rests, Chip Conveyors, Gantry Systems, and Robotic Automation

---

INDUSTRIES THAT USE DN SOLUTIONS PUMA 800XLM II

The DN SOLUTIONS PUMA 800XLM II is widely used by manufacturers producing large and complex components that require both turning and milling operations. Oil and gas companies utilize the machine for drilling equipment, tubular products, couplings, valve stems, pressure-control components, and pump shafts. The machine’s long-bed design allows extended workpieces to be machined in a single setup while live tooling eliminates secondary machining operations.

Power generation companies use the PUMA 800XLM II for turbine shafts, generator rotors, bearing supports, and rotating equipment. Marine and shipbuilding industries rely on the machine for propulsion shafts, rudder shafts, marine couplings, and structural components. Additional industries include mining equipment manufacturing, transportation equipment production, steel processing, heavy construction equipment manufacturing, and industrial fabrication.

The combination of long-bed capacity and live tooling capability makes the machine especially valuable for applications requiring high precision, reduced setup times, and improved productivity.

---

TYPICAL PARTS DN SOLUTIONS PUMA 800XLM II CAN PRODUCE

The DN SOLUTIONS PUMA 800XLM II can manufacture a broad range of large industrial components including turbine shafts, hydraulic cylinder rods, industrial rollers, marine propulsion shafts, valve stems, pump shafts, drilling equipment components, bearing housings, couplings, and pressure vessel parts.

The machine’s live tooling capability allows drilling, tapping, slotting, keyway machining, and contour milling operations to be completed directly on the workpiece. This reduces setup time, improves part accuracy, and eliminates the need for additional machining centers.

The PUMA 800XLM II is suitable for prototype work, repair operations, custom manufacturing, and high-volume production environments where large-part machining capability is required.

---

WHY CHOOSE DN SOLUTIONS PUMA 800XLM II

The DN SOLUTIONS PUMA 800XLM II offers manufacturers an exceptional combination of extra-long turning capacity and integrated milling functionality. Its extended bed allows oversized components to be machined in a single setup, significantly improving dimensional accuracy and reducing production time.

The powerful gearbox spindle delivers substantial torque for heavy-duty roughing operations while maintaining excellent surface finish quality during finishing cuts. Combined with rigid box guideways and heavy machine construction, the PUMA 800XLM II provides outstanding stability and precision.

The live tooling system further enhances productivity by allowing multiple machining operations to be completed without moving the workpiece to another machine. This reduces labor requirements and improves overall throughput.

Manufacturers also benefit from the machine’s compatibility with automation systems, programmable tailstocks, steady rests, and high-pressure coolant systems that increase efficiency and support unattended operation.

---

WHY BUY USED DN SOLUTIONS PUMA 800XLM II

Purchasing a used DN SOLUTIONS PUMA 800XLM II allows manufacturers to acquire a premium large-capacity mill-turn machine at a significantly lower cost than purchasing comparable new equipment. Large-frame CNC turning centers with live tooling and extra-long turning capacity represent major capital investments, making the used market highly attractive.

One of the primary benefits of purchasing a used PUMA 800XLM II is immediate access to advanced machining capabilities without long factory lead times. This enables manufacturers to expand production capacity quickly and respond to new customer demands.

The machine’s cast iron construction, gearbox spindle, live tooling turret, and FANUC CNC control are engineered for years of industrial service. Properly maintained machines continue to provide reliable accuracy and productivity long after their original installation.

Savings generated through purchasing used equipment can be invested in tooling, automation systems, quality control equipment, workholding solutions, and workforce development. This improves overall return on investment while increasing manufacturing capabilities.

Because of its proven reliability and exceptional versatility, the PUMA 800XLM II remains highly sought after in the used CNC machinery market and retains strong resale value.

---

HOW MUCH DOES A USED DN SOLUTIONS PUMA 800XLM II COST?

The cost of a used DN SOLUTIONS PUMA 800XLM II depends on machine age, operating hours, maintenance history, tooling inventory, CNC control version, and included accessories. Machines equipped with programmable tailstocks, steady rests, high-pressure coolant systems, extensive live tooling packages, and automation equipment generally command higher market values.

A used DN SOLUTIONS PUMA 800XLM II typically ranges between $400,000 and $1,100,000, depending on machine condition, configuration, age, and included equipment. Newer machines with documented maintenance records, lower spindle hours, and extensive accessory packages generally achieve premium pricing.

Before purchasing a used PUMA 800XLM II, buyers should evaluate spindle condition, turret indexing accuracy, live tooling performance, guideway wear, lubrication systems, hydraulic systems, coolant systems, and CNC control functionality. A thorough inspection can help identify maintenance requirements and ensure dependable long-term operation.

Additional ownership costs such as transportation, rigging, installation, electrical setup, tooling, operator training, and preventive maintenance should also be considered when calculating total investment costs. Even after these expenses, a used PUMA 800XLM II remains substantially more affordable than purchasing a comparable new large-capacity mill-turn machine.

For manufacturers seeking maximum turning length, integrated milling capability, powerful spindle performance, and proven industrial reliability, the used DN SOLUTIONS PUMA 800XLM II delivers an exceptional combination of productivity, precision, versatility, and long-term value.
