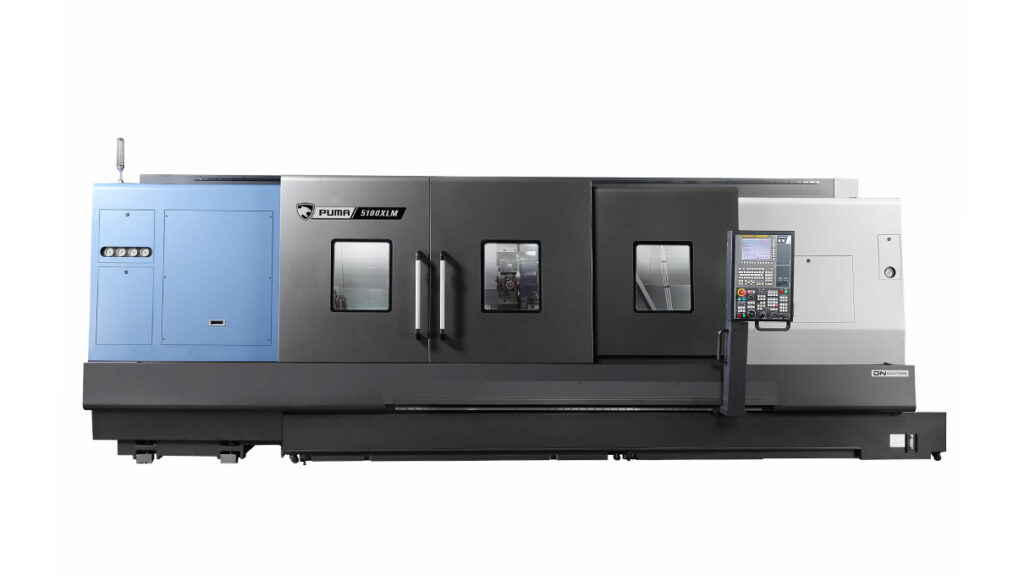

USED DN SOLUTIONS PUMA 5100XLMB

The DN Solutions PUMA 5100XLMB is a heavy-duty CNC turning and milling center designed for manufacturers that require exceptional machining capacity, long-bed performance, and powerful spindle torque for large and complex workpieces. As part of the renowned PUMA 4100/5100 Series from DN Solutions, formerly known as Doosan Machine Tools, the PUMA 5100XLMB combines high-performance turning, milling, drilling, tapping, and contouring capabilities into a single machine platform. The machine is specifically engineered for industries that manufacture oversized components and require the ability to perform multiple machining operations without transferring parts between machines.

The PUMA 5100XLMB features a massive 21-inch chuck, a maximum turning diameter of approximately 26 inches, and an impressive maximum turning length of approximately 119 inches. This substantial machining envelope makes it ideal for producing long shafts, rollers, hydraulic cylinders, oilfield components, power generation equipment, and large industrial machinery parts. The extended-bed configuration allows manufacturers to process large workpieces while maintaining exceptional dimensional accuracy and surface finish quality throughout the machining cycle.

Built on a rigid cast iron slant-bed structure, the machine delivers outstanding vibration dampening and thermal stability. These characteristics are particularly important when machining large steel forgings, castings, stainless steels, and high-strength alloys. The machine’s robust construction enables aggressive cutting performance while maintaining long-term reliability in demanding production environments.

One of the most valuable features of the PUMA 5100XLMB is its live tooling capability. Manufacturers can perform milling, drilling, tapping, and secondary machining operations directly on the lathe, reducing setup times and eliminating the need for additional machining centers. This capability improves productivity, increases accuracy, and lowers overall manufacturing costs.

The machine’s powerful spindle system delivers approximately 60 HP and over 2,100 ft-lb of torque, making it exceptionally capable for heavy-duty cutting applications. Combined with a programmable hydraulic tailstock and advanced CNC controls, the PUMA 5100XLMB provides manufacturers with a complete solution for machining large and complex rotational components.

In the used CNC machinery market, the PUMA 5100XLMB remains highly sought after because it offers exceptional capacity, heavy-duty cutting performance, and multi-tasking capability at a significantly lower investment than purchasing comparable new equipment.

---

DN SOLUTIONS PUMA 5100XLMB – AXIS

Specification	Value
Number of Axes	4 Axis
X-Axis Travel	14 in
Z-Axis Travel	124 in
C-Axis Positioning	0.001°
X-Axis Rapid Traverse	630 IPM
Z-Axis Rapid Traverse	787 IPM

---

DN SOLUTIONS PUMA 5100XLMB – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
Maximum Turning Diameter	26 in
Maximum Turning Length	119 in
Swing Over Bed	35 in
Swing Over Saddle	27 in
Bar Capacity	6 in
Machining Capability	Turning and Milling

---

DN SOLUTIONS PUMA 5100XLMB – CAPACITY / TABLE

Specification	Value
Chuck Size	21 in
Maximum Workpiece Diameter	26 in
Maximum Workpiece Length	119 in
Tailstock	Programmable Hydraulic Tailstock
Workholding Type	Hydraulic Chuck
Production Type	Heavy-Duty Long-Part Machining

---

DN SOLUTIONS PUMA 5100XLMB – SPINDLE

Specification	Value
Maximum Spindle Speed	1,500 RPM
Main Spindle Power	60 HP
Main Spindle Torque	2,182 ft-lb
Spindle Bore	6 in
Spindle Nose	A2-15
Drive Type	AC Digital Spindle Drive

---

DN SOLUTIONS PUMA 5100XLMB – TOOL CHANGER

Specification	Value
Turret Type	Live Tool Servo Turret
Number of Stations	12 Stations
Live Tool Capability	Yes
Live Tool Speed	4,000 RPM
Rotary Tool Power	10 HP
Tool Holding	Turning and Milling Tools

---

DN SOLUTIONS PUMA 5100XLMB – CONTROL SYSTEM

Specification	Value
CNC Control	FANUC Series CNC
Ethernet Connectivity	Yes
USB Interface	Yes
C-Axis Machining	Supported
Conversational Programming	Supported
Multi-Function Programming	Included

---

DN SOLUTIONS PUMA 5100XLMB – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
Coolant Pump	High Capacity
Chip Conveyor	Automatic
Filtration System	Multi-Stage
Coolant Tank	Large Capacity
Enclosure	Fully Enclosed

---

DN SOLUTIONS PUMA 5100XLMB – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V / 440V 3-Phase
Connected Load	Approx. 75 kVA
Main Disconnect	Included
Electrical Protection	Industrial Grade

---

DN SOLUTIONS PUMA 5100XLMB – DIMENSIONS

Specification	Value
Machine Length	278 in
Machine Width	92 in
Machine Height	90 in
Machine Weight	29,100 lbs

---

DN SOLUTIONS PUMA 5100XLMB – GENERAL INFORMATION

Specification	Value
Manufacturer	DN Solutions
Model	PUMA 5100XLMB
Machine Type	CNC Turning and Milling Center
Construction	Heavy-Duty Cast Iron
Primary Application	Large-Part Machining
Control System	FANUC
Industry Focus	Oil & Gas, Energy, Aerospace, Heavy Equipment

---

WHY BUY USED DN SOLUTIONS PUMA 5100XLMB

The DN Solutions PUMA 5100XLMB is one of the most capable heavy-duty turning centers available in the used CNC marketplace. Manufacturers investing in large-part machining operations often seek equipment that can combine high torque, large work envelopes, and multi-tasking capability while maintaining reliability and precision. The PUMA 5100XLMB delivers all of these advantages in a single platform.

One of the primary reasons manufacturers purchase a used PUMA 5100XLMB is the substantial cost savings compared to buying a new heavy-duty turning center. New machines in this class often require a significant capital investment. A quality used machine allows companies to acquire advanced machining capability while preserving capital for tooling, automation, staffing, and facility improvements.

The machine’s large machining envelope offers another major advantage. With nearly 10 feet of turning length capacity and a 21-inch chuck, manufacturers can process oversized components without requiring multiple setups. This capability improves productivity and reduces the possibility of dimensional errors caused by repositioning large workpieces.

Live tooling functionality further increases machine value by enabling drilling, milling, tapping, and contouring operations directly on the lathe. This reduces cycle times, improves workflow efficiency, and eliminates the need for secondary machining operations. For manufacturers producing complex components, this can dramatically improve overall throughput.

Durability is another key benefit. DN Solutions machines are known worldwide for their robust construction and long service life. The heavy-duty cast iron base, high-torque spindle system, and precision guideways allow the PUMA 5100XLMB to perform reliably even under demanding production conditions.

Many used machines are also available with valuable options such as chip conveyors, tooling packages, high-pressure coolant systems, and automation interfaces. These additions increase productivity while reducing implementation costs. For manufacturers requiring large-part machining capability, the PUMA 5100XLMB remains one of the most attractive investments in the used CNC market.

---

HOW MUCH DOES A USED DN SOLUTIONS PUMA 5100XLMB COST?

The cost of a used DN Solutions PUMA 5100XLMB varies depending on several factors, including machine age, condition, maintenance history, spindle hours, included tooling, and installed options. Because the machine occupies the heavy-duty segment of the CNC turning market, it typically commands higher resale values than standard turning centers.

Machine condition is often the most significant pricing factor. Equipment that has been maintained according to manufacturer recommendations generally sells at premium prices due to increased buyer confidence. Service records, spindle performance, guideway condition, turret accuracy, and overall machine reliability all contribute to market valuation.

Installed options can significantly impact resale value. Features such as high-pressure coolant systems, programmable tailstocks, chip conveyors, tooling packages, automation interfaces, bar feeders, and probing systems increase machine capability and often justify higher asking prices. Buyers frequently prefer machines already equipped with these features because they reduce startup costs.

Market demand also plays an important role. Industries such as oil and gas, aerospace, power generation, heavy equipment manufacturing, transportation, and industrial machinery production continue to require machines capable of processing large and complex components. Strong demand from these sectors helps support resale values for machines like the PUMA 5100XLMB.

In general, a used DN Solutions PUMA 5100XLMB can range from approximately $180,000 to more than $500,000 depending on machine age, condition, configuration, and included accessories. Newer machines with lower operating hours and extensive options typically command premium pricing, while older machines may provide exceptional value for manufacturers seeking heavy-duty machining capability at a lower acquisition cost.

For many companies, investing in a used PUMA 5100XLMB results in substantial returns through improved productivity, reduced setup times, lower labor costs, and increased machining flexibility. The machine’s ability to process large components efficiently often makes it one of the most profitable assets in a manufacturing facility.

---

INDUSTRIES THAT USE DN SOLUTIONS PUMA 5100XLMB

• Oil and Gas Manufacturing
• Power Generation
• Aerospace Manufacturing
• Heavy Equipment Manufacturing
• Defense Industry
• Transportation Equipment Manufacturing
• Industrial Machinery Manufacturing
• Mining Equipment Manufacturing
• Marine Equipment Manufacturing
• Contract Manufacturing

---

TYPICAL PARTS DN SOLUTIONS PUMA 5100XLMB CAN PRODUCE

• Oilfield Components
• Large Pump Shafts
• Hydraulic Cylinders
• Industrial Rollers
• Drive Shafts
• Turbine Components
• Mining Equipment Parts
• Marine Shafts
• Bearing Housings
• Transmission Components
• Power Generation Components
• Heavy Equipment Components

---

WHY CHOOSE DN SOLUTIONS PUMA 5100XLMB

The DN Solutions PUMA 5100XLMB is an outstanding choice for manufacturers that require large-part machining capability, heavy-duty spindle performance, and advanced live tooling functionality. Its combination of a massive work envelope, high-torque spindle, long-bed design, and multi-tasking capability allows manufacturers to machine complex components efficiently while maintaining exceptional accuracy.

Manufacturers choose the PUMA 5100XLMB because it reduces setup times, improves productivity, lowers operating costs, and provides the flexibility needed for demanding applications. Combined with DN Solutions’ reputation for durability, reliability, and machining performance, the PUMA 5100XLMB remains one of the most desirable heavy-duty turning and milling centers available in the used CNC machinery market. Its ability to handle large, high-value components while delivering long-term reliability makes it an excellent investment for modern manufacturing operations.
