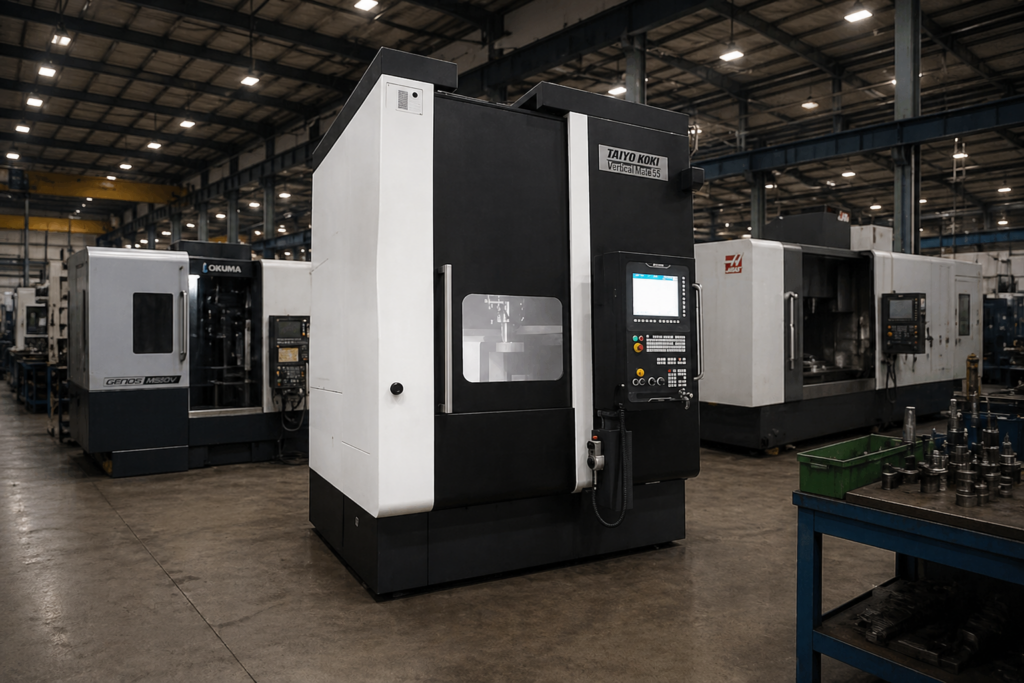

USED DMG MORI VERTICAL MATE 35

The DMG MORI Vertical Mate 35 is a compact CNC vertical multi-process grinding machine designed for high-precision internal (ID), external (OD), and face grinding in a single setup. It is part of the Vertical Mate series developed by Taiyo Koki under DMG MORI, known for combining flexibility, accuracy, and cost-effectiveness in a relatively small footprint. This machine is widely used in industries such as automotive, aerospace, bearing manufacturing, and tooling, where complex geometries and tight tolerances are essential.

The Vertical Mate 35 is optimized for small to medium-sized components, featuring a swing diameter of 350 mm, maximum grinding diameter of 350 mm, and a maximum workpiece height of 350 mm. It supports a grinding length of up to 250 mm, making it suitable for components like bearing races, gears, and precision housings. The machine can handle workpieces up to approximately 200 kg, offering a balance between compact size and practical capacity.

A key advantage of the Vertical Mate 35 is its multi-process capability. With a 2-position turret and an automatic tool changer (ATC) holding up to four tools, it can perform ID, OD, and face grinding in a single clamping. This reduces setup time and improves overall machining accuracy by eliminating repositioning errors. The machine is typically equipped with a FANUC CNC control system and conversational programming software, enabling ease of use and high repeatability.

In terms of performance, the grinding spindle can reach speeds up to 18,000 rpm, while the work spindle operates up to 500 rpm. The machine achieves high levels of accuracy, with roundness around 1.0 µm and surface finish up to Ra 0.2 µm, making it suitable for high-precision applications. Overall, the Vertical Mate 35 is a versatile and efficient grinding solution for manufacturers requiring precision, flexibility, and productivity in a compact vertical format.

DMG MORI VERTICAL MATE 35 SPECIFICATIONS

WHY BUY USED DMG MORI VERTICAL MATE 35

Buying a used DMG MORI Vertical Mate 35 is a strategic choice for manufacturers seeking advanced grinding capabilities without the high capital investment of a new machine. One of the most compelling reasons is cost efficiency. New vertical grinding machines with multi-process capability can be expensive due to their precision engineering, but used models offer similar performance at a significantly reduced price, making them accessible to small and mid-sized workshops.

Another major advantage is machine reliability. DMG MORI machines are built with high rigidity and long-lasting components, and the Vertical Mate series is known for its simple yet robust design. Because grinding processes involve relatively low cutting forces compared to milling, structural wear is minimized, allowing even older machines to maintain accuracy if properly maintained. This makes pre-owned units a viable option for long-term use.

Cutting time, or machine hours, is a critical factor when evaluating a used Vertical Mate 35. Machines with lower grinding hours typically retain better spindle condition, axis precision, and measurement accuracy. However, even machines with higher usage can still perform well if they have been regularly serviced or refurbished, such as through spindle overhauls, encoder replacements, or control upgrades. In many cases, maintenance history is more important than the manufacturing year.

Another benefit is faster deployment. Used machines are generally available for immediate purchase and installation, avoiding long lead times associated with new equipment. Many used Vertical Mate 35 units also come with tooling, dressers, or measurement probes, which adds immediate operational value and reduces setup costs.

Finally, depreciation works in favor of the buyer. High-end grinding machines lose a significant portion of their value over time while retaining their functional capabilities. This makes a used Vertical Mate 35 an excellent option for companies looking to expand capacity, improve precision, or enter the grinding segment without a large upfront investment.

HOW MUCH DOES A USED DMG MORI VERTICAL MATE 35 COST?

The cost of a used DMG MORI Vertical Mate 35 varies depending on factors such as manufacturing year, machine condition, cutting hours, included tooling, and any upgrades or retrofits. As a compact yet highly capable vertical grinding machine, it typically falls into a mid-to-high price range within the used CNC grinding market.

For machines manufactured before 2000, prices typically range from $25,000 to $60,000. These machines often have higher cutting hours and may require refurbishment, such as spindle rebuilding, control upgrades, or replacement of measurement systems. However, they can still be suitable for less demanding applications or smaller production volumes if properly maintained.

Machines from the 2000–2010 period generally fall within the $50,000 to $110,000 range. These units often include improved CNC controls and better automation compatibility. Cutting time plays a major role in this category—machines with lower hours or recent refurbishments can command higher prices due to improved reliability and performance.

For newer machines manufactured between 2010 and 2025, prices can range from $100,000 to $200,000 or more. These machines typically feature lower cutting hours, enhanced accuracy retention, and modern features such as automatic measurement systems and tool changers. They are ideal for high-precision and high-volume production environments where uptime and consistency are critical.

Cutting time remains one of the most important pricing factors. A low-hour machine with a strong maintenance record will command a premium, while a high-hour machine may require additional investment in repairs or calibration. Buyers should also consider costs related to installation, tooling, and possible retrofits. Overall, the Vertical Mate 35 offers strong value in the used market, combining precision, flexibility, and multi-process capability at a competitive price point.
