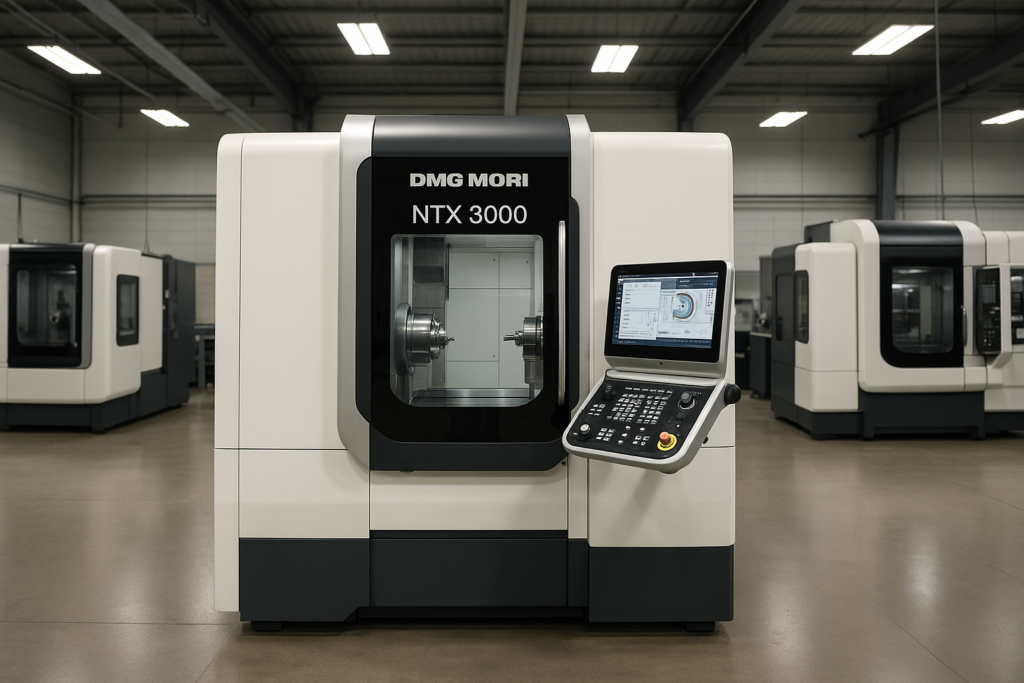

USED DMG MORI NTX 3000 The DMG MORI NTX 3000 is a premium, large-capacity multi-tasking mill-turn center engineered for the complete machining of complex, heavy, and long components in a single setup. It integrates high-performance turning, full 5-axis simultaneous milling , and dual-spindle functionality with a B-axis milling head , offering extraordinary versatility and precision for industries with demanding part geometries and tight tolerances.
Designed for medium to large workpieces , the NTX 3000 offers powerful main and counter spindles, large bar capacity, and an expansive working envelope. The B-axis milling spindle allows complex contouring and angular machining operations with high-speed live tooling capability. Built on DMG MORI’s ultra-rigid mineral cast bed, the NTX 3000 provides exceptional thermal stability and vibration damping.
Ideal for aerospace, energy, medical, and heavy automotive applications, the NTX 3000 also supports automation , including bar feeders, gantry loaders, and robot integration. It features the CELOS interface with Siemens 840D solutionline , delivering intuitive programming, smart factory integration, and enhanced productivity.
DMG MORI NTX 3000 SPECIFICATIONS
AXIS TRAVELS X-Axis: 710 mm Y-Axis: ±150 mm (300 mm total) Z-Axis: 1,540 mm B-Axis (Milling Spindle): ±120° swivel C-Axis (Main/Counter Spindle): 360°, 0.001° indexing
MAIN SPINDLE Max Speed: 3,000 rpm Power: 40 – 50 kW Max Torque: Up to 1,194 Nm Bar Capacity: 102 mm Spindle Nose: A2-11
COUNTER SPINDLE Max Speed: 4,000 rpm Power: 30 kW Torque: 240 – 300 Nm Chuck Size: 10″ or 12″ Full synchronization for part transfer
MILLING SPINDLE (B-AXIS) Taper: HSK-A100 or HSK-A63 (configurable) Max Speed: 12,000 rpm (optional 20,000 rpm) Power: Up to 35 – 40 kW Torque: Up to 220 Nm Swivel Range: ±120° for full contouring
TOOL CHANGER Tool Capacity: 38 tools standard (up to 120 optional) Tool Change Time: ~1.5 – 2 seconds Max Tool Length: 400 mm Max Tool Diameter: 80 mm (adjacent), 130 mm (non-adjacent) Max Tool Weight: 12 kg
FEEDRATES Rapid Traverse (X/Y/Z): 50 m/min Cutting Feedrate: Up to 30 m/min B/C-Axis Indexing: 0.001° resolution
COOLANT & CHIP MANAGEMENT Flood Coolant: Standard Through-Spindle Coolant: Up to 70 bar (optional) High-efficiency chip conveyor Mist and thermal compensation systems available
CONTROL SYSTEM CELOS with Siemens 840D solutionline 21.5” ERGOline Touch Panel Conversational and G-code programming Industry 4.0 and remote diagnostics ready
POWER & AIR REQUIREMENTS Electrical Power: ~90 – 110 kVA Air Pressure: ~0.6 MPa
DMG MORI NTX 3000 – GENERAL INFORMATION Model: DMG MORI NTX 3000 Machine Type: Turn & Mill Center (Mill-Turn Machine) Configuration: B-axis milling spindle + dual turning spindles + optional lower turret Control: CELOS with Siemens 840D solutionline Build Platform: Mineral cast bed for rigidity and thermal control Purpose: Complete machining of large, complex workpieces in one setup
DMG MORI NTX 3000 – KEY CAPABILITIES Complete 5-axis machining and turning in one machine High-torque turning and milling of large, heavy workpieces Dual spindles for complete front and back machining Large bar capacity and long-axis travel B-axis milling head for angular features and contouring High-speed tool changers and extensive tool magazines Ready for automation: bar feeder, gantry, or robot compatible
INDUSTRIES THAT USE DMG MORI NTX 3000 Aerospace (engine casings, landing gear parts, turbine disks) Oil & Gas (valves, flanges, connectors) Automotive (gear housings, drivetrain parts) Medical (large implants, surgical instruments) Energy (turbine parts, nuclear components) High-End Job Shops and Precision Manufacturing
TYPICAL PARTS DMG MORI NTX 3000 CAN PRODUCE Large shafts and axles Aerospace brackets and mountings Valve bodies and large flanges Gear housings and cylinder blocks Surgical tools and orthopedic implants Hydraulic components with angular holes and contours
WHY CHOOSE THE DMG MORI NTX 3000 Full-featured 5-axis + mill-turn center with unmatched precision Reduces setups and increases part quality Capable of machining large parts with complex features High spindle power and bar capacity for challenging materials Excellent stability and repeatability for long production runs Factory automation ready with CELOS integration
Summary Table PARAMETER VALUE Max Turning Diameter ~660 mm Max Turning Length ~1,540 mm Main Spindle Speed 3,000 rpm Milling Spindle Speed 12,000 – 20,000 rpm Milling Spindle Power 35 – 40 kW Tool Magazine Capacity 38 – 120 tools Y-Axis Travel ±150 mm Bar Capacity 102 mm Control System CELOS + Siemens 840D
How much does used DMG MORI NTX 3000 CONFIGURATION ESTIMATED PRICE (USD) Base Model (12k milling, 38 tools) $400,000 – $480,000 Mid-Spec (15k spindle, 60+ tools, Y-axis) $500,000 – $600,000 High-End (20k spindle, automation-ready) $650,000 – $800,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
