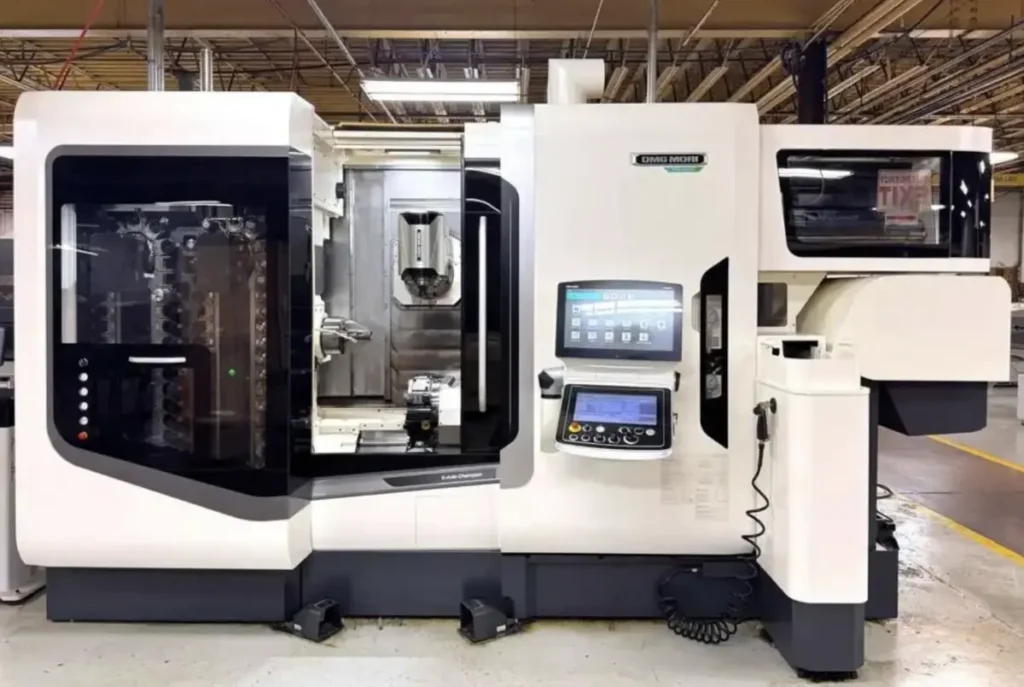

USED DMG MORI NTX 1000 – 2022

The 2022 DMG MORI NTX 1000 is a high-performance CNC turn-mill center designed for manufacturers requiring advanced turning, milling, drilling, tapping, and simultaneous 5-axis machining capability within a single machine platform. The NTX 1000 combines the functions of a CNC turning center and machining center, allowing complex components to be completed with fewer setups and reduced workpiece handling. This integration improves production efficiency while helping maintain positional accuracy between turning and milling operations. DMG MORI identifies the NTX 1000 as a compact integrated mill-turn machine capable of machining workpieces up to approximately 430 mm in diameter and 800 mm in length.

The NTX 1000 utilizes a rigid machine structure developed for high-precision multi-tasking operations. Its compact footprint provides a comparatively large machining envelope while maintaining accessibility for operators, tooling, maintenance, and workpiece loading. The machine incorporates advanced thermal management technologies designed to control thermal displacement and maintain machining accuracy during extended production cycles. This is particularly important when the machine is performing multiple operations in one setup where dimensional relationships between turned and milled features must remain highly consistent.

The 2022 NTX 1000 2nd Generation can be configured with CELOS and either MAPPS/FANUC or Siemens control architecture depending on machine configuration. The milling spindle uses a Capto C5 interface and can provide spindle speeds up to approximately 12,000 RPM as standard, with higher-speed configurations available. The B-axis provides approximately 240 degrees of rotation and uses DMG MORI Direct Drive Motor technology to support simultaneous 5-axis machining of complex components.

The machine is capable of processing materials including aluminum, stainless steel, carbon steel, titanium, brass, cast iron, nickel-based alloys, and engineering plastics. It is particularly suitable for aerospace components, medical components, automotive parts, precision industrial hardware, energy equipment, hydraulic components, tool and mold components, and other complex parts requiring multiple machining operations.

One of the biggest advantages of the NTX 1000 is its ability to combine turning and milling operations in a single setup. Manufacturers can perform contour milling, drilling, tapping, off-center machining, turning, and other operations without repeatedly transferring the component between separate machines. This can reduce setup time, work-in-process inventory, and potential errors associated with multiple workholding setups.

Many NTX 1000 configurations include advanced production features such as a sub-spindle, lower turret, automatic tool changer, high-speed milling spindle, probing, chip management systems, bar feeders, and robotic automation. The NTX 1000 can also be equipped with DMG MORI automation solutions such as the In Machine Traveling Robot for automated loading and unloading.

Industries including aerospace, medical manufacturing, automotive, energy, precision engineering, industrial automation, and contract machining use turn-mill technology because of its ability to manufacture complex components with fewer setups and improved process consistency.

Because of its combination of 5-axis machining, turning capability, Y-axis movement, B-axis interpolation, advanced control technology, and compact machine design, the 2022 DMG MORI NTX 1000 remains a highly capable multi-tasking CNC machine for demanding production environments.

---

DMG MORI NTX 1000 – AXIS

SpecificationDetails
Machine Configuration	CNC Integrated Turn-Mill Center
Axis Configuration	X, Y, Z, B & C Axes
X-Axis Travel	Approx. 17.9 in / 455 mm
Y-Axis Travel	Approx. ±4.1 in / 210 mm
Z-Axis Travel	Approx. 31.5 in / 800 mm
B-Axis Rotation	Approx. 240°
B-Axis Drive	Direct Drive Motor
Simultaneous Machining	5-Axis Capability

The NTX 1000 provides X, Y, Z, B, and C-axis machining capability, with the B-axis supporting complex angular and simultaneous 5-axis machining operations.

---

DMG MORI NTX 1000 – AXIS TRAVELS / WORK ENVELOPE

SpecificationDetails
Maximum Workpiece Diameter	Approx. 16.9 in / 430 mm
Maximum Workpiece Length	Approx. 31.5 in / 800 mm
Maximum Bar Capacity	Up to Approx. 2.6 in / 65 mm
Maximum X-Axis Travel	Approx. 17.9 in / 455 mm
Maximum Y-Axis Travel	Approx. 8.3 in / 210 mm
Maximum Z-Axis Travel	Approx. 31.5 in / 800 mm
Maximum Distance Between Centers	Approx. 41.3 in / 1,050 mm

The NTX 1000 provides a substantial machining envelope for a compact turn-mill center, with approximately 430 mm maximum workpiece diameter and 800 mm maximum workpiece length.

---

DMG MORI NTX 1000 – CAPACITY / TABLE

SpecificationDetails
Machine Type	Integrated CNC Turn-Mill Center
Production Capability	Complete Machining / Multi-Tasking
Maximum Turning Diameter	Approx. 430 mm
Maximum Turning Length	Approx. 800 mm
Workholding Compatibility	Main Spindle & Optional Sub-Spindle
Multi-Tasking Capability	Turning, Milling, Drilling & Tapping
Automation Ready	Yes
Production Environment	High-Mix & High-Production Manufacturing

The machine is designed for complete machining of complex workpieces where turning and milling operations need to be performed in a coordinated production process.

---

DMG MORI NTX 1000 – SPINDLE

SpecificationDetails
Main Spindle Type	CNC Turning Spindle
Main Spindle Speed	Approx. 5,000 RPM*
Milling Spindle Interface	Capto C5
Standard Milling Spindle Speed	Approx. 12,000 RPM
Optional Milling Spindle Speed	Up to Approx. 20,000 RPM
B-Axis Drive	Direct Drive Motor
Milling Capability	5-Axis Simultaneous Machining

*Spindle specifications can vary according to the exact 2022 machine configuration. The NTX 1000 platform supports milling spindle speeds of approximately 12,000 RPM as standard, with 20,000 RPM configurations available.

---

DMG MORI NTX 1000 – TOOL CHANGER

SpecificationDetails
Tool Changer Type	Automatic Tool Changer
Tool Interface	Capto C5
Typical Tool Capacity	Configuration Dependent
Example 2022 SZM Configuration	76 Stations
Milling Tool Storage	Chain Magazine
Tooling Capability	Turning, Milling, Drilling & Tapping
Lower Turret	Optional / Configuration Dependent
Live Tool Speed	Up to Approx. 10,000 RPM on Equipped Lower Turret

2022 NTX 1000 SZM machines can be equipped with a 76-tool magazine and lower turret with driven tooling. Exact tool capacity depends on the machine configuration and installed options.

---

DMG MORI NTX 1000 – CONTROL SYSTEM

SpecificationDetails
CNC Control Platform	FANUC / Siemens Configuration
Operator Interface	CELOS
FANUC Configuration	MAPPS / CELOS Interface
Programming Capability	G-Code & Conversational Programming
Ethernet Connectivity	Available
USB Connectivity	Configuration Dependent
Technology Cycles	DMG MORI Technology Cycles
Display Interface	Touchscreen CELOS Interface

The NTX 1000 can be configured with FANUC/MAPPS or Siemens control architecture, while CELOS provides an integrated operator interface and access to machine and production functions.

---

DMG MORI NTX 1000 – COOLANT / DUST / WATER MANAGEMENT

SpecificationDetails
Coolant Delivery System	Flood Coolant
Coolant Management	Integrated Coolant System
Chip Management	Chip Conveyor / Collection System
High-Pressure Coolant	Optional / Configuration Dependent
Through-Spindle Coolant	Configuration Dependent
Chip Evacuation	Enclosed Machining Area
Coolant Filtration	Configuration Dependent

Efficient coolant and chip management are important for the NTX 1000 because the machine can perform turning and high-speed milling operations within the same enclosed machining environment.

---

DMG MORI NTX 1000 – POWER REQUIREMENTS

SpecificationDetails
Electrical Configuration	Industrial CNC Power System
Power Requirement	Configuration Dependent
Main Spindle Power	Configuration Dependent
Milling Spindle Power	Configuration Dependent
Voltage	Region / Machine Configuration Dependent
Phase	3-Phase Industrial Power
Pneumatic Requirement	Standard Shop Air
Installation	Industrial CNC Environment

Electrical requirements vary according to spindle configuration, automation equipment, coolant options, transformer requirements, and regional machine specifications. Buyers should verify the original machine electrical documentation before installation.

---

DMG MORI NTX 1000 – DIMENSIONS

SpecificationDetails
Approximate Machine Weight	Approx. 25,000+ lbs for Fully Equipped Configurations
Machine Length	Approx. 164 in*
Machine Width	Approx. 100 in*
Machine Height	Approx. 100 in*
Installation Footprint	Compact Multi-Tasking Layout
Automation Space	Additional Space May Be Required

*Dimensions vary according to machine configuration, automation, chip conveyor, tool magazine, bar feeder, and other installed options. A documented 2022 NTX 1000 SZM configuration is listed at approximately 25,353 lbs and 164 × 100.1 × 100.1 inches.

---

DMG MORI NTX 1000 – GENERAL INFORMATION

SpecificationDetails
Manufacturer	DMG MORI
Model	NTX 1000
Year	2022
Machine Category	CNC Turn-Mill Center
Machine Generation	2nd Generation Configuration
Primary Application	Complete Turning & Milling
Axis Capability	X, Y, Z, B & C
5-Axis Capability	Yes
Common Materials Machined	Steel, Aluminum, Titanium, Stainless Steel

The 2022 NTX 1000 belongs to the second-generation NTX 1000 platform, which was designed around integrated turning and milling with simultaneous 5-axis capability and a large machining envelope relative to its compact footprint.

---

INDUSTRIES THAT USE DMG MORI NTX 1000

The DMG MORI NTX 1000 is widely suited to industries requiring complex, high-precision components that benefit from complete machining in a single setup. Aerospace manufacturers can use the machine for producing structural fittings, aerospace adapters, housings, shafts, connectors, turbine-related components, and other precision parts requiring simultaneous turning and multi-axis milling.

Medical manufacturers commonly use multi-tasking turn-mill centers for producing surgical components, medical instrument bodies, orthopedic hardware, implants, precision connectors, and complex cylindrical components. The ability to perform multiple operations without moving the workpiece between machines can be especially valuable for maintaining dimensional relationships between features.

Automotive manufacturers can utilize the NTX 1000 for machining shafts, hubs, housings, drivetrain components, precision connectors, valve components, and other production parts requiring turning and secondary milling operations.

Energy and oil and gas manufacturers can use the machine for valve components, fittings, hydraulic parts, sleeves, connectors, manifolds, and other precision components requiring accurate turning, drilling, threading, and milling.

Industrial automation manufacturers can use the NTX 1000 for machining actuator components, robotic hardware, precision housings, shafts, couplings, and custom production components.

Tool and mold manufacturers can also benefit from the B-axis and simultaneous 5-axis machining capability when producing complex geometries and components that require multiple angular machining operations.

General precision machine shops frequently choose multi-tasking equipment because it can consolidate multiple manufacturing processes into one machine. The NTX 1000 is particularly suitable for shops producing medium-sized complex components in moderate-to-high production volumes.

The machine’s combination of turning, milling, Y-axis movement, B-axis interpolation, and optional sub-spindle and lower turret capability allows manufacturers to build production processes around complete machining rather than relying on multiple independent machines.

---

TYPICAL PARTS DMG MORI NTX 1000 CAN PRODUCE

Part TypeExamples
Aerospace Components	Adapters, Housings, Structural Fittings
Medical Components	Surgical Hardware, Instrument Bodies
Automotive Parts	Shafts, Hubs, Housings, Couplings
Energy Components	Valves, Fittings, Manifolds
Industrial Components	Shafts, Flanges, Cylindrical Housings
Precision Hardware	Connectors, Threaded Parts, Supports
Automation Components	Actuator Parts, Robotic Hardware

---

WHY CHOOSE DMG MORI NTX 1000

The DMG MORI NTX 1000 is designed for manufacturers seeking advanced multi-tasking machining capability without requiring separate CNC turning and milling machines for every production process. Its integrated turn-mill architecture allows turning, milling, drilling, tapping, contouring, and angular machining operations to be performed within one coordinated production environment.

One of the machine’s major advantages is its simultaneous 5-axis machining capability. The B-axis uses Direct Drive Motor technology and provides approximately 240 degrees of rotation, allowing the milling spindle to approach complex workpiece surfaces from multiple angles. This capability can significantly expand the range of geometries that can be machined without additional workholding setups.

The Y-axis provides approximately 210 mm of travel, allowing off-center machining operations that would otherwise require additional setups. This is especially useful for drilling, milling, slotting, and other features positioned away from the centerline of turned components.

Another important advantage is the machine’s substantial work envelope. The NTX 1000 can accommodate workpieces up to approximately 430 mm in diameter and 800 mm in length, making it suitable for a broad range of medium-sized precision components.

The Capto C5 milling spindle provides a rigid tooling interface and supports high-speed milling applications. Standard configurations offer approximately 12,000 RPM, while optional configurations can reach approximately 20,000 RPM, allowing manufacturers to select spindle performance according to material and application requirements.

Automation is another significant benefit. NTX 1000 machines can be integrated with bar feeders, parts handling equipment, tool magazines, probing systems, chip conveyors, and robotic loading systems. DMG MORI’s IMTR automation solution was specifically developed for NTX machines and provides automated workpiece handling capability.

The machine’s thermal management system is also designed to help control thermal displacement, supporting consistent machining accuracy during extended operating periods.

For manufacturers producing complex components requiring turning and milling in one setup, the NTX 1000 provides a highly integrated production platform capable of reducing handling, improving process consistency, and supporting sophisticated multi-axis machining operations.

---

WHY BUY USED DMG MORI NTX 1000

Purchasing a used 2022 DMG MORI NTX 1000 can provide manufacturers with access to advanced multi-tasking CNC technology while reducing the capital expenditure associated with purchasing a comparable new turn-mill center. Because the NTX 1000 combines turning and machining-center functions, one used machine can potentially replace several separate production operations.

A major advantage of purchasing a used 2022 machine is the relatively modern technology available in the platform. A properly maintained NTX 1000 can provide advanced 5-axis machining, Y-axis movement, high-speed milling, CELOS controls, automatic tool changing, and integrated turning capability without requiring a buyer to purchase an older-generation machine.

Used NTX 1000 machines can also be available with extensive factory-installed options. Depending on the exact configuration, buyers may find machines equipped with sub-spindles, lower turrets, 76-tool magazines, 20,000 RPM milling spindles, FMB bar feeders, parts unloaders, parts stackers, probing, and other production equipment already included. A documented 2022 NTX 1000 SZM listing, for example, includes a 20,000 RPM milling spindle, sub-spindle, 76-tool magazine, lower turret, parts unloading equipment, and FMB Turbo barfeed.

Another advantage is reduced setup time. Manufacturers purchasing a properly configured used NTX 1000 can consolidate multiple machining operations into a single production platform rather than purchasing separate turning and milling equipment.

Before purchasing, buyers should carefully inspect spindle condition, B-axis accuracy, C-axis performance, turret indexing, tool changer operation, guideway condition, lubrication systems, coolant equipment, probing systems, and control functionality. Maintenance records and spindle-hour information should also be reviewed.

Machine configuration is particularly important because NTX 1000 models can vary significantly in equipment level. A basic NTX 1000 and a fully equipped SZM configuration can have substantially different production capabilities and market values.

For manufacturers seeking sophisticated multi-tasking machining capability while controlling equipment acquisition costs, a well-maintained used 2022 DMG MORI NTX 1000 can provide access to advanced turn-mill technology with substantial production flexibility.

---

HOW MUCH DOES A USED DMG MORI NTX 1000 COST?

The price of a used 2022 DMG MORI NTX 1000 depends heavily on machine configuration, spindle hours, condition, control system, tooling package, automation, sub-spindle, lower turret, milling spindle speed, and included accessories. Because the NTX 1000 is a premium multi-tasking 5-axis turn-mill center, configuration differences can create substantial variations in used-market pricing.

Current 2026 listings provide useful market references for 2022 NTX 1000 machines. One listed 2022 DMG MORI NTX 1000 SZM is advertised at approximately $499,500, while other 2022 examples are being offered on a request-for-quote basis.

For a 2022 DMG MORI NTX 1000, a practical used-market range can be approximately $350,000 to $600,000+, depending on configuration and condition. More basic or higher-hour machines may fall toward the lower portion of this range, while low-hour machines equipped with a sub-spindle, lower turret, high-speed 20,000 RPM milling spindle, extensive tooling, automation, and large tool magazines can command prices around or above $500,000. Current listings support this broad range, with a 2022 NTX 1000 SZM listed at $499,500.

The original equipped price can also provide context. A 2022 NTX 1000 SZM configuration listed with extensive options had a reported new-as-equipped price of approximately $573,025.

Machine condition remains one of the most important factors affecting resale value. Buyers should evaluate spindle hours, cutting hours, B-axis accuracy, spindle bearings, turret condition, tool changer operation, thermal stability, lubrication history, coolant systems, and control-system performance before establishing a purchase price.

The installed options can have a significant impact as well. A machine with a 20,000 RPM milling spindle, 76-tool magazine, sub-spindle, lower turret, bar feeder, parts unloader, probing, and automation can have substantially greater production value than a basic configuration.

Location, transportation, installation, rigging, taxes, tooling, and commissioning should also be considered when calculating the total acquisition cost.

For manufacturers seeking a modern premium turn-mill center with advanced 5-axis machining, Y-axis capability, high-speed milling, and complete-machining flexibility, the used 2022 DMG MORI NTX 1000 represents a substantial production asset within the used CNC machinery market.
