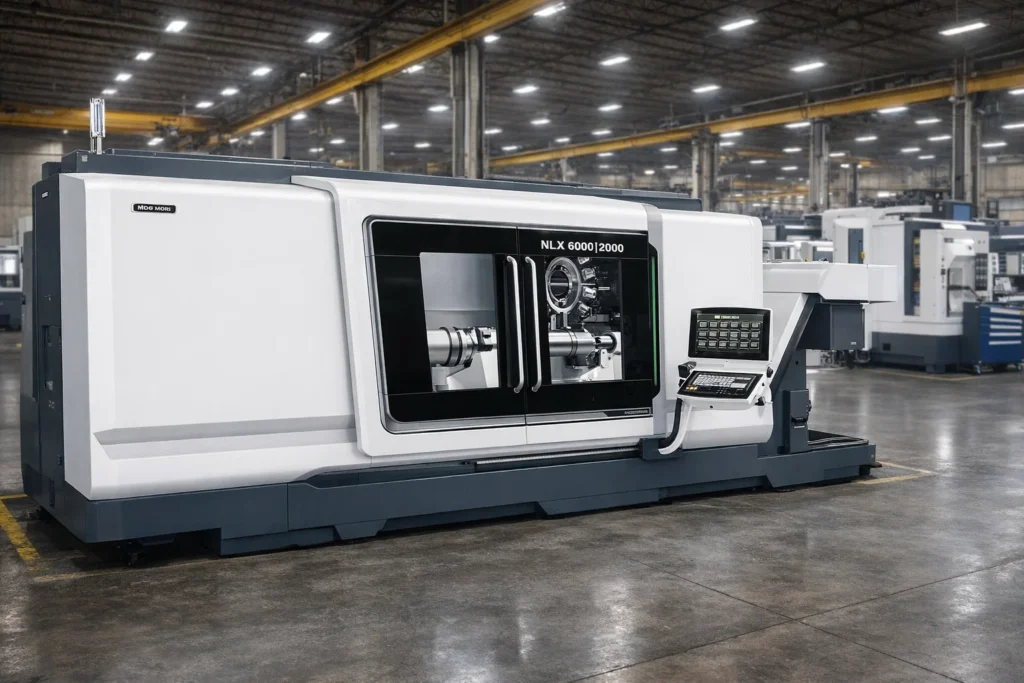

USED DMG MORI NLX 6000

The DMG MORI NLX 6000 is a heavy-duty, large-capacity CNC turning center designed for machining large-diameter and long components with high precision and rigidity. It is one of the largest models in the NLX series and is specifically engineered for industries such as oil & gas, aerospace, construction machinery, and energy, where components like shafts, pipes, and flanges require powerful cutting performance and consistent accuracy.

The machine supports a maximum workpiece diameter of up to 920 mm and a turning length of up to 2,000 mm, making it suitable for large-scale machining applications. It also offers a bar capacity of approximately 116 mm, allowing efficient machining of large bar stock. These capabilities position the NLX 6000 as a solution for heavy and long components that smaller turning centers cannot accommodate.

A key feature of the NLX 6000 is its extremely rigid construction. The machine uses box (slideway) guideways on all axes, significantly improving vibration damping and stability during heavy cutting operations. This ensures consistent surface finish and accuracy, even when machining difficult-to-cut materials.

The machine is equipped with a high-performance BMT (Built-in Motor Turret), delivering milling capability comparable to machining centers, with torque around 117 Nm. A Y-axis with up to 200 mm travel enables off-center machining, allowing turning, milling, drilling, and tapping operations in a single setup.

Thermal stability is enhanced through advanced cooling systems that minimize thermal displacement, ensuring high precision over long cutting cycles. The machine is controlled by DMG MORI’s MAPPS system with CELOS integration, offering advanced programming, simulation, and digital connectivity.

Designed for high cutting time utilization, the NLX 6000 supports automation such as robotic loading and steady rest systems. Overall, it delivers exceptional power, rigidity, and capacity for demanding large-part machining environments.

DMG MORI NLX 6000 SPECIFICATIONS

WHY BUY USED DMG MORI NLX 6000

Buying a used DMG MORI NLX 6000 is a strategic investment for manufacturers requiring heavy-duty machining capability without the high capital cost of a new machine. Machines in this category are built with massive castings, high-torque spindles, and box guideways, allowing them to maintain performance and accuracy over long operational lifespans when properly maintained.

One of the biggest advantages is cost efficiency. A new NLX 6000, especially with Y-axis, large spindle options, and automation, represents a very high capital investment. A used machine provides access to the same large work envelope, high rigidity, and powerful cutting capability at a significantly reduced cost, making it ideal for expanding capacity in heavy machining applications.

Cutting time (spindle hours) is the most critical factor when evaluating a used NLX 6000. Machines with lower cutting hours generally retain better spindle condition, turret performance, and guideway integrity. Because this machine is typically used for large and heavy parts, high-hour machines may show wear in spindle bearings, turret indexing systems, and slideways. A machine from the 2014–2020 range with moderate usage often offers better reliability than a newer but heavily used unit.

Another advantage is process capability. The NLX 6000 is designed for complete machining, allowing turning, milling, drilling, and even gear cutting operations in a single setup. Even in used condition, this significantly reduces setup time and improves workflow efficiency, especially for large components.

Additionally, DMG MORI’s global support network ensures availability of spare parts, service, and technical expertise. This reduces the risks associated with purchasing used heavy-duty equipment.

From a financial standpoint, buying used enables faster return on investment. Lower upfront cost combined with high cutting time utilization allows the NLX 6000 to quickly contribute to productivity and profitability.

HOW MUCH DOES A USED DMG MORI NLX 6000 COST?

The cost of a used DMG MORI NLX 6000 depends on manufacturing year, configuration (spindle bore size, Y-axis, turret type, automation), condition, and most importantly, cutting time (spindle hours). As one of the largest and most capable turning centers in its class, it typically commands a premium price in the used CNC market.

Machines built before 2000 (or earlier-generation large heavy-duty CNC lathes with similar capacity) generally range from $30,000 to $100,000. These machines are the most affordable but may include outdated controls and higher wear levels. Cutting time is especially critical—machines with high spindle hours may require significant refurbishment, particularly for spindle and guideway systems.

Models produced between 2000 and 2010 typically range from $100,000 to $250,000. This segment often provides a good balance between price and performance, offering improved CNC controls, better spindle technology, and enhanced rigidity. Units with low to moderate cutting time are highly desirable, as they can deliver strong performance with manageable maintenance costs.

Machines from 2010 to 2025—including the NLX 6000—typically range from $250,000 to $600,000 or more, depending on configuration and condition. Machines equipped with large spindle bore options (up to 375 mm), Y-axis capability, high-torque BMT turret, and automation systems command premium prices due to their increased flexibility and heavy-duty performance.

Cutting time remains the most important pricing factor. A newer machine with excessive spindle hours—especially one used in continuous heavy-duty production—may be less valuable than an older unit with minimal use. Buyers should carefully evaluate spindle condition, turret wear, slideway condition, and maintenance history to determine true market value and ensure long-term operational reliability.
