DMG MORI NLX 2000SY/500 – 2019
USED DMG MORI NLX 2000SY/500 – 2019
The DMG MORI NLX 2000SY/500 – 2019 is a high-performance CNC turning center designed for precision turning, milling, drilling, tapping, and complex multi-axis machining. The NLX 2000SY combines a main spindle, a second spindle, Y-axis capability, and live tooling, allowing shops to complete multiple operations in a single setup. This makes the machine particularly useful for high-value components where reducing setups and improving positional accuracy are important.
The NLX 2000SY/500 is part of DMG MORI’s NLX series of advanced turning centers. The 500 designation refers to the maximum turning length configuration, while the SY configuration adds Y-axis and second-spindle capability. Depending on the exact 2019 machine configuration, specifications can vary, particularly with spindle speed, chuck size, tooling capacity, and control package.
A typical NLX 2000SY configuration provides approximately 26 inches of X-axis travel, 4 inches of Y-axis travel, and 20 inches of Z-axis travel, with a 20.1-inch maximum turning diameter and approximately 19.7-inch maximum turning length. The machine uses a compact turning-center layout designed to provide high rigidity while maintaining excellent accessibility.
DMG MORI NLX 2000SY/500 – 2019 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Turning Center |
| Configuration | SY |
| Axis Configuration | X / Y / Z / C / B |
| X-Axis Travel | Approx. 26″ / 660 mm |
| Y-Axis Travel | Approx. ±2″ / ±50 mm |
| Z-Axis Travel | Approx. 20″ / 510 mm |
| C-Axis | Main Spindle |
| Second Spindle | Standard on SY Configuration |
| Live Tooling | Standard |
| Milling Capability | Standard |
| Y-Axis Milling | Standard |
DMG MORI NLX 2000SY/500 – 2019 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | Approx. 26″ / 660 mm |
| Y-Axis Travel | Approx. ±2″ / ±50 mm |
| Z-Axis Travel | Approx. 20″ / 510 mm |
| Maximum Turning Diameter | Approx. 20.1″ / 510 mm |
| Maximum Turning Length | Approx. 19.7″ / 500 mm |
| Bar Capacity | Approx. 2.6″ / 65 mm |
| Main Spindle Bore | Configuration Dependent |
| Second Spindle Bore | Configuration Dependent |
The 500-mm turning-length configuration provides useful capacity for medium-sized shafts, housings, fittings, and complex turned/milled components.
DMG MORI NLX 2000SY/500 – 2019 – CAPACITY / CHUCK
| Specification | Details |
|---|---|
| Main Spindle Chuck | Approx. 8″ / 203 mm |
| Second Spindle Chuck | Approx. 6″ / 152 mm |
| Maximum Turning Diameter | Approx. 20.1″ |
| Maximum Turning Length | Approx. 19.7″ |
| Maximum Bar Diameter | Approx. 2.6″ |
| Main Spindle | Integrated C-Axis |
| Second Spindle | Integrated C-Axis |
| Tailstock | Configuration Dependent |
| Workholding | Hydraulic Chuck / Collet / Fixture |
The exact chuck and bar-capacity configuration should be verified on the individual machine because options can change the usable work envelope.
DMG MORI NLX 2000SY/500 – 2019 – MAIN SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | CNC Turning Spindle |
| Spindle Nose | Configuration Dependent |
| Maximum Spindle Speed | Approx. 5,000 RPM |
| Spindle Motor | Approx. 15 HP |
| C-Axis | Standard |
| C-Axis Resolution | High Precision |
| Spindle Orientation | Standard |
| Bar Capacity | Approx. 2.6″ |
| Through-Spindle Coolant | Available |
| Milling Capability | Available |
The main spindle provides the turning power while the C-axis allows the machine to perform precise live-tool milling and drilling operations around the circumference of the workpiece.
DMG MORI NLX 2000SY/500 – 2019 – SECOND SPINDLE
| Specification | Details |
|---|---|
| Second Spindle | Standard |
| Spindle Type | Sub-Spindle |
| Maximum Spindle Speed | Approx. 5,000 RPM |
| Spindle Motor | Configuration Dependent |
| C-Axis | Standard |
| Automatic Part Transfer | Available |
| Synchronization | Available |
| Part Catcher | Configuration Dependent |
| Bar Work | Supported |
| Backworking | Supported |
The second spindle allows the NLX 2000SY to transfer components automatically and perform front- and back-side machining with minimal operator intervention.
DMG MORI NLX 2000SY/500 – 2019 – LIVE TOOLING / MILLING
| Specification | Details |
|---|---|
| Live Tooling | Standard |
| Y-Axis | Standard |
| C-Axis | Main and Second Spindle |
| Milling | Standard |
| Drilling | Standard |
| Tapping | Standard |
| Radial Tooling | Available |
| Axial Tooling | Available |
| Milling Spindle Speed | Configuration Dependent |
| Interpolation | X/Y/Z/C/B |
The SY configuration is particularly valuable because it allows milling and turning operations to be performed on the same machine. Y-axis movement expands the machine’s ability to perform off-center milling, drilling, slotting, and complex contouring.
DMG MORI NLX 2000SY/500 – 2019 – TOOL TURRET
| Specification | Details |
|---|---|
| Turret Type | BMT Live-Tool Turret |
| Tool Stations | 12 / Configuration Dependent |
| Live Tool Stations | Configuration Dependent |
| Tool Interface | BMT |
| Automatic Indexing | Standard |
| Turret Indexing | High Speed |
| Milling Tools | Supported |
| Turning Tools | Supported |
| Toolholders | BMT / Configuration Dependent |
| Automatic Tool Change | Turret Indexing |
The live-tool turret allows turning, milling, drilling, and tapping tools to be installed simultaneously, reducing setup time and increasing machining flexibility.
DMG MORI NLX 2000SY/500 – 2019 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | MAPPS IV / Fanuc-Based DMG MORI Control |
| Control Generation | MAPPS IV |
| Display | Color LCD |
| Programming | G-Code / Conversational |
| Conversational Programming | Available |
| Tool Management | Standard |
| Work Offset Management | Standard |
| C-Axis Programming | Standard |
| Y-Axis Programming | Standard |
| Sub-Spindle Programming | Standard |
| Ethernet | Available |
| USB | Available |
| Diagnostics | Standard |
The DMG MORI MAPPS IV control interface provides an operator-friendly environment for programming and monitoring turning and mill-turn operations. The exact control package should be verified because 2019 machines can have different control configurations.
DMG MORI NLX 2000SY/500 – 2019 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | Approx. 24 m/min |
| Y-Axis Rapid Traverse | Approx. 10 m/min |
| Z-Axis Rapid Traverse | Approx. 30 m/min |
| Maximum Cutting Feedrate | Configuration Dependent |
| C-Axis Feed | Configuration Dependent |
| Rapid Traverse | High-Speed |
| Feedrate Override | Standard |
| Linear Interpolation | Yes |
| Circular Interpolation | Yes |
High rapid-traverse rates help reduce non-cutting time, particularly on parts requiring frequent movements between turning, drilling, milling, and finishing operations.
DMG MORI NLX 2000SY/500 – 2019 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Standard |
| Coolant Pump | Standard |
| Coolant Tank | Standard |
| High-Pressure Coolant | Optional |
| Through-Tool Coolant | Available |
| Chip Conveyor | Optional / Configuration Dependent |
| Chip Management | Automated |
| Coolant Filtration | Configuration Dependent |
| Oil Skimmer | Optional |
| Mist Collector | Optional |
For production applications, a chip conveyor and high-pressure coolant system are especially valuable because the NLX 2000SY can perform both turning and milling operations that generate different types of chips.
DMG MORI NLX 2000SY/500 – 2019 – AUTOMATION / PROBING
| Specification | Details |
|---|---|
| Automatic Part Transfer | Available |
| Part Catcher | Configuration Dependent |
| Bar Feeder Compatibility | Available |
| Work Probe | Optional |
| Tool Probe | Optional |
| Tool Measurement | Available |
| Automatic Tool Offset | Available |
| Second Spindle | Standard |
| Part Transfer | Standard Capability |
| Robotic Automation | Available |
The machine can be integrated with bar feeders, parts catchers, workholding automation, and robotic loading systems for extended unattended production.
DMG MORI NLX 2000SY/500 – 2019 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Main Spindle Motor | Approx. 15 HP |
| Electrical Service | Three-Phase |
| Input Voltage | Configuration Dependent |
| Shop Air | Required |
| Hydraulic System | Standard |
| Electrical Cabinet | DMG MORI / CNC |
| Power Requirements | Machine Specific |
| Installation | Industrial |
Electrical requirements should be confirmed from the machine’s serial-number-specific documentation and installed options.
DMG MORI NLX 2000SY/500 – 2019 – DIMENSIONS
| Specification | Details |
|---|---|
| Machine Type | Enclosed CNC Turning Center |
| Approximate Machine Width | 114″ |
| Approximate Machine Depth | 82″ |
| Approximate Machine Height | 83″ |
| Machine Weight | Approx. 11,000–13,000 lbs |
| Floor Space | Medium |
| Installation | Industrial |
| Rigging | Required |
| Chip Conveyor | Adds Overall Length |
Exact dimensions and weight vary according to chip conveyor, bar feeder, high-pressure coolant, automation, and other installed options.
DMG MORI NLX 2000SY/500 – 2019 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | DMG MORI |
| Model | NLX 2000SY/500 |
| Year | 2019 |
| Machine Category | CNC Turning Center |
| Machine Type | Mill-Turn CNC Lathe |
| Axis Configuration | X / Y / Z / C / B |
| Maximum Turning Diameter | Approx. 20.1″ |
| Maximum Turning Length | Approx. 19.7″ |
| X-Axis Travel | Approx. 26″ |
| Y-Axis Travel | Approx. ±2″ |
| Z-Axis Travel | Approx. 20″ |
| Bar Capacity | Approx. 2.6″ |
| Main Spindle Speed | Approx. 5,000 RPM |
| Main Spindle Power | Approx. 15 HP |
| Second Spindle | Yes |
| Live Tooling | Yes |
| Y-Axis | Yes |
| Tool Turret | Live Tool Turret |
| CNC Control | MAPPS IV |
| Chip Conveyor | Configuration Dependent |
| Bar Feeder | Optional |
| Work Probe | Optional |
INDUSTRIES THAT USE DMG MORI NLX 2000SY/500
The DMG MORI NLX 2000SY/500 is suitable for:
- Aerospace
- Automotive
- Medical
- Defense
- Oil and gas
- Energy
- Electronics
- General machine shops
- Contract manufacturing
- Precision engineering
- Industrial machinery
- Hydraulic and pneumatic manufacturing
- Job shops
- High-volume production
TYPICAL PARTS DMG MORI NLX 2000SY/500 CAN PRODUCE
The NLX 2000SY/500 can produce:
- Shafts
- Flanges
- Bushings
- Housings
- Couplings
- Valves
- Hydraulic components
- Pneumatic components
- Automotive components
- Aerospace components
- Medical components
- Precision fittings
- Pump components
- Complex mill-turn parts
Typical operations include OD and ID turning, facing, grooving, threading, drilling, boring, tapping, milling, cross-hole drilling, slotting, contouring, and back-side machining.
WHY CHOOSE DMG MORI NLX 2000SY/500
The main advantage of the DMG MORI NLX 2000SY/500 is its ability to combine turning and milling operations within one machine. The SY configuration provides Y-axis capability and a second spindle, allowing complex components to be machined from multiple sides without repeated manual setups.
This is especially valuable for parts requiring precise relationships between turned features and milled features. Completing these operations on one machine can reduce setup time, improve consistency, and reduce work-in-process inventory.
The 500-mm turning-length configuration provides useful capacity for medium-sized components, while the live-tool turret supports drilling, tapping, milling, and other secondary operations.
For production shops, the machine’s compatibility with bar feeders, parts catchers, probing, chip conveyors, and automation makes it a strong platform for unattended or lights-out production.
WHY BUY USED DMG MORI NLX 2000SY/500 – 2019
A used 2019 DMG MORI NLX 2000SY/500 can provide modern mill-turn capability at a considerably lower acquisition cost than a comparable new machine.
The biggest reason to consider this model is its ability to perform multiple operations in one setup. A conventional CNC lathe may require a separate machining center for milling operations, while the NLX 2000SY can perform many of these processes internally.
When evaluating a used 2019 machine, buyers should inspect the main spindle, second spindle, live-tool drive, Y-axis, turret, ballscrews, linear guides, hydraulic system, coolant system, and CNC control.
Particular attention should be given to spindle runout, spindle bearing noise, C-axis accuracy, Y-axis positioning, turret indexing, live-tool vibration, sub-spindle synchronization, and evidence of crashes.
The machine’s options also have a major effect on value. A unit equipped with bar feeder, parts catcher, high-pressure coolant, chip conveyor, probing, and additional live-tool holders can be considerably more valuable than a basic machine.
HOW MUCH DOES A USED DMG MORI NLX 2000SY/500 – 2019 COST?
The price of a 2019 DMG MORI NLX 2000SY/500 varies significantly depending on spindle hours, condition, control configuration, tooling, automation, bar feeder, chip conveyor, probing, and live-tool equipment.
Because this is a relatively modern multi-axis turning center, prices remain considerably higher than older conventional CNC lathes.
For inventory valuation, I would use:
| USED DMG MORI NLX 2000SY/500 – 2019 PRICE RANGE | ESTIMATED COST |
|---|---|
| High Hours / Basic Configuration | $85,000 – $100,000 |
| Functional Used Machine | $100,000 – $115,000 |
| Good Condition / Production Ready | $115,000 – $130,000 |
| Excellent / Well Equipped | $130,000 – $150,000 |
| Low Hours / Premium Automation | $150,000 – $170,000+ |
For a 2019 DMG MORI NLX 2000SY/500 in good working condition, I would estimate approximately $110,000–$140,000 USD.
For your inventory listing, I would recommend a practical asking-price range of $125,000–$140,000 USD for a clean, operational machine with reasonable hours and desirable options.
A low-hour machine with bar feeder, parts catcher, chip conveyor, high-pressure coolant, probing, extensive live tooling, and automation could potentially command $145,000–$170,000+.
A higher-hour machine with limited accessories or requiring service could fall closer to $85,000–$105,000.
Best estimated listing value: $125,000–$140,000 USD.
Related Products
-

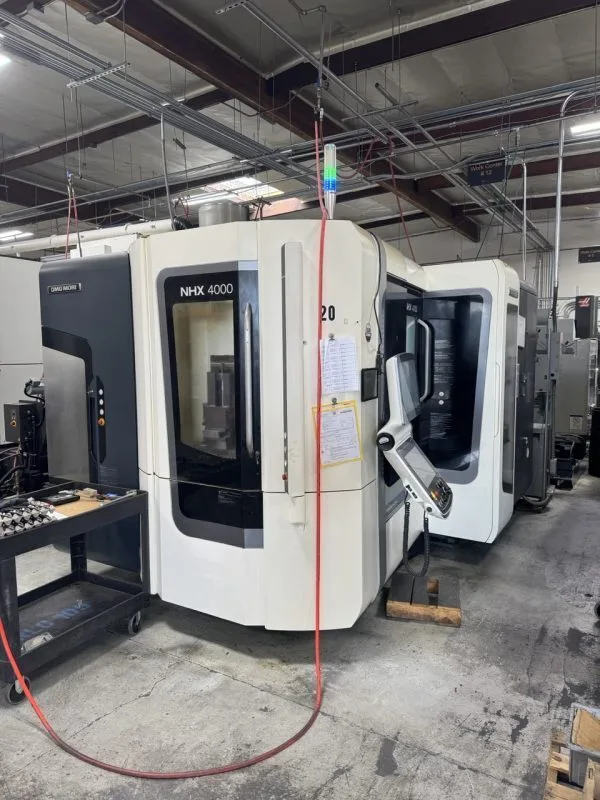

DMG MORI - NHX 4000 4th Generation
