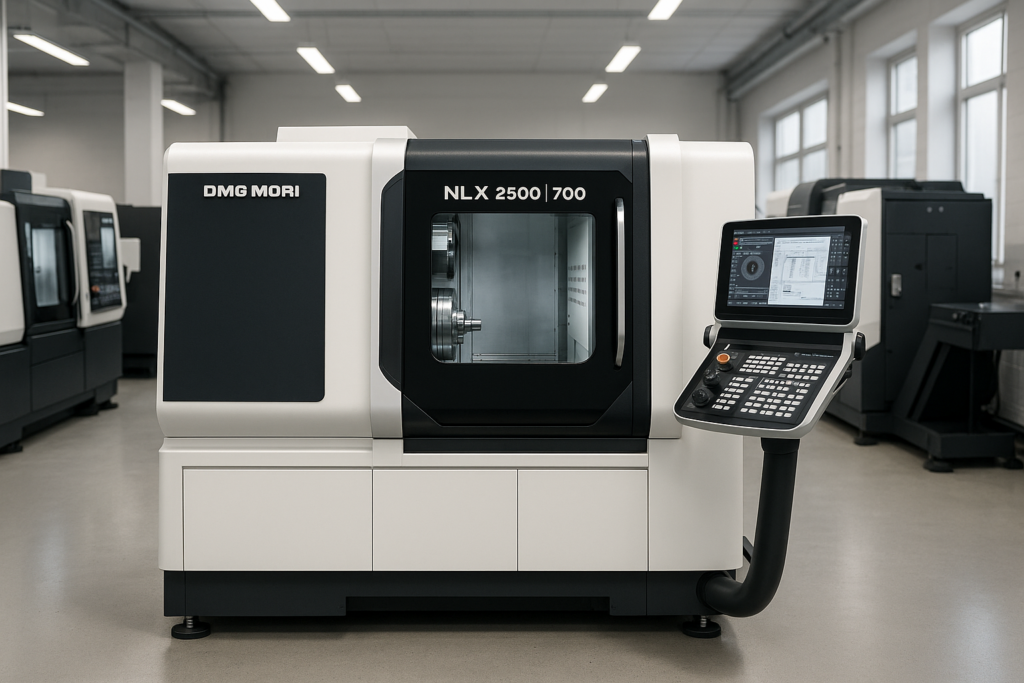

The DMG MORI NLX 2500 | 700 is a high-precision CNC turning center designed for high-performance turning and milling operations. Built for speed, rigidity, and flexibility, this model offers a turning length of up to 700 mm and a turning diameter of up to 366 mm, making it ideal for a wide range of applications across multiple industries.
The NLX 2500 series is part of DMG MORI’s next-generation lathe platform, offering high dynamic stability, outstanding surface finish, and superior productivity. The machine features integrated live tooling, Y-axis capability (optional), and BMT (Built-in Motor Turret) technology — enhancing accuracy, tool life, and overall efficiency.
It comes equipped with the CELOS control platform powered by MAPPS on Fanuc or Siemens 840D, offering user-friendly operation, conversational programming, and Industry 4.0 integration.
Whether machining shafts, flanges, valves, or multi-featured cylindrical parts, the NLX 2500 | 700 provides excellent performance for both mass production and flexible job shop environments.
DMG MORI NLX 2500 | 700SPECIFICATIONS
AXIS TRAVELS
X-Axis: 260 mm
Z-Axis: 795 mm
Y-Axis (Optional): ±50 mm
C-Axis: 360° (Full contouring)
SPINDLE
Spindle Nose: A2-8
Max Spindle Speed: 3,500 rpm
Spindle Bore: Ø102 mm
Max Bar Capacity: 80 mm
Spindle Motor Power: 26 – 30 kW
Max Torque: ~430 Nm
TURRET
Turret Type: BMT 60 (12-station)
Tooling: Live tooling supported (all stations)
Live Tool Speed: Up to 6,000 rpm
Tool Drive Power: ~5.5 kW
Turret Indexing: 0.2 sec per station
SUB-SPINDLE (OPTIONAL)
Max Speed: 6,000 rpm
Power: 11 – 15 kW
Chuck Size: 6″ or 8″
Synchronized part transfer
WORK ENVELOPE
Max Turning Diameter: 366 mm
Max Turning Length: 705 mm
Max Workpiece Weight: ~150–200 kg (varies by setup)
FEEDRATES
Rapid Traverse (X/Z): 30 m/min
Y-Axis Traverse: 10 m/min
C-Axis Indexing: 0.001° resolution
TOOLING
Number of Stations: 12
Max Tool Length: ~200 mm
Max Tool Diameter: ~80 mm
Max Tool Weight: ~5–8 kg
COOLANT & CHIP HANDLING
Flood Coolant: Standard
Through-Tool Coolant: Optional (up to 70 bar)
Chip Conveyor: Optional
Mist & Thermal Management: Available
CONTROL
Platform: CELOS
CNC: MAPPS IV/V (Fanuc) or Siemens 840D
Touchscreen Interface: 15” or 21.5”
Connectivity: Ethernet, USB, remote diagnostics, Industry 4.0 ready
POWER & AIR REQUIREMENTS
Electrical Power: ~40 – 50 kVA
Air Pressure: ~0.5 – 0.6 MPa
DMG MORI NLX 2500 | 700 – GENERAL INFORMATION
Model: DMG MORI NLX 2500 | 700
Machine Type: CNC Turning Center
Configuration: 2-axis or multi-axis with optional Y-axis and sub-spindle
Control: CELOS with MAPPS (Fanuc) or Siemens 840D
Build Quality: High rigidity box-type construction with roller guides
Application: Precision turning, drilling, milling, and threading
DMG MORI NLX 2500 | 700 – KEY CAPABILITIES
High-rigidity turret with BMT (Built-in Motor Turret) for live tooling
Optional Y-axis for off-center milling and complex machining
Large turning diameter and long turning length (700 mm)
Powerful main spindle with synchronized counter spindle (optional)
Smooth CELOS interface with real-time monitoring and programming support
Designed for tight tolerances, high repeatability, and thermal stability
INDUSTRIES THAT USE DMG MORI NLX 2500 | 700
Automotive (shafts, bushings, connectors)
Aerospace (fittings, sleeves, engine parts)
Oil & Gas (valves, connectors, couplings)
Medical (bone screws, surgical tools)
Industrial Equipment & General Engineering
Hydraulic and Pneumatic Systems
TYPICAL PARTS DMG MORI NLX 2500 | 700 CAN PRODUCE
Long shafts with milled flats or grooves
Hydraulic and pneumatic fittings
Threaded components and couplings
Motor and gear housings
Aerospace mounting brackets
Valves, flanges, and rings
WHY CHOOSE THE DMG MORI NLX 2500 | 700
Combines turning, drilling, and live milling in a compact footprint
Excellent thermal stability and vibration damping for long-term accuracy
BMT turret offers higher cutting performance and extended tool life
CELOS platform simplifies operation, programming, and integration
Ideal for both high-volume production and flexible small-batch work
Available with automation options such as bar feeders and gantry loaders
Summary Table
PARAMETER
VALUE
Max Turning Length
705 mm
Max Turning Diameter
366 mm
Spindle Speed
3,500 rpm
Spindle Power
26 – 30 kW
Bar Capacity
80 mm
Turret Type
BMT 60, 12 stations (live tooling)
Y-Axis Travel
±50 mm (optional)
Live Tool Speed
6,000 rpm
Control System
CELOS + MAPPS / Siemens 840D
Automation Options
Bar feeder, gantry loader, robot arm
How much does used DMG MORI NLX 2500 | 700 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Standard (2-axis, no Y, BMT turret)
$90,000 – $115,000
Mid-Spec (Y-axis, live tools, CELOS)
$120,000 – $150,000
High-End (sub-spindle, Y-axis, automation)
$160,000 – $210,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
