USED DMG MORI NHX 4000 – 2016
The DMG MORI NHX 4000 – 2016 is a compact, high-performance horizontal machining center designed for precision production, multi-face machining, and high-volume manufacturing. The machine combines a rigid horizontal machining platform with twin 400 × 400 mm pallets, approximately 560 mm of X-axis travel, 560 mm of Y-axis travel, and 660 mm of Z-axis travel. Its compact footprint and horizontal spindle arrangement make it particularly attractive to manufacturers that need high productivity without the floor-space requirements of a much larger horizontal machining center.
The NHX 4000 belongs to the second-generation NHX platform that DMG MORI developed around improved dynamics, rigidity, precision, and production efficiency. The second-generation NHX 4000 was offered with rapid traverse rates up to approximately 60 m/min and acceleration of up to 1.2 g on the X, Y, and Z axes. DMG MORI also specified a standard 15,000 RPM speedMASTER spindle, with higher-speed 20,000 RPM and high-torque configurations available depending on the machine specification.
A documented 2016 NHX 4000 configuration is equipped with a 15,000 RPM spindle, CAT 40 taper, 30 HP spindle motor, 60-position automatic tool changer, full fourth-axis capability, two pallets, chip conveyor, and DMG MORI ERGOline control. Another 2016 machine uses an M730UM control with CELOS, while other machines from the same year have been documented with FANUC F31iB and a 21.5-inch multi-touch interface. This makes it important for buyers to verify the exact control and options of the individual machine.
The 400 × 400 mm twin-pallet system is one of the NHX 4000’s most useful production features. While one pallet is being machined, the second pallet can be unloaded, loaded, inspected, or prepared for the next cycle. This can reduce non-cutting time and make the machine well suited to repetitive production work. The documented maximum pallet load is approximately 400 kg / 882 lb, including the workholding and workpiece.
The machine’s full fourth-axis capability adds substantial flexibility. The pallet can rotate around the B-axis, allowing machining operations to be performed on multiple sides of a component without manually removing and repositioning the workpiece. One documented 2016 NHX 4000 specifies full 4th-axis operation with 0.001-degree B-axis positioning, making the machine suitable for complex housings, manifolds, fixtures, automotive components, and other parts requiring multiple machining orientations.
The 15,000 RPM CAT 40 spindle provides a useful combination of speed and rigidity. CAT 40 tooling is widely used throughout precision machining and provides access to a large selection of holders, end mills, drills, boring tools, and specialty tooling. Some 2016 NHX 4000 machines have been configured with approximately 40 HP spindles, while the second-generation platform also offered high-torque and 20,000 RPM options.
The 60-tool automatic tool changer found on many 2016 machines provides substantial capacity for complex production programs. Other NHX 4000 configurations can have larger magazines, including 120, 180, or 240 tools, but the 60-tool configuration is particularly well documented among 2016 used machines. This capacity allows manufacturers to keep roughing, finishing, drilling, boring, tapping, chamfering, and specialty tools loaded for extended production runs.
The NHX 4000’s horizontal design also provides an important advantage in chip evacuation. Chips naturally fall away from the cutting area during many machining operations, while an integrated chip conveyor can continuously remove material from the machine. This makes the machine particularly suitable for production applications involving large amounts of material removal.
The DMG MORI control environment is another important feature. The 2016 machines can be found with DMG MORI CELOS/ERGOline and M730-series controls, as well as FANUC F31iB configurations. The exact control depends on the machine and market. Buyers should therefore verify the control model, software version, display, networking, program storage, and available machining cycles before purchasing.
For manufacturers looking for a used horizontal machining center, the DMG MORI NHX 4000 – 2016 offers an attractive combination of compact size, high spindle speed, twin-pallet production, fourth-axis machining, CAT 40 tooling, and substantial tool capacity. Its size makes it especially useful for medium-sized components and high-volume production where floor-space efficiency is important.
DMG MORI NHX 4000 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Horizontal Machining Center |
| Primary Configuration | 4-Axis Horizontal Machining |
| X-Axis | Yes |
| Y-Axis | Yes |
| Z-Axis | Yes |
| B-Axis | Yes |
| B-Axis Function | Full Fourth-Axis Pallet Rotation |
| B-Axis Resolution | 0.001° on Documented Configuration |
| X-Axis Travel | 22 in / 560 mm |
| Y-Axis Travel | 22 in / 560 mm |
| Z-Axis Travel | 26 in / 660 mm |
| Pallets | 2 |
| Pallet Size | 15.7 × 15.7 in / 400 × 400 mm |
| CNC Control | Configuration Dependent |
| Spindle Taper | CAT 40 |
| Machine Category | Horizontal Machines |
| Primary Application | Precision Horizontal Machining |
The NHX 4000’s fourth-axis capability allows the workpiece to rotate around the B-axis for indexed or multi-face machining. This can reduce the number of manual setups required for components with features on multiple sides.
DMG MORI NHX 4000 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 22 in / 560 mm |
| Y-Axis Travel | 22 in / 560 mm |
| Z-Axis Travel | 26 in / 660 mm |
| X/Y/Z Rapid Traverse | Up to approximately 2,362 IPM / 60 m/min |
| X/Y/Z Acceleration | Up to approximately 1.2 g |
| Maximum Workpiece Diameter | Approximately 24.8 in / 630 mm |
| Maximum Workpiece Height | Approximately 35.4 in / 900 mm |
| Pallet Center to Spindle Gage Plane | Approximately 2.8–28.7 in |
| Pallet Surface to Spindle Center | Approximately 3.1–25.2 in |
| Work Envelope | Compact Large-Capacity Horizontal Envelope |
| Multi-Side Machining | Yes |
| Fourth-Axis Machining | Yes |
The 560 × 560 × 660 mm X/Y/Z travel is one of the defining specifications of the NHX 4000. DMG MORI’s technical information for the platform confirms the same 22 × 22 × 26-inch travel envelope.
The machine can accommodate workpieces up to approximately 630 mm in diameter and 900 mm in height, although the usable envelope depends on the pallet, fixture, tombstone, tooling, and actual machine configuration.
DMG MORI NHX 4000 – CAPACITY / PALLET
| Specification | Details |
|---|---|
| Number of Pallets | 2 |
| Pallet Working Surface | 400 × 400 mm |
| Pallet Size | 15.7 × 15.7 in |
| Maximum Pallet Load | Approximately 400 kg / 882 lb |
| B-Axis | Full Fourth Axis |
| B-Axis Resolution | 0.001° on Documented Machine |
| Maximum Workpiece Diameter | Approximately 630 mm / 24.8 in |
| Maximum Workpiece Height | Approximately 900 mm / 35.4 in |
| Pallet Loading | Automatic |
| Workholding | Vises, Fixtures, Tombstones |
| Production Loading | Twin-Pallet |
| Pallet Indexing | Full Rotary |
| Direct-Drive Table | Available / Configuration Dependent |
The 400 × 400 mm pallet is designed around compact but substantial production components. A maximum pallet load of approximately 400 kg / 882 lb provides useful capacity for workpieces and multi-sided fixtures.
The twin-pallet arrangement is especially beneficial for production. An operator can prepare the second pallet while the first is inside the enclosure, reducing setup-related downtime and keeping the spindle cutting for a greater percentage of the production day.
DMG MORI NHX 4000 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Orientation | Horizontal |
| Spindle Taper | CAT 40 |
| Documented 2016 Spindle Speed | 15,000 RPM |
| Available High-Speed Configuration | Up to 20,000 RPM |
| Spindle Motor | Approximately 30 HP on Documented 2016 Machine |
| Other Documented Power | Approximately 40 HP on Certain Configuration |
| Standard Second-Generation Spindle | 15,000 RPM |
| High-Torque Option | 15,000 RPM |
| High-Speed Option | 20,000 RPM |
| Spindle Type | speedMASTER |
| Heavy-Duty Machining | Yes |
| High-Speed Machining | Yes |
| Through-Spindle Coolant | Available |
| Spindle Chiller | Configuration Dependent |
The 2016 NHX 4000 examples reviewed include 15,000 RPM CAT 40 spindles, with one documented machine specifying a 30 HP motor and another listing approximately 40 HP. The second-generation NHX 4000 was also available with a 20,000 RPM high-speed spindle and a higher-torque 15,000 RPM configuration.
This range of spindle configurations makes it important to verify the exact spindle on an individual used machine. A 15,000 RPM spindle with higher torque may be preferable for a shop machining steel and other difficult materials, while a 20,000 RPM configuration can be attractive for smaller cutters and aluminum or high-speed machining applications.
DMG MORI NHX 4000 – TOOL CHANGER
| Specification | Details |
|---|---|
| Automatic Tool Changer | Yes |
| Documented 2016 ATC | 60 Positions |
| Other Available Configurations | 40 / 120 / 180 / 240 Tools |
| Tool Interface | CAT 40 |
| Maximum Tool Diameter | Approximately 2.76 in on Documented Machine |
| Maximum Tool Length | Approximately 17.72 in |
| Maximum Tool Weight | Approximately 26.4 lb |
| Tool Magazine | Ring / Chain / Rack Configuration Dependent |
| Tool Selection | Automatic |
| Tool Management | CNC Controlled |
| Tool Measurement | Available / Configuration Dependent |
| Tool Breakage Detection | Available / Configuration Dependent |
| Tool Capacity | Suitable for Multi-Operation Production |
The 60-tool ATC is a common configuration among documented 2016 NHX 4000 machines. One 2016 machine is specifically listed with a 60 ATC, while other machines in the NHX family can be equipped with substantially larger magazines.
The larger tool capacity makes the NHX 4000 suitable for production environments where a large number of operations must be performed without stopping the machine to manually change tooling.
DMG MORI NHX 4000 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Configuration Dependent |
| Documented Control | DMG MORI ERGOline |
| Other Documented Control | M730UM with CELOS |
| Other 2016 Configuration | FANUC F31iB |
| CELOS | Available |
| MAPPS | Available / Configuration Dependent |
| Conversational Programming | Available |
| EIA/ISO Programming | Available |
| Multi-Axis Programming | Yes |
| Fourth-Axis Control | Yes |
| CNC Diagnostics | Yes |
| Ethernet | Available on Documented Configuration |
| 21.5-Inch Multi-Touch Screen | Available on Documented Configuration |
| USB Connectivity | Configuration Dependent |
The 2016 NHX 4000 was sold with different control configurations. One documented machine has DMG MORI ERGOline, another has M730UM with CELOS, and another 2016 machine is equipped with FANUC F31iB and a 21.5-inch multi-touch screen.
This variation should be reflected in any used-machine listing. Buyers should verify the exact control model rather than simply describing every 2016 NHX 4000 as having CELOS or FANUC.
For inspection, the CNC display, keyboard, control boards, servo drives, spindle drive, memory, program-transfer capability, machine parameters, and alarm history should all be checked.
DMG MORI NHX 4000 – COOLANT / DUST / WATER MANAGEMENT
| Specification | Details |
|---|---|
| Coolant System | Yes |
| Flood Coolant | Yes |
| Through-Spindle Coolant | Available |
| High-Pressure Coolant | Configuration Dependent |
| Chip Conveyor | Yes |
| Chip Removal | Automatic |
| Coolant Filtration | Configuration Dependent |
| Spindle Cooling | Available |
| Spindle Chiller | Configuration Dependent |
| Coolant Tank | Machine Configuration Dependent |
| Coolant Pump | Yes |
| Chip Evacuation | Horizontal Machining Advantage |
| Mist Collection | Configuration Dependent |
| Air Blast | Configuration Dependent |
The NHX 4000’s horizontal machining orientation is beneficial for chip evacuation. DMG MORI specifically designed the NHX platform with work-area covers and structures intended to promote efficient chip flow.
Documented 2016 machines include chip conveyors and through-spindle coolant, making them suitable for extended production cycles. One 2016 machine is specifically listed with through-spindle coolant and a chip conveyor.
When inspecting a used NHX 4000, the coolant pump, tank, filtration, high-pressure system, rotary union, spindle coolant passages, chip conveyor, and coolant lines should all be tested.
DMG MORI NHX 4000 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Spindle Motor | Approximately 30 HP on Documented 2016 Machine |
| Other Documented Spindle Rating | Approximately 40 HP |
| Electrical Supply | Verify Machine Nameplate |
| Voltage | Verify Individual Machine |
| Phase | Verify Individual Machine |
| Frequency | Verify Individual Machine |
| Transformer | Configuration / Installation Dependent |
| Documented Power | 48 kVA on One 2016 Machine |
| Documented Voltage | 205–220 V, 3 Phase |
| Air Requirement | Approximately 100 PSI |
| Air Consumption | Approximately 4 SCFM |
| Chip Conveyor | Additional Electrical Load |
| Coolant System | Additional Electrical Load |
| Pallet Changer | Additional Electrical Load |
One documented 2016 NHX 4000 specifies approximately 48 kVA, 205–220 V, three-phase power, with approximately 100 PSI air requirement. These figures should be treated as machine-specific rather than universal because electrical configuration and accessories can differ.
Before installation, the buyer should verify the electrical nameplate and facility requirements with the seller. Transformer requirements should also be checked if the machine is being moved to a different country or voltage environment.
DMG MORI NHX 4000 – DIMENSIONS
| Specification | Details |
|---|---|
| Approximate Machine Length | 165 in / 4,191 mm on Documented Machine |
| Approximate Machine Width | 105 in / 2,667 mm |
| Approximate Machine Height | 100 in / 2,540 mm |
| Approximate Weight | 19,700 lb / 8,936 kg |
| Floor Space | Approximately 105.5 × 164.6 in |
| Number of Pallets | 2 |
| Chip Conveyor | May Increase Overall Footprint |
| Transformer | Additional Space May Be Required |
| Rigging | Professional Industrial Rigging Recommended |
| Installation Clearance | Required Around Machine |
A documented 2016 NHX 4000 is listed at approximately 165 × 105 × 100 inches and 19,700 pounds, while another 2016 example has a recorded weight of approximately 8,938 kg.
The actual installation footprint can increase when the machine is equipped with a chip conveyor, transformer, coolant equipment, bar-code/tool-management accessories, or external automation.
DMG MORI NHX 4000 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | DMG MORI |
| Model | NHX 4000 |
| Year | 2016 |
| Machine Type | CNC Horizontal Machining Center |
| Category | Horizontal Machines |
| Configuration | 4-Axis |
| Pallets | 2 |
| Pallet Size | 400 × 400 mm |
| Pallet Size | 15.7 × 15.7 in |
| Pallet Capacity | Approximately 400 kg / 882 lb |
| X-Axis Travel | 560 mm / 22 in |
| Y-Axis Travel | 560 mm / 22 in |
| Z-Axis Travel | 660 mm / 26 in |
| B-Axis | Full Fourth Axis |
| Spindle Taper | CAT 40 |
| Documented Spindle Speed | 15,000 RPM |
| High-Speed Option | Up to 20,000 RPM |
| Documented ATC | 60 Tools |
| Other ATC Options | 40 / 120 / 180 / 240 |
| CNC Control | Configuration Dependent |
| CELOS | Available |
| Chip Conveyor | Yes |
| Through-Spindle Coolant | Available |
| Primary Application | High-Productivity Horizontal Machining |
INDUSTRIES THAT USE DMG MORI NHX 4000
The automotive industry is one of the most natural applications for the NHX 4000. Automotive manufacturers and suppliers frequently require high-volume production of housings, brackets, transmission components, engine-related parts, fixtures, and other precision components. The twin-pallet design allows loading and unloading to take place while another workpiece is being machined.
The aerospace industry can use the NHX 4000 for appropriately sized structural components, housings, brackets, fixtures, tooling, and complex precision components. The full fourth axis allows several faces of a component to be machined from a common setup, which can help reduce repositioning and improve feature-to-feature accuracy.
The medical equipment industry can use compact horizontal machining centers for precision housings, instrument components, fixtures, and other parts that require multiple machining operations. The combination of high spindle speed, CAT 40 tooling, fourth-axis positioning, and automated tool changes provides useful flexibility for precision production.
The hydraulic and fluid-control industry can benefit from the NHX 4000 for machining valve bodies, manifolds, pump components, fittings, and other components requiring drilling and intersecting passages. Horizontal machining is particularly useful when several sides of a block-like component need to be processed.
The industrial machinery industry is another strong application. Manufacturers of pumps, compressors, automation equipment, machine tools, and industrial systems frequently require housings, brackets, mounting components, fixtures, and other medium-sized parts. The NHX 4000 can consolidate multiple machining operations into one production platform.
The energy industry can use the machine for precision components used in pumps, valves, power equipment, electrical systems, and other industrial applications. Fourth-axis machining can be especially useful when components require multiple angular orientations.
The general job-shop and contract machining industry can benefit from the NHX 4000 because it combines flexibility with production automation. A shop can run short jobs, repeat production, complex multi-face components, and higher-volume work on the same machine.
The mold and tooling industry can also use the NHX 4000 for mold components, die components, fixtures, inserts, and production tooling. The 60-tool magazine provides sufficient capacity for many jobs requiring multiple roughing, finishing, drilling, boring, and specialty tools.
TYPICAL PARTS DMG MORI NHX 4000 CAN PRODUCE
| Part Type | Typical Machining Operations |
|---|---|
| Automotive Housings | Milling, Boring, Drilling |
| Transmission Components | Facing, Boring, Tapping |
| Hydraulic Valve Bodies | Drilling, Boring, Tapping |
| Pump Housings | Milling, Boring, Drilling |
| Manifolds | Multi-Side Drilling, Tapping |
| Aerospace Brackets | Milling, Drilling, Contouring |
| Aerospace Housings | Milling, Boring, Drilling |
| Medical Equipment Housings | Precision Milling, Drilling |
| Industrial Fixtures | Milling, Drilling, Reaming |
| Machine Tool Components | Milling, Boring, Tapping |
| Gearbox Components | Boring, Milling, Drilling |
| Motor Housings | Milling, Boring, Drilling |
| Compressor Components | Milling, Drilling, Tapping |
| Mold Components | Roughing, Finishing, Drilling |
| Die Components | Milling, Pocketing, Contouring |
| Valve Components | Multi-Side Machining |
| Electrical Housings | Milling, Drilling, Tapping |
| Precision Brackets | Milling, Drilling |
| Aluminum Components | High-Speed Milling |
| Steel Components | High-Torque Milling |
WHY CHOOSE DMG MORI NHX 4000
The biggest reason to choose the DMG MORI NHX 4000 is its combination of compact machine size and substantial machining capability. The machine provides 560 × 560 × 660 mm of axis travel while using relatively compact 400 × 400 mm pallets.
The twin-pallet system is particularly valuable in production environments. Instead of stopping the machine for every loading and unloading operation, the operator can prepare one pallet while the other remains inside the machining area. This can increase spindle utilization and reduce idle time.
The full fourth axis allows components to be machined on several sides without manual repositioning. This is useful for valve bodies, manifolds, housings, brackets, and other components with features distributed around multiple faces.
The 15,000 RPM spindle provides a strong balance between high-speed machining and general-purpose production. The availability of high-torque and 20,000 RPM configurations means the NHX 4000 can also be configured toward either heavier cutting or higher-speed machining applications.
The CAT 40 spindle interface is another practical advantage. CAT 40 tooling is widely available, allowing shops to source tooling and holders from many suppliers and potentially use existing tooling inventories.
The 60-tool automatic tool changer provides enough capacity for complex machining programs without requiring frequent manual tool changes. Other tool magazine configurations are also available, making the platform adaptable to different production requirements.
The machine’s horizontal configuration provides excellent chip-management characteristics. Chips naturally fall away from many cutting areas, and the chip conveyor can continuously remove material from the machine during production.
Finally, the NHX 4000 was designed as a high-productivity production machine. Its combination of fast axis movement, twin pallets, fourth-axis machining, high-speed spindle, automatic tool changing, coolant systems, and automation options makes it a strong choice for manufacturers that need repeatable production rather than simply basic CNC milling.
WHY BUY USED DMG MORI NHX 4000
A used DMG MORI NHX 4000 – 2016 can provide a manufacturer with access to a relatively modern horizontal machining platform without the acquisition cost of a new machine.
The machine’s 2016 production year is attractive compared with substantially older horizontal machining centers because it belongs to the second-generation NHX platform. The second-generation design incorporated improved dynamics, rigidity, chip management, and the speedMASTER spindle architecture.
The twin-pallet system is another major reason to consider a used NHX 4000. A manufacturer purchasing a used machine can obtain production automation that would otherwise require additional capital investment.
The full fourth axis adds value because the machine can perform multi-face machining without requiring the operator to manually reposition the component for every operation.
Another advantage is the availability of 60-tool configurations. A machine with 60 tools can support many complex machining programs and is particularly useful for shops producing families of components.
The CAT 40 tooling interface also makes the machine easier to integrate into an existing machining department. Shops that already use CAT 40 tooling may be able to transfer holders and cutting tools between machines.
The used market also gives buyers the opportunity to inspect the exact machine before purchasing. A buyer can request a live cutting demonstration, verify spindle condition, inspect axis movement, test the pallet changer, run the ATC through multiple cycles, and review machine alarms.
However, condition remains critical. Buyers should check spindle bearings, spindle taper, ballscrews, linear guides, pallet positioning, B-axis backlash, ATC operation, chip conveyor, coolant system, electrical cabinet, CNC control, and probing equipment.
The machine should ideally undergo an accuracy and repeatability inspection before purchase. Ball-bar testing, spindle runout testing, axis positioning tests, circular interpolation tests, and sample-part machining can provide much more useful information than simply checking whether the machine powers on.
HOW MUCH DOES A USED DMG MORI NHX 4000 COST?
Used DMG MORI NHX 4000 pricing varies significantly according to year, control, spindle, hours, ATC capacity, fourth-axis configuration, coolant equipment, tooling, and overall condition.
A documented 2016 DMG MORI NHX 4000 in California has been listed with a 15,000 RPM spindle, CAT 40 taper, 30 HP spindle motor, 60 ATC, full fourth axis, twin pallets, chip conveyor, DMG ERGOline control, and two six-sided tombstones. The seller does not currently publish the price and instead requires buyers to request pricing.
Another 2016 NHX 4000 was advertised with CELOS ERGOline control, 15,000 RPM spindle, 60-station ATC, full fourth axis, through-spindle coolant, twin pallet changer, chip conveyor, transformer, and 40 HP spindle, again without a public fixed price.
A 2016 NHX 4000 2nd Generation listing is documented with M730UM with CELOS, 15,000 RPM, CAT 40, 60 ATC, four-axis operation, and 560/560/660 mm travel, with the seller also requesting buyers to contact them for pricing.
Historical market data provides additional context. Machine Blue Book currently records one published 2016 NHX 4000 asking-price observation of $209,900, but it is explicitly an asking price rather than a completed transaction, and one observation is not enough to establish a reliable market range for every 2016 machine.
For a used NHX 4000, buyers should compare the complete machine package rather than simply looking at the year.
| Value Factor | What Buyers Should Check |
|---|---|
| Machine Year | 2016 |
| Control | CELOS / M730 / FANUC configuration |
| Spindle | 12,000 / 15,000 / 20,000 RPM configuration |
| Spindle Motor | Verify exact horsepower |
| Spindle Taper | CAT 40 |
| ATC | 40 / 60 / 120 / 180 / 240 tools |
| Pallets | 2 |
| Pallet Size | 400 × 400 mm |
| Pallet Load | Approximately 400 kg |
| Fourth Axis | Full B-axis operation |
| B-Axis Accuracy | Verify positioning and backlash |
| X/Y/Z Axes | 560 / 560 / 660 mm |
| Ballscrews | Wear and backlash |
| Linear Guides | Wear and lubrication |
| Spindle | Noise, vibration and runout |
| Coolant | Pump, tank and filtration |
| TSC | Pressure and rotary union condition |
| Chip Conveyor | Operation and wear |
| Tooling | CAT 40 holders and cutters |
| Probing | Verify if equipped |
| Spindle Chiller | Verify if equipped |
| Transformer | Verify if included |
| Machine Hours | Power-on and cutting hours |
| Maintenance | Service history |
| Accuracy | Ball-bar / inspection results |
| Rigging | Removal and transportation cost |
A lower-priced NHX 4000 may require significant expenditure on spindle repair, pallet changer maintenance, coolant equipment, ATC components, or CNC electronics. A more expensive machine with low hours, good accuracy, a healthy spindle, functioning fourth axis, 60-tool magazine, TSC, chip conveyor, and documented maintenance may provide considerably better overall value.
For a buyer considering a DMG MORI NHX 4000 – 2016, the best approach is therefore to evaluate the exact configuration and physical condition of the machine rather than relying on a generic model-year price. The 2016 NHX 4000 remains a highly capable horizontal machining platform, particularly for manufacturers that need compact footprint, twin-pallet production, fourth-axis machining, and high-speed CAT 40 spindle performance.
Related Products
-

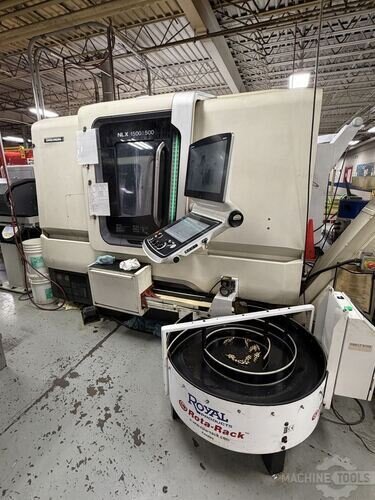

DMG MORI - NLX-1500SY/500
VIEW MACHINE -
DMG MORI - NHX 5000
VIEW MACHINE -
DMG MORI - SPRINT 20|8
VIEW MACHINE -
DMG MORI - DMU 50
VIEW MACHINE
