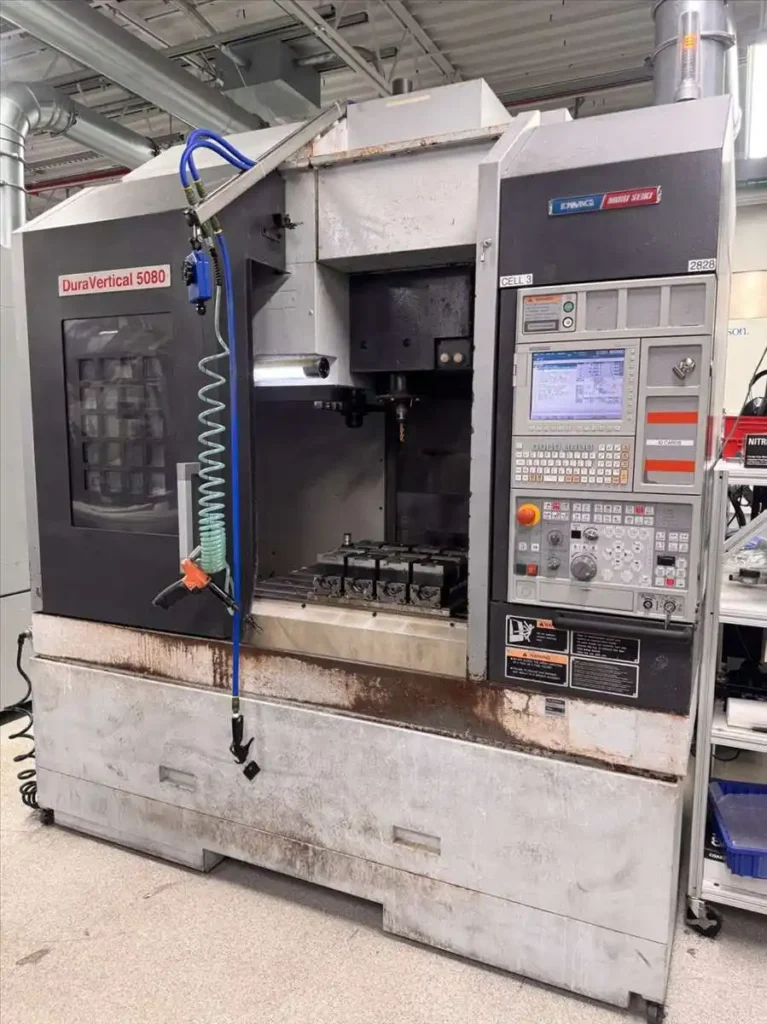

DMG MORI DURAVERTICAL 5080 – 2013
USED DMG MORI DURAVERTICAL 5080 – 2013
The DMG MORI DuraVertical 5080 – 2013 is a CNC vertical machining center designed for manufacturers that need a combination of machining capacity, spindle speed, rigidity, and reliable production performance in a compact vertical machining platform. The DuraVertical 5080 provides approximately 31.5 inches of X-axis travel, 20.9 inches of Y-axis travel, and 20 inches of Z-axis travel, making it suitable for machining a wide range of medium-sized components. The machine is equipped with a large 43.3 × 23.6-inch table and a maximum table load of approximately 1,760 lb, or 800 kg.
The 2013 DuraVertical 5080 configuration is documented with a 12,000 RPM BT40 spindle, providing a useful balance between cutting capability and high-speed machining. The BT40 spindle interface is widely used for general-purpose milling, drilling, tapping, and finishing operations, while the 12,000 RPM maximum speed makes the machine suitable for both conventional production machining and applications requiring higher spindle speeds. The spindle-to-table distance is approximately 150 to 660 mm, providing useful clearance across a variety of workpieces and tooling configurations.
Automatic tool management is another important feature of the DuraVertical 5080. The documented 2013 machine has a 30-tool automatic tool changer, allowing multiple cutting tools to remain loaded for production work and reducing manual tool changes. The machine uses FANUC 0i-MD control with MAPPS IV, providing a familiar CNC platform for shops already operating FANUC-controlled equipment. Depending on the individual machine, options such as chip conveyors, coolant systems, probing, tool measurement, and fourth-axis equipment may be installed, so the exact configuration should be verified before purchase.
The DMG MORI DuraVertical 5080 is well suited for manufacturers producing components for automotive, aerospace, industrial equipment, machinery, fabrication, electronics, medical, and general precision machining applications. Its 800 mm X travel, 530 mm Y travel, 510 mm Z travel, 800 kg table capacity, BT40 spindle, and 30-tool ATC make it a versatile choice for both production and job-shop environments. A used 2013 DuraVertical 5080 can provide substantial machining capability at a lower investment than purchasing a comparable new vertical machining center.
DMG MORI DURAVERTICAL 5080 2013 – AXIS
| Specification | Value |
|---|---|
| X Axis | 800 mm (31.5″) |
| Y Axis | 530 mm (20.9″) |
| Z Axis | 510 mm (20.1″) |
| Machine Configuration | Vertical Machining Center |
| Standard Configuration | 3-Axis |
| 4th Axis | Configuration Dependent |
DMG MORI DURAVERTICAL 5080 2013 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X Axis Travel | 800 mm (31.5″) |
| Y Axis Travel | 530 mm (20.9″) |
| Z Axis Travel | 510 mm (20.1″) |
| Spindle to Table Distance | 150–660 mm (5.9–26.0″) |
| Table Length | 1,100 mm (43.3″) |
| Table Width | 600 mm (23.6″) |
| Maximum Table Load | 800 kg (1,760 lb) |
| T-Slots | 6 × 18 mm |
| Table Height | Approximately 900 mm |
The DuraVertical 5080 provides a substantial machining envelope for a BT40 vertical machining center. The 800 × 530 × 510 mm axis travel allows the machine to accommodate a broad range of workpieces while maintaining the flexibility expected from a production VMC.
DMG MORI DURAVERTICAL 5080 2013 – CAPACITY
| Specification | Value |
|---|---|
| Machine Type | CNC Vertical Machining Center |
| Table Size | 43.3″ × 23.6″ |
| Maximum Table Load | 800 kg (1,760 lb) |
| X Travel | 31.5″ |
| Y Travel | 20.9″ |
| Z Travel | 20.1″ |
| Spindle-to-Table Distance | 5.9″–26.0″ |
| BT40 Spindle | Yes |
| 4th Axis | Configuration Dependent |
The large table and 800 kg loading capacity make the DuraVertical 5080 suitable for machining heavier fixtures and production components. Exact workpiece size depends on fixture height, tool length, spindle clearance, and the individual machining operation.
DMG MORI DURAVERTICAL 5080 2013 – SPINDLE
| Specification | Value |
|---|---|
| Spindle Type | Vertical Milling Spindle |
| Maximum Spindle Speed | 12,000 RPM |
| Tool Taper | BT40 |
| Spindle Bearing Diameter | Approximately 70 mm |
| Spindle-to-Table Distance | 150–660 mm |
| Spindle Motor | Configuration Dependent |
| Spindle Cooling | Configuration Dependent |
The documented 2013 machine is equipped with a 12,000 RPM BT40 spindle, while DuraVertical 5080 machines from other production configurations were also available with 10,000 RPM spindles. The exact spindle specification should therefore be confirmed on the individual machine being purchased.
DMG MORI DURAVERTICAL 5080 2013 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Capacity | 30 Tools |
| Tool Changer | Automatic |
| Tool Interface | BT40 |
| Maximum Tool Diameter | Approximately 80 mm |
| Maximum Tool Diameter With Adjacent Pocket Empty | Approximately 125 mm |
| Maximum Tool Length | Approximately 300 mm |
| Maximum Tool Weight | Approximately 8 kg |
| Tool-to-Tool Time | Approximately 1.3 sec |
The 30-tool automatic tool changer provides enough tool capacity for many production jobs without requiring frequent manual tool changes. Published DuraVertical 5080 specifications document approximately 80 mm maximum tool diameter, 300 mm maximum tool length, and 8 kg maximum tool weight.
DMG MORI DURAVERTICAL 5080 2013 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | FANUC 0i-MD |
| Operator Interface | MAPPS IV |
| CNC Type | FANUC |
| Programming | ISO G-Code |
| Automatic Operation | Yes |
| 4th-Axis Control | Configuration Dependent |
| Tool Measurement | Configuration Dependent |
| Workpiece Probing | Configuration Dependent |
The 2013 DuraVertical 5080 is documented with FANUC 0i-MD control and MAPPS IV, providing a familiar control platform for CNC machining operations. Individual machines may have different installed options, software versions, or additional measuring and probing equipment.
DMG MORI DURAVERTICAL 5080 2013 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant System | Equipped / Configuration Dependent |
| Flood Coolant | Configuration Dependent |
| Chip Conveyor | Configuration Dependent |
| High-Pressure Coolant | Configuration Dependent |
| Automatic Lubrication | Standard Machine System |
| Coolant Filtration | Configuration Dependent |
| Chip Management | Configuration Dependent |
Coolant and chip-management equipment can vary between individual used machines. Buyers should verify whether the specific DuraVertical 5080 includes a chip conveyor, auger, through-spindle coolant, high-pressure coolant, or other coolant-management equipment.
DMG MORI DURAVERTICAL 5080 2013 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Electrical Supply | Three Phase |
| Voltage | Configuration / Location Dependent |
| Power Requirement | Approximately 27 kVA |
| Air Supply | Required |
| Hydraulic System | Configuration Dependent |
| Connected Load | Configuration Dependent |
Published DuraVertical 5080 specifications list approximately 27 kVA total power requirement. Electrical voltage and other utility requirements should be confirmed from the machine’s electrical nameplate before installation.
DMG MORI DURAVERTICAL 5080 2013 – DIMENSIONS
| Specification | Value |
|---|---|
| Machine Length | Approximately 3.5 m |
| Machine Width | Approximately 3.0 m |
| Machine Height | Approximately 2.8 m |
| Machine Weight | Approximately 6,100 kg (13,450 lb) |
| Floor Space | Approximately 3.5 × 3.0 m |
Published DuraVertical 5080 data lists approximately 6.1 tonnes machine weight and dimensions around 3.5 × 3.0 × 2.8 m. Actual shipping and installation dimensions can vary depending on chip conveyor, coolant equipment, transformers, rotary tables, and other accessories.
DMG MORI DURAVERTICAL 5080 2013 – GENERAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | DMG MORI / MORI SEIKI |
| Model | DuraVertical 5080 |
| Year | 2013 |
| Machine Type | CNC Vertical Machining Center |
| CNC Control | FANUC 0i-MD / MAPPS IV |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | BT40 |
| X Travel | 800 mm (31.5″) |
| Y Travel | 530 mm (20.9″) |
| Z Travel | 510 mm (20.1″) |
| Table Size | 1,100 × 600 mm |
| Table Capacity | 800 kg |
| Tool Capacity | 30 Tools |
| 4th Axis | Configuration Dependent |
The 2013 machine specifications above are based on documented used-machine and DuraVertical technical data. Individual machine configuration should always be verified before purchase, particularly spindle speed, coolant options, chip conveyor, probing, fourth-axis equipment, and electrical requirements.
INDUSTRIES THAT USE DMG MORI DURAVERTICAL 5080 2013
The DMG MORI DuraVertical 5080 can be used across a wide range of industries where medium-sized precision components require drilling, milling, tapping, contouring, pocketing, and finishing operations.
- Automotive manufacturing
- Aerospace component manufacturing
- Industrial machinery
- General precision machining
- Heavy equipment manufacturing
- Automation equipment
- Hydraulic and pneumatic components
- Energy equipment
- Medical equipment
- Electronics and instrumentation
- Job shops
- Contract manufacturing
- Tool and die manufacturing
TYPICAL PARTS DMG MORI DURAVERTICAL 5080 2013 CAN PRODUCE
The combination of 800 mm X travel, 530 mm Y travel, 510 mm Z travel, BT40 tooling, and a large 800 kg table capacity allows the DuraVertical 5080 to machine many different types of components.
Typical parts can include:
- Automotive brackets
- Machine bases
- Motor and gearbox housings
- Hydraulic manifolds
- Pump components
- Fixture plates
- Tooling components
- Mold components
- Aerospace structural components
- Industrial brackets
- Bearing housings
- Flanges
- Precision plates
- Mechanical assemblies
- Production tooling
The exact part size depends on fixture configuration, tool clearance, workpiece geometry, and the machining process.
WHY CHOOSE DMG MORI DURAVERTICAL 5080 2013
The DuraVertical 5080 is an attractive used CNC machining center because it combines a relatively large machining envelope with a BT40 spindle and automatic tool changing. The 800 mm X travel provides useful capacity for medium-sized components, while the 530 mm Y and 510 mm Z travels allow the machine to handle a broad range of machining operations.
The 12,000 RPM spindle on the documented 2013 configuration makes the machine suitable for both general production and higher-speed milling applications. The 30-tool automatic tool changer further improves production efficiency by allowing multiple tools to remain loaded during a machining cycle.
Another advantage is the FANUC 0i-MD/MAPPS IV control configuration documented on the 2013 machine. FANUC controls are widely used throughout CNC manufacturing, which can make operator training, programming, and integration easier for shops already familiar with FANUC equipment.
For manufacturers looking for a capable used VMC without moving into the size and cost of a large CAT50 machining center, the DuraVertical 5080 offers a useful balance of table capacity, travel, spindle speed, and tooling flexibility.
WHY BUY USED DMG MORI DURAVERTICAL 5080 2013
Buying a used DMG MORI DuraVertical 5080 can provide a manufacturer with a capable production machining center at a substantially lower investment than purchasing a comparable new machine. A 2013 model is old enough to offer significant depreciation savings while still providing useful CNC technology, a 12,000 RPM spindle, BT40 tooling, and a 30-tool automatic tool changer.
The machine’s 800 × 530 × 510 mm travels are particularly useful for shops producing medium-sized components. Its 800 kg table capacity also allows manufacturers to use substantial fixtures and workholding equipment without moving into a much larger machine class.
Used equipment should be evaluated based on spindle condition, axis backlash, ball screws, linear guides, ATC operation, control condition, coolant system, machine geometry, hours, maintenance history, and available tooling. A machine that has been properly maintained can represent significantly better value than a lower-priced machine requiring major repairs.
The DuraVertical 5080 can therefore be a strong option for job shops, manufacturers, contract machining companies, and production facilities looking to expand milling capacity while controlling capital expenditure.
HOW MUCH DOES A USED DMG MORI DURAVERTICAL 5080 2013 COST?
Current listings for DuraVertical 5080 machines frequently use request-for-price rather than publishing a fixed selling price, including current 2013 and earlier examples in the United States. A current 2013 DMG MORI DuraVertical 5080 listing documents the same general configuration of FANUC 0i-MD, CAT/BT40, 30-tool ATC, 12,000 RPM spindle, and 31.5 × 20.9 × 20-inch travels.
Based on the current used-machine market and publicly listed DuraVertical 5080 machines, a reasonable estimated price range for a 2013 DMG MORI DuraVertical 5080 is approximately $20,000–$40,000, depending heavily on condition and equipment. Lower-priced machines may require repairs, have higher spindle hours, or be sold as-is, while clean, running machines with low hours, probing, chip conveyors, coolant upgrades, tooling, and rotary-axis equipment can command more. A current HGR listing for a DuraVertical 5080 is substantially lower than dealer-style asking levels, illustrating how condition, seller type, and included equipment can significantly affect pricing.
For a specific 2013 machine, the most important factors affecting value are spindle hours, machine hours, spindle condition, axis condition, control condition, ATC operation, coolant/chip equipment, fourth-axis equipment, tooling, maintenance history, and whether the machine can be inspected and demonstrated under power. A well-maintained 2013 DuraVertical 5080 with a healthy spindle and complete production accessories can command a premium over an as-is machine.
