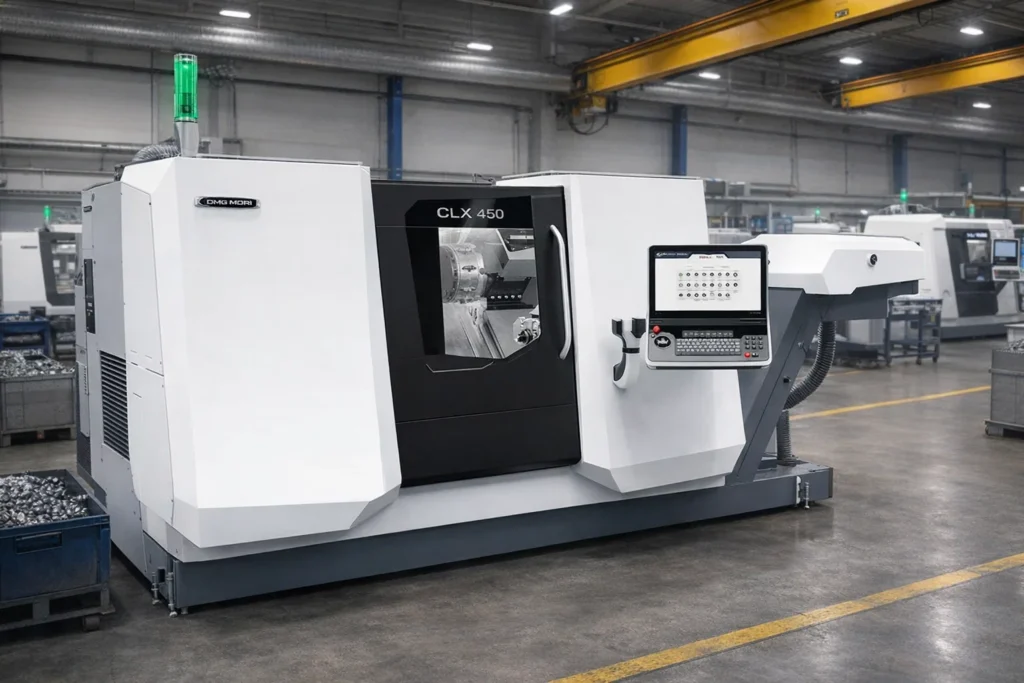

USED DMG MORI CLX 450

The DMG MORI CLX 450 is a versatile CNC turning center designed for high-precision machining of medium-sized components. As part of the CLX series, it is positioned as a flexible, shop-friendly machine capable of handling both simple turning and complex mill-turn operations. It is widely used in industries such as automotive, oil & gas, aerospace, and general machining due to its balance of performance, footprint, and ease of use.

The CLX 450 offers a maximum workpiece diameter of approximately 400 mm and a maximum turning length of around 800 mm, with a bar capacity of up to 80 mm. These specifications make it suitable for a broad range of parts, including shafts, flanges, and precision machined components. The machine is equipped with a powerful main spindle rated at approximately 25.5 kW with torque up to 426 Nm and speeds up to 4,000 rpm, allowing efficient roughing and finishing operations.

A key feature of the CLX 450 is its Y-axis capability (±60 mm travel) and optional counter spindle, enabling complete machining of parts in a single setup. This significantly increases cutting time efficiency and reduces secondary operations. The machine also supports live tooling, making it capable of milling, drilling, and tapping operations.

The machine is built on a rigid cast iron base with direct drive linear axes and a direct measuring system, ensuring thermal stability and consistent accuracy during long cutting cycles. It is available with Siemens SINUMERIK or Fanuc controls, along with DMG MORI’s CELOS platform, which simplifies programming and shopfloor operation.

Designed for high cutting time utilization, the CLX 450 integrates well with automation systems such as bar feeders and robotic loading. Overall, it offers a strong combination of flexibility, precision, and productivity, making it a reliable solution for modern turning applications.

DMG MORI CLX 450 SPECIFICATIONS

WHY BUY USED DMG MORI CLX 450

Buying a used DMG MORI CLX 450 is a smart investment for manufacturers looking to expand machining capability without the cost of a new machine. DMG MORI machines are known for their precision engineering, reliability, and long service life, which makes them highly desirable in the used equipment market. Even machines with several years of use can maintain strong performance if properly maintained.

One of the biggest advantages of buying used is cost savings. A new CLX 450 with options such as Y-axis, live tooling, and counter spindle can require a significant capital investment. A used machine provides access to the same multi-axis capability and complete machining functionality at a much lower price point, allowing businesses to scale operations efficiently.

Cutting time (spindle hours) is the most important factor when evaluating a used CLX 450. Machines with lower cutting hours typically have less wear on the spindle, turret, and guideways, resulting in better long-term accuracy and reliability. For example, a machine from the early 2010s with moderate usage may outperform a newer machine that has been heavily used in continuous production.

Another advantage is process efficiency. The CLX 450 is designed for complete machining, meaning turning, milling, and drilling operations can be performed in a single setup. Even in used condition, this capability significantly reduces setup time and improves throughput. Additionally, DMG MORI’s strong global service network and spare parts availability reduce the risk associated with purchasing older equipment.

From a financial standpoint, buying used allows for faster return on investment. Lower upfront cost combined with high cutting time utilization ensures that a used CLX 450 can quickly contribute to production output and profitability across a wide range of machining applications.

HOW MUCH DOES A USED DMG MORI CLX 450 COST?

The cost of a used DMG MORI CLX 450 depends on factors such as manufacturing year, machine configuration (Y-axis, live tooling, counter spindle), condition, and most importantly, cutting time (spindle hours). As a mid-to-high range CNC turning center, it typically falls into a moderate-to-premium price category.

Machines built before 2000 (or comparable earlier-generation CNC lathes) generally range from $15,000 to $40,000. These machines are the most affordable but may feature older control systems and higher wear levels. Cutting time is especially critical—machines with high spindle hours may require refurbishment, while low-hour units can still be effective for lighter production work.

Models produced between 2000 and 2010 typically range from $40,000 to $90,000. This segment often offers the best value, with improved CNC controls, better spindle technology, and enhanced machine rigidity. Units with low to moderate cutting time are particularly desirable, as they can deliver reliable performance with manageable maintenance costs.

Machines from 2010 to 2025 generally range from $90,000 to $200,000 or more, depending on configuration and condition. Machines equipped with Y-axis, counter spindle, and automation packages command higher prices due to their increased flexibility and productivity.

Cutting time remains the most critical pricing factor. A newer machine with excessive spindle hours may be less valuable than an older machine with minimal use. Buyers should carefully evaluate spindle condition, turret wear, maintenance history, and control system performance to determine true value and ensure long-term operational reliability.
