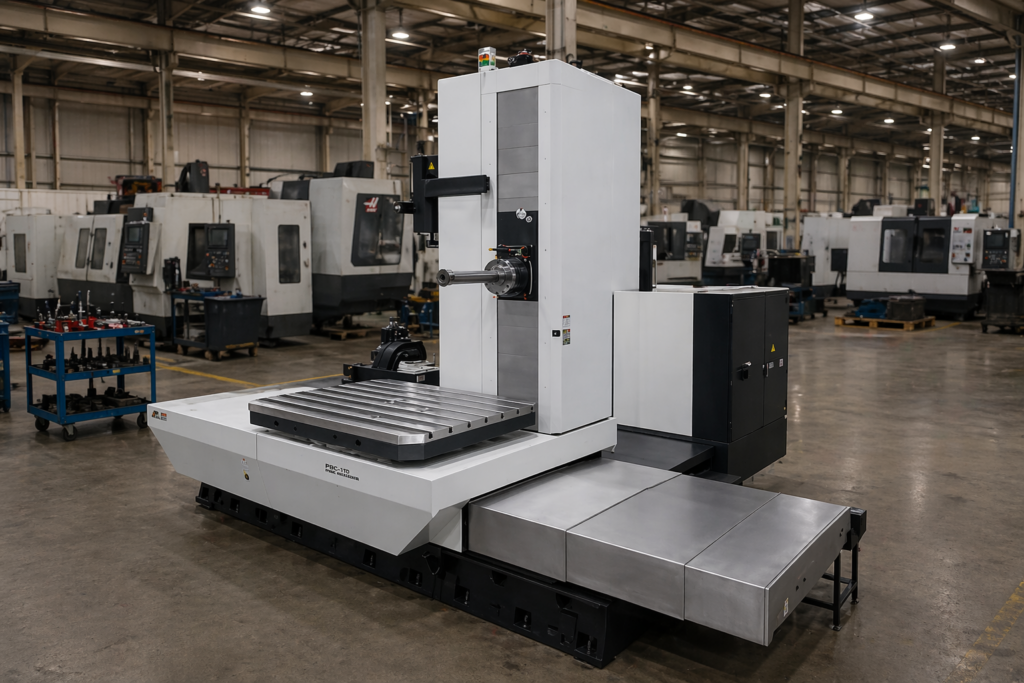

USED DMG MORI KBT 15 A

The DMG MORI KBT 15 A is a heavy-duty horizontal boring and milling machine designed for large-scale, high-torque machining of complex and oversized components. It belongs to the KBT 15 series, which is known for its extreme rigidity, large work envelope, and ability to handle very heavy workpieces in industries such as power generation, shipbuilding, heavy equipment manufacturing, and structural engineering.

The machine offers a large working range with axis travels of approximately 3,000 mm in X, 2,000 mm in Y, and 1,300 mm in Z. It features a high-torque 150 mm diameter boring spindle supported by a rigid three-point bearing system, ensuring stability during deep cutting and heavy milling operations. The table size is typically around 1,800 × 2,200 mm, with a load capacity of up to 15,000 kg, making it suitable for large castings and steel structures.

A key feature of the KBT 15 A is its geared spindle system, delivering extremely high torque—around 5 to 8 times higher than standard machining centers—making it ideal for deep boring and heavy rough machining. The spindle design focuses on strength rather than speed, ensuring consistent cutting performance under extreme loads.

In terms of cutting time, the KBT 15 A is optimized for sustained heavy material removal rather than high-speed finishing. Its W-axis machining system reduces the moving mass during operations, which significantly lowers energy consumption and improves efficiency—cutting drilling cycle energy by about one-third and tapping cycle energy by about half.

Machines in this category typically use robust CNC systems such as FANUC or CELOS, prioritizing reliability, torque stability, and long-term durability. Overall, the KBT 15 A is built for maximum rigidity, high load capacity, and continuous heavy-duty machining performance in industrial environments.

DMG MORI KBT 15 A SPECIFICATIONS

WHY BUY USED DMG MORI KBT 15 A

Buying a used DMG MORI KBT 15 A is a practical decision for industries that require large-part machining with high cutting forces and long-term stability. Its biggest advantage is its extremely rigid mechanical structure combined with a high-torque spindle system, allowing it to machine large components reliably even after years of heavy industrial use.

Cost advantage is significant. New machines in this category require very high investment due to their size, spindle power, and structural reinforcement. A used KBT 15 A provides access to the same heavy-duty machining capability at a much lower upfront cost, making it attractive for fabrication shops, energy-sector suppliers, and heavy engineering manufacturers.

Older boring machines (pre-2000) generally lack the rigidity and torque required for modern deep boring applications and suffer from longer cutting times and reduced stability under load. Machines from 2000 to 2010 improved spindle performance and control systems, but still do not match the efficiency of the KBT 15 series.

Used KBT 15 A machines from 2010 onward are especially valuable because they retain strong structural integrity while benefiting from improved CNC controls, better thermal stability, and more consistent machining performance. The W-axis system also improves efficiency by reducing moving mass, helping lower energy consumption during drilling and tapping operations.

From a cutting-time perspective, the KBT 15 A is designed for continuous heavy cutting rather than rapid cycle reduction. A well-maintained used unit can still deliver high productivity due to its ability to remove large volumes of material in a single setup. Combined with DMG MORI’s support network, it remains a reliable long-term industrial asset.

HOW MUCH DOES A USED DMG MORI KBT 15 A COST?

The cost of a used DMG MORI KBT 15 A depends on factors such as machine condition, year of manufacture, spindle hours, tooling configuration, and maintenance history. As a large horizontal boring machine, it sits in a specialized heavy-industrial pricing category.

Older machines comparable to pre-2000 boring mills typically range from $70,000 to $180,000. These machines generally have lower spindle torque, older CNC systems, and longer cutting times, making them suitable only for basic heavy machining tasks.

Machines manufactured between 2000 and 2010 typically range from $180,000 to $350,000. These models offer improved spindle torque, better structural rigidity, and more reliable control systems, resulting in more consistent machining performance and reduced downtime.

For KBT 15 A machines produced between 2010 and 2025, prices generally range from $350,000 to $750,000 or more depending on configuration and condition. These newer machines benefit from improved rigidity, advanced CNC controls, better thermal stability, and enhanced process monitoring.

Cutting time is not the primary pricing factor. Instead, value is determined by torque capacity, structural integrity, and ability to sustain heavy-duty machining over long cycles. Machines with low spindle wear, stable alignment, and well-maintained gearbox systems command higher resale value due to reliability under continuous load.

Overall, the KBT 15 A is a premium heavy-machining investment where durability, load capacity, and stability are far more important than high-speed cycle optimization.
