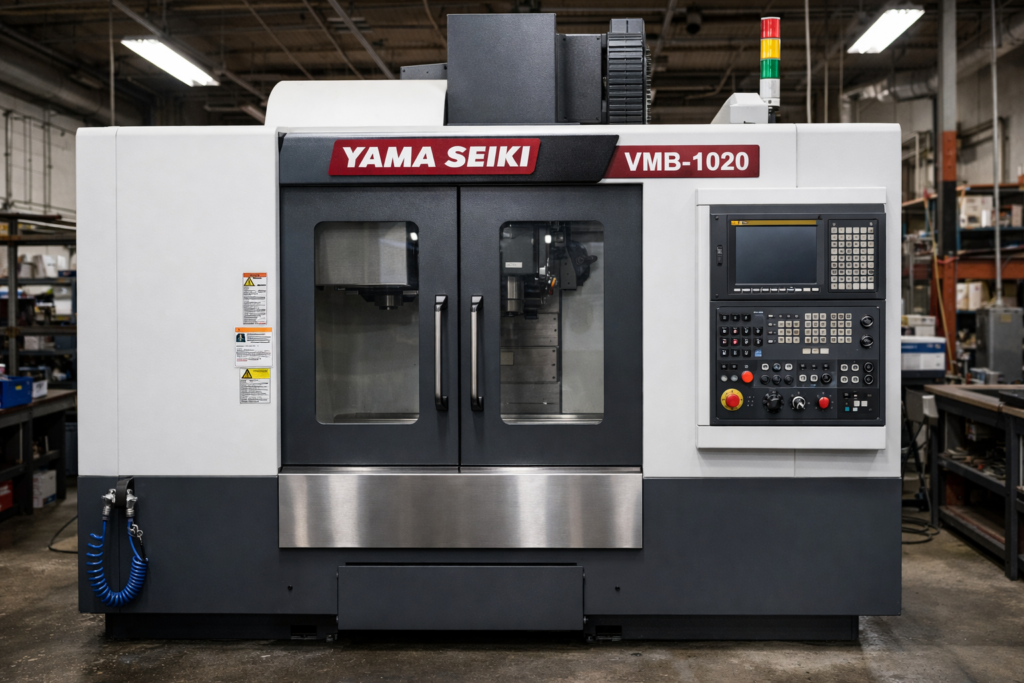

YAMA SEIKI VMB-1020 is a high-performance vertical machining center designed for precision milling and versatile manufacturing applications. It features a rigid cast iron structure and box-type column design that provide excellent structural stability, thermal control, and vibration damping during heavy cutting operations. The VMB-1020 is suitable for machining a wide range of materials, including aluminum, steel, cast iron, and high-strength alloys, and is commonly used in automotive, aerospace, tooling, and general manufacturing environments.
The VMB-1020 is typically equipped with a high-speed spindle that supports efficient material removal while maintaining excellent surface finish quality. Advanced CNC control systems offer high-speed data processing, smooth contouring, and user-friendly programming capabilities, enabling complex 3D machining operations with high accuracy and repeatability. A large-capacity tool magazine and automatic tool changer allow for multi-operation machining in a single setup, reducing cycle times and improving productivity. Precision linear guideways and high-performance servo drive systems further enhance positioning accuracy and machining consistency during continuous production.
Yama Seiki engineered the VMB-1020 for durability and long-term industrial use, with robust mechanical components, efficient chip management, and automation-ready features for integration into modern manufacturing cells. Its combination of rigidity, speed, and flexibility makes it a reliable solution for manufacturers seeking a versatile vertical machining platform for both prototyping and production.
YAMA SEIKI VMB-1020SPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: ~40.2 in (~1,021 mm)
Y-Axis Travel: ~23.6 in (~599 mm)
Z-Axis Travel: ~23.6 in (~599 mm)
Table Size: ~44.1″ × 23.6″ (~1,120 × 600 mm)
Max Table Load: ~2,200 lb (~1,000 kg)
SPINDLE
Spindle Taper: CAT 40
Max Spindle Speed: ~8,000 rpm
Spindle Drive: Geared head or belt (varies)
Spindle Motor: ~15 HP (~11 kW)
Thru-Spindle Coolant: Optional/Installed on many units
Designed for precision milling and drilling of medium-sized parts
Standard CNC Control: FANUC (e.g., FANUC 0i-MC)
Typically equipped with coolant and chip conveyor systems
Gear-head or high-speed spindle option with thru-spindle coolant available
YAMA SEIKI VMB-1020 — KEY CAPABILITIES
Large work envelope for versatile part sizes
Robust box-way construction for rigidity
FANUC CNC control with reliable operation
High-speed spindle options up to 8,000 rpm
Large table surface for bulky fixtures
Tool magazine for automated tool changes
INDUSTRIES THAT USE YAMA SEIKI VMB-1020
Automotive machining
Aerospace components manufacturing
General engineering and fabrication
Precision tooling and dies
Prototype and production milling
TYPICAL PARTS YAMA SEIKI VMB-1020 CAN PRODUCE
Precision housings and brackets
Engine components
Milled fixtures and tooling plates
Drilled and tapped assemblies
Medium-size structural parts
WHY CHOOSE THE YAMA SEIKI VMB-1020
Durable box-way design for heavy cutting
Widely supported FANUC CNC platform
Large travel and table capacity for diverse jobs
Thru-spindle coolant available for deep drilling
Built-in chip management and coolant systems
Good used-machine pricing and availability
Summary Table
PARAMETER
VALUE
X-Axis Travel
~40.2 in (1,021 mm)
Y-Axis Travel
~23.6 in (599 mm)
Z-Axis Travel
~23.6 in (599 mm)
Table Size
~44.1″ × 23.6″ (1,120 × 600 mm)
Max Table Load
~2,200 lb (1,000 kg)
Spindle Speed
~8,000 rpm
Spindle Motor
~15 HP (11 kW)
Tool Capacity
~24–30 tools
Rapid Traverse
~945/945/788 ipm
Control
FANUC CNC
How much does used YAMA SEIKI VMB-1020 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Used Base Model
$22,000 – $30,000
Mid Spec (coolant thru spindle, conveyor)
$30,000 – $45,000
High Spec (options installed)
$45,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED YAMA SEIKI VMB-1020
Buying a used Yama Seiki VMB-1020 can significantly reduce capital expenditure while still providing advanced vertical machining capabilities. Pre-owned machines are ideal for job shops and production facilities looking to expand milling capacity or replace aging equipment without the high cost of new machinery. With proper inspection, servicing, and calibration, a used VMB-1020 can deliver reliable long-term performance, making it a cost-effective investment for manufacturers focused on maximizing productivity and return on capital.
