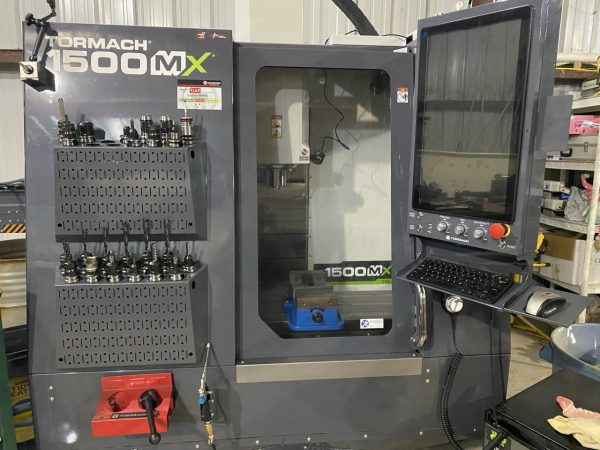

USED TORMACH 1500MX – 2025
The TORMACH 1500MX – 2025 is a compact vertical CNC machining center designed to provide a larger work envelope, servo-driven motion, high spindle speed, and production-oriented CNC capabilities in a relatively compact machine platform. Introduced as Tormach’s larger and more powerful CNC mill, the 1500MX combines a rigid epoxy-granite machine frame, linear-rail table movement, a BT30 spindle, 10,000 RPM maximum spindle speed, and the PathPilot CNC control. The machine provides approximately 19.7 inches of X-axis travel, 13.8 inches of Y-axis travel, and 14 inches of Z-axis travel.
The 1500MX is designed for manufacturers, prototype shops, engineering departments, educational facilities, and smaller production environments that need more capability than a benchtop CNC mill while still wanting a machine that can operate from single-phase 230V electrical service. Its 35 × 12.75-inch table provides a useful workholding area, while the 300-pound maximum table load allows the machine to handle substantially sized fixtures and workpieces within its machining envelope.
One of the distinguishing features of the 1500MX is its epoxy-granite frame. Tormach introduced the machine with a U.S.-made epoxy-granite frame intended to provide a rigid foundation for CNC milling. The table rides on linear rails and can reach rapid feed rates of up to 1,200 IPM in X and Y, while the Z axis can reach 600 IPM. These servo-driven movements are intended to reduce non-cutting time and improve responsiveness during CNC programs.
The spindle uses a BT30 taper and can operate from approximately 250 RPM to 10,000 RPM. It is rated at 4 HP continuous power with a 6 HP four-minute overload capability. The BT30 tooling interface provides a more robust toolholding platform than smaller taper systems and allows the machine to be equipped with production-oriented tooling and an optional automatic tool changer.
The machine is controlled through Tormach PathPilot, which serves as the primary CNC interface for controlling the axes, spindle, and supported accessories. The system includes an integrated touchscreen operator console and jog pendant, with keyboard and mouse available as options. The 1500MX also uses 23-bit absolute-encoded servos, meaning the machine can retain axis position information without requiring the same type of referencing procedure used on some earlier Tormach machines.
The 1500MX is also designed with flexibility in mind. Tormach has offered accessories such as automatic tool changing, fourth-axis capability, wireless probing, electronic tool setting, and flood coolant. The machine is also designed to be ready for through-spindle coolant hardware, with Tormach documentation identifying a through-spindle coolant rotary union and related spindle components. Optional equipment can therefore substantially change the production capabilities of an individual 1500MX.
The machine’s capabilities extend across a broad range of materials. Tormach has documented 1500MX cutting evaluations involving 6061 aluminum, 1018 carbon steel, 303 stainless steel, 4140 alloy steel, Inconel 625, 6Al-4V titanium, and Hastelloy C22. These tests demonstrate that the machine can be used for demanding materials when tooling, speeds, feeds, stepovers, and machining strategies are appropriately selected.
The TORMACH 1500MX – 2025 is therefore a useful option for shops looking for a compact vertical machining center with a relatively large work envelope, servo-driven axes, BT30 tooling, 10,000 RPM spindle speed, PathPilot CNC control, and single-phase 230V operation. Its combination of size, accessibility, and production-oriented features makes it suitable for prototyping, short-run manufacturing, engineering development, tooling, fixtures, and a wide range of precision milling applications.
TORMACH 1500MX – AXIS
The TORMACH 1500MX is a 3-axis vertical CNC machining center using X, Y, and Z linear axes. The X and Y axes move the table horizontally while the Z axis provides vertical movement of the spindle assembly. An optional rotary fourth axis can be added for applications requiring indexed or rotary machining.
| Specification | Details |
|---|---|
| Machine Type | Vertical CNC Machining Center |
| Standard Axes | 3 |
| X Axis | Table longitudinal movement |
| Y Axis | Table transverse movement |
| Z Axis | Vertical spindle movement |
| Optional Rotary Axis | A Axis / 4th Axis |
| Axis Drive | Servo driven |
| Axis Feedback | 23-bit absolute encoders |
| CNC Control | Tormach PathPilot |
The servo-driven architecture provides responsive axis movement and supports the relatively high rapid traverse rates available on the machine. The optional fourth axis can expand the machine’s capabilities for indexed machining, cylindrical features, and multi-sided components.
TORMACH 1500MX – AXIS TRAVELS / WORK ENVELOPE
The 1500MX provides a work envelope of approximately 19.7 inches in X, 13.8 inches in Y, and 14 inches in Z. This gives the machine considerably more travel than many small-format CNC mills while keeping the overall machine relatively compact.
| Specification | Details |
|---|---|
| X Axis Travel | 19.7 inches |
| Y Axis Travel | 13.8 inches |
| Z Axis Travel | 14 inches |
| Spindle-to-Table Maximum Clearance | 17.7 inches |
| Spindle-to-Table Minimum Clearance | 3.7 inches |
| Spindle Centerline to Machine Column | 14.7 inches |
| X/Y Maximum Feed Rate | 1,200 IPM |
| Z Maximum Feed Rate | 600 IPM |
| X/Y Maximum Feed Rate | 30.5 m/min |
| Z Maximum Feed Rate | 15.2 m/min |
| Axis Drive | Servo |
The combination of 19.7 inches of X travel and 14 inches of Z travel provides useful capacity for fixtures, plates, housings, brackets, molds, tooling components, and other workpieces that require multiple milling operations.
The available clearance between the spindle and table also provides flexibility when using workholding fixtures or taller workpieces. Actual machining capacity depends on tool length, fixture dimensions, part geometry, and the required cutting orientation.
TORMACH 1500MX – CAPACITY / TABLE
The 1500MX uses a substantial 35 × 12.75-inch machine table with three T-slots. The center T-slot is precision ground, and the table has a maximum recommended workpiece and workholding load of 300 pounds.
| Specification | Details |
|---|---|
| Table Size | 35 × 12.75 inches |
| Table Size | 890 × 325 mm |
| Number of T-Slots | 3 |
| T-Slot Size | 5/8 inch |
| T-Slot Size | 15.9 mm |
| T-Slot Spacing | 3.9 inches |
| T-Slot Spacing | 100 mm |
| Center T-Slot | Precision ground |
| Maximum Table Load | 300 lbs |
| Maximum Table Load | 136 kg |
| Table Movement | Linear rail guided |
The table size allows the operator to install larger vises, fixture plates, modular workholding systems, and multiple smaller workpieces when appropriate. The 300-pound load rating should include the workpiece and workholding devices, so heavy fixtures need to be considered when planning a machining setup.
TORMACH 1500MX – SPINDLE
The 1500MX uses a BT30 spindle with a maximum speed of 10,000 RPM. The spindle provides 4 HP of continuous power and can deliver up to 6 HP for a four-minute overload period. The spindle uses a 5M toothed-belt transmission and supports rigid tapping, tension/compression tapping, and thread milling.
| Specification | Details |
|---|---|
| Spindle Taper | BT30 |
| Minimum Spindle Speed | 250 RPM |
| Maximum Spindle Speed | 10,000 RPM |
| Continuous Spindle Power | 4 HP |
| Continuous Spindle Power | 3 kW |
| Four-Minute Overload Power | 6 HP |
| Four-Minute Overload Power | 4.5 kW |
| Transmission | 5M Toothed Belt |
| Thread Machining | Rigid Tapping |
| Thread Machining | Tension/Compression Tapping |
| Thread Machining | Thread Milling |
| Spindle Motor | Servo driven |
| Tooling Interface | BT30 |
The 10,000 RPM spindle provides the speed necessary for a wide range of modern milling applications. Higher spindle speeds can be useful for smaller-diameter cutters and aluminum machining, while the BT30 interface provides a robust toolholding platform for steel, stainless steel, titanium, and other materials when appropriate cutting strategies are used.
The documented Tormach material tests also demonstrate the 1500MX being used on materials ranging from aluminum and carbon steel to stainless steel, 4140 alloy steel, titanium, Inconel, and Hastelloy. Cutting parameters must be adjusted for each material and tooling combination.
TORMACH 1500MX – TOOL CHANGER
The standard 1500MX can be configured with an automatic tool changer, allowing the machine to automatically change between multiple BT30 cutting tools during a CNC program. The automatic tool changer is an optional configuration rather than something that should automatically be assumed on every individual used 1500MX.
| Specification | Details |
|---|---|
| Tool Interface | BT30 |
| Automatic Tool Changer | Optional |
| Tool Change | Automatic when ATC is installed |
| Tool Holder Type | BT30 |
| Typical Tooling | End mills, drills, face mills, boring tools and thread tools |
| Tool Setting | Electronic tool setting available |
| Probing | Wireless probing available |
| Application | Multi-operation CNC machining |
An automatic tool changer can significantly improve the machine’s suitability for production work because multiple tools can be loaded into the machine before a program begins. The operator can then combine roughing, finishing, drilling, chamfering, boring, and other operations into one automated machining cycle.
Wireless probing and electronic tool setting can further reduce setup time and improve repeatability when those options are installed.
TORMACH 1500MX – CONTROL SYSTEM
The PathPilot CNC control is the primary operator interface for the TORMACH 1500MX. PathPilot controls the machine’s axis motion, spindle, and supported accessories through an integrated operator console and touchscreen. A jog pendant is also part of the control system.
| Specification | Details |
|---|---|
| CNC Control | Tormach PathPilot |
| Interface | Integrated touchscreen |
| Jogging | Jog pendant |
| Keyboard | Optional |
| Mouse | Optional |
| CNC Programming | G-code |
| Axis Control | X, Y and Z |
| Spindle Control | Programmable through PathPilot |
| Accessory Control | Supported machine accessories |
| Software Updates | Supported through PathPilot system |
PathPilot provides an accessible interface for operators who may not have extensive experience with conventional industrial CNC control systems. The control environment supports setup, jogging, tool and work offsets, G-code execution, and machine operation.
The 1500MX also differs from some older Tormach machines in its referencing behavior. Tormach documentation states that the 1500MX does not need to be referenced on every startup in the same way as past Tormach machines because of its absolute-encoded servo system.
TORMACH 1500MX – COOLANT / DUST / WATER MANAGEMENT
The 1500MX can be equipped with a flood coolant system, while the machine is designed to accommodate through-spindle coolant equipment. Tormach’s introduction materials identified a 36-gallon flood coolant kit as an optional accessory and stated that the machine was prepared for future through-spindle coolant and mist collection capabilities.
| Specification | Details |
|---|---|
| Flood Coolant | Optional |
| Documented Flood Coolant Kit | 36 gallons |
| Through-Spindle Coolant Ready | Yes |
| Through-Spindle Coolant Hardware | Available / configuration dependent |
| Mist Collection | Optional / configuration dependent |
| Coolant Chute | Integrated enclosure component |
| Chip Management | Enclosed machining area |
| Wash-Down Capability | Available with applicable coolant options |
| Coolant Application | Flood and through-spindle configurations |
The enclosed machine design helps contain chips and coolant generated during milling. A flood coolant system can be useful for aluminum, steel, stainless steel, and other applications where coolant improves tool life and chip evacuation.
Through-spindle coolant can be particularly useful when drilling deep holes or performing machining operations where delivering coolant directly through the tool provides an advantage.
TORMACH 1500MX – POWER REQUIREMENTS
One of the practical characteristics of the 1500MX is that it is designed to operate from single-phase 230 VAC power. Tormach specifies a recommended 30-amp breaker and a NEMA L6-30P plug for the primary machine power connection.
| Specification | Details |
|---|---|
| Primary Power | Single-phase 230 VAC |
| Frequency | 50/60 Hz |
| Recommended Circuit | 30 amp breaker |
| Plug Type | NEMA L6-30P |
| Required Air Pressure | 90–120 PSI |
| Air Pressure | 620–825 kPa |
| Successive Tool Change Air Requirement | At least 2 CFM at 90 PSI |
| Compressed Air | Clean, dry air recommended |
| Electrical Installation | Dedicated circuit recommended |
Tormach specifies that the machine’s primary power should be supplied by a dedicated circuit isolated from electrically noisy equipment such as welders and plasma torches. The installation should also be properly grounded, and the manufacturer’s requirements should be followed by a qualified electrician.
The single-phase power requirement can be particularly useful for smaller manufacturing facilities, engineering shops, schools, and prototype environments that do not have three-phase industrial electrical service available.
TORMACH 1500MX – DIMENSIONS
The 1500MX is compact relative to its machining capacity, but sufficient space must be provided around the machine for operation, maintenance, coolant equipment, chip handling, and service access. Tormach lists an installed machine size of approximately 86 × 104 inches and an overall system height of approximately 94 inches. Typical system weight is approximately 2,800 pounds, although options and accessories can change the installed dimensions and weight.
| Specification | Details |
|---|---|
| Machine Size | Approximately 86 × 104 inches |
| Machine Size | Approximately 2.2 × 2.6 meters |
| Overall System Height | Approximately 94 inches |
| Overall System Height | Approximately 2.4 meters |
| Typical System Weight | Approximately 2,800 lbs |
| Typical System Weight | Approximately 1,270 kg |
| Installation | Indoor industrial environment |
| Floor Requirement | Continuous slab suitable for machine and accessories |
| Service Clearance | Additional rear access required |
| Operating Temperature | 40°F–90°F |
| Storage Temperature | 30°F–100°F |
The exact installed footprint depends on the machine’s accessories and configuration. Additional space should be reserved for opening the enclosure, loading workpieces, accessing the control, servicing the machine, and maintaining coolant and air systems.
TORMACH 1500MX – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | TORMACH |
| Model | 1500MX |
| Year | 2025 |
| Machine Type | Vertical CNC Machining Center |
| Standard Configuration | 3-Axis |
| Optional Configuration | 4th Axis |
| CNC Control | PathPilot |
| Spindle Taper | BT30 |
| Maximum Spindle Speed | 10,000 RPM |
| Continuous Spindle Power | 4 HP |
| Peak / Overload Spindle Power | 6 HP |
| X Axis Travel | 19.7 inches |
| Y Axis Travel | 13.8 inches |
| Z Axis Travel | 14 inches |
| Table Size | 35 × 12.75 inches |
| Maximum Table Load | 300 lbs |
| X/Y Maximum Feed Rate | 1,200 IPM |
| Z Maximum Feed Rate | 600 IPM |
| Axis Drive | Servo |
| X/Y/Z Feedback | 23-bit absolute encoders |
| Primary Power | 230 VAC Single Phase |
| Recommended Breaker | 30 Amp |
| Air Requirement | 90–120 PSI |
| Typical System Weight | 2,800 lbs |
| Frame | Epoxy Granite |
| Automatic Tool Changer | Optional |
| Flood Coolant | Optional |
| Through-Spindle Coolant | Configuration dependent |
| Wireless Probing | Available |
| Electronic Tool Setting | Available |
These specifications represent the documented 1500MX platform. Individual 2025 machines may have different options, accessories, coolant systems, tool changers, probing systems, fourth-axis equipment, or CAD/CAM packages.
INDUSTRIES THAT USE TORMACH 1500MX
The TORMACH 1500MX can be used in a wide variety of manufacturing and engineering environments because it combines a relatively large work envelope with compact installation requirements and single-phase electrical operation.
Aerospace and aerospace prototyping can benefit from a machine such as the 1500MX for producing brackets, fixtures, tooling components, prototype housings, and other smaller precision components. Aluminum, titanium, stainless steel, and nickel-based materials can be machined when appropriate tooling and cutting parameters are used.
Automotive manufacturing and motorsports represent another potential application. The machine can produce brackets, mounts, adapters, engine components, fixtures, prototype components, and custom parts. The 10,000 RPM spindle is useful for smaller-diameter cutters and high-speed aluminum machining.
Medical device development can require rapid prototyping of fixtures, housings, brackets, and specialized components. The machine’s CNC control, probing options, and repeatable servo motion can support prototype and small-batch machining applications.
Defense manufacturing and prototyping can involve relatively complex components, tooling, fixtures, and replacement parts. The 1500MX’s BT30 spindle and relatively large XYZ work envelope provide useful capacity for many smaller defense-related machining requirements.
General job shops can use the machine for prototypes, short-run production, repair components, tooling, and custom machining. The optional automatic tool changer can be particularly useful when the same machine is expected to perform multiple operations without manual tool changes.
Tool and fixture manufacturing is another strong application area. The 35-inch-long table provides substantial room for workholding fixtures, plates, jigs, and other tooling components. The machine can perform drilling, contouring, pocketing, facing, boring, and interpolation operations.
Educational institutions and technical training centers can use the 1500MX as a teaching platform for CNC programming, machining, CAD/CAM, setup, workholding, probing, and production practices. Its PathPilot control provides an accessible interface for students learning CNC machining.
Prototype and product-development companies can benefit from bringing machining capabilities in-house. Instead of outsourcing every prototype, engineering teams can use the machine for iterative development and testing, allowing design changes to move more quickly from CAD models to physical components.
TYPICAL PARTS TORMACH 1500MX CAN PRODUCE
| Part Type | Typical Machining Operations |
|---|---|
| Aluminum Brackets | Pocketing, profiling and drilling |
| Steel Brackets | Facing, drilling and contouring |
| Machine Plates | Facing, drilling and pocketing |
| Fixtures | Milling, drilling and tapping |
| Jigs | Pocketing, drilling and contouring |
| Prototype Housings | 3D profiling, pocketing and drilling |
| Motor Mounts | Facing, pocketing and drilling |
| Adapter Plates | Profiling, drilling and tapping |
| Tooling Components | Contouring, boring and drilling |
| Mold Components | 3D profiling and finishing |
| Medical Prototypes | Precision milling and drilling |
| Aerospace Prototypes | Pocketing, profiling and drilling |
| Automotive Prototypes | Contouring, drilling and pocketing |
| Hydraulic Components | Pocketing, boring and drilling |
| Pneumatic Components | Milling and drilling |
| Machine Components | General CNC milling |
| Custom Fixtures | Drilling, tapping and profiling |
| Small Production Parts | Multi-operation CNC milling |
The machine’s suitability for a specific component depends on part dimensions, material, tolerance requirements, tooling, workholding, spindle load, and the required machining strategy.
WHY CHOOSE TORMACH 1500MX
One of the major advantages of the TORMACH 1500MX is its combination of work envelope and compact machine format. With 19.7 inches of X travel, 13.8 inches of Y travel, and 14 inches of Z travel, the machine provides useful machining capacity for a wide variety of components while remaining substantially smaller than many conventional industrial vertical machining centers.
The BT30 spindle provides a robust tooling interface suitable for a wide range of milling applications. BT30 tooling is commonly available in many configurations, including end-mill holders, ER collet holders, drill holders, face-mill holders, and other specialty tooling.
The 10,000 RPM spindle provides flexibility for both general machining and higher-speed cutting applications. Smaller cutters can benefit from higher spindle speeds, while the 4 HP continuous spindle rating provides useful cutting power for a machine of this class.
The servo-driven axes are another important feature. The X and Y axes can move at up to 1,200 IPM while the Z axis can reach 600 IPM. These speeds help reduce rapid positioning time between cutting operations and can contribute to shorter overall cycle times.
The 23-bit absolute encoders provide position feedback for the servo system. Tormach specifically notes that the 1500MX does not require the same reference procedure at every startup used by some earlier machines. This can simplify machine startup and improve day-to-day convenience.
The PathPilot control system provides an integrated touchscreen interface and jog pendant. This can be especially useful for shops where operators need an accessible control environment for setup, programming, tool offsets, and machine operation.
The machine’s single-phase 230V electrical requirement can also be a significant practical benefit. A shop does not necessarily need to install three-phase electrical service simply to operate the base machine. Tormach specifies a 30-amp recommended circuit for the 1500MX.
Finally, the machine provides a broad accessory ecosystem. Automatic tool changing, fourth-axis machining, probing, electronic tool setting, flood coolant, and through-spindle coolant capabilities can allow the machine to be configured around the requirements of a particular production environment.
WHY BUY USED TORMACH 1500MX
Buying a used TORMACH 1500MX – 2025 can be an interesting option for a manufacturer or engineering operation that wants a relatively recent CNC machine while potentially reducing the acquisition cost compared with buying a fully equipped new system.
Because the 1500MX was introduced relatively recently, a 2025 machine is still a modern CNC platform rather than an older-generation machine. The model was introduced in 2024, making 2025 machines among the earliest production examples of the platform.
A major advantage of a used 2025 machine can be the opportunity to acquire existing options and accessories. Depending on the individual machine, a used 1500MX may already have an automatic tool changer, flood coolant, wireless probing, electronic tool setting, fourth axis, or other equipment that would otherwise have to be purchased separately.
The BT30 spindle and 10,000 RPM capability make the machine suitable for a broad range of tooling. A buyer who already owns compatible BT30 holders may also be able to integrate some existing tooling into the new machine setup.
The machine’s single-phase 230V power requirement can make installation easier in facilities that do not have three-phase service. This can be particularly useful for smaller manufacturers, engineering departments, educational facilities, and prototype shops.
The compact footprint can also be useful when floor space is limited. The documented installed size is approximately 86 × 104 inches, although additional space is needed for service access and accessories.
The 1500MX is also capable of working with a surprisingly broad range of materials. Tormach’s documented testing includes aluminum, carbon steel, stainless steel, 4140, titanium, Inconel, and Hastelloy. These tests do not mean every production application will have the same results, but they demonstrate the machine’s ability to work with materials beyond basic aluminum and plastics when proper machining strategies are used.
Before purchasing a used 2025 machine, buyers should still inspect spindle operation, axis movement, servo performance, table condition, BT30 taper condition, drawbar operation, PathPilot control, coolant system, enclosure, tool changer if installed, probing equipment, and any fourth-axis equipment. A recent machine should not automatically be assumed to be in perfect condition.
HOW MUCH DOES A USED TORMACH 1500MX COST?
The price of a TORMACH 1500MX – 2025 depends heavily on configuration because the machine can be purchased with different accessory and package combinations. Automatic tool changing, flood coolant, probing, tool setting, fourth-axis equipment, and other options can significantly affect the total value of an individual machine.
A current listing for a 2025 TORMACH 1500MX VMC is advertised at approximately $39,900 USD. The listing identifies a BT30 spindle, 10,000 RPM maximum speed, PathPilot control, 19.7 × 13.8 × 14-inch XYZ travel, servo-driven axes, 35 × 12.75-inch table, and chip conveyor.
The same current listing identifies the machine as having 4 HP continuous spindle power and 6 HP four-minute overload capability, along with a 230V single-phase electrical requirement. It is therefore useful as a current market reference for a 2025 machine, although the advertised price is specific to that machine and configuration.
A current Tormach distributor price listing shows a 1500MX with enclosure and operator console at $35,450, while a configuration assembled with automatic tool changer and flood coolant is listed at $46,450. These figures illustrate how substantially the installed options can change the price of the machine.
The difference between a base or partially equipped 1500MX and a machine with an automatic tool changer and coolant system can therefore be significant. Buyers comparing used machines should identify exactly what accessories are included rather than comparing the advertised machine price alone.
A used 2025 machine with an automatic tool changer, flood coolant, probing, tool setter, fourth axis, and other production accessories may be priced differently from a basic machine with only the enclosure and PathPilot control. The included tooling can also have meaningful value, especially when the machine is sold with a collection of BT30 holders, collets, cutters, vises, probes, and workholding equipment.
Condition should also be considered. Buyers should check spindle noise, taper condition, drawbar function, servo operation, axis accuracy, backlash, table condition, coolant operation, enclosure condition, tool changer operation, and control performance.
Transportation and installation should be included in the total acquisition budget. Although the machine’s typical system weight is approximately 2,800 pounds, Tormach notes that installed weight and dimensions depend on options and accessories.
For a used TORMACH 1500MX – 2025, the most useful price comparison is therefore based on the exact configuration, accessories, condition, machine hours, tooling, location, and transportation requirements. A current $39,900 listing provides one market reference, while documented new configurations range from approximately $35,450 for an enclosure/operator-console configuration to $46,450 for an assembled machine with automatic tool changing and flood coolant.
The TORMACH 1500MX – 2025 provides a combination of 19.7-inch X travel, 13.8-inch Y travel, 14-inch Z travel, BT30 tooling, 10,000 RPM spindle speed, servo-driven axes, PathPilot control, a 35 × 12.75-inch table, and single-phase 230V operation. With optional automation, probing, coolant, fourth-axis machining, and tool-setting equipment, it can be configured for applications ranging from prototyping and engineering development to small-batch and production CNC machining.
Related Products
-
DMG MORI - NLX 2500 | 700
VIEW MACHINE -
HAAS - HL2
VIEW MACHINE -
HAAS - DM1
VIEW MACHINE -
NEW ARRIVAL ON SALE

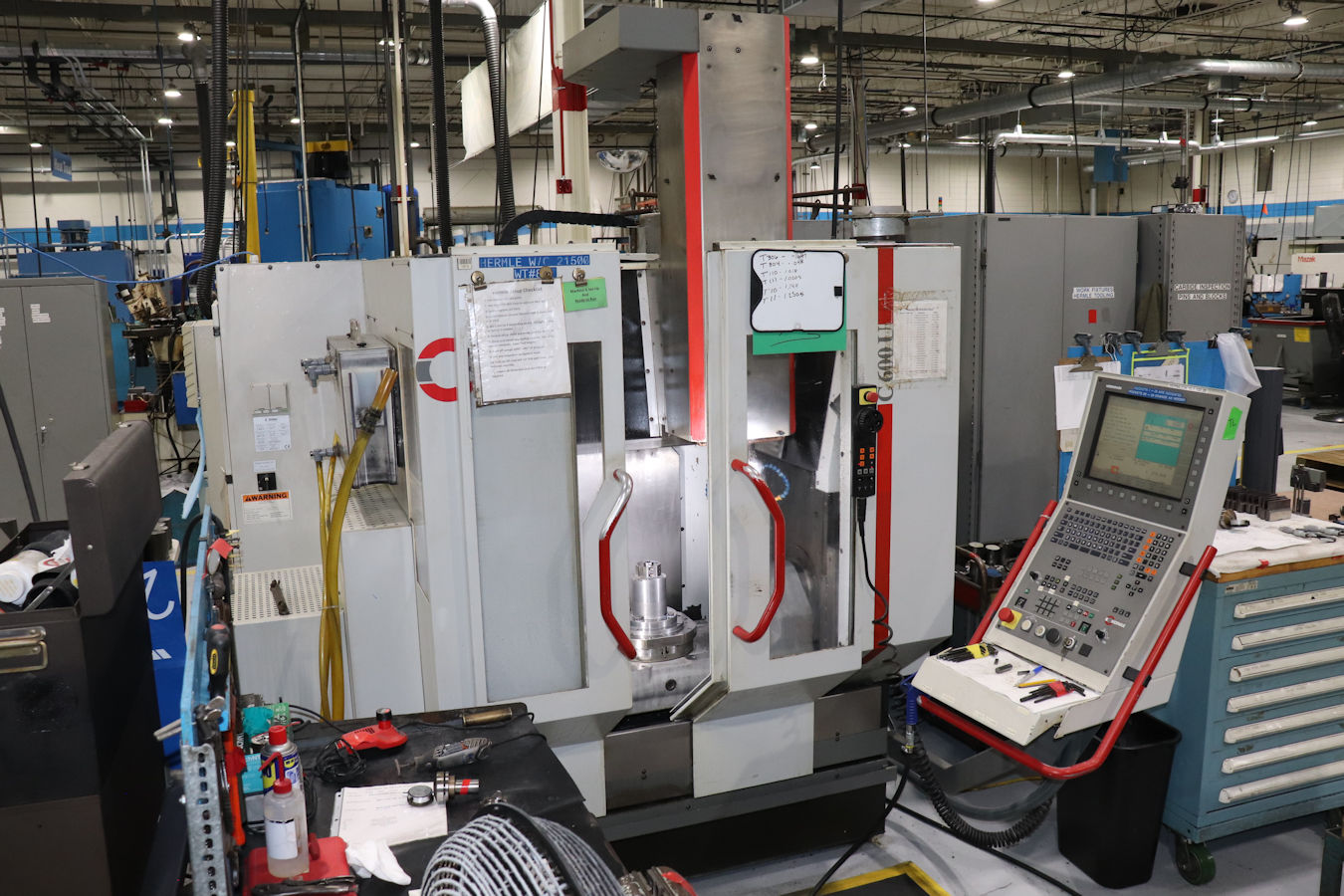

HERMLE - C600U
VIEW MACHINE
