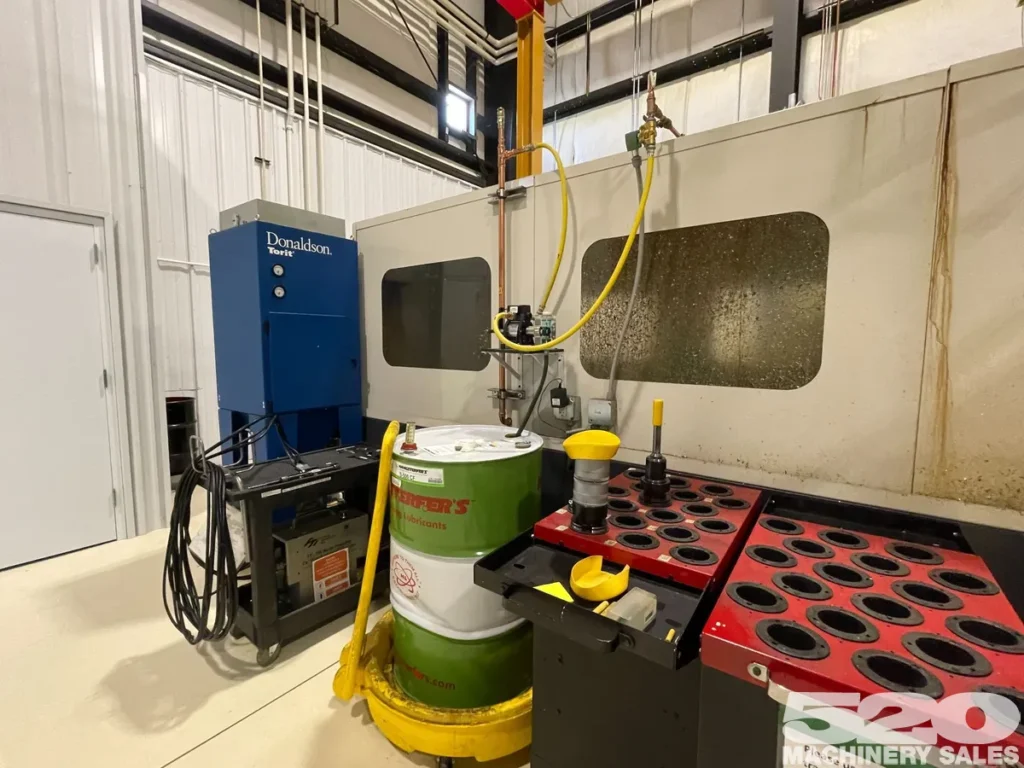

USED SNK RB-150F – 2002

The SNK RB-150F is a large-format CNC bridge mill engineered for heavy-duty machining of oversized components that require exceptional rigidity, precision, and versatility. Manufactured by Shin Nippon Koki Co., Ltd., SNK machine tools are widely recognized in aerospace, energy, mold making, and heavy industrial sectors for their robust construction and long-term reliability. The RB-150F is part of SNK’s high-performance bridge machining platform and is designed to process large steel, cast iron, aluminum, and composite workpieces with outstanding accuracy.

The 2002 SNK RB-150F typically features a moving bridge design with approximately 150 inches (3,800 mm) of X-axis travel, 80 inches (2,000 mm) of Y-axis travel, and 30 to 40 inches (760 to 1,000 mm) of Z-axis travel, depending on configuration. Machines are commonly equipped with a powerful CAT 50 spindle, spindle speeds ranging from 4,000 to 10,000 RPM, and spindle motors from 40 to 60 hp or higher. Many installations include right-angle heads, universal heads, automatic attachment changers, through-spindle coolant, and large-capacity automatic tool changers. Most 2002 models utilize a FANUC Corporation 16i or 18i CNC control, known for reliability and global support.

The SNK RB-150F is widely used for machining aerospace structures, large molds and dies, turbine components, base plates, and structural weldments. Its bridge-style architecture provides superior rigidity over large work envelopes, making it ideal for both roughing and finishing operations on high-value components. The machine can be configured for 3-axis, 4-axis, or 5-axis machining, greatly expanding its flexibility.

The 2002 SNK RB-150F remains an excellent investment because it combines Japanese engineering, massive machining capacity, and strong long-term serviceability. Well-maintained machines continue to operate productively for decades and are highly valued by manufacturers requiring large-part machining capability at a fraction of the cost of new equipment.

SNK RB-150F SPECIFICATIONS

WHY BUY USED SNK RB-150F

Purchasing a used 2002 SNK RB-150F is an excellent way to obtain a premium large-format bridge machining center at a fraction of the cost of a new machine. New machines of similar size and capability often require multimillion-dollar investments, while used equipment can provide decades of additional productive life when properly maintained.

Many RB-150F machines are equipped with valuable options such as universal heads, right-angle attachments, probing systems, and large tool changers. These features dramatically expand machining flexibility and reduce setup time. Because SNK machines are built with extremely robust castings and proven Fanuc controls, they continue to be widely used in demanding aerospace and energy applications.

Buyers should inspect spindle condition, way wear, attachment changers, CNC electronics, and maintenance records. A machine demonstrated under power with calibration documentation typically provides the greatest confidence.

For manufacturers requiring large-part machining with exceptional rigidity and precision, the SNK RB-150F offers outstanding capability and excellent long-term value.

HOW MUCH DOES A USED SNK RB-150F COST?

The cost of a used 2002 SNK RB-150F depends on machine size, spindle configuration, optional heads, tool changer capacity, and overall condition. Machines with universal heads, probing, and documented maintenance histories command higher prices because they offer greater flexibility and lower commissioning risk.

In addition to the purchase price, buyers should budget for transportation, foundation work, installation, and calibration. For shops needing large-format precision machining, the SNK RB-150F delivers world-class performance and exceptional return on investment.
