USED SHENYANG HTC-4596

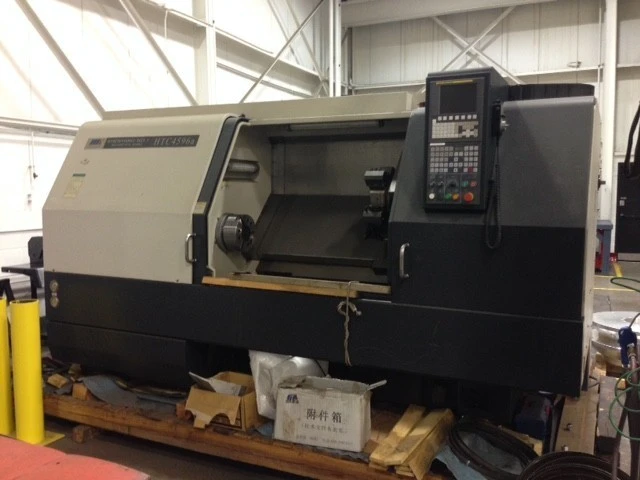

The SHENYANG HTC-4596 is a heavy-duty CNC turning center designed for machining large shafts, rollers, cylinders, and other oversized components requiring substantial turning length and rigid cutting capability. Manufactured by Shenyang Machine Tool Co., Ltd. (SMTCL), one of the largest machine tool builders in the world, the HTC-4596 is part of the company’s HTC series of slant-bed and flat-bed turning centers known for robust cast iron construction, large spindle bores, and excellent value for heavy industrial machining applications.

The HTC-4596 is configured with an approximate 45-inch swing and 96-inch distance between centers, making it ideal for long workpieces such as hydraulic cylinders, pump shafts, paper mill rollers, and energy components. The machine typically features a powerful geared spindle, large hydraulic chuck, programmable tailstock, and an automatic turret. Its rigid bed design and high-torque spindle allow aggressive roughing and accurate finishing of alloy steels, stainless steels, cast iron, and other demanding materials.

Typical specifications include a maximum turning diameter of approximately 32–36 inches (800–900 mm), a turning length of 96 inches (2,438 mm), spindle bore ranging from 5 to 8 inches depending on configuration, and spindle motor power between 30 and 50 HP. Most machines are equipped with a FANUC, Siemens, or proprietary SMTCL CNC control. Common accessories include steady rests, chip conveyors, coolant systems, and hydraulic tailstocks.

Industries that use the SHENYANG HTC-4596 include oil and gas, power generation, mining, steel processing, shipbuilding, heavy equipment manufacturing, and industrial repair. Typical parts include pump shafts, rollers, cylinders, turbine shafts, couplings, and large precision sleeves.

Because the HTC-4596 offers substantial capacity at a competitive price, it remains an attractive option for shops that need large turning capability without the premium cost associated with European or Japanese heavy-duty lathes.

SHENYANG HTC-4596 – AXIS

SHENYANG HTC-4596 – AXIS TRAVELS / WORK ENVELOPE

SHENYANG HTC-4596 – CAPACITY / TABLE

SHENYANG HTC-4596 – SPINDLE

SHENYANG HTC-4596 – TOOL CHANGER

SHENYANG HTC-4596 – CONTROL SYSTEM

SHENYANG HTC-4596 – COOLANT / DUST / WATER MANAGEMENT

SHENYANG HTC-4596 – POWER REQUIREMENTS

SHENYANG HTC-4596 – DIMENSIONS

SHENYANG HTC-4596 – GENERAL INFORMATION

INDUSTRIES THAT USE SHENYANG HTC-4596

• Oil and Gas
• Power Generation
• Mining
• Steel and Paper Mills
• Shipbuilding
• Heavy Equipment Manufacturing
• Industrial Repair
• Hydraulics
• Defense
• General Heavy Machining

TYPICAL PARTS SHENYANG HTC-4596 CAN PRODUCE

• Pump Shafts
• Hydraulic Cylinders
• Mill Rollers
• Turbine Shafts
• Large Sleeves
• Bearing Journals
• Couplings
• Drive Shafts
• Pipe Connectors
• Industrial Roll Assemblies
• Heavy Bushings
• Energy Components

WHY CHOOSE SHENYANG HTC-4596

The SHENYANG HTC-4596 delivers substantial turning capacity and heavy-cutting capability at a competitive price point. Its large swing, extended turning length, and geared spindle make it ideal for oversized industrial components.

The machine’s rigid cast construction and high-torque spindle support efficient roughing and precision finishing, while the programmable tailstock and steady rests help maintain stability on long workpieces.

For manufacturers requiring dependable large-part turning without the cost of premium European or Japanese equipment, the HTC-4596 offers excellent performance and value.

WHY BUY USED SHENYANG HTC-4596

Purchasing a used SHENYANG HTC-4596 is a practical way to add heavy-duty CNC turning capacity while minimizing capital expenditure. Machines of this size and capability can be expensive when purchased new, especially when equipped with steady rests, large chucks, and upgraded controls.

A used HTC-4596 often includes valuable accessories such as chip conveyors, programmable tailstocks, hydraulic chucks, and tooling packages. These additions can significantly reduce installation and setup costs.

The machine is well suited for companies in oilfield, mining, and industrial repair where large workpieces are common and rugged performance is more important than extremely high spindle speeds.

Because the HTC-4596 is built for demanding industrial environments, well-maintained machines can provide many years of dependable service. Spare parts and support are widely available through SMTCL and aftermarket suppliers.

For shops needing long-bed turning capability, the used SHENYANG HTC-4596 offers strong performance and excellent return on investment.

HOW MUCH DOES A USED SHENYANG HTC-4596 COST?

The price of a used SHENYANG HTC-4596 depends on machine age, spindle bore configuration, control system, included accessories, and overall condition.

USED SHENYANG HTC-4596 PRICE GUIDE

NEW VS USED COST COMPARISON

Pricing is influenced by spindle size, turning length, control brand, and included accessories such as steady rests and large chucks. Buyers should inspect spindle bearings, way condition, tailstock alignment, and control functionality before purchase.

For manufacturers seeking a cost-effective large-part turning solution, the used SHENYANG HTC-4596 offers substantial capacity, rugged construction, and excellent overall value.
