USED OKUMA V40R

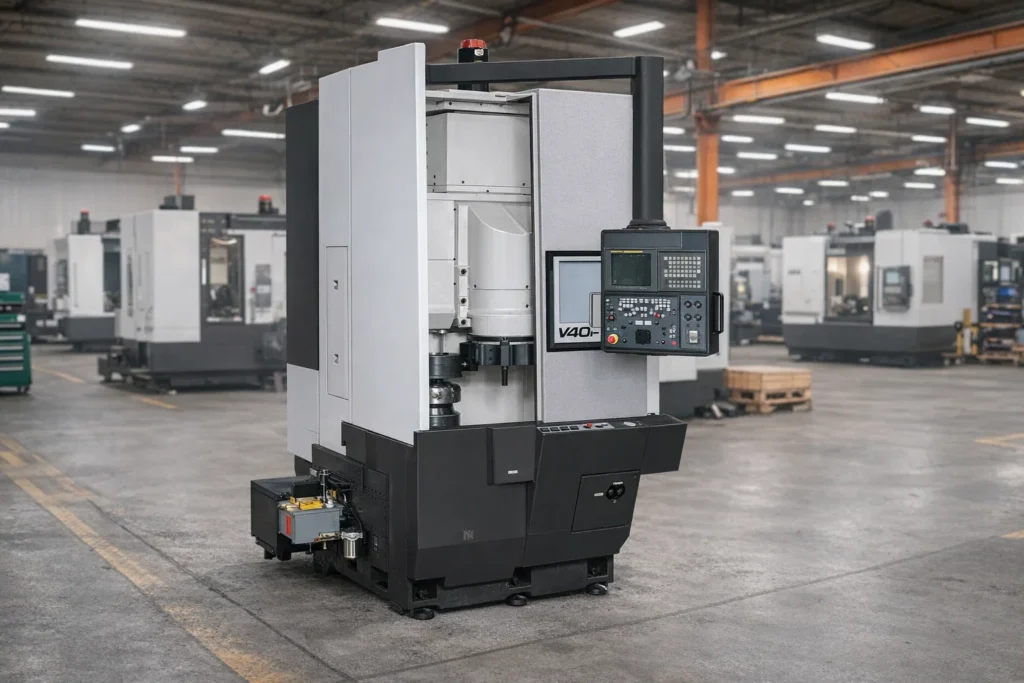

The Okuma V40R is a compact vertical CNC turning center designed for stable and efficient machining of small to medium-sized workpieces, especially those with thin walls or irregular shapes. As part of Okuma’s V-series vertical lathe range, it features a rigid box-type base and column structure that provides high rigidity, excellent vibration damping, and consistent machining accuracy.

The machine supports a maximum turning diameter of approximately 400 mm and a maximum turning height of around 450 mm, making it suitable for components such as housings, flanges, and precision industrial parts. Its vertical orientation ensures that the workpiece is naturally seated by gravity on the chuck face, improving stability and reducing deformation during machining.

The spindle typically reaches speeds up to 2,500 rpm and is driven by a 22 kW high-torque motor, allowing both efficient roughing and fine finishing operations. The machine is equipped with a 12-station turret, enabling flexible tooling setups and efficient multi-operation machining.

Optional configurations include live tooling (M specification), which allows milling and drilling in addition to turning, expanding its capability for complex parts. The V40R also benefits from Okuma’s Thermo-Friendly Concept and OSP control system, ensuring stable thermal behavior, ease of operation, and long-term machining consistency. Overall, it is designed for compact, high-accuracy vertical turning applications where stability and simplicity are key advantages.

OKUMA V40R SPECIFICATIONS

WHY BUY USED OKUMA V40R

Buying a used Okuma V40R is a practical option for manufacturers who need reliable vertical turning capability at a lower investment cost. These machines are known for their rigid construction and stable machining behavior, which allows them to remain accurate even after years of production use.

Cutting time (spindle hours) plays a major role in evaluating a used V40R. Machines with low usage—typically under 5,000–7,000 hours—are considered lightly used and can perform very close to new condition. Units with moderate usage (7,000–18,000 hours) are still dependable for general production work if they have been properly maintained. Higher usage machines (18,000–30,000+ hours) may require attention to spindle bearings, turret wear, or hydraulic systems, but can still be suitable for less demanding applications.

One of the key advantages of the V40R is its vertical design, which improves workholding stability by using gravity to seat the part against the chuck. This reduces distortion, especially for thin or uneven components. Even older machines retain this core benefit along with strong rigidity and simple operation.

Okuma’s reputation for durability and long machine life makes the V40R a low-risk used investment. It is especially attractive for shops producing medium-size flanges, housings, and general engineering components.

HOW MUCH DOES A USED OKUMA V40R COST?

The cost of a used Okuma V40R depends on manufacturing year, condition, configuration, and especially cutting time. Since this model has been available since the early 2010s, pricing is generally segmented by age and usage rather than older legacy categories.

For early machines (2010–2014), prices typically range from $30,000 to $60,000. These units often have higher cutting hours (12,000–25,000+) and may require maintenance such as spindle servicing or turret inspection, but they still offer full vertical turning capability.

Machines built between 2015 and 2020 generally fall in the $60,000 to $110,000 range. These represent the most active segment in the used market and usually include moderate cutting hours (6,000–15,000), along with improved controls and optional automation features.

For newer machines from 2021 to 2025, prices can range from $110,000 to $180,000 or more depending on configuration, tooling packages, and automation integration. These machines typically have low cutting hours (under 5,000) and are close to new condition.

Cutting time is one of the strongest pricing factors—lower spindle hours significantly increase value regardless of age. Buyers should also evaluate turret condition, spindle health, and maintenance history to determine the true long-term investment and expected machine life.
