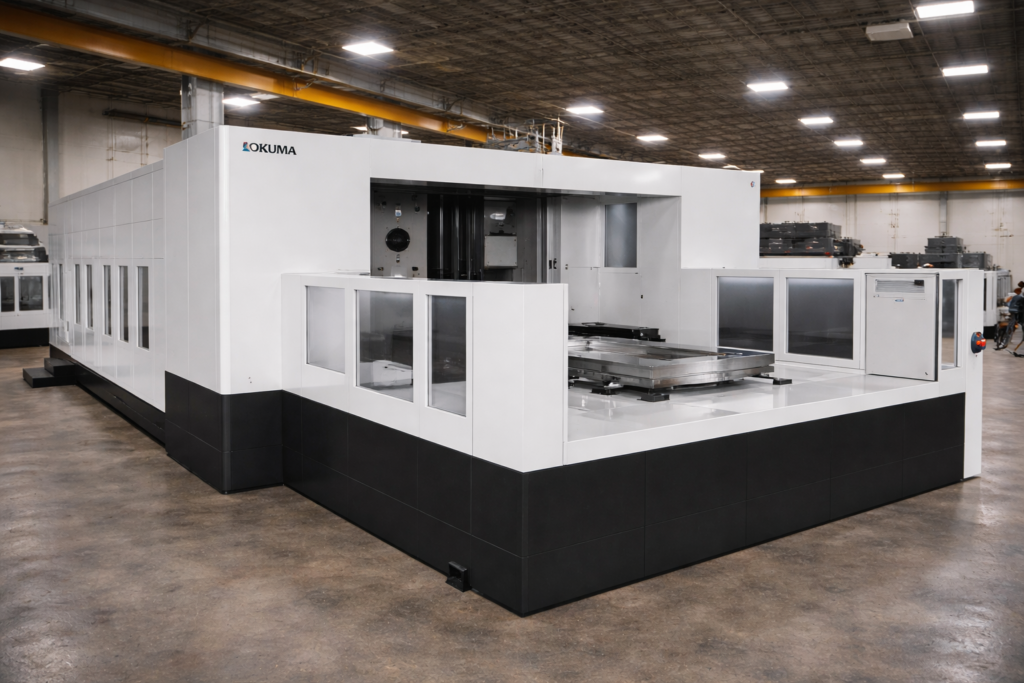

USED OKUMA MU-10000H

The Okuma MU-10000H is a large-scale 5-axis horizontal machining center designed for complex, high-precision machining of large components. As the flagship model in Okuma’s MU series, it combines the capabilities of a traditional horizontal machining center with full simultaneous 5-axis motion, allowing for multi-surface machining in a single setup. This significantly reduces fixturing requirements and increases overall productivity.

The machine features a 1,000 mm square pallet and an expansive work envelope, with axis travels of approximately 1,550 mm (X), 1,600 mm (Y), and 1,650 mm (Z). It is capable of handling large workpieces up to 2,500 kg, making it suitable for industries such as aerospace, energy, heavy equipment, and precision engineering.

A major advantage of the MU-10000H is its spindle flexibility. It typically comes with a 6,000 rpm spindle, with optional configurations up to 12,000 rpm or even 20,000 rpm for high-speed machining. Combined with high torque output, the machine is capable of both heavy-duty material removal and fine finishing operations.

The machine’s trunnion-style table enables full 5-axis motion, including A-axis tilt and B-axis rotation, allowing complex geometries to be machined in a single setup. This reduces setup time and increases cutting time efficiency. Additionally, Okuma’s Thermo-Friendly Concept ensures thermal stability, minimizing dimensional variation during long machining cycles.

With large tool magazine options (81 to over 300 tools) and automation compatibility such as pallet changers and robotic systems, the MU-10000H is built for high cutting time utilization and lights-out manufacturing. Overall, it is a high-end solution for manufacturers requiring precision, flexibility, and efficiency in large-part 5-axis machining.

OKUMA MU-10000H SPECIFICATIONS

WHY BUY USED OKUMA MU-10000H

Buying a used Okuma MU-10000H can be a highly strategic investment, particularly for manufacturers needing advanced 5-axis machining capabilities without the high capital cost of a new machine. Machines in this category are among the most expensive CNC systems due to their size, complexity, and multi-axis functionality, but their robust construction ensures long operational life, making them well-suited for the used market.

One of the main advantages is cost efficiency. A new 5-axis horizontal machining center like the MU-10000H represents a significant financial commitment. Purchasing a used unit allows businesses to access the same advanced capabilities—such as simultaneous 5-axis machining, large work envelope, and high torque spindle—at a substantially reduced cost. This is particularly valuable for companies looking to expand into complex machining without overextending capital budgets.

Cutting time (spindle hours) is one of the most critical factors when evaluating a used MU-10000H. Machines with lower cutting hours generally maintain better geometric accuracy and require less immediate maintenance. For example, a machine from the early 2010s with moderate cutting time may provide more reliable performance than a newer machine that has been heavily used in continuous production. Wear on key components such as the spindle, rotary axes, and ball screws is directly influenced by cutting time.

Another advantage is process consolidation. Since the MU-10000H can perform multi-axis machining in a single setup, even older machines can significantly improve workflow efficiency by reducing setups, tooling changes, and handling time. Additionally, Okuma’s long-term support and parts availability make it easier to maintain and upgrade used machines.

From a financial standpoint, buying used enables faster return on investment. With lower upfront costs and the ability to maintain long cutting cycles, a used MU-10000H can quickly contribute to production efficiency and profitability.

HOW MUCH DOES A USED OKUMA MU-10000H COST?

The cost of a used Okuma MU-10000H varies widely depending on factors such as manufacturing year, configuration, condition, and most importantly, cutting time (spindle hours). Because this is a large 5-axis machining center, it typically commands higher prices than standard horizontal machining centers.

Machines built before 2000 are generally not part of the MU-10000H generation, but earlier large 5-axis or horizontal platforms with similar capacity may range from $80,000 to $180,000. These machines are the most affordable but often come with outdated controls and higher wear levels. High cutting time in this category significantly reduces value due to the complexity of 5-axis components and potential refurbishment costs.

Models produced between 2000 and 2010 typically range from $180,000 to $350,000. These machines often provide a strong balance between price and capability, offering early-generation 5-axis functionality with improved control systems and thermal stability. Units with low to moderate cutting time are especially desirable, as they can deliver reliable performance with manageable maintenance costs.

Machines from 2010 to 2025 generally range from $350,000 to $800,000 or more, depending on configuration, spindle options, tool capacity, and automation integration. These newer machines include advanced features such as high-speed spindles, improved rotary axis accuracy, and better integration with automation systems, making them ideal for continuous production environments.

Cutting time remains the most critical pricing factor. A newer machine with excessive spindle hours may be less valuable than an older unit with minimal use. Buyers should carefully evaluate spindle hours, maintenance history, and the condition of rotary axes and spindle systems to determine true market value and ensure long-term operational reliability.
