Used OKUMA MA-500HII – 2011 – Texas, USA – Used CNC Exchange

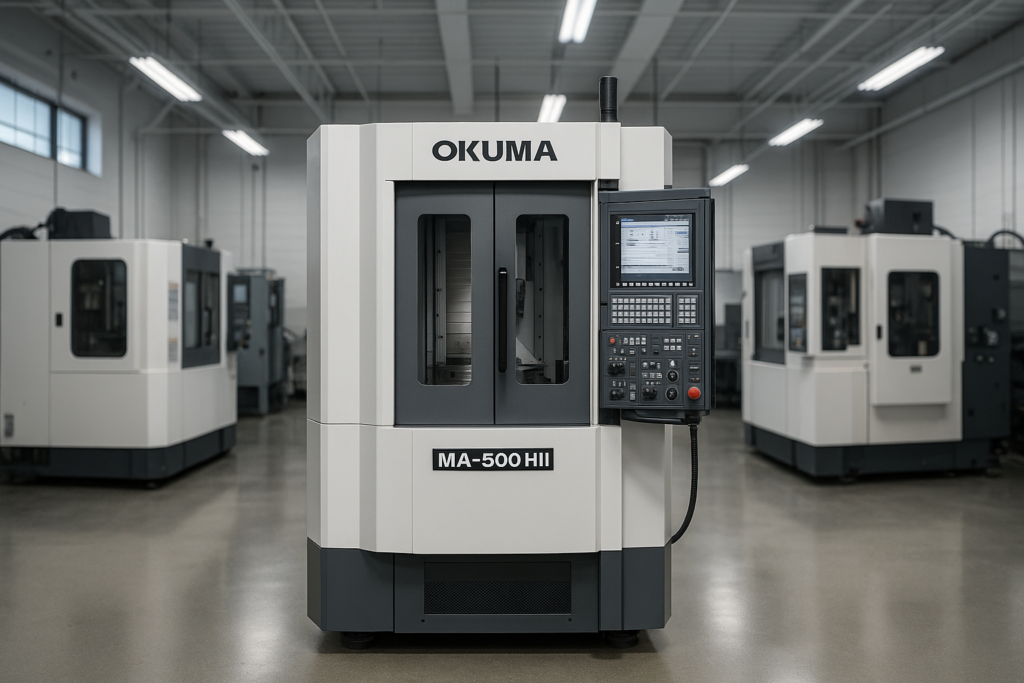

OKUMA MA-500HII

OKUMA MA-500HII

MAKE: OKUMA
MODEL: MA500HII
TYPE: Horizontal Machines
YEAR: 2011
SKU: 110056
DEALER: Used CNC Exchange
COUNTRY: USA
STATE: Texas

USED OKUMA MA-500HII

The OKUMA MA-500HII is a high-performance horizontal machining center engineered for precision, productivity, and reliability in demanding manufacturing environments. Built with a rigid cast-iron structure and Okuma’s advanced thermal stability design, the MA-500HII delivers excellent vibration damping and consistent dimensional accuracy during long production runs and heavy cutting operations. Its horizontal spindle configuration and pallet system improve chip evacuation and machining stability, making it ideal for continuous production and high-volume manufacturing applications.

The machine is equipped with a powerful high-torque spindle capable of handling a wide range of materials, including aluminum, steel, cast iron, and high-performance alloys. Controlled by Okuma’s OSP-P CNC system, the MA-500HII offers intuitive programming, fast processing speeds, and advanced features such as thermal compensation, collision avoidance, and automation integration. A dual-pallet changer system, large-capacity tool magazine, and fast rapid traverse rates help reduce idle time and maximize machining efficiency, while optional probing and automation systems enable unattended operation and process optimization.

The OKUMA MA-500HII is widely used in automotive, aerospace, and general engineering industries for producing complex and high-precision components such as engine blocks, transmission parts, and structural components. Its combination of horizontal machining efficiency, robust construction, and advanced control technology makes it a reliable and cost-effective solution for manufacturers seeking high productivity, consistent accuracy, and reduced cycle times in modern CNC machining operations.

OKUMA MA-500HII SPECIFICATIONS

TRAVEL & CAPACITY
X-Axis Travel: 760 mm (29.92 in)
Y-Axis Travel: 760 mm (29.92 in)
Z-Axis Travel: 810 mm (31.89 in)
Pallet Size: 500 mm × 500 mm (19.7 in × 19.7 in)
Max Workpiece Size: Ø800 mm × 1,000 mm high (31.5 in × 39.4 in)
Max Workpiece Weight: 500 kg (1,102 lbs)
SPINDLE
Taper: CAT50 or BT50
Max Speed: 6,000 rpm (standard), up to 15,000 rpm (optional)
Spindle Power: 30 kW (40 hp) standard
Max Torque: Up to 600 Nm
Drive Type: Gear-driven or integral spindle (based on spec)
TOOL MAGAZINE
Tool Capacity: 40 tools (standard); expandable to 60, 80, or more
Max Tool Diameter: 125 mm (adjacent) / 200 mm (non-adjacent)
Max Tool Length: 400 mm
Max Tool Weight: 15 kg
Tool-to-Tool Time: ~2.2 seconds
FEEDRATES
Rapid Traverse (X/Y/Z): 50 m/min
Cutting Feedrate: 1 – 30 m/min
PALLET SYSTEM
Number of Pallets: 2 (standard)
Pallet Indexing: 1° increments (full contouring optional)
APC (Automatic Pallet Changer) Time: ~15 sec
COOLANT & CHIP HANDLING
Coolant Tank Capacity: ~400 liters
High-Pressure Coolant: Optional (up to 70 bar)
Chip Conveyor: Standard (hinge or scraper type)
Mist Collection: Optional
CONTROL SYSTEM
Okuma OSP-P300MA
Touchscreen interface with conversational programming
Collision Avoidance System
Intelligent Thermal Shield
Tool Load Monitor, Probe Ready
POWER & AIR REQUIREMENTS
Electrical Power: ~60 – 70 kVA
Air Pressure: ~0.5 – 0.6 MPa (for tool clamping, APC)
OKUMA MA-500HII – GENERAL INFORMATION
Model: Okuma MA-500HII
Machine Type: Horizontal Machining Center (HMC)
Pallet Size: 500 mm × 500 mm
Control: Okuma OSP-P300MA CNC
Structure: Heavy-duty cast iron with thermal compensation
Application: Medium-to-large part production with high chip removal rates
OKUMA MA-500HII – KEY CAPABILITIES
High-torque spindle ideal for steel, cast iron, and alloys
Twin-pallet system boosts productivity by enabling setup during cycle
Outstanding thermal stability and repeatability
Optional through-spindle coolant and high-pressure systems
Built-in automation-ready design
Ideal for long production runs and multi-sided machining
INDUSTRIES THAT USE OKUMA MA-500HII
Aerospace (structural parts, bulkheads, gearboxes)
Automotive (engine blocks, gear housings, transmission cases)
Energy & Power Generation (turbine components, valve bodies)
General Machining (machine tool bases, dies, fixtures)
Construction Equipment Manufacturing
TYPICAL PARTS OKUMA MA-500HII CAN PRODUCE
Cast iron and steel engine housings
Transmission and gearbox casings
Turbine mounts and flanges
Aerospace frames and support structures
Precision bases and heavy-duty tooling plates
WHY CHOOSE THE OKUMA MA-500HII
Designed for heavy material removal in difficult materials
Excellent chip evacuation for continuous machining
Accurate over long hours due to thermal compensation
Strong integration with automation systems
Trusted Okuma reliability for demanding production environments
Intuitive OSP control for faster setup and fewer programming errors

Summary Table

PARAMETERVALUE
Travels (X/Y/Z)760 / 760 / 810 mm
Pallet Size500 mm × 500 mm
Max Workpiece SizeØ800 mm × 1,000 mm
Spindle Speed6,000 rpm (std); up to 15,000 rpm (opt)
Spindle Power30 kW (40 hp)
Tool Magazine40 tools standard (expandable)
Rapid Traverse50 m/min
Control SystemOkuma OSP-P300MA
Pallet Capacity2 (with full APC system)

How much does used OKUMA MA-500HII cost?
Used Machine Price Range (Approximate)

CONFIGURATIONESTIMATED PRICE (USD)
Base Model (CAT50, 40-tool, 6k rpm)$130,000 – $160,000
Mid-Spec (expanded tool magazine, HP coolant)$160,000 – $185,000
High-Spec (15k spindle, probing, automation)$185,000 – $225,000+

Prices vary depending on build year, spindle hours, tool count, and installed options.
