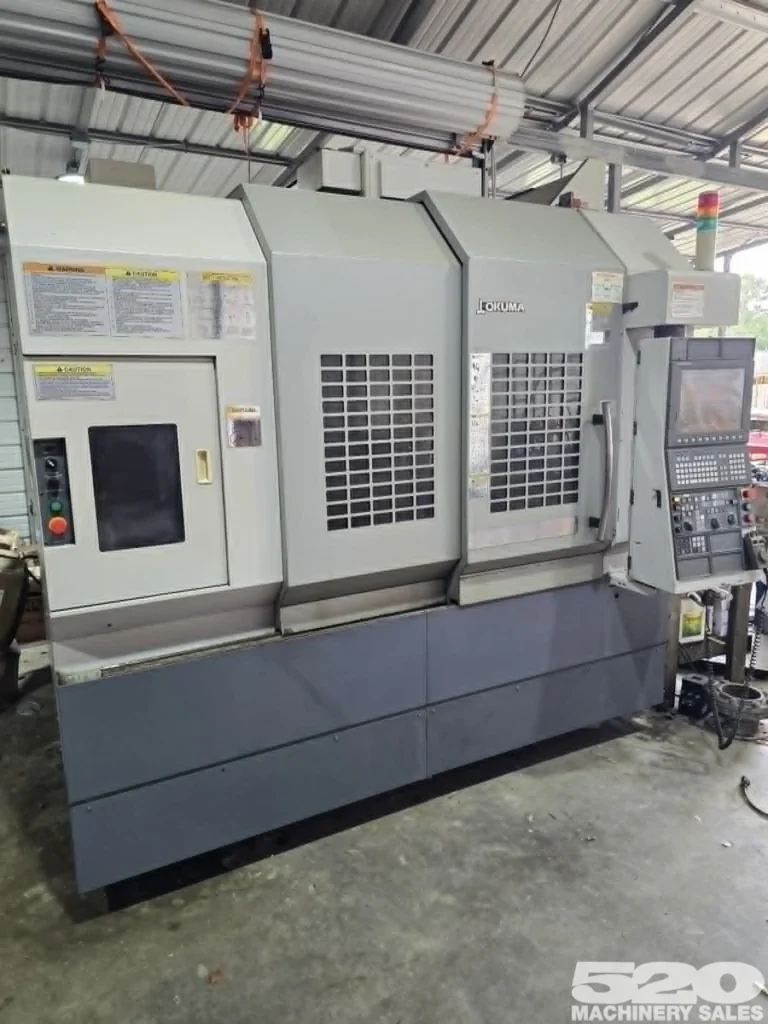

OKUMA M560-V – 2011

OKUMA M560-V – 2011

MAKE: OKUMA
MODEL: M560-V
TYPE: Vertical Machine
YEAR: 2011
SKU: 112041
DEALER: 520 Machinery Sales
COUNTRY: USA

USED OKUMA M560-V – 2011

The OKUMA M560-V – 2011 is a CNC Vertical Machining Center designed for precision production, heavy milling, and machining of medium-to-large components. Part of Okuma’s GENOS M series, the M560-V combines a rigid machine structure, large work envelope, CAT 40 tooling, high-speed spindle, and Okuma OSP CNC control. The machine is suitable for milling, drilling, tapping, boring, pocketing, contouring, and other precision machining operations.

The 2011 OKUMA M560-V provides approximately 41.34 inches of X-axis travel, 22.05 inches of Y-axis travel, and 18.11 inches of Z-axis travel. Its table measures approximately 51.18 × 22.05 inches (1,300 × 560 mm) and supports a maximum load of approximately 1,980 lbs (900 kg). The substantial table and machining envelope allow the M560-V to handle a wide variety of castings, plates, housings, fixtures, and industrial components.

A documented 2011 configuration is equipped with a 15,000 RPM CAT 40 spindle and 30 HP spindle motor, along with a 32-tool automatic tool changer. Other M560-V documentation from the same period lists an 8,000 RPM standard spindle with a 12,000 RPM option, so the exact spindle package should be verified on the individual machine. Rapid traverse is approximately 1,575 IPM on X and Y and 1,262 IPM on Z.

The 2011 M560-V can also be equipped with features such as through-spindle coolant, chip conveyor, Renishaw probing, fourth-axis prewire, and Okuma OSP-P200M control. Its combination of high-speed machining, CAT 40 tooling, large table capacity, and Okuma control makes it suitable for aerospace, automotive, medical, energy, industrial machinery, and general precision manufacturing applications.

OKUMA M560-V 2011 – AXIS

SpecificationValue
X Axis41.34″ (1,050 mm)
Y Axis22.05″ (560 mm)
Z Axis18.11″ (460 mm)
Number of Controlled Axes3
4th AxisConfiguration Dependent
Machine ConfigurationVertical Machining Center
GuidewayLinear Guideways
Machine StructureRigid Vertical Machining Center

OKUMA M560-V 2011 – AXIS TRAVELS / WORK ENVELOPE

SpecificationValue
X Travel41.34″ (1,050 mm)
Y Travel22.05″ (560 mm)
Z Travel18.11″ (460 mm)
Spindle Nose to Table5.91–24.02″ (150–610 mm)
Table Length51.18″ (1,300 mm)
Table Width22.05″ (560 mm)
Maximum Table Load1,980 lbs (900 kg)
X Rapid Traverse1,575 IPM
Y Rapid Traverse1,575 IPM
Z Rapid Traverse1,262 IPM
Cutting Feed RateUp to 1,260 IPM

The M560-V’s approximately 41 × 22 × 18-inch travel envelope provides substantial capacity while retaining a relatively compact footprint for a machine of this class.

OKUMA M560-V 2011 – CAPACITY

SpecificationValue
Machine TypeCNC Vertical Machining Center
Number of Axes3
Table Size51.18″ × 22.05″
Table Load Capacity1,980 lbs
X Travel41.34″
Y Travel22.05″
Z Travel18.11″
Spindle TaperCAT 40 / No. 40
Spindle Speed8,000–15,000 RPM, Configuration Dependent
Spindle MotorUp to 30 HP
Tool Capacity32 Tools
4th AxisConfiguration Dependent
Through-Spindle CoolantAvailable

OKUMA M560-V 2011 – SPINDLE

SpecificationValue
Spindle SpeedUp to 15,000 RPM
Spindle Motor30 HP
Spindle TaperCAT 40 / BIG-PLUS
Spindle TypeVertical
Standard Documented Speed8,000 RPM
Optional / Documented Speed12,000–15,000 RPM
Maximum TorqueConfiguration Dependent
Through-Spindle CoolantAvailable
Spindle CoolingConfiguration Dependent

The 2011 M560-V was available with different spindle packages. The factory documentation lists an 8,000 RPM standard spindle with a 12,000 RPM option, while documented 2011 machines are also equipped with 15,000 RPM, 30 HP spindles.

OKUMA M560-V 2011 – TOOL CHANGER

SpecificationValue
Tool Changer TypeAutomatic Tool Changer
Tool Capacity32 Tools
Tool InterfaceCAT 40 / BT 40 Configuration Dependent
Maximum Tool DiameterApproximately 4.92″
Maximum Tool Diameter With Adjacent ToolsApproximately 3.54″
Maximum Tool LengthApproximately 11.81″
Maximum Tool WeightApproximately 17.6 lbs
Tool SelectionRandom / Memory
Tool Change MethodTool Change Arm

The documented M560-V tool changer uses a 32-tool configuration, with maximum tool dimensions dependent on the specific tooling arrangement.

OKUMA M560-V 2011 – CONTROL SYSTEM

SpecificationValue
CNC ControlOkuma OSP
Documented ControlOSP-P200M
ProgrammingG-Code / OSP Conversational
Number of Axes3
4th Axis ControlConfiguration Dependent
Tool Offset ManagementStandard
Work Offset ManagementStandard
Automatic Tool ManagementStandard
Renishaw ProbingAvailable
4th Axis PrewireAvailable

A documented 2011 M560-V is equipped with the Okuma OSP-P200M control, while individual machines should be checked for their exact software and option package.

OKUMA M560-V 2011 – COOLANT / CHIP MANAGEMENT

SpecificationValue
Flood CoolantEquipped
Coolant Tank CapacityApproximately 60.8 gal
Effective Coolant CapacityApproximately 31.7 gal
Through-Spindle CoolantAvailable
High-Pressure CoolantConfiguration Dependent
Chip ConveyorAvailable
Chip ManagementAutomatic
Automatic LubricationEquipped
Coolant FiltrationConfiguration Dependent

The M560-V’s documented coolant tank capacity is approximately 230 liters (60.77 gallons), with approximately 120 liters (31.70 gallons) of effective capacity. Documented 2011 machines are also equipped with through-spindle coolant and chip conveyors.

OKUMA M560-V 2011 – POWER REQUIREMENTS

SpecificationValue
Electrical SupplyThree Phase
VoltageApproximately 200 VAC ±10%
Frequency50/60 Hz
Required Total PowerConfiguration Dependent
Main Spindle MotorUp to 30 HP
Air SupplyRequired
Connected LoadConfiguration Dependent
Coolant SystemIntegrated

The 2011 Okuma documentation specifies approximately 200 VAC ±10%, 50/60 Hz. Actual connected load should be confirmed from the individual machine’s electrical nameplate and configuration.

OKUMA M560-V 2011 – DIMENSIONS

SpecificationValue
LengthApproximately 99–109″
Width / DepthApproximately 93–133″
HeightApproximately 108–111″
Machine WeightApproximately 13,900–18,500 lbs
Floor SpaceConfiguration Dependent
Shipping RequirementsHeavy Industrial Rigging

Documented 2011 machines show different dimensions and weights depending on configuration. One machine is listed at approximately 98.82 × 122.05 × 108.11 inches and 16,500 lbs, while another is listed at approximately 101 × 93 × 111 inches and 13,889 lbs.

OKUMA M560-V 2011 – GENERAL INFORMATION

SpecificationValue
ManufacturerOkuma
ModelM560-V / GENOS M560-V
Year2011
Machine TypeCNC Vertical Machining Center
CNC ControlOSP-P200M
Number of Axes3
X Travel41.34″
Y Travel22.05″
Z Travel18.11″
Table Size51.18″ × 22.05″
Table Load Capacity1,980 lbs
Spindle TaperCAT 40
Spindle SpeedUp to 15,000 RPM
Spindle MotorUp to 30 HP
Tool Capacity32 Tools
Through-Spindle CoolantAvailable
Chip ConveyorAvailable
Renishaw ProbingConfiguration Dependent
4th Axis PrewireConfiguration Dependent

INDUSTRIES THAT USE OKUMA M560-V 2011

The OKUMA M560-V 2011 is suitable for industries requiring accurate, high-speed, and repeatable vertical machining.

  • Aerospace
  • Automotive
  • Medical
  • Defense
  • Energy
  • Oil & Gas
  • Power Generation
  • Industrial Machinery
  • Heavy Equipment
  • Mold & Die
  • General Precision Manufacturing
  • Contract Manufacturing

The machine’s combination of a large table, 30 HP spindle, CAT 40 tooling, and approximately 41 × 22 × 18-inch travels makes it useful for both production and complex precision machining.

TYPICAL PARTS OKUMA M560-V 2011 CAN PRODUCE

The OKUMA M560-V 2011 can produce a wide range of precision-machined components, including:

  • Aerospace components
  • Automotive components
  • Medical components
  • Machine housings
  • Pump components
  • Valve bodies
  • Hydraulic components
  • Fixtures
  • Tooling
  • Mold components
  • Industrial castings
  • Plates
  • Brackets
  • Precision mechanical components

Typical operations include face milling, end milling, pocketing, drilling, tapping, boring, reaming, contouring, slotting, thread milling, and multi-face machining.

WHY CHOOSE OKUMA M560-V 2011

The OKUMA M560-V 2011 is a strong choice for manufacturers that need a modern-feeling production VMC with a relatively large machining envelope. Its 41.34″ X travel, 22.05″ Y travel, and 18.11″ Z travel provide substantial capacity for a broad range of components.

The machine’s CAT 40 spindle and available 15,000 RPM, 30 HP configuration provide a useful balance between high-speed machining and cutting power. The 1,980-lb table capacity also allows substantial workpieces and fixtures to be loaded while maintaining good machining flexibility.

The OSP-P200M control, 32-tool ATC, through-spindle coolant, chip conveyor, and available Renishaw probing make well-equipped 2011 machines particularly attractive for shops looking for a production-ready vertical machining center.

WHY BUY USED OKUMA M560-V 2011

Buying a used OKUMA M560-V 2011 can provide a cost-effective way to add a relatively modern Okuma vertical machining center to a manufacturing operation. The machine offers a larger work envelope than many compact VMCs while maintaining a practical CAT 40 tooling platform.

Common valuable features and options to look for include:

  • Okuma OSP-P200M control
  • 15,000 RPM spindle
  • 30 HP spindle
  • CAT 40 / BIG-PLUS spindle
  • 32-tool ATC
  • Through-spindle coolant
  • Chip conveyor
  • Renishaw probing
  • 4th-axis prewire
  • Fourth-axis rotary table
  • Tool measurement
  • High-pressure coolant
  • Coolant filtration
  • Remote jog handle

Before purchasing a used M560-V, buyers should inspect spindle condition, spindle bearings, axis backlash, ballscrews, linear guideways, positioning accuracy, ATC operation, OSP control, probing system, coolant system, chip conveyor, and machine geometry.

Spindle hours, cutting hours, maintenance records, recent repairs, tooling, and included accessories should also be verified. One current 2011 example is documented as having received a new spindle drive and being serviced throughout its life, illustrating why individual machine condition can significantly affect value.

HOW MUCH DOES A USED OKUMA M560-V 2011 COST?

Current used-market listings show a fairly broad range for the OKUMA M560-V 2011. One current 2011 machine is advertised at approximately $23,999, while other 2011 machines are offered on a request-for-quote basis.

A reasonable estimated market range for a used OKUMA M560-V 2011 is approximately $25,000–$45,000 USD, depending on spindle configuration, condition, hours, control, probing, coolant package, chip conveyor, tooling, and fourth-axis equipment.

Machine Condition / ConfigurationEstimated Used Price
Higher Hours / Basic Configuration$25,000–$30,000
Good Condition / Standard Configuration$30,000–$36,000
Low Hours / Well Equipped$36,000–$45,000
Rebuilt / Extensive Options$45,000+ Possible

Machines with a 15,000 RPM spindle, 30 HP motor, Renishaw probing, through-spindle coolant, chip conveyor, fourth-axis preparation, and strong maintenance history can command prices toward the upper end of the range.

The final selling price should be based on machine hours, spindle hours, spindle condition, axis accuracy, OSP control condition, ATC operation, probing, coolant system, chip management, tooling, fourth-axis equipment, maintenance history, and the ability to demonstrate the machine under power.
