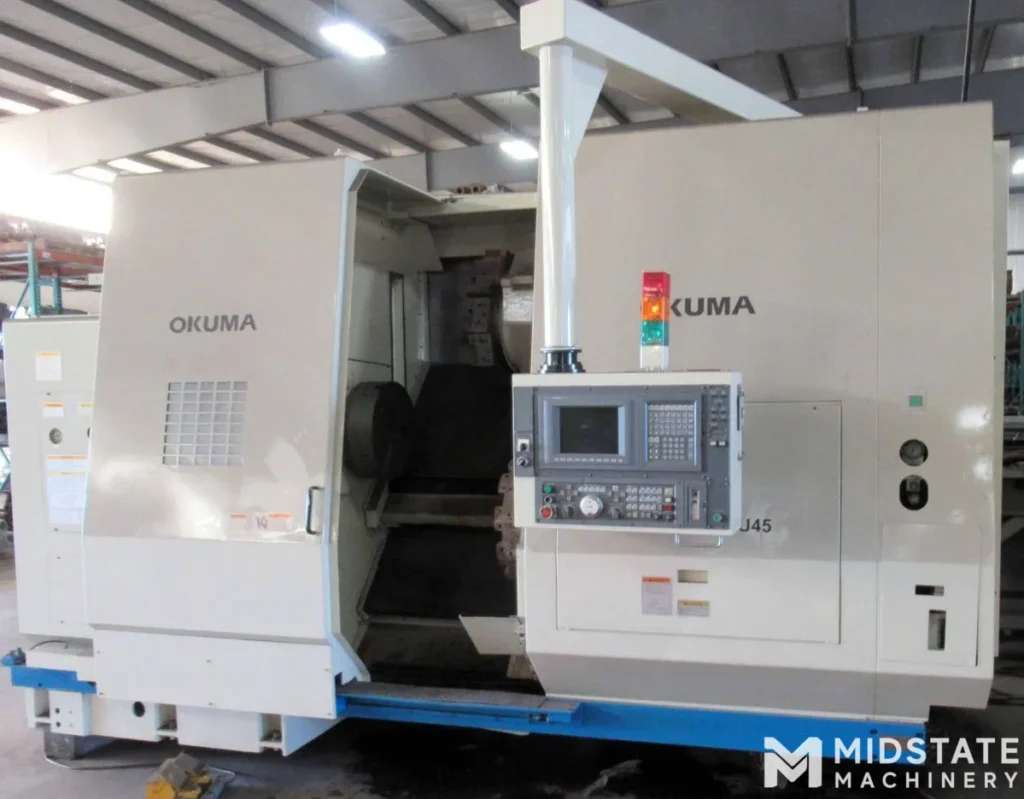

USED OKUMA IMPACT LU-45 – 1998

The Okuma Impact LU-45 is a heavy-duty CNC turning center engineered for manufacturers that require exceptional rigidity, high torque, and large-part machining capability. Built by Okuma, one of the most respected names in the CNC machine tool industry, the LU-45 was designed to handle demanding production environments where accuracy, reliability, and long-term durability are critical. As part of the highly successful LU Series, the machine became widely recognized for its robust cast iron construction, powerful spindle performance, and ability to machine large and complex workpieces efficiently.

The LU-45 is a slant-bed CNC lathe specifically designed for turning, facing, boring, grooving, threading, drilling, and heavy-duty machining applications. Its rigid machine structure minimizes vibration during aggressive cutting operations while maintaining excellent thermal stability. This allows manufacturers to achieve tight tolerances and superior surface finishes even when machining difficult materials such as alloy steels, stainless steels, cast iron, titanium, and other high-strength alloys.

A typical 1998 Okuma Impact LU-45 features a maximum turning diameter of approximately 25 inches, maximum turning length of approximately 40 inches, and a large hydraulic chuck ranging from 12 to 15 inches. The machine is powered by a high-torque spindle capable of speeds up to 2,000 RPM and is commonly equipped with a 12-station servo turret. Most machines utilize the proven Okuma OSP7000L CNC control, known for its reliability, conversational programming capabilities, and advanced machine diagnostics.

Industries such as oil and gas, aerospace manufacturing, power generation, heavy equipment manufacturing, mining equipment production, transportation, fluid power systems, defense manufacturing, and industrial machinery frequently utilize the LU-45. Its large work envelope and heavy-duty cutting capability make it ideal for machining oversized components that require both accuracy and productivity.

One of the primary reasons the 1998 Okuma Impact LU-45 remains highly desirable in the used CNC market is its exceptional longevity. Many LU Series machines continue operating productively after decades of service, demonstrating the durability and engineering excellence that Okuma machines are known for worldwide. For manufacturers seeking a large-capacity CNC turning center with proven reliability, the LU-45 remains an outstanding investment.

---

OKUMA IMPACT LU-45 – AXIS

Specification	Value
Number of Axes	2 Axis
Simultaneous Axis Control	2 Axis
Positioning Type	CNC Controlled
Machine Configuration	Slant Bed Turning Center

---

OKUMA IMPACT LU-45 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	Approx. 15.0″
Z-Axis Travel	Approx. 42.0″
Maximum Turning Diameter	25.0″
Maximum Turning Length	40.0″

---

OKUMA IMPACT LU-45 – CAPACITY

Specification	Value
Chuck Size	12″ – 15″
Swing Over Bed	30.0″
Maximum Turning Diameter	25.0″
Maximum Turning Length	40.0″
Bar Capacity	4.0″

---

OKUMA IMPACT LU-45 – SPINDLE

Specification	Value
Spindle Speed	2,000 RPM
Spindle Bore	4.5″
Spindle Motor	40 HP
Spindle Nose	A2-11
Drive Type	Direct Drive

---

OKUMA IMPACT LU-45 – TOOL CHANGER

Specification	Value
Turret Capacity	12 Stations
Turret Type	Heavy Duty Servo Turret
Tool Selection	Bidirectional
Indexing System	Servo Controlled
Tool Change Time	Fast Indexing

---

OKUMA IMPACT LU-45 – CONTROL SYSTEM

Specification	Value
CNC Control	Okuma OSP7000L
Programming Capability	G-Code
Conversational Programming	Available
Diagnostics	Integrated
Networking Capability	Optional

---

OKUMA IMPACT LU-45 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
High Pressure Coolant	Optional
Chip Conveyor	Optional
Coolant Filtration	Standard
Enclosure	Full Enclosure

---

OKUMA IMPACT LU-45 – POWER REQUIREMENTS

Specification	Value
Voltage	220V / 440V
Phase	3 Phase
Power Requirement	Approx. 45 KVA
Air Requirement	Shop Air Required

---

OKUMA IMPACT LU-45 – DIMENSIONS

Specification	Value
Length	Approx. 165″
Width	Approx. 95″
Height	Approx. 90″
Weight	Approx. 22,000 lbs

---

OKUMA IMPACT LU-45 – GENERAL INFORMATION

Specification	Value
Manufacturer	Okuma
Machine Type	CNC Turning Center
Year	1998
Construction	Heavy Duty Slant Bed
Country of Origin	Japan

---

INDUSTRIES THAT USE OKUMA IMPACT LU-45

The Okuma Impact LU-45 is widely used by manufacturers that require large-capacity turning and heavy-duty machining performance.

Industries commonly utilizing the LU-45 include:

• Oil and Gas Manufacturing
• Energy Equipment Manufacturing
• Aerospace Manufacturing
• Defense Manufacturing
• Mining Equipment Manufacturing
• Heavy Equipment Manufacturing
• Agricultural Equipment Manufacturing
• Transportation Equipment Manufacturing
• Industrial Machinery Manufacturing
• Marine Equipment Manufacturing
• Power Generation Industry
• Fluid Power Industry
• Steel Industry Suppliers
• Contract Machining
• General Machine Shops

The machine’s combination of spindle power, rigidity, and large work envelope makes it suitable for demanding industrial production environments.

---

TYPICAL PARTS OKUMA IMPACT LU-45 CAN PRODUCE

The Okuma Impact LU-45 is capable of machining a wide variety of large precision components.

Typical parts include:

• Large Shafts
• Bearing Housings
• Pump Bodies
• Hydraulic Cylinders
• Valve Bodies
• Flanges
• Energy Industry Components
• Oilfield Equipment Parts
• Mining Components
• Gear Blanks
• Marine Components
• Industrial Rollers
• Turbine Components
• Aerospace Structural Components
• Drive System Components
• Power Transmission Parts
• Heavy Equipment Components
• Fluid Power Components
• OEM Production Parts
• Repair and Replacement Components

Its heavy-duty spindle and rigid construction allow efficient roughing and finishing of large workpieces.

---

WHY CHOOSE OKUMA IMPACT LU-45

The Okuma Impact LU-45 remains one of the most respected large-frame CNC turning centers because it combines exceptional durability, powerful machining capability, and proven reliability. Manufacturers that routinely machine large workpieces often choose the LU-45 because it provides the stability and torque required for demanding cutting operations.

One of the machine’s greatest strengths is its rigid cast iron construction. The slant-bed design helps reduce vibration while improving chip evacuation and thermal stability. These characteristics contribute to longer tool life, improved surface finishes, and consistent dimensional accuracy.

The spindle system is designed for heavy material removal. Whether roughing large steel forgings or finishing precision-machined components, the machine delivers the power necessary to maintain productivity throughout the machining process.

The OSP7000L control system is another major advantage. Known for reliability and ease of use, the control provides conversational programming, diagnostics, and dependable operation. Many shops continue to utilize Okuma controls from this era because of their durability and straightforward functionality.

Another key benefit is machine longevity. Okuma equipment is known for remaining productive long after many competing machines have reached the end of their service lives. Properly maintained LU-45 machines continue producing high-quality parts decades after installation.

For manufacturers seeking dependable large-part machining capability and strong long-term value, the Okuma Impact LU-45 remains an excellent choice.

---

WHY BUY USED OKUMA IMPACT LU-45

Purchasing a used 1998 Okuma Impact LU-45 provides manufacturers with access to premium heavy-duty turning capability at a fraction of the cost of a comparable new machine. Because Okuma machines are built for longevity, many LU-45 machines continue operating successfully while maintaining excellent accuracy and reliability.

One of the most significant advantages is cost savings. A used LU-45 can often be purchased for considerably less than a modern large-capacity turning center while still delivering exceptional spindle power, machine rigidity, and production capability. This allows manufacturers to increase capacity without making a major capital investment.

The machine’s reputation for durability is another major benefit. Okuma equipment is known throughout the industry for long service life and dependable operation. Many manufacturers actively seek used Okuma machines because they continue to perform well even after years of production use.

Many used LU-45 machines include valuable accessories such as hydraulic chucks, chip conveyors, tailstocks, steady rests, tooling packages, and upgraded workholding systems. Acquiring these options with a used machine can provide significant savings compared to purchasing them separately.

Another advantage is proven machine performance. Since these machines have often been operating for many years, buyers can evaluate maintenance records, machine condition, and operational history before making a purchasing decision.

For manufacturers requiring large-part turning capability and excellent return on investment, the used Okuma Impact LU-45 remains one of the strongest values available in the used CNC machine market.

---

HOW MUCH DOES A USED OKUMA IMPACT LU-45 COST?

A used 1998 Okuma Impact LU-45 typically sells for between $25,000 and $80,000, depending on machine condition, spindle hours, maintenance history, installed options, tooling packages, and overall configuration.

Machines near the lower end of the range generally have higher operating hours or fewer accessories. Machines near the upper end often include hydraulic chucks, chip conveyors, tailstocks, steady rests, tooling packages, upgraded workholding systems, and documented maintenance histories.

Machine condition remains the most important factor affecting value. Buyers typically inspect spindle condition, turret accuracy, machine geometry, lubrication systems, hydraulic systems, and overall operational performance. Machines with documented service records and strong maintenance histories generally command premium pricing.

Tooling and accessories can significantly increase machine value. Boring bars, tool holders, hydraulic workholding systems, steady rests, spare tooling, and setup equipment often represent thousands of dollars in additional value and can substantially impact the final selling price.

Market demand also influences pricing. Manufacturing regions with strong oil and gas, aerospace, power generation, mining, and heavy equipment industries often maintain consistent demand for large-capacity turning centers such as the LU-45.

Compared to purchasing a new heavy-duty CNC lathe, a used 1998 Okuma Impact LU-45 offers substantial cost savings while still providing outstanding machining capability, proven reliability, and long-term productivity. For manufacturers seeking a large-frame turning center capable of handling demanding applications, the LU-45 remains one of the best investments available in today’s used CNC equipment market.
