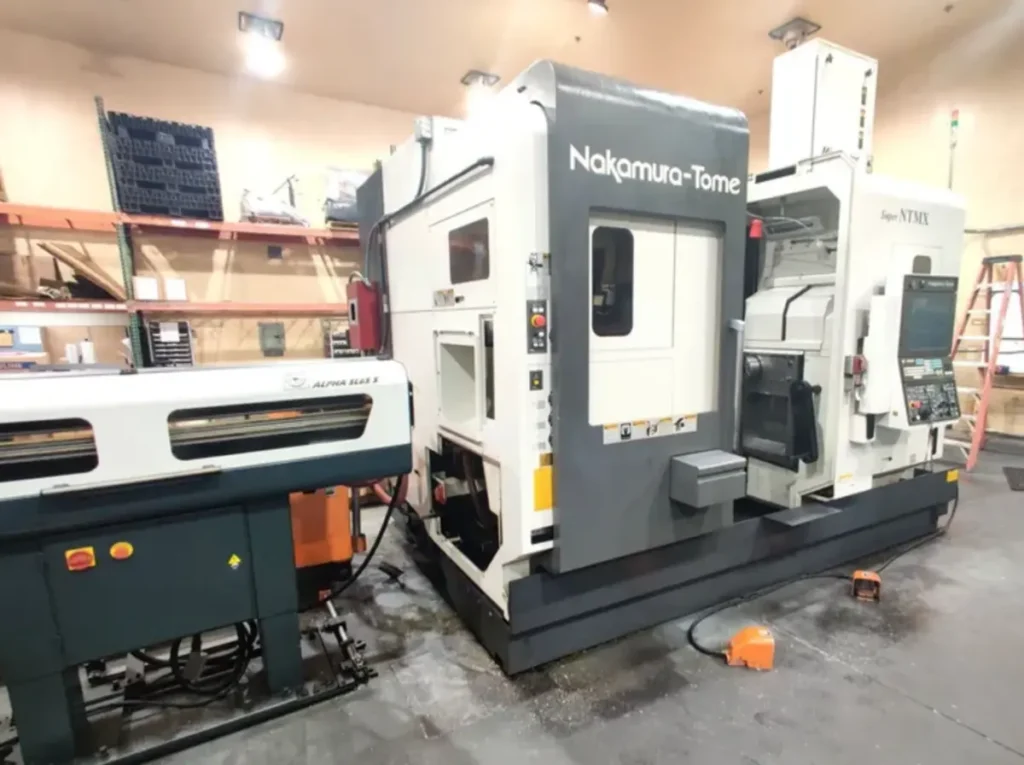

USED NAKAMURA-TOME SUPER NTMX – 2013

The NAKAMURA-TOME SUPER NTMX – 2013 is a highly advanced multitasking CNC turning and milling center engineered for complex, high-precision machining applications requiring complete machining capability in a single setup. Manufactured by Nakamura-Tome, one of Japan’s most respected CNC lathe builders, the SUPER NTMX series became well known for combining heavy-duty turning performance, simultaneous multi-axis machining capability, dual spindle productivity, and advanced automation integration into one highly efficient manufacturing platform.

The 2013 NAKAMURA-TOME SUPER NTMX is designed for manufacturers that require maximum productivity, reduced setup times, and the ability to machine highly complex parts with exceptional precision. The machine integrates turning, milling, drilling, tapping, contour machining, and synchronized spindle operations into one multitasking CNC system. Many SUPER NTMX configurations include twin spindles, upper and lower turrets, B-axis milling capability, Y-axis contouring, and live tooling systems that allow simultaneous machining operations for dramatically improved cycle times and production efficiency.

The machine is widely used in aerospace, medical, automotive, oil and gas, defense, and precision engineering industries where manufacturers require tight tolerances, superior surface finishes, and high-volume multitasking production capability. The SUPER NTMX platform is capable of performing simultaneous turning and milling operations while maintaining excellent rigidity and machining accuracy during heavy cutting cycles.

One of the biggest advantages of the SUPER NTMX is its ability to complete highly complex parts in one setup. Instead of moving parts between multiple machines for secondary operations, manufacturers can finish both front-side and back-side machining operations within one automated cycle. This reduces setup time, improves dimensional consistency, minimizes operator intervention, and significantly increases throughput.

The machine is also known for exceptional reliability and rigid machine construction. Nakamura-Tome engineered the SUPER NTMX platform with reinforced structural components, precision guideways, advanced thermal compensation systems, and high-performance spindle technology to support aggressive cutting while maintaining long-term accuracy. Even years after production, the NAKAMURA-TOME SUPER NTMX remains highly respected in the used CNC machinery market because of its multitasking capability, premium Japanese engineering, and long-term production reliability.

---

NAKAMURA-TOME SUPER NTMX – AXIS

AXIS SPECIFICATIONS	DETAILS
Number of Axes	9-Axis CNC Multitasking System
X-Axis Travel	24 in
Y-Axis Travel	±5 in
Z-Axis Travel	62 in
B-Axis Rotation	±120°
C-Axis Control	0.0001° indexing
Lower Turret Axis	Independent servo control
Rapid Traverse Rate	High-speed servo driven
Positioning Accuracy	±0.0002 in (estimated)
Repeatability	±0.0001 in (estimated)

---

NAKAMURA-TOME SUPER NTMX – AXIS TRAVELS / WORK ENVELOPE

WORK ENVELOPE	DETAILS
Machine Type	CNC Multitasking Turn-Mill Center
Main Chuck Size	10–12 in
Sub Chuck Size	8–10 in
Maximum Turning Diameter	16–20 in
Maximum Turning Length	60 in
Maximum Swing	24 in
Bar Capacity	3–4 in
Distance Between Spindles	Extended multitasking configuration

---

NAKAMURA-TOME SUPER NTMX – CAPACITY / TABLE

CAPACITY SPECIFICATIONS	DETAILS
Machine Structure	Heavy-duty multitasking platform
Production Type	Complex precision machining
Material Capability	Steel, Titanium, Aluminum, Inconel
Application Focus	Aerospace / Medical / Automotive
Machining Capability	Turning + Milling + Simultaneous Machining
Automation Capability	Robotic and bar feeder compatible

---

NAKAMURA-TOME SUPER NTMX – SPINDLE

SPINDLE SPECIFICATIONS	DETAILS
Main Spindle Speed	4,000 RPM
Sub Spindle Speed	4,000 RPM
Milling Spindle Speed	12,000 RPM
Main Spindle Power	40 HP
Milling Spindle Power	25 HP
Spindle Nose	A2-8
Live Tool Capability	Full live tooling
Spindle Configuration	Dual spindle multitasking

---

NAKAMURA-TOME SUPER NTMX – TOOL CHANGER

TOOLING SPECIFICATIONS	DETAILS
Tool Stations	40–80 Tools
Tool Changer Type	Automatic ATC
Upper Turret	Live tooling capable
Lower Turret	Simultaneous machining capable
Tool Interface	HSK / Capto compatible
Rotary Tool Capability	Full live tooling
Simultaneous Machining	Yes

---

NAKAMURA-TOME SUPER NTMX – CONTROL SYSTEM

CONTROL INFORMATION	DETAILS
CNC Control	Fanuc 31i / Nakamura NT SmartX
Programming Type	Conversational + G-Code
Display Type	Color LCD interface
Connectivity	Ethernet / USB / RS232
Synchronization Capability	Dual spindle synchronization
Advanced Features	Simultaneous multitasking machining

---

NAKAMURA-TOME SUPER NTMX – COOLANT / DUST / WATER MANAGEMENT

COOLANT SYSTEM	DETAILS
Coolant Type	Flood coolant system
Through Tool Coolant	High-pressure capable
Chip Removal	Heavy-duty chip conveyor
Coolant Tank	Large-capacity system
Lubrication	Automatic centralized lubrication
Filtration System	Multi-stage filtration

---

NAKAMURA-TOME SUPER NTMX – POWER REQUIREMENTS

POWER SPECIFICATIONS	DETAILS
Voltage	220V / 440V
Phase	3 Phase
Power Requirement	~70–100 KVA
Air Requirement	90 PSI
Electrical Type	Industrial CNC supply

---

NAKAMURA-TOME SUPER NTMX – DIMENSIONS

MACHINE DIMENSIONS	DETAILS
Machine Length	~240 in
Machine Width	~120 in
Machine Height	~115 in
Machine Weight	~35,000–50,000 lbs
Floor Space Requirement	Large industrial footprint

---

NAKAMURA-TOME SUPER NTMX – GENERAL INFORMATION

GENERAL INFORMATION	DETAILS
Machine Type	CNC Multitasking Turn-Mill Center
Manufacturer	Nakamura-Tome
Year	2013
Primary Application	Complex multitasking machining
Typical Industries	Aerospace, Medical, Automotive
Automation Level	Very High
Used Market Demand	High
Reliability	Premium Japanese CNC platform

---

INDUSTRIES THAT USE NAKAMURA-TOME SUPER NTMX – 2013

The NAKAMURA-TOME SUPER NTMX is widely used in aerospace manufacturing for turbine shafts, aerospace fittings, landing gear components, hydraulic manifolds, and complex titanium structural assemblies requiring simultaneous turning and milling operations.

Medical device manufacturers utilize the machine for orthopedic implants, surgical instruments, spinal hardware, dental components, and complex stainless steel or titanium medical parts requiring exceptional accuracy and surface finish quality.

Automotive and motorsports industries rely on the machine for drivetrain components, transmission shafts, turbocharger assemblies, suspension systems, and billet-machined performance parts.

Oil and gas industries use the machine for valve bodies, threaded pipe components, drilling assemblies, pump housings, and high-strength alloy industrial components requiring heavy-duty multitasking machining capability.

General precision engineering companies also use the SUPER NTMX platform for hydraulic systems, automation components, industrial tooling, and advanced multi-axis production parts.

---

TYPICAL PARTS NAKAMURA-TOME SUPER NTMX CAN PRODUCE

The NAKAMURA-TOME SUPER NTMX can produce turbine shafts, orthopedic implants, hydraulic manifolds, aerospace fittings, valve bodies, pump components, transmission assemblies, threaded industrial parts, and complex multi-axis production components.

The machine excels at simultaneous turning, live-tool milling, contour machining, angled drilling, tapping, threading, and synchronized dual-spindle operations.

Its multitasking capability allows manufacturers to complete highly sophisticated parts in one setup while maintaining exceptional dimensional consistency and repeatability.

---

WHY CHOOSE NAKAMURA-TOME SUPER NTMX – 2013

The NAKAMURA-TOME SUPER NTMX is chosen because it provides exceptional multitasking machining capability combined with outstanding productivity and long-term reliability. Manufacturers can perform turning, milling, drilling, tapping, contour machining, and synchronized spindle operations in one setup while dramatically improving workflow efficiency.

One of the machine’s biggest advantages is its simultaneous machining capability. The upper and lower turret configuration allows multiple machining operations to occur at the same time, significantly reducing cycle times and increasing throughput for high-volume production environments.

The machine’s dual spindle configuration also improves production efficiency by supporting complete front-side and back-side machining operations without manual part transfer. This reduces setup time, improves part consistency, and minimizes operator intervention.

Another major advantage is the machine’s rigid Japanese construction. Nakamura-Tome designed the SUPER NTMX platform with reinforced machine structures, precision guideways, advanced thermal stability systems, and high-performance spindle technology to support aggressive machining while maintaining long-term accuracy and reliability.

The Fanuc-based control system provides powerful multitasking programming capability, synchronized spindle control, and advanced machining functionality for highly complex production applications.

The machine also offers strong automation capability with support for robotic integration, bar feeders, chip conveyors, automatic tool changers, and lights-out manufacturing systems.

Nakamura-Tome machines are widely respected throughout the machining industry for durability, precision, and long-term production performance in demanding manufacturing environments.

---

WHY BUY USED NAKAMURA-TOME SUPER NTMX – 2013

Buying a used NAKAMURA-TOME SUPER NTMX – 2013 allows manufacturers to obtain a premium Japanese multitasking CNC system at a significantly lower investment cost compared to purchasing a new multitasking machine platform. Even though the machine remains highly advanced by modern production standards, used equipment offers exceptional value while reducing capital expenditure.

One of the biggest advantages of purchasing a used SUPER NTMX is access to true multitasking capability without the extremely high cost of new equipment. Modern CNC systems with dual spindles, simultaneous machining capability, live tooling, and advanced automation integration can require major financial investment. A used Nakamura-Tome machine provides comparable production flexibility at a fraction of the original purchase price.

Another major benefit is improved manufacturing efficiency. The machine combines turning, milling, drilling, tapping, contour machining, and synchronized spindle operations into one integrated platform. Shops can eliminate secondary operations, reduce labor costs, improve throughput, and maintain excellent machining accuracy on highly complex parts.

Many used SUPER NTMX machines are equipped with valuable factory-installed options such as chip conveyors, high-pressure coolant systems, live tooling packages, probing systems, automatic tool changers, and automation integration systems. These features add substantial production value without requiring additional investment from the buyer.

Nakamura-Tome machines are also known throughout the industry for excellent long-term reliability and mechanical durability. Properly maintained machines often continue operating productively for many years in demanding aerospace, medical, and automotive manufacturing environments.

The machine also maintains strong resale demand because of its multitasking flexibility, simultaneous machining capability, premium Japanese engineering, and excellent production reputation.

---

HOW MUCH DOES A USED NAKAMURA-TOME SUPER NTMX COST?

The cost of a used NAKAMURA-TOME SUPER NTMX – 2013 depends on machine condition, spindle hours, tooling packages, maintenance history, installed options, and automation capability. Machines equipped with dual live tooling turrets, probing systems, automation integration, and low operating hours generally command higher pricing in the used CNC machinery market.

USED NAKAMURA-TOME SUPER NTMX PRICE RANGE	ESTIMATED COST
Basic Machines	$180,000 – $275,000
Standard Production Machines	$275,000 – $425,000
Well-Maintained Machines	$425,000 – $600,000
Fully Equipped Machines	$600,000+

Machines equipped with robotic automation systems, bar feeders, extensive tooling packages, high-pressure coolant systems, probing systems, and advanced multitasking software configurations typically sell at premium pricing levels.

Several factors influence the value of a used SUPER NTMX. Buyers carefully inspect spindle condition, turret synchronization, live tooling functionality, machine geometry, thermal compensation systems, control condition, and overall maintenance history before determining final machine pricing.

Even in today’s competitive used CNC market, the NAKAMURA-TOME SUPER NTMX remains one of the most respected multitasking CNC machining systems available. Its combination of simultaneous machining capability, dual spindle productivity, premium Japanese engineering, and long-term reliability makes it an excellent investment for advanced manufacturing operations.
