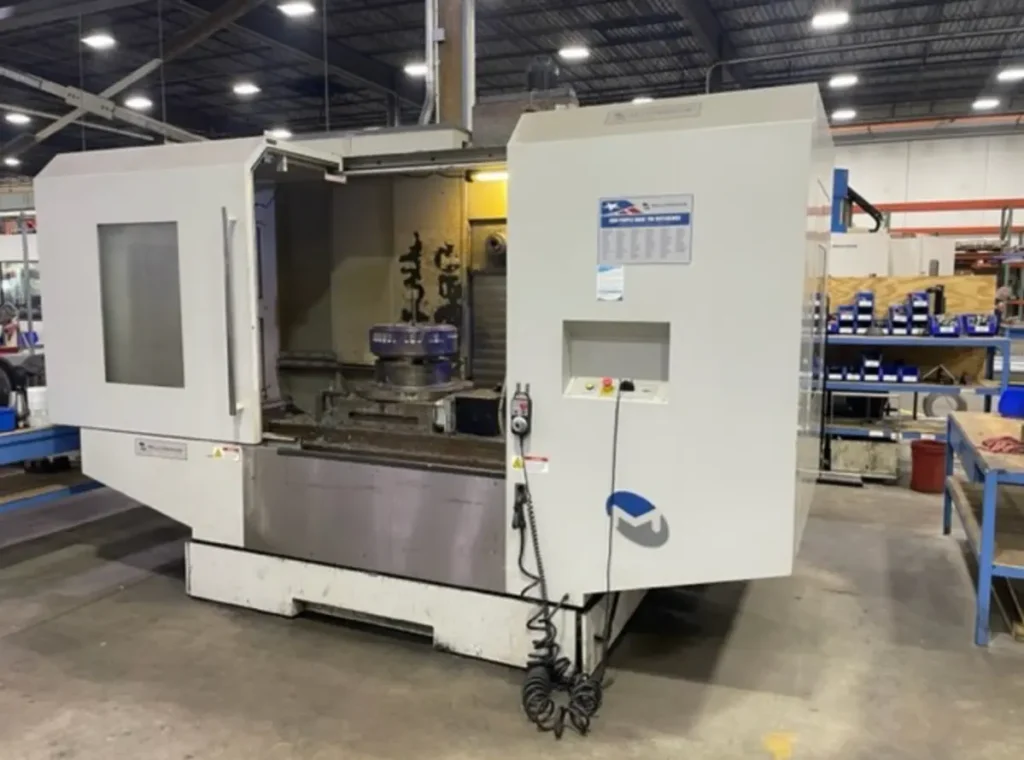

USED MILLTRONICS HM35 – 2008

The MILLTRONICS HM35 is a robust horizontal machining center designed to deliver high productivity, precision machining, and reliable performance across a wide range of manufacturing applications. Built by Milltronics USA, a respected manufacturer known for producing versatile and cost-effective CNC machine tools, the HM35 combines horizontal machining efficiency with modern CNC capabilities to provide manufacturers with an excellent solution for multi-sided part machining.

The HM35 was engineered to maximize spindle utilization while reducing setup times and improving overall production efficiency. Its horizontal spindle orientation provides significant advantages over traditional vertical machining centers by allowing chips to naturally fall away from the cutting area. This improves chip evacuation, reduces heat buildup, minimizes tool wear, and helps maintain superior surface finishes during extended machining operations. These benefits make the machine especially attractive for production environments requiring consistent quality and high throughput.

Built on a rigid cast iron base and column, the HM35 offers excellent structural stability and vibration dampening characteristics. The machine is capable of handling a broad range of materials including aluminum, steel, stainless steel, cast iron, and specialty alloys used in aerospace, automotive, energy, and industrial manufacturing. Its powerful spindle and large work envelope allow manufacturers to machine complex components efficiently while maintaining tight tolerances.

One of the key advantages of the HM35 is its pallet-changing capability, which significantly reduces non-cutting time by allowing operators to load and unload parts while machining continues on the active pallet. Combined with a generous tool magazine and rapid axis movements, this feature helps maximize machine productivity and improve overall shop efficiency.

Most 2008 MILLTRONICS HM35 machines are equipped with either Milltronics CNC controls or Fanuc-based systems, providing reliable machine operation, user-friendly programming, and strong long-term support. Even today, the HM35 remains a popular machine in the used CNC marketplace because it offers an attractive combination of performance, durability, and value for manufacturers seeking an affordable horizontal machining center.

---

MILLTRONICS HM35 – AXIS

Specification	Details
Number of Axes	4 Axis
X-Axis Travel	560 mm
Y-Axis Travel	610 mm
Z-Axis Travel	610 mm
B-Axis Rotary Table	360° Indexing
Simultaneous Machining	4-Axis Capability

---

MILLTRONICS HM35 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	560 mm
Y-Axis Travel	610 mm
Z-Axis Travel	610 mm
Rapid Traverse Rate	36 m/min
Positioning Accuracy	High Precision Linear Guide System

---

MILLTRONICS HM35 – CAPACITY / TABLE

Specification	Details
Pallet Size	400 x 400 mm
Number of Pallets	2
Maximum Workpiece Diameter	630 mm
Maximum Workpiece Height	700 mm
Maximum Table Load	400 kg

---

MILLTRONICS HM35 – SPINDLE

Specification	Details
Maximum Spindle Speed	10,000 RPM
Spindle Taper	CAT 40
Spindle Motor Power	25 HP
Spindle Type	Direct Drive
Through-Spindle Coolant	Optional

---

MILLTRONICS HM35 – TOOL CHANGER

Specification	Details
Tool Capacity	40 Tools
Tool Change Type	Automatic
Maximum Tool Length	300 mm
Maximum Tool Weight	8 kg
Tool-to-Tool Time	Approx. 2.0 Seconds

---

MILLTRONICS HM35 – CONTROL SYSTEM

Specification	Details
CNC Control	Milltronics Centurion or Fanuc
Programming	Conversational & G-Code
Ethernet Connectivity	Available
USB Interface	Available
DNC Capability	Supported

---

MILLTRONICS HM35 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	Flood Coolant
Through-Spindle Coolant	Optional
Chip Conveyor	Standard
Coolant Filtration	Integrated
Coolant Tank Capacity	Large Capacity

---

MILLTRONICS HM35 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 35 kVA

---

MILLTRONICS HM35 – DIMENSIONS

Specification	Details
Length	Approx. 4,500 mm
Width	Approx. 3,200 mm
Height	Approx. 3,100 mm
Machine Weight	Approx. 9,500 kg

---

MILLTRONICS HM35 – GENERAL INFORMATION

Specification	Details
Manufacturer	Milltronics
Model	HM35
Year	2008
Machine Type	Horizontal Machining Center
Country of Manufacture	USA
Primary Function	Multi-Sided CNC Milling

---

INDUSTRIES THAT USE MILLTRONICS HM35

The MILLTRONICS HM35 is utilized across numerous industries that require efficient machining of medium-sized and complex components. Automotive manufacturers use the machine for transmission housings, steering components, engine brackets, and drivetrain parts. Aerospace companies rely on the HM35 for structural components, mounting brackets, fixtures, and machined assemblies.

Energy sector manufacturers utilize the machine for valve bodies, pump housings, compressor components, and oil and gas equipment. Industrial equipment builders use the HM35 to manufacture machine components, automation equipment, hydraulic manifolds, and tooling systems.

Additional applications can be found in defense manufacturing, agricultural equipment production, heavy equipment manufacturing, contract machining operations, and general precision engineering environments. The machine’s pallet-changing capability and horizontal design make it particularly attractive for manufacturers seeking higher productivity and reduced setup times.

---

TYPICAL PARTS MILLTRONICS HM35 CAN PRODUCE

The MILLTRONICS HM35 is capable of machining a broad range of precision components. Common applications include hydraulic manifolds, valve bodies, gearbox housings, machine frames, bearing housings, and transmission components.

Automotive manufacturers frequently produce steering system parts, drivetrain components, transmission cases, and engine assemblies. Aerospace companies machine structural brackets, support components, mounting fixtures, and lightweight assemblies.

Industrial equipment manufacturers utilize the machine for pump housings, compressor components, automation structures, tooling fixtures, and precision castings. Energy sector manufacturers commonly produce oilfield components, valve bodies, and pressure system parts.

The machine’s horizontal configuration allows multiple surfaces of a component to be machined in a single setup, improving accuracy while reducing production time.

---

WHY CHOOSE MILLTRONICS HM35

The MILLTRONICS HM35 offers manufacturers an excellent combination of precision, productivity, and affordability. The machine’s horizontal design improves chip management and allows for more efficient machining of complex multi-sided components.

The dual-pallet changer significantly increases spindle utilization by minimizing downtime associated with loading and unloading workpieces. This feature allows manufacturers to improve throughput and reduce overall cycle times.

The machine’s rigid construction and reliable spindle system provide consistent machining performance across a wide variety of materials. Its generous work envelope and tooling capacity allow it to handle both production and job-shop applications effectively.

Milltronics controls are known for their user-friendly conversational programming features, making the machine accessible to operators while still supporting advanced CNC machining capabilities. The availability of Fanuc control options further enhances machine flexibility and supportability.

For manufacturers seeking a reliable horizontal machining center that delivers strong performance and excellent value, the HM35 remains a compelling choice.

---

WHY BUY USED MILLTRONICS HM35

Purchasing a used MILLTRONICS HM35 allows manufacturers to acquire horizontal machining center capabilities at a fraction of the cost of a comparable new machine. This makes it an attractive option for companies seeking to increase capacity without making a significant capital investment.

One of the primary advantages is obtaining pallet-changing automation and multi-sided machining capability at a highly competitive price point. These features can dramatically improve production efficiency and reduce labor costs.

Many used HM35 machines are available with valuable accessories including tooling packages, chip conveyors, probing systems, fixtures, rotary tables, and coolant systems. These additions can substantially increase machine value while reducing implementation expenses.

Milltronics machines are known for their reliability and durability. Properly maintained machines often continue operating productively for many years, making them a strong long-term investment for manufacturers.

Used machines are also generally available for immediate delivery, helping manufacturers avoid lengthy lead times associated with new equipment purchases. This enables companies to respond quickly to changing production demands and growth opportunities.

For manufacturers seeking affordable horizontal machining technology with proven performance, a used HM35 offers outstanding value.

---

HOW MUCH DOES A USED MILLTRONICS HM35 COST?

The value of a used MILLTRONICS HM35 depends on machine condition, spindle hours, maintenance records, tooling inventory, installed options, and overall machine configuration. Machines with documented maintenance histories and lower operating hours typically command stronger market prices.

Additional features such as through-spindle coolant, probing systems, expanded tooling packages, rotary capabilities, pallet fixtures, and upgraded controls can significantly influence machine value. Well-equipped machines often provide greater productivity and lower startup costs.

Demand remains consistent because the HM35 provides manufacturers with an affordable entry point into horizontal machining technology. Buyers often seek these machines due to their versatility, reliability, and ability to improve production efficiency.

Prospective buyers typically evaluate spindle condition, pallet changer functionality, axis accuracy, CNC control performance, and maintenance history when determining machine value. Machines that have been properly maintained generally attract greater buyer interest.

As a general guideline, a used 2008 MILLTRONICS HM35 typically sells within a range of approximately $35,000 to $90,000, depending on machine condition, spindle hours, tooling packages, installed options, and overall configuration. Machines with low hours, extensive tooling inventories, and advanced options may command higher prices.

Even after transportation, installation, and tooling expenses are considered, a used MILLTRONICS HM35 often provides exceptional value by delivering horizontal machining center productivity and multi-sided machining capability at a substantial savings compared to purchasing a comparable new machine.
