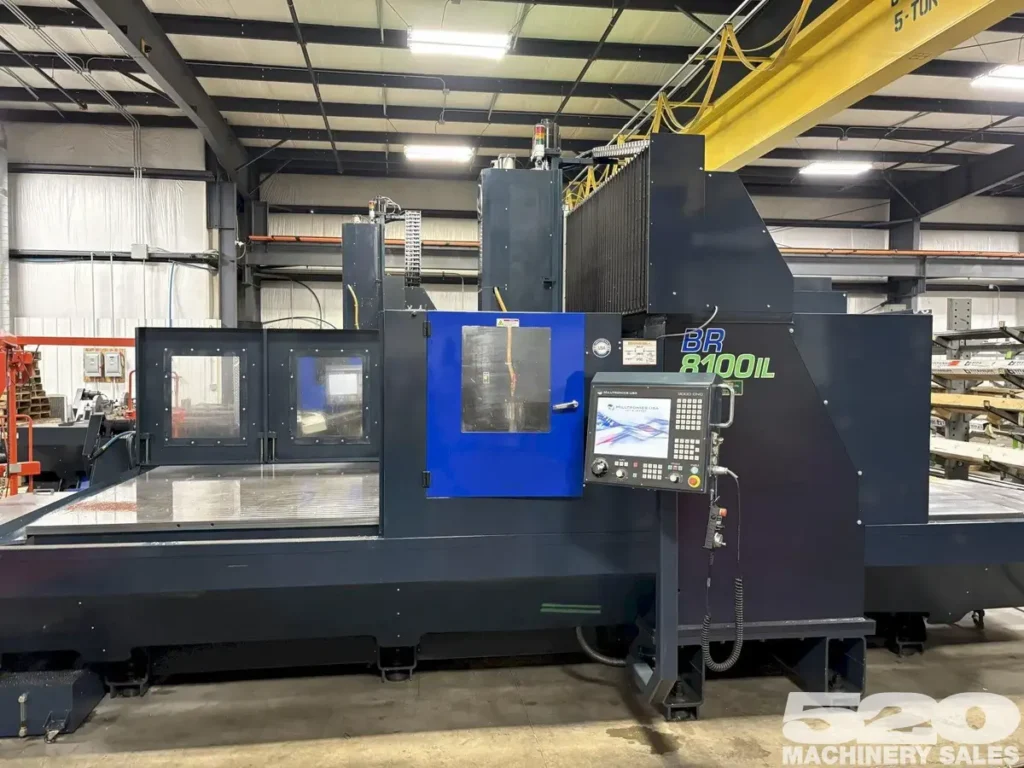

The MILLTRONICS BR8100IL is a large-format CNC bridge mill designed for machining oversized plates, fabricated structures, molds, and heavy components. Manufactured by Milltronics USA, the BR8100IL combines a massive work envelope with a high-speed inline spindle and modern CNC control technology. The 2022 model is highly sought after because it offers near-new performance and advanced features at a significant discount compared to purchasing new equipment.
The 2022 MILLTRONICS BR8100IL features 100 inches of X-axis travel, 80 inches of Y-axis travel, and 28 inches of Z-axis travel. It is equipped with a BIG-PLUS CT40 spindle rated at 10,000 RPM standard, with optional 15,000 RPM capability. The machine includes a 24-tool automatic tool changer, 5,000 lb table capacity, and the Milltronics 9000-DGI CNC control. Common options include Renishaw probing, through-spindle coolant, chip conveyor, and spindle chiller.
The BR8100IL is widely used in aerospace, tooling, energy, mold making, and general fabrication. Typical applications include large fixture plates, aluminum molds, vacuum plates, structural components, and welded assemblies.
The 2022 MILLTRONICS BR8100IL remains an excellent investment because it delivers massive machining capacity, modern controls, and exceptional value for large-part manufacturing.
MILLTRONICS BR8100IL SPECIFICATIONS
MILLTRONICS BR8100IL – AXIS
Number of Axes
3-Axis CNC Bridge Mill
Axis Configuration
X, Y, Z
Optional 4th Axis
Yes
Positioning Accuracy
High Precision
Repeatability
Excellent
Machine Type
Large-Format Vertical Bridge Mill
MILLTRONICS BR8100IL – AXIS TRAVELS
X-Axis Travel
100 in (2,540 mm)
Y-Axis Travel
80 in (2,030 mm)
Z-Axis Travel
28 in (710 mm)
Rapid Traverse Rate
1,000 ipm
Spindle Nose to Table
4 – 32 in
Guideway Type
45 mm Linear Roller Ways
MILLTRONICS BR8100IL – CAPACITY
Table Size
80 x 100 in (2,030 x 2,540 mm)
Maximum Table Load
5,000 lb (2,270 kg)
Maximum Workpiece Size
Large Plates and Fabrications
Maximum Tool Weight
15 lb (6.8 kg)
Industrial Usage
Large-Part Precision Milling
Workpiece Materials
Aluminum, Steel, Stainless Steel
MILLTRONICS BR8100IL – SPINDLE
Spindle Taper
BIG-PLUS CT40
Maximum Spindle Speed
10,000 RPM Standard
Optional Spindle Speed
15,000 RPM
Spindle Motor Power
24/15 hp Two-Speed
Spindle Torque
85 ft-lb
Rigid Tapping
Standard
MILLTRONICS BR8100IL – TABLE
Table Length
100 in (2,540 mm)
Table Width
80 in (2,030 mm)
Number of T-Slots
Multiple T-Slots
Workholding Compatibility
Large Fixtures and Vacuum Tables
Table Construction
Heavy-Duty Cast Iron
Maximum Load
5,000 lb (2,270 kg)
MILLTRONICS BR8100IL – TOOL TURRET
Tool Changer Capacity
24 Tools
Tool Changer Type
Carousel ATC
Tool Taper
CT40
Tool Selection
Random Access
Maximum Tool Length
11 in
Tool Management
CNC Controlled
MILLTRONICS BR8100IL – FEEDRATES
Maximum Cutting Feed Rate
500 ipm
Rapid Traverse Rate
1,000 ipm
Servo System
Digital AC Servo
Contouring Performance
Excellent
Surface Finish Capability
Excellent
High-Speed Machining
Excellent
MILLTRONICS BR8100IL – COOLANT & CHIP MANAGEMENT
Flood Coolant System
Standard
Through-Spindle Coolant
Optional
Chip Conveyor
Common Option
Coolant Filtration
Standard
Spindle Chiller
Common Option
Probing Systems
Common Option
MILLTRONICS BR8100IL – CONTROL SYSTEM
CNC Control Brand
Milltronics
Control Model
9000-DGI
Programming Method
Conversational and G-Code
Program Storage
120 GB SSD
Networking
Standard
Touch Screen Interface
15 in LCD
MILLTRONICS BR8100IL – POWER & AIR REQUIREMENTS
Power Requirement
3-Phase
Voltage
208 – 240 V
Connected Load
48 kVA
Main Breaker
125 A
Air Pressure Requirement
80 – 100 psi
Frequency
50 / 60 Hz
MILLTRONICS BR8100IL – DIMENSIONS
Machine Weight
Approx. 29,500 lb (13,381 kg)
Floor Space
280 x 164 in
Machine Height
152 in
Footprint Type
Large Bridge Mill
Installation Type
Reinforced Shop Floor
Rigging Required
Heavy Equipment
MILLTRONICS BR8100IL – GENERAL INFORMATION
Machine Type
CNC Bridge Mill
Manufacturer
Milltronics USA
Country of Origin
USA
Model Year
2022
Primary Application
Large-Part Milling
Automation Ready
Yes
INDUSTRIES THAT USE MILLTRONICS BR8100IL
Aerospace
Structural Components
Tooling
Large Fixture Plates
Mold Making
Aluminum and Composite Molds
Energy
Large Plates and Housings
Fabrication
Welded Assemblies
General Manufacturing
Oversized Precision Parts
TYPICAL PARTS MILLTRONICS BR8100IL CAN PRODUCE
Fixture Plates
Yes
Vacuum Tables
Yes
Aluminum Molds
Yes
Structural Components
Yes
Machine Bases
Yes
Weldment Machining
Yes
WHY CHOOSE MILLTRONICS BR8100IL
Massive Work Envelope
Outstanding
Modern Conversational Control
Excellent
High-Speed Inline Spindle
Excellent
Strong U.S. Support
Excellent
Excellent Value per Square Inch
Outstanding
Near-New 2022 Condition
Excellent
WHY BUY USED MILLTRONICS BR8100IL
Purchasing a used 2022 MILLTRONICS BR8100IL allows manufacturers to acquire a near-new large-format CNC bridge mill at a substantial savings. Because the machine is relatively recent, many examples have low cutting hours and include advanced options such as Renishaw probing, spindle chillers, and chip conveyors.
The Milltronics 9000-DGI control offers both conversational programming and standard G-code, making it easy for shops to transition from simpler parts to complex 3D machining. The large 100″ × 80″ travel envelope makes the BR8100IL ideal for aerospace tooling, aluminum molds, and heavy fabricated assemblies.
Buyers should verify spindle hours, probing functionality, way condition, and coolant system performance. Machines with maintenance records and tooling packages command higher prices but deliver greater long-term value.
For manufacturers requiring large-part machining capacity with modern control technology, the MILLTRONICS BR8100IL offers exceptional productivity and return on investment.
HOW MUCH DOES A USED MILLTRONICS BR8100IL COST?
MACHINE AGE / CONDITION
ESTIMATED PRICE RANGE (USD)
2021 – 2023 Models
$180,000 – $280,000
Low Cutting Hours (Under 2,000 Hours)
Premium Pricing
Machines with 15,000 RPM Spindle
Added Value
Machines with Renishaw Probing
Added Value
Machines with Through-Spindle Coolant
Added Value
Included Tooling and Fixtures
Added Value
Excellent Mechanical Condition
Premium Pricing
Fully Operational Under Power
Higher Buyer Confidence
Complete Maintenance Records
Higher Market Value
Refurbished / Dealer Certified
10% – 20% Higher
The cost of a used 2022 MILLTRONICS BR8100IL depends on spindle hours, installed options, and overall condition. Recent market listings for well-equipped machines have been offered around $249,000, which aligns with the upper end of the typical range.
Machines equipped with probing systems, spindle chillers, and advanced coolant management deliver greater productivity and stronger resale value. Buyers should also budget for rigging, transportation, and installation due to the machine’s large footprint and weight.
For shops that need a near-new bridge mill capable of machining very large parts, the MILLTRONICS BR8100IL offers outstanding capability and excellent long-term value.
