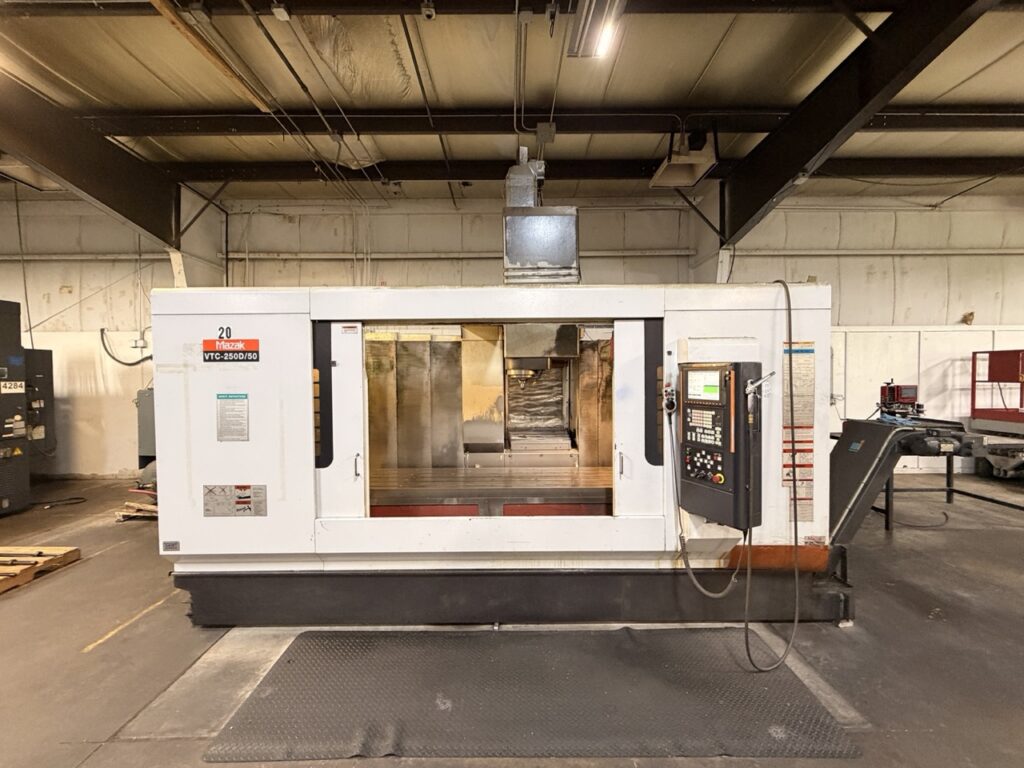

USED MAZAK VTC250D/50 – 2006

The MAZAK VTC250D/50 2006 is a heavy-duty CNC Vertical Machining Center designed for machining large and long components. The machine combines a large work envelope with a CAT 50 spindle, 30 HP spindle motor, and 24-tool automatic tool changer, making it well suited for applications requiring substantial cutting power and rigidity.

The VTC250D/50 is particularly useful for machining long workpieces because of its extended X-axis travel and large table. The machine provides approximately 69.3 inches of X-axis travel, 25 inches of Y-axis travel, and 25.6 inches of Z-axis travel, along with an approximately 82.7″ × 25″ table.

The 50-taper spindle is a major advantage for heavy-duty machining. Compared with lighter CAT 40 vertical machining centers, the CAT 50 configuration is better suited to demanding cutting applications where spindle rigidity and torque are important.

A 2006 MAZAK VTC250D/50 can be a practical choice for manufacturers machining large plates, structural components, molds, fixtures, aerospace components, and other extended workpieces. Depending on the individual machine, options can include Mazatrol Fusion 640M control, through-spindle coolant, chip conveyor, probing, automatic tool measurement, and fourth-axis rotary equipment.

---

MAZAK VTC250D/50 2006 – AXIS

Specification	Value
Machine Type	CNC Vertical Machining Center
Configuration	Vertical
X Axis	69.3″
Y Axis	25″
Z Axis	25.6″
Number of Standard Axes	3
4th Axis	Optional
Spindle Orientation	Vertical
Control	Mazatrol / Configuration Dependent

The VTC250D/50 can be configured with a fourth-axis rotary table for additional machining flexibility.

---

MAZAK VTC250D/50 2006 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X Travel	69.3″
Y Travel	25″
Z Travel	25.6″
Table Size	Approximately 82.7″ × 25″
Spindle Nose to Table	Approximately 7.1″ – 33.1″
Maximum Table Load	Approximately 2,600 lbs
Spindle Orientation	Vertical
Work Envelope	Large / Extended

The long X-axis travel is one of the defining characteristics of this model and allows it to accommodate extended workpieces.

---

MAZAK VTC250D/50 2006 – CAPACITY

Specification	Value
Table Size	82.7″ × 25″
Maximum Table Load	Approximately 2,600 lbs
X Travel	69.3″
Y Travel	25″
Z Travel	25.6″
Spindle Taper	CAT 50
Spindle Speed	6,000 RPM
Spindle Motor	30 HP
Tool Capacity	24
Automatic Tool Changer	Yes

The machine’s large table and high-capacity spindle make it appropriate for heavy and extended machining applications.

---

MAZAK VTC250D/50 2006 – SPINDLE

Specification	Value
Spindle Type	Vertical
Spindle Taper	CAT 50
Maximum Spindle Speed	6,000 RPM
Spindle Motor	30 HP
Spindle Torque	Approximately 664 ft-lb
Spindle Nose to Table	7.1″ – 33.1″
Through-Spindle Coolant	Configuration Dependent
Rigid Tapping	Configuration Dependent

The 30 HP CAT 50 spindle is designed for high-rigidity machining and substantial material removal.

---

MAZAK VTC250D/50 2006 – TOOL CHANGER

Specification	Value
Tool Changer	Automatic
Tool Capacity	24
Tool Changer Type	Side Mount
Tool Interface	CAT 50
Tool Change Type	Double Arm
Maximum Tool Diameter	Approximately 4.13″
Maximum Tool Length	Approximately 13.78″
Maximum Tool Weight	Approximately 33 lbs

The 24-tool side-mounted ATC allows multiple machining operations to be programmed without frequent manual tool changes.

---

MAZAK VTC250D/50 2006 – CONTROL SYSTEM

Specification	Value
CNC Control	Mazatrol Fusion 640M / 640MN
Programming	G-Code / Mazatrol
Tool Offset Management	Yes
Automatic Tool Management	Yes
Rigid Tapping	Configuration Dependent
EIA Programming	Yes
3D Compensation	Configuration Dependent
Helical Interpolation	Configuration Dependent
Diagnostic Functions	Yes

Many 2006 VTC250D/50 machines are equipped with Mazatrol Fusion 640M or 640MN controls, although the exact control should be verified on the individual machine.

---

MAZAK VTC250D/50 2006 – FEEDRATES

Specification	Value
X Rapid Traverse	Up to 1,181 IPM
Y Rapid Traverse	Up to 1,181 IPM
Z Rapid Traverse	Up to 1,181 IPM
Cutting Feedrate	Configuration Dependent
Servo System	CNC Controlled
Automatic Feed	Yes

Actual rapid-traverse rates can vary by machine configuration and axis.

---

MAZAK VTC250D/50 2006 – COOLANT / CHIP MANAGEMENT

Specification	Value
Flood Coolant	Yes
Through-Spindle Coolant	Configuration Dependent
High-Pressure Coolant	Configuration Dependent
Chip Conveyor	Configuration Dependent
Coolant Tank	Yes
Automatic Lubrication	Yes
Oil Skimmer	Configuration Dependent

Used examples of the VTC250D/50 have been equipped with through-spindle coolant and chip conveyors, which are useful for heavy production machining and continuous chip removal.

---

MAZAK VTC250D/50 2006 – 4TH AXIS

Specification	Value
4th Axis	Optional
Rotary Table	Configuration Dependent
Rotary Chuck	Configuration Dependent
Tailstock	Configuration Dependent
C-Axis Capability	Configuration Dependent
Simultaneous Machining	Configuration Dependent

Some used VTC250D/50 machines are equipped with fourth-axis rotary tables, allowing additional sides of a component to be machined without manually repositioning the workpiece.

---

MAZAK VTC250D/50 2006 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	Three Phase
Spindle Motor	30 HP
Voltage	Configuration Dependent
Connected Load	Configuration Dependent
Air Supply	Required
Hydraulic System	Configuration Dependent
Lubrication System	Automatic

---

MAZAK VTC250D/50 2006 – DIMENSIONS

Specification	Value
Machine Length	Approximately 228″
Machine Width	Approximately 134″
Machine Height	Approximately 133.5″
Machine Weight	Approximately 20,000–24,000 lbs
Floor Space	Large
Configuration	Moving Table / Vertical Machining

Machine dimensions and weight can vary depending on the exact configuration and installed accessories. Published used-machine specifications list approximately 228″ × 134″ × 133.5″ and weights ranging from approximately 20,000 to 24,000 lbs.

---

MAZAK VTC250D/50 2006 – GENERAL INFORMATION

Item	Details
Manufacturer	Mazak
Model	VTC250D/50
Year	2006
Machine Type	CNC Vertical Machining Center
Configuration	Vertical
X Travel	69.3″
Y Travel	25″
Z Travel	25.6″
Table Size	Approximately 82.7″ × 25″
Table Load	Approximately 2,600 lbs
Spindle Taper	CAT 50
Maximum Spindle Speed	6,000 RPM
Spindle Motor	30 HP
Tool Capacity	24
CNC Control	Mazatrol Fusion 640M / 640MN
4th Axis	Optional
Chip Conveyor	Configuration Dependent
Through-Spindle Coolant	Configuration Dependent

---

INDUSTRIES THAT USE MAZAK VTC250D/50 2006

The MAZAK VTC250D/50 is suitable for demanding machining applications in industries including:

• Aerospace
• Automotive
• Energy
• Heavy equipment
• Oil and gas
• Industrial machinery
• Defense
• Mold and die
• Fabrication
• General manufacturing

---

TYPICAL PARTS MAZAK VTC250D/50 2006 CAN PRODUCE

The machine can be used to manufacture:

• Large plates
• Machine bases
• Structural components
• Fixtures
• Dies
• Molds
• Aerospace components
• Automotive components
• Industrial equipment parts
• Long machine components
• Large brackets
• Precision housings

Typical operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3D machining.

---

WHY CHOOSE MAZAK VTC250D/50 2006

The main advantage of the MAZAK VTC250D/50 is its combination of a large work envelope and heavy-duty CAT 50 spindle.

The nearly 70-inch X-axis travel makes this machine particularly useful for long components that cannot easily be accommodated on smaller vertical machining centers. The 30 HP spindle and 50-taper tooling provide the rigidity required for heavier cutting applications.

The large table also provides considerable flexibility for multiple fixtures or larger workpieces. Depending on configuration, fourth-axis equipment, probing, through-spindle coolant, and chip management can further expand its production capabilities.

---

WHY BUY USED MAZAK VTC250D/50 2006

Purchasing a used MAZAK VTC250D/50 2006 can provide substantial vertical machining capacity without the investment required for a new large-format machining center.

Depending on configuration, a used machine may include:

• CAT 50 spindle
• 30 HP spindle motor
• 6,000 RPM spindle
• 24-tool automatic tool changer
• Mazatrol Fusion 640M/640MN control
• Large 82.7″ × 25″ table
• Chip conveyor
• Through-spindle coolant
• Renishaw probing
• Automatic tool measurement
• Fourth-axis rotary table
• Additional tooling

Before purchasing, buyers should inspect the spindle, spindle bearings, CAT 50 taper, X/Y/Z-axis movement, ballscrews, linear guides, table condition, ATC operation, CNC control, coolant system, chip conveyor, and machine geometry.

For a machine of this age, it is particularly important to verify spindle hours, cutting hours, maintenance history, backlash, positioning accuracy, spindle runout, and the condition of the control electronics.

---

HOW MUCH DOES A USED MAZAK VTC250D/50 2006 COST?

The price of a used MAZAK VTC250D/50 2006 varies significantly based on condition, spindle hours, control, tooling, fourth-axis equipment, probing, coolant system, chip conveyor, and maintenance history.

Current used-market listings show substantial variation. One 2006 VTC250D/50 is currently listed at $24,900, while another 2006 example is listed at $59,000.

Based on these current listings and comparable machines, a reasonable working market range for a used MAZAK VTC250D/50 2006 is approximately $25,000 to $60,000 USD, with exceptionally well-equipped machines, fourth-axis packages, probing, tooling, and strong maintenance history potentially commanding more.

A properly maintained MAZAK VTC250D/50 2006 remains a capable CAT 50 CNC Vertical Machining Center for manufacturers requiring long X-axis travel, substantial spindle power, large workholding capacity, and rigid machining of large or extended components.
