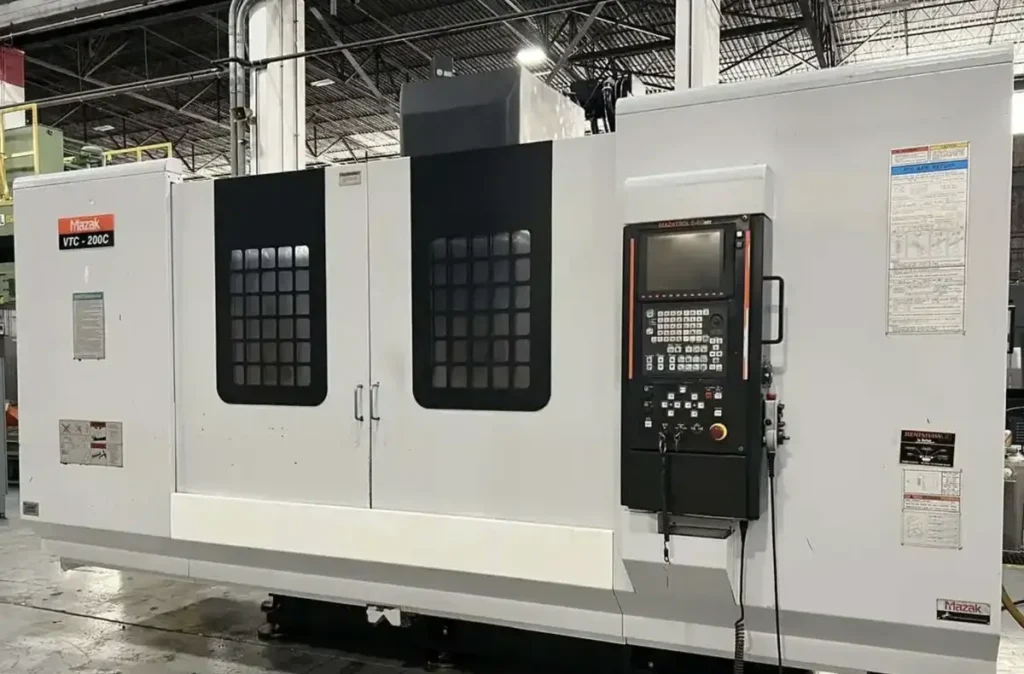

USED MAZAK VTC-200C – 2010

The MAZAK VTC-200C – 2010 is a large-format CNC vertical machining center designed for manufacturers that need substantial X-axis travel while maintaining a conventional vertical machining configuration. The VTC-200C uses a traveling-column design with a long fixed table, making it particularly suitable for machining long plates, fixtures, molds, dies, structural components, and other large workpieces. A documented 2010 machine provides approximately 66 inches of X-axis travel, 20.08 inches of Y-axis travel, and 20.08 inches of Z-axis travel, giving the machine a large working envelope for a vertical machining center.

The 2010 VTC-200C is documented with a 77.48 × 20.08 inch table, approximately 2,200 lb table load capacity, and a spindle nose-to-table range of approximately 7.09 to 27.17 inches. The long table is one of the major characteristics of the VTC-200C, allowing multiple workpieces or large fixtures to be positioned along the X-axis. The machine is also equipped with a CAT 40 spindle, making it compatible with widely available 40-taper tooling.

The documented 2010 configuration uses a 12,000 RPM, 20 HP spindle and a 24-position automatic tool changer. Rapid traverse rates are approximately 1,181 IPM on X, Y, and Z, allowing the machine to move efficiently between machining positions. Available equipment on documented machines includes Mazatrol 640MN control, chip conveyor, through-spindle coolant, automatic tool-length measurement, and part probing.

The VTC-200C is well suited to production machining, mold and die work, aerospace components, large industrial parts, machinery components, fixtures, and long workpieces. Its combination of long X travel, high-speed CAT 40 spindle, automatic tool changing, probing, and Mazatrol control gives manufacturers a versatile platform for both production and job-shop machining. The VTC-200C’s long-table configuration can also allow several smaller components to be mounted simultaneously, improving productivity on repeat production work.

---

MAZAK VTC-200C 2010 – AXIS

Specification	Value
X Axis	66″ (1,676 mm)
Y Axis	20.08″ (510 mm)
Z Axis	20.08″ (510 mm)
Number of Axes	3
4th Axis	Configuration Dependent
Machine Configuration	CNC Vertical Machining Center
Machine Design	Traveling Column
Fixed Table	Yes
Rotary Axis	Configuration Dependent

The VTC-200C is fundamentally a 3-axis vertical machining center, with fourth-axis equipment available depending on the individual machine configuration.

---

MAZAK VTC-200C 2010 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	66″ (1,676 mm)
Y-Axis Travel	20.08″ (510 mm)
Z-Axis Travel	20.08″ (510 mm)
Table Length	77.48″ (1,968 mm)
Table Width	20.08″ (510 mm)
Maximum Table Load	Approximately 2,200 lbs (1,000 kg)
Spindle Nose to Table	7.09″ – 27.17″
X Rapid Traverse	1,181 IPM (30 m/min)
Y Rapid Traverse	1,181 IPM (30 m/min)
Z Rapid Traverse	1,181 IPM (30 m/min)
Cutting Feed Rate	Approximately 698 IPM

The long table and 66-inch X travel are defining characteristics of the VTC-200C. Published VTC-200C specifications identify the 200C with a 2,000 × 510 mm table and 1,660 × 510 × 510 mm travel, while individual 2010 listings report 66-inch X travel and a 77.48-inch table.

---

MAZAK VTC-200C 2010 – CAPACITY

Specification	Value
Machine Type	CNC Vertical Machining Center
Table Length	77.48″
Table Width	20.08″
Maximum Table Load	Approximately 2,200 lbs
X Travel	66″
Y Travel	20.08″
Z Travel	20.08″
Number of Axes	3
Spindle Taper	CAT 40
Tool Capacity	24 Tools
4th Axis	Configuration Dependent
Long Fixed Table	Yes

The VTC-200C’s long table provides useful capacity for large fixtures, long components, and multiple smaller workpieces. A documented 2010 machine is rated for approximately 2,200 lb on the table.

---

MAZAK VTC-200C 2010 – SPINDLE

Specification	Value
Maximum Spindle Speed	12,000 RPM
Spindle Motor	20 HP
Spindle Taper	CAT 40
Tool Interface	CAT 40
Spindle Type	Vertical Milling Spindle
Spindle Nose to Table	7.09″ – 27.17″
Through-Spindle Coolant	Equipped on Documented Machine
Rigid Tapping	Equipped on Documented Machine
Spindle Cooling	Configuration Dependent

The documented 2010 VTC-200C uses a 12,000 RPM, 20 HP CAT 40 spindle. Published VTC-200C specifications also identify a standard 12,000 RPM CAT 40 spindle.

---

MAZAK VTC-200C 2010 – TOOL CHANGER

Specification	Value
Tool Changer	Automatic Tool Changer
Standard Tool Capacity	24 Tools
Optional Tool Capacity	48 Tools
Tool Interface	CAT 40
Maximum Tool Diameter	Approximately 3.13″ / 4.33″
Maximum Tool Length	Approximately 13.7″
Maximum Tool Weight	Approximately 17.8 lbs
Tool Management	Automatic
Tool Change	Automatic

The VTC-200C was offered with 24-tool storage as standard and 48-tool storage as an option. The documented 2010 machines generally use a 24-tool ATC.

---

MAZAK VTC-200C 2010 – CONTROL SYSTEM

Specification	Value
CNC Control	MAZATROL 640MN
Control Type	CNC / Conversational
Programming	MAZATROL / EIA G-Code
Rigid Tapping	Equipped
Automatic Tool Length Measurement	Equipped
Part Probe	Equipped on Documented Machine
Tool Life Management	Equipped
G54.1 Extended Work Coordinates	Equipped
Helical Interpolation	Equipped
Communication	Configuration Dependent

The MAZATROL 640MN control is documented on 2010 VTC-200C machines, with available functions including rigid tapping, EIA helical cycles, tool-life management, extended work coordinates, and probing.

---

MAZAK VTC-200C 2010 – COOLANT / CHIP MANAGEMENT

Specification	Value
Flood Coolant	Equipped
Through-Spindle Coolant	Equipped on Documented Machine
Chip Conveyor	Equipped
Coolant Filtration	Configuration Dependent
Automatic Lubrication	Equipped
Coolant Tank	Equipped
Chip Management	Automatic Chip Conveyor
Tool Probe	Equipped
Part Probe	Equipped on Documented Machine

Documented 2010 VTC-200C machines include a chip conveyor and through-spindle coolant. These features are useful for continuous production machining and for controlling chips during deep drilling and high-speed milling operations.

---

MAZAK VTC-200C 2010 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	Three Phase
Voltage	Configuration Dependent
Spindle Motor	20 HP
Connected Load	Configuration Dependent
Frequency	Configuration Dependent
Air Supply	Required
Coolant System	Electrically Powered
Control System	Mazatrol 640MN

The exact electrical requirements should be confirmed from the machine nameplate because voltage, transformer configuration, coolant equipment, chip conveyor, and installed options can affect the total connected load.

---

MAZAK VTC-200C 2010 – DIMENSIONS

Specification	Value
Floor Space Length	Approximately 173.23″
Floor Space Width	Approximately 125.35″
Machine Weight	Approximately 16,000 lbs
Table Length	77.48″
Table Width	20.08″
Overall Height	Configuration Dependent
Chip Conveyor	Additional Footprint / Integrated Configuration

Mazak’s published VTC-200C specifications identify a floor-space requirement of approximately 4400 × 3184 mm, while current 2010 used-machine listings document a machine weight of approximately 16,000 lbs. Exact shipping dimensions should be verified for the individual machine and its chip-conveyor configuration.

---

MAZAK VTC-200C 2010 – GENERAL INFORMATION

Specification	Value
Manufacturer	Mazak
Model	VTC-200C
Year	2010
Machine Type	CNC Vertical Machining Center
Machine Configuration	Traveling Column
Number of Axes	3
CNC Control	MAZATROL 640MN
X Travel	66″
Y Travel	20.08″
Z Travel	20.08″
Table Size	77.48″ × 20.08″
Maximum Table Load	Approximately 2,200 lbs
Spindle Speed	12,000 RPM
Spindle Motor	20 HP
Spindle Taper	CAT 40
Tool Capacity	24 Tools
Through-Spindle Coolant	Equipped
Chip Conveyor	Equipped
Automatic Tool Measurement	Equipped
Part Probe	Equipped on Documented Machine
Rigid Tapping	Equipped
Machine Weight	Approximately 16,000 lbs

The VTC-200C combines a long fixed table, traveling column, 66-inch X travel, 12,000 RPM CAT 40 spindle, 24-tool ATC, and Mazatrol CNC control in a large-capacity vertical machining platform.

---

INDUSTRIES THAT USE MAZAK VTC-200C 2010

The MAZAK VTC-200C is suitable for industries that require long X-axis travel, large workholding capacity, and repeatable CNC milling.

• Aerospace manufacturing
• Automotive manufacturing
• Industrial machinery
• Heavy equipment
• Energy equipment
• Mold and die manufacturing
• General manufacturing
• Job shops
• Tool and fixture manufacturing
• Defense components
• Automation equipment
• Construction equipment
• Hydraulic components
• Precision engineering
• Prototype manufacturing

The long table is particularly useful for manufacturers working with long components or multiple fixtures arranged along the X-axis.

---

TYPICAL PARTS MAZAK VTC-200C 2010 CAN PRODUCE

The VTC-200C can perform face milling, pocketing, contouring, drilling, boring, tapping, slotting, profiling, and other CNC milling operations.

Typical parts include:

• Long machine plates
• Structural components
• Machine bases
• Fixtures
• Tooling plates
• Aerospace components
• Automotive components
• Mold components
• Die components
• Hydraulic manifolds
• Industrial brackets
• Pump components
• Valve bodies
• Large housings
• Machinery components
• Production tooling

The long X-axis travel also allows multiple smaller components to be mounted on the table simultaneously, depending on workholding and machining requirements.

---

WHY CHOOSE MAZAK VTC-200C 2010

The MAZAK VTC-200C – 2010 provides a combination of long X-axis travel and high-speed vertical milling capability that is particularly useful for large or elongated workpieces. Its 66-inch X travel, 20.08-inch Y travel, and 20.08-inch Z travel provide a substantial working envelope without requiring a horizontal machining center.

The 12,000 RPM, 20 HP CAT 40 spindle provides a versatile balance between material-removal capability and higher-speed machining. CAT 40 tooling is widely available, making it relatively straightforward for shops already operating CAT 40 equipment to integrate the VTC-200C into their tooling system.

The Mazatrol 640MN control provides both conversational Mazatrol programming and conventional EIA programming capabilities. Documented machines can also include rigid tapping, automatic tool-length measurement, part probing, through-spindle coolant, and chip conveyance.

The long fixed table is another major advantage. Manufacturers can position long components or multiple fixtures along the table while the traveling column performs the machining operations. This configuration can be useful for production environments where several parts need to be processed during the same machine cycle.

---

WHY BUY USED MAZAK VTC-200C 2010

Buying a used MAZAK VTC-200C – 2010 can provide manufacturers with access to a large-capacity vertical machining center at a substantially lower acquisition cost than purchasing a new large-format CNC machine.

The machine already provides several features that remain valuable in modern production environments, including a 12,000 RPM spindle, CAT 40 tooling, 24-tool automatic tool changer, Mazatrol control, rigid tapping, chip conveyor, through-spindle coolant, and automatic tool measurement on documented configurations.

The VTC-200C is particularly attractive for shops that need long X-axis capacity. Its approximately 77-inch table and 66-inch X travel can accommodate large fixtures, long plates, and multiple workpieces. A used machine can therefore add considerable machining capacity without requiring the footprint and investment associated with some newer large-format machining centers.

Because the machine is from 2010, buyers should inspect the spindle, ballscrews, linear guides, axis backlash, tool changer, Mazatrol control, coolant system, chip conveyor, probing equipment, and electrical cabinet. An under-power inspection should verify all three axes, spindle operation throughout the RPM range, automatic tool changes, coolant-through-spindle operation, probing, rigid tapping, and actual positioning performance.

---

HOW MUCH DOES A USED MAZAK VTC-200C 2010 COST?

The price of a used MAZAK VTC-200C – 2010 varies according to spindle hours, machine condition, control condition, options, tooling, probing, coolant system, chip conveyor, and maintenance history. Current market listings provide a useful reference: one documented 2010 VTC-200C is currently advertised at $49,500 USD, while other 2010 machines are listed at auction or with pricing available upon request.

A reasonable used-market estimate for a 2010 MAZAK VTC-200C is approximately $35,000–$55,000 USD for a running machine in usable condition. Clean machines with a good Mazatrol 640MN control, healthy 12,000 RPM spindle, working 24-tool ATC, chip conveyor, through-spindle coolant, probing, and tooling can be positioned toward the upper end of this range.

Machines requiring spindle work, control repairs, ballscrew replacement, electrical repairs, or major maintenance can sell for considerably less. Conversely, a well-maintained machine with documented service history, low hours, additional tooling, probing, and a strong spindle condition can command a higher asking price.

When evaluating a used VTC-200C, buyers should compare spindle hours, cutting hours, spindle condition, axis backlash, ballscrew condition, Mazatrol control operation, ATC operation, chip conveyor, coolant-through-spindle system, probing, table condition, included CAT 40 tooling, and maintenance history rather than relying on the year alone.

For an individual machine, the serial number, exact spindle configuration, spindle hours, control version, tool capacity, table load rating, installed options, tooling package, and current operating condition should be confirmed before establishing a final purchase price.
