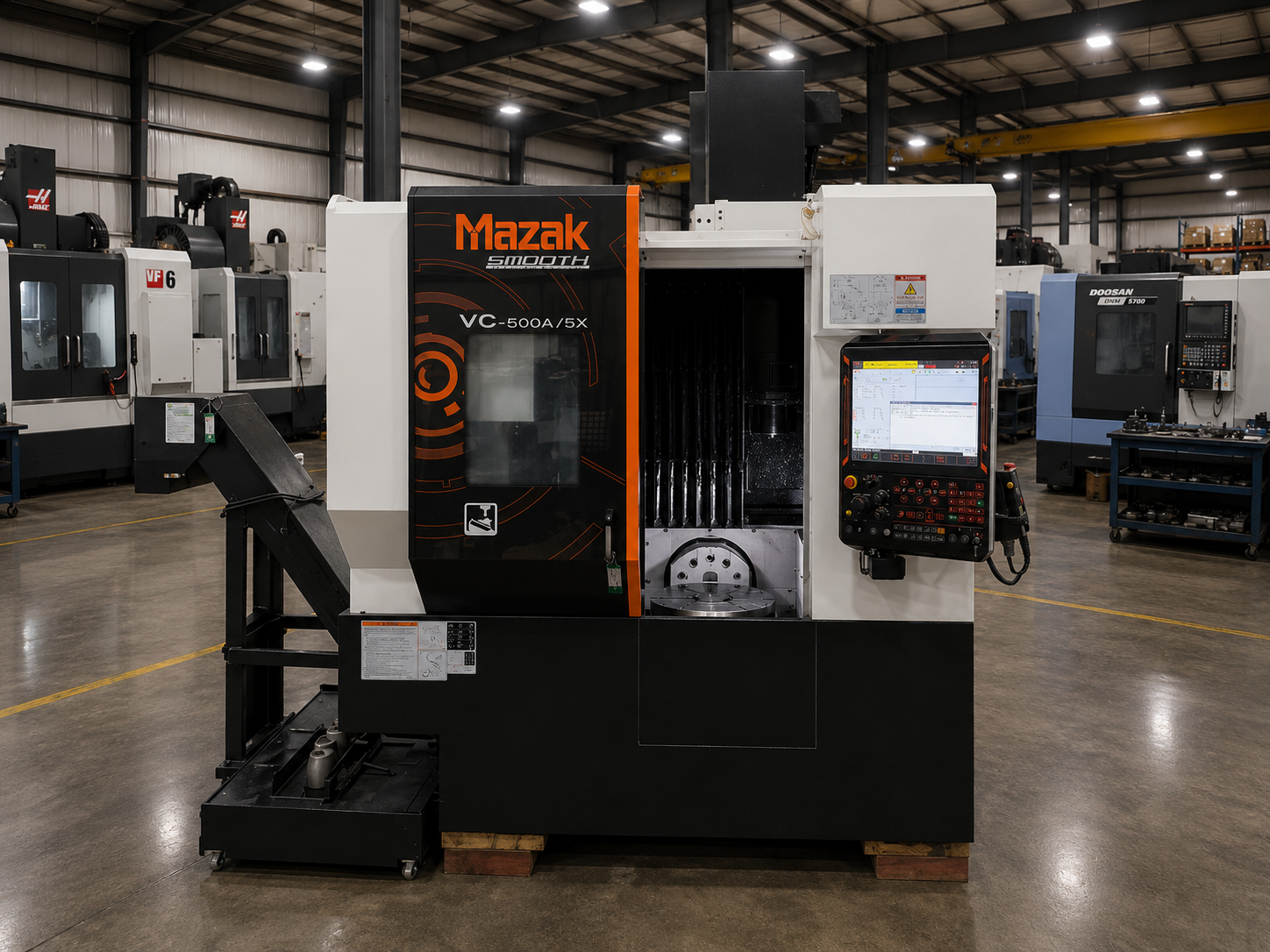

USED MAZAK VC-500A/5X – 2022

The Mazak VC-500A/5X is a highly versatile simultaneous 5-axis vertical machining center engineered to provide manufacturers with exceptional precision, flexibility, and productivity. Manufactured by Mazak, a global leader in CNC machine tool technology, the VC-500A/5X combines advanced 5-axis machining capabilities with a compact footprint, making it an ideal solution for shops looking to produce complex parts efficiently without requiring the floor space of larger machining centers.

The 2022 Mazak VC-500A/5X represents one of the most advanced and refined versions of the VC Series platform. Designed for simultaneous 5-axis machining, the machine features a trunnion-style rotary table that allows manufacturers to machine multiple sides of a workpiece in a single setup. This capability significantly reduces setup times, improves dimensional accuracy, minimizes fixture requirements, and enhances overall manufacturing efficiency.

Equipped with the powerful Mazatrol SmoothX CNC control, the VC-500A/5X supports both conversational programming and traditional G-code programming. This flexibility allows manufacturers to simplify programming while maintaining compatibility with advanced CAD/CAM software systems. The machine’s sophisticated control technology helps optimize toolpaths, improve machining accuracy, and maximize spindle utilization.

The machine is constructed using a rigid cast iron frame designed to absorb vibration and maintain thermal stability during extended production runs. Combined with high-speed spindle technology, precision linear guideways, and advanced servo systems, the VC-500A/5X delivers exceptional performance when machining aluminum, steel, stainless steel, titanium, Inconel, and other demanding materials.

Manufacturers in aerospace, medical, automotive, mold making, defense, electronics, and precision engineering industries rely on the VC-500A/5X to produce highly complex components requiring tight tolerances and superior surface finishes. The machine’s combination of capability, reliability, and user-friendly operation has made it one of the most popular compact 5-axis machining centers available.

In the used CNC equipment market, the 2022 Mazak VC-500A/5X remains highly desirable due to its modern technology, strong resale value, and ability to provide advanced manufacturing capability while maintaining an attractive return on investment.

---

MAZAK VC-500A/5X – AXIS

Specification	Details
Axis Configuration	Simultaneous 5-Axis
X-Axis Travel	21.85 in
Y-Axis Travel	19.88 in
Z-Axis Travel	20.07 in
B-Axis Rotation	+110° / -110°
C-Axis Rotation	360° Continuous
Simultaneous Machining	Yes

---

MAZAK VC-500A/5X – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X Travel	21.85 in
Y Travel	19.88 in
Z Travel	20.07 in
Maximum Workpiece Diameter	19.68 in
Maximum Workpiece Height	13.8 in
Full 5-Axis Capability	Yes

---

MAZAK VC-500A/5X – CAPACITY / TABLE

Specification	Details
Table Diameter	19.69 in
Table Type	Trunnion Rotary Tilt Table
Maximum Table Load	441 lbs
B-Axis Travel	±110°
C-Axis Travel	Continuous 360°

---

MAZAK VC-500A/5X – SPINDLE

Specification	Details
Standard Spindle Speed	12,000 RPM
Optional Spindle Speed	15,000 RPM
Spindle Taper	CAT 40
Spindle Motor	25 HP
Spindle Type	Big Plus Compatible

---

MAZAK VC-500A/5X – TOOL CHANGER

Specification	Details
Standard Tool Capacity	30 Tools
Optional Tool Capacity	60 Tools
Tool Changer Type	Side Mount Automatic
Tool-to-Tool Time	Approx. 2.5 Seconds
Maximum Tool Length	Approx. 13.8 in

---

MAZAK VC-500A/5X – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol SmoothX
Programming Type	Mazatrol Conversational & G-Code
Simultaneous 5-Axis Machining	Yes
Ethernet Connectivity	Yes
USB Connectivity	Yes
Industry 4.0 Ready	Yes

---

MAZAK VC-500A/5X – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant	Standard
Through-Spindle Coolant	Optional
High Pressure Coolant	Available
Chip Conveyor	Available
Machine Enclosure	Fully Enclosed

---

MAZAK VC-500A/5X – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 480V
Phase	3 Phase
Connected Load	Approx. 40 kVA
Air Requirement	Shop Air Required

---

MAZAK VC-500A/5X – DIMENSIONS

Specification	Details
Machine Length	Approx. 120 in
Machine Width	Approx. 105 in
Machine Height	Approx. 110 in
Machine Weight	Approx. 16,500 lbs

---

MAZAK VC-500A/5X – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak
Model	VC-500A/5X
Year	2022
Machine Type	Simultaneous 5-Axis Vertical Machining Center
Control	Mazatrol SmoothX
Country of Manufacture	USA
Primary Application	Precision Multi-Axis Machining

---

INDUSTRIES THAT USE MAZAK VC-500A/5X

The Mazak VC-500A/5X serves a wide variety of industries that require advanced machining capability and exceptional precision. Aerospace manufacturers commonly use the machine to produce structural brackets, impellers, turbine components, actuator housings, fuel system parts, and lightweight aluminum or titanium assemblies. Simultaneous 5-axis machining allows these components to be completed with fewer setups while maintaining strict tolerances.

Medical device manufacturers rely on the VC-500A/5X for orthopedic implants, surgical instruments, spinal devices, dental components, trauma implants, and specialized medical equipment. The machine’s ability to achieve excellent surface finishes and repeatable precision supports demanding regulatory requirements.

Automotive and motorsports companies utilize the machine for prototype development, transmission housings, suspension components, intake manifolds, turbocharger parts, and high-performance engine components. Reduced setup times and increased machining flexibility contribute to faster product development cycles.

The mold and die industry uses the machine to manufacture injection molds, mold inserts, cavity blocks, die-cast tooling, and precision forming tools. The machine’s advanced motion control and simultaneous 5-axis functionality help generate intricate surfaces with outstanding accuracy.

Additional industries include defense, semiconductor manufacturing, robotics, automation, electronics, energy production, and contract machining. The machine’s versatility makes it suitable for a broad range of precision manufacturing applications.

---

TYPICAL PARTS MAZAK VC-500A/5X CAN PRODUCE

The Mazak VC-500A/5X is capable of producing a diverse range of highly complex precision components. Aerospace applications include impellers, turbine housings, structural supports, actuator assemblies, brackets, and fuel system components. The machine’s simultaneous 5-axis capability enables efficient machining of compound angles and difficult-to-access features.

Medical manufacturers use the machine to produce orthopedic implants, trauma devices, surgical instruments, dental components, spinal fixation systems, and custom medical assemblies. The machine’s precision and repeatability support the stringent quality standards associated with medical manufacturing.

Automotive and motorsports applications include intake manifolds, transmission housings, suspension parts, cylinder head components, turbocharger housings, and prototype assemblies. The machine’s flexibility allows manufacturers to move quickly from development to production.

Tool and mold makers frequently manufacture injection mold cavities, mold cores, die-cast tooling, forging dies, and precision tooling inserts. The machine’s ability to machine complex contours helps reduce polishing and finishing operations.

Additional applications include valve bodies, pump housings, semiconductor equipment components, robotics parts, automation fixtures, energy sector components, and specialized industrial machinery. The VC-500A/5X is particularly effective for low-volume, high-complexity production where precision and efficiency are critical.

---

WHY CHOOSE MAZAK VC-500A/5X

The Mazak VC-500A/5X offers manufacturers a highly efficient entry point into advanced simultaneous 5-axis machining. One of the machine’s biggest advantages is its ability to machine complex parts in a single setup, significantly reducing setup time while improving dimensional accuracy and overall productivity.

The machine’s trunnion-style rotary table design provides excellent access to multiple workpiece surfaces while maintaining rigidity throughout the machining process. This contributes to superior surface finishes and more consistent machining results.

Another key benefit is the Mazatrol SmoothX control system. Widely recognized for its ease of use and advanced functionality, the control supports both conversational programming and traditional G-code programming. This flexibility allows manufacturers to maximize productivity regardless of programming preference.

The compact footprint of the VC-500A/5X makes it especially attractive for shops with limited floor space. Despite its relatively small size, the machine delivers advanced machining capabilities typically associated with larger and more expensive platforms.

Mazak’s reputation for reliability, service support, and machine performance further strengthens the machine’s appeal. For manufacturers seeking a dependable and productive 5-axis machining center, the VC-500A/5X remains one of the most compelling options available.

---

WHY BUY USED MAZAK VC-500A/5X

Purchasing a used Mazak VC-500A/5X allows manufacturers to acquire advanced simultaneous 5-axis machining technology while significantly reducing capital expenditure. New 5-axis machining centers often require substantial investments, whereas a used machine can provide comparable production capability at a much lower cost.

One of the primary benefits of buying used equipment is faster return on investment. Since much of the machine’s initial depreciation has already occurred, buyers can often achieve greater value while preserving capital for tooling, automation, and facility improvements.

A used VC-500A/5X also offers faster availability compared to new machine purchases, which may involve lengthy lead times. Manufacturers can often install and place a used machine into production quickly, helping them respond to customer demands and production opportunities.

The machine’s proven design and modern technology contribute to strong long-term value. Buyers can frequently evaluate maintenance records, spindle hours, service history, and installed options before purchase, reducing uncertainty and improving confidence in the investment.

For companies seeking to expand production capabilities, improve machining flexibility, or enter the 5-axis machining market, a used Mazak VC-500A/5X provides a highly attractive combination of performance, reliability, and value.

---

HOW MUCH DOES A USED MAZAK VC-500A/5X COST?

The cost of a used Mazak VC-500A/5X depends on several factors including machine condition, spindle hours, maintenance history, tooling packages, installed options, and market demand. Because the 2022 model remains relatively new and highly desirable, resale values generally remain strong within the used CNC marketplace.

Machines equipped with premium options such as through-spindle coolant, probing systems, expanded tool capacity, chip management systems, and advanced software packages typically command higher prices. Low-hour machines with documented maintenance histories are particularly attractive because they often provide greater reliability and reduced maintenance concerns.

Demand for compact 5-axis machining centers continues to grow across aerospace, medical, automotive, defense, and precision manufacturing industries. This sustained demand supports healthy resale values for machines like the VC-500A/5X, especially when they have been properly maintained.

In addition to the machine purchase price, buyers should consider transportation, rigging, installation, tooling, operator training, and facility preparation expenses. Although these costs contribute to the overall investment, they are often offset by the productivity improvements and expanded capabilities provided by advanced 5-axis machining.

Compared to purchasing a new machine, a used 2022 Mazak VC-500A/5X can offer substantial savings while delivering modern CNC technology, advanced machining performance, and excellent production flexibility. For many manufacturers, it represents one of the best values available in the premium used CNC machine market.
