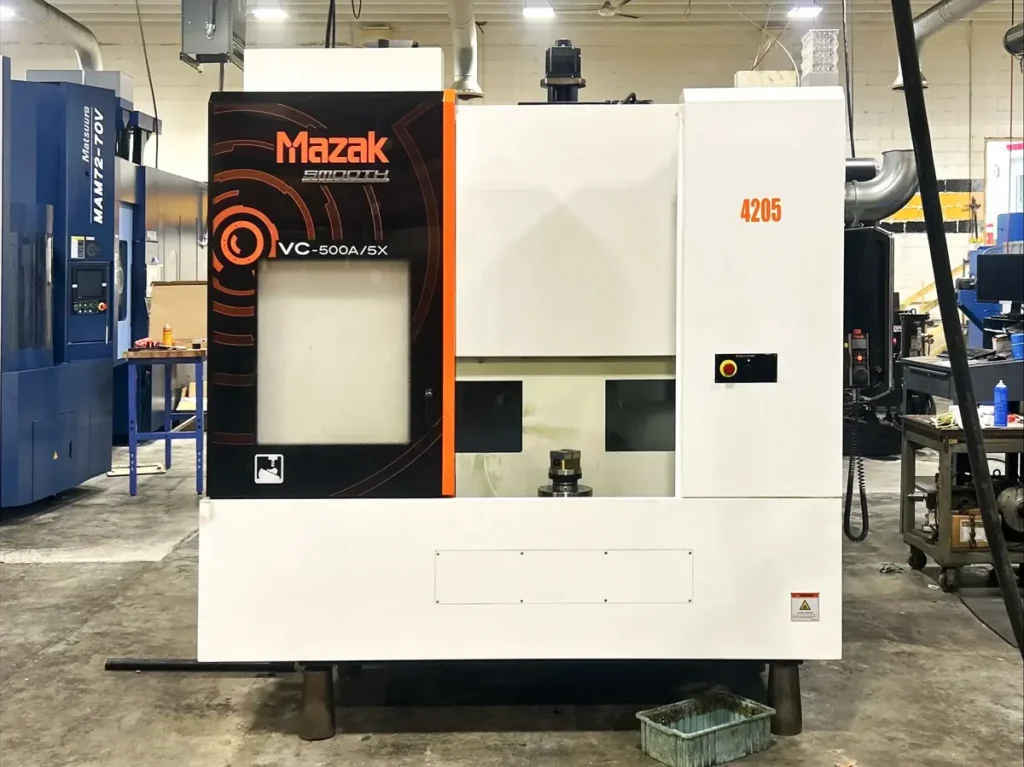

USED MAZAK VC-500A/5X – 2018

The Mazak VC-500A/5X is a compact yet highly capable simultaneous 5-axis vertical machining center engineered for manufacturers seeking advanced multi-axis machining performance, exceptional accuracy, and increased productivity. Built by Mazak, one of the world’s leading CNC machine tool manufacturers, the VC-500A/5X combines proven machine construction, innovative control technology, and flexible machining capabilities into a single platform capable of producing highly complex components with remarkable efficiency.

The 2018 Mazak VC-500A/5X was designed to bridge the gap between traditional vertical machining centers and larger, more expensive 5-axis platforms. Featuring a trunnion-style rotary tilt table and simultaneous 5-axis machining capability, the machine allows operators to access multiple sides of a workpiece during a single setup. This dramatically reduces setup times, improves dimensional accuracy, minimizes fixture requirements, and increases overall throughput.

At the heart of the machine is the Mazatrol SmoothX CNC control, which provides advanced processing speed, user-friendly programming, and full compatibility with modern CAD/CAM systems. Manufacturers benefit from both conversational programming and standard G-code programming, allowing greater flexibility across different production environments.

The VC-500A/5X is constructed with a rigid cast iron machine frame designed to minimize vibration and maintain thermal stability throughout extended machining operations. Combined with precision linear guideways, high-performance servo motors, and a high-speed spindle, the machine delivers excellent results when machining aluminum, steel, stainless steel, titanium, and other engineering materials.

Industries such as aerospace, medical, automotive, mold making, defense, energy, and precision engineering rely on the VC-500A/5X to produce complex components with tight tolerances and excellent surface finishes. The machine’s compact footprint makes it particularly attractive for manufacturers looking to maximize production capability while optimizing valuable floor space.

In the used CNC machine market, the 2018 Mazak VC-500A/5X remains highly desirable because of its modern control technology, strong reliability record, versatile machining capabilities, and excellent return on investment. It continues to be one of the most sought-after compact 5-axis machining centers available.

---

MAZAK VC-500A/5X – AXIS

Specification	Details
Axis Configuration	Simultaneous 5-Axis
X-Axis Travel	21.85 in
Y-Axis Travel	19.88 in
Z-Axis Travel	20.07 in
B-Axis Rotation	+110° / -110°
C-Axis Rotation	360° Continuous
Simultaneous Machining	Yes

---

MAZAK VC-500A/5X – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X Travel	21.85 in
Y Travel	19.88 in
Z Travel	20.07 in
Maximum Workpiece Diameter	19.68 in
Maximum Workpiece Height	13.8 in
Full 5-Axis Machining Capability	Yes

---

MAZAK VC-500A/5X – CAPACITY / TABLE

Specification	Details
Table Diameter	19.69 in
Table Type	Trunnion Rotary Tilt Table
Maximum Table Load	441 lbs
B-Axis Travel	±110°
C-Axis Travel	Continuous 360°

---

MAZAK VC-500A/5X – SPINDLE

Specification	Details
Standard Spindle Speed	12,000 RPM
Optional High-Speed Spindle	15,000 RPM
Spindle Taper	CAT 40
Spindle Motor	25 HP
Drive Type	Direct Drive

---

MAZAK VC-500A/5X – TOOL CHANGER

Specification	Details
Standard Tool Capacity	30 Tools
Optional Tool Capacity	60 Tools
Tool Changer Type	Automatic Side Mount
Tool-to-Tool Time	Approx. 2.5 Seconds
Maximum Tool Length	Approx. 13.8 in

---

MAZAK VC-500A/5X – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol SmoothX
Programming Type	Conversational & G-Code
Simultaneous 5-Axis Capability	Yes
Ethernet Connectivity	Yes
USB Connectivity	Yes
CAD/CAM Compatibility	Excellent

---

MAZAK VC-500A/5X – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Through-Spindle Coolant	Optional
High Pressure Coolant	Available
Chip Conveyor	Available
Full Enclosure	Standard

---

MAZAK VC-500A/5X – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 480V
Electrical Phase	3 Phase
Connected Load	Approx. 40 kVA
Air Requirement	Shop Air Required

---

MAZAK VC-500A/5X – DIMENSIONS

Specification	Details
Machine Length	Approx. 120 in
Machine Width	Approx. 105 in
Machine Height	Approx. 110 in
Machine Weight	Approx. 16,500 lbs

---

MAZAK VC-500A/5X – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak
Model	VC-500A/5X
Year	2018
Machine Type	Simultaneous 5-Axis Vertical Machining Center
Control	Mazatrol SmoothX
Country of Manufacture	USA
Primary Application	Complex Precision Machining

---

INDUSTRIES THAT USE MAZAK VC-500A/5X

The Mazak VC-500A/5X is utilized by manufacturers across a broad range of industries that require precision machining and advanced multi-axis capabilities. Aerospace manufacturers use the machine to produce impellers, turbine components, structural brackets, fuel system components, and lightweight aluminum or titanium assemblies. Simultaneous 5-axis machining enables these complex parts to be completed with fewer setups while maintaining tight tolerances.

Medical device manufacturers rely on the machine to produce orthopedic implants, trauma devices, spinal components, dental implants, surgical instruments, and specialized medical equipment. The machine’s precision and repeatability make it ideal for highly regulated production environments.

Automotive and motorsports companies utilize the VC-500A/5X for engine components, transmission housings, intake manifolds, suspension parts, turbocharger housings, and prototype development projects. The machine’s flexibility supports both low-volume and production-oriented manufacturing.

Mold and die manufacturers commonly use the machine to create injection molds, cavity inserts, mold cores, die-cast tooling, and precision tooling components. The ability to machine complex surfaces reduces secondary operations and improves overall mold quality.

Additional industries include defense, semiconductor manufacturing, robotics, automation, electronics, energy production, and contract machining. The machine’s versatility enables manufacturers to tackle a wide variety of machining challenges while maintaining exceptional productivity.

---

TYPICAL PARTS MAZAK VC-500A/5X CAN PRODUCE

The Mazak VC-500A/5X is capable of producing highly complex components across numerous manufacturing sectors. Aerospace applications include impellers, structural brackets, actuator housings, turbine components, fuel system parts, and lightweight assemblies. The machine’s simultaneous 5-axis functionality allows efficient machining of intricate geometries and compound surfaces.

Medical manufacturers frequently use the machine for orthopedic implants, trauma devices, spinal implants, surgical instruments, dental components, and precision medical assemblies. Its ability to maintain tight tolerances and excellent surface finishes supports demanding quality requirements.

Automotive and motorsports applications include intake manifolds, transmission cases, turbocharger housings, cylinder head components, suspension parts, and prototype assemblies. Reduced setup requirements help accelerate development and production processes.

Tool and mold makers produce mold cavities, mold cores, die-cast tooling, forging dies, and precision inserts using the VC-500A/5X. The machine’s advanced motion control helps achieve excellent surface quality while reducing finishing requirements.

Additional applications include valve bodies, pump housings, semiconductor equipment components, robotics parts, automation fixtures, energy sector components, and custom industrial machinery. The machine excels in manufacturing environments where precision and complexity are critical.

---

WHY CHOOSE MAZAK VC-500A/5X

The Mazak VC-500A/5X offers manufacturers a highly productive and efficient solution for advanced 5-axis machining. One of the machine’s most significant advantages is its ability to complete complex parts in a single setup, reducing setup time while improving dimensional accuracy and repeatability.

The trunnion-style rotary table design provides outstanding access to multiple surfaces of a workpiece, allowing manufacturers to machine intricate geometries that would be difficult or impossible on traditional 3-axis machines. This capability helps improve productivity and reduce labor costs.

The Mazatrol SmoothX control system further enhances the machine’s appeal by offering advanced programming capabilities, intuitive operation, and seamless integration with modern CAD/CAM software. Both experienced CNC programmers and operators benefit from the control’s flexibility and ease of use.

Another advantage is the machine’s compact footprint. Compared to larger 5-axis machining centers, the VC-500A/5X requires less floor space while still delivering exceptional performance. This makes it particularly attractive for job shops and manufacturers seeking to maximize production within existing facilities.

Mazak’s reputation for quality, reliability, and global support ensures long-term confidence for machine owners. For manufacturers seeking a versatile, productive, and technologically advanced 5-axis machining center, the VC-500A/5X remains one of the best options available.

---

WHY BUY USED MAZAK VC-500A/5X

Purchasing a used Mazak VC-500A/5X provides manufacturers with access to advanced 5-axis machining technology at a significantly lower investment compared to purchasing a new machine. Because the machine is built to high standards and designed for long-term reliability, used models often provide many years of productive service when properly maintained.

One of the primary benefits of purchasing used equipment is reduced capital expenditure. Companies can expand machining capabilities and improve production efficiency while preserving financial resources for tooling, automation, workforce development, and facility upgrades.

A used VC-500A/5X also offers faster availability than many new machine purchases. Manufacturers can frequently acquire, install, and place a used machine into production quickly, allowing them to respond more effectively to customer demands and business growth opportunities.

The machine’s proven performance record and strong reputation within the manufacturing industry contribute to excellent resale value and long-term ownership benefits. Buyers can often review service records, spindle hours, maintenance history, and installed options prior to purchase.

For companies seeking an affordable path into simultaneous 5-axis machining, a used Mazak VC-500A/5X offers an outstanding combination of capability, reliability, and value.

---

HOW MUCH DOES A USED MAZAK VC-500A/5X COST?

The cost of a used Mazak VC-500A/5X depends on several factors including machine condition, spindle hours, maintenance history, tooling packages, installed options, and market demand. Since the VC-500A/5X remains one of the most popular compact 5-axis machining centers available, resale values generally remain strong.

Machines equipped with desirable options such as through-spindle coolant, probing systems, expanded tool magazines, chip conveyors, high-pressure coolant systems, and automation-ready features typically command higher prices. Machines with lower operating hours and documented maintenance histories are often particularly attractive to buyers.

Demand for high-quality 5-axis machining centers continues to grow across aerospace, medical, automotive, defense, and precision manufacturing industries. This sustained demand helps support strong resale values for machines such as the VC-500A/5X.

In addition to the purchase price, buyers should account for transportation, rigging, installation, tooling, training, and facility preparation costs. While these expenses contribute to the overall investment, they are often offset by the machine’s ability to reduce setup times, increase throughput, and improve overall manufacturing efficiency.

Compared to purchasing a new 5-axis machining center, a used 2018 Mazak VC-500A/5X can provide significant savings while delivering advanced machining capability and modern control technology. For manufacturers seeking a productive, reliable, and versatile machining platform, the VC-500A/5X remains one of the strongest values available in the used CNC equipment market.
