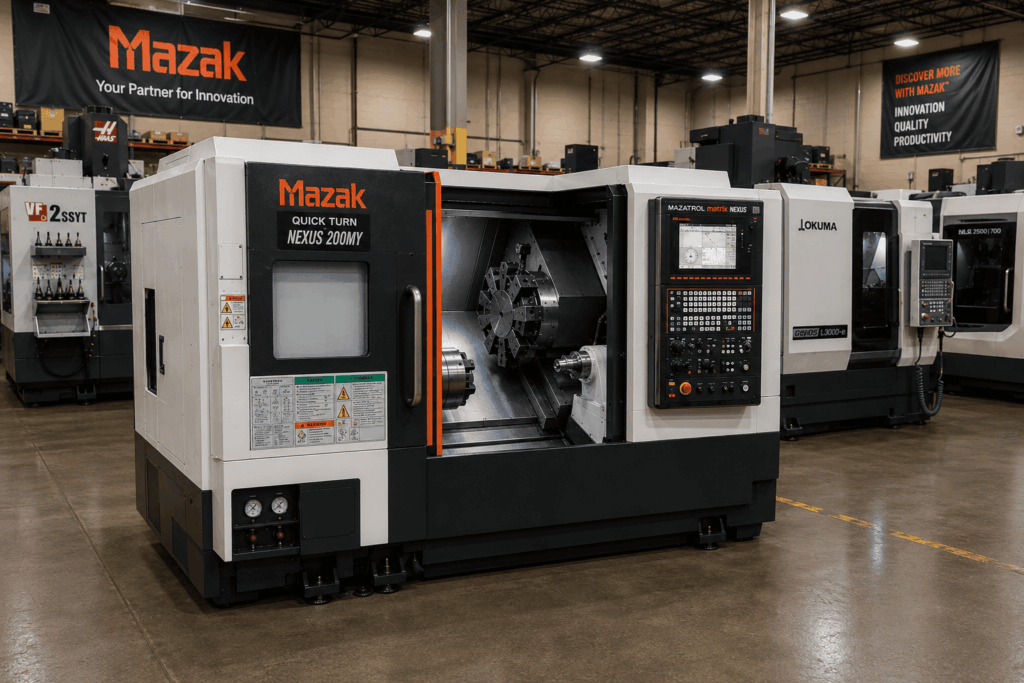

USED MAZAK QUICK TURN NEXUS 200MY – 2005

The 2005 Mazak QUICK TURN NEXUS 200MY is a versatile CNC turn-mill center designed to perform precision turning, milling, drilling, tapping, and Y-axis machining in a single setup. Manufactured by Yamazaki Mazak, one of the world’s leading builders of CNC machine tools, the QUICK TURN NEXUS Series was developed to deliver higher productivity, greater accuracy, and improved reliability than previous generations of CNC lathes. The 200MY model combines an 8-inch chuck, live tooling, full Y-axis, and C-axis spindle positioning, making it an ideal solution for shops producing complex parts that require both turning and secondary milling operations.

Built on a rigid slant-bed cast iron base with precision linear guideways, the QUICK TURN NEXUS 200MY provides excellent vibration damping and thermal stability during continuous machining. The machine features approximately 8.9 inches (226 mm) of X-axis travel, ±2.0 inches (±50 mm) of Y-axis travel, and 22.6 inches (575 mm) of Z-axis travel, supporting a maximum machining diameter of approximately 14.7 inches (375 mm) and a machining length of approximately 21.3 inches (541 mm). The machine is equipped with a 5,000 RPM built-in main spindle, an 8-inch hydraulic chuck, and a 12-station VDI live-tool turret capable of 6,000 RPM milling operations. This combination enables efficient machining of aluminum, stainless steel, alloy steels, titanium, cast iron, brass, and engineering plastics while producing excellent surface finishes and tight tolerances.

The 2005 model is typically equipped with the MAZATROL 640T NEXUS CNC Control, providing intuitive conversational programming, full ISO G-code compatibility, advanced tool management, and high-speed processing. The integrated C-axis allows precise spindle positioning for cross-drilling, bolt-hole patterns, and contour milling, while the Y-axis enables off-center machining without secondary operations. Standard equipment commonly includes hydraulic chucking, programmable tailstock, automatic lubrication, flood coolant, chip conveyor, spindle orientation, and live tooling. Optional equipment such as bar feeders, parts catchers, high-pressure coolant systems, tool setters, and automation interfaces further increase production efficiency.

The Mazak QUICK TURN NEXUS 200MY is widely used throughout the aerospace, automotive, medical, oil and gas, hydraulic, electronics, and precision manufacturing industries. Typical applications include hydraulic manifolds, valve bodies, shafts, bushings, couplings, flanges, pump components, threaded parts, medical instruments, and precision-machined production components. Its ability to combine turning and milling operations into one machine significantly reduces setup time while improving dimensional consistency and overall productivity.

Purchasing a used 2005 Mazak QUICK TURN NEXUS 200MY provides manufacturers with premium Japanese turn-mill technology at a significantly lower investment than purchasing new equipment. Mazak machines are known worldwide for their exceptional reliability, rigid construction, user-friendly controls, and strong resale value. A properly maintained QUICK TURN NEXUS 200MY continues to deliver excellent machining performance, making it one of the most desirable used CNC turn-mill centers available.

MAZAK QUICK TURN NEXUS 200MY – 2005 SPECIFICATIONS

Axis

Travels / Work Envelope

Spindle

Live Tool Turret

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED MAZAK QUICK TURN NEXUS 200MY – 2005 COST?

A used 2005 Mazak QUICK TURN NEXUS 200MY typically sells for $45,000 to $90,000 USD, depending on spindle hours, overall machine condition, maintenance history, tooling package, and installed options such as a bar feeder, chip conveyor, high-pressure coolant system, tool presetter, or parts catcher. Machines with documented service records, low operating hours, and production-ready accessories generally command higher resale values due to their reliability and reduced setup requirements.

Before purchasing a used Mazak QUICK TURN NEXUS 200MY, buyers should inspect the spindle bearings, Y-axis accuracy, C-axis positioning, live tooling performance, turret indexing, lubrication system, guideways, and overall machine geometry. A properly maintained 2005 Mazak QUICK TURN NEXUS 200MY offers outstanding long-term value by combining precision turning, live-tool milling, and Y-axis machining in one compact platform, making it an excellent investment for manufacturers producing complex, high-precision components.

MAZAK QUICK TURN NEXUS 200MY VS MAZAK QUICK TURN 200MY – WHICH ONE TO BUY?

The Mazak QUICK TURN NEXUS 200MY and Mazak QUICK TURN 200MY are CNC turning centers designed for precision turning, milling, drilling, and complete part machining in a single setup. Both machines feature Y-axis capability, live tooling, rigid machine construction, and advanced Mazak CNC controls, making them popular choices in the aerospace, automotive, medical, oil and gas, hydraulic equipment, and general manufacturing industries. The primary difference is that the QUICK TURN NEXUS 200MY is part of the NEXUS generation, offering improvements in machine rigidity, control technology, spindle efficiency, and overall production performance compared with the earlier QUICK TURN 200MY.

The Mazak QUICK TURN 200MY is a proven turning center capable of producing precision shafts, bushings, valve bodies, hydraulic fittings, flanges, and complex machined components requiring off-center drilling and milling. Its Y-axis and live tooling capabilities reduce secondary operations while maintaining excellent machining accuracy.

The QUICK TURN NEXUS 200MY builds upon this design with improved spindle performance, faster rapid traverse rates, enhanced thermal stability, refined CNC functions, and better overall machine reliability. These improvements allow manufacturers to achieve shorter cycle times, improved surface finishes, and greater production efficiency.

Both machines deliver outstanding machining performance. The QUICK TURN 200MY remains an excellent choice for manufacturers seeking dependable multi-tasking capability, while the QUICK TURN NEXUS 200MY is better suited for shops requiring higher productivity, newer control technology, and improved machining efficiency.

For businesses investing in a used CNC turning center, the Mazak QUICK TURN NEXUS 200MY generally provides greater long-term value due to its updated design and enhanced production capabilities.

MAZAK QUICK TURN NEXUS 200MY SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Mazak QUICK TURN NEXUS 200MY does not rotate, the issue may be caused by spindle drive faults, electrical failures, CNC control alarms, hydraulic problems, lubrication issues, cooling system faults, or machine safety interlocks. Proper troubleshooting helps identify the root cause quickly and minimizes production downtime.

Begin by checking the CNC control for active alarms. Emergency stop activation, door interlock faults, spindle drive alarms, servo errors, lubrication warnings, hydraulic pressure alarms, chuck clamping faults, or thermal overload conditions can prevent spindle operation. Resolve all alarms before attempting to restart the spindle.

Inspect the spindle drive system for electrical issues. Loose wiring, damaged encoder cables, faulty spindle amplifiers, blown fuses, spindle motor overload conditions, or overheating can prevent spindle rotation. Verify spindle lubrication systems, coolant circulation, hydraulic pressure, compressed air supply, and machine power because these systems are critical for proper spindle operation.

Review the CNC program to ensure proper spindle commands have been programmed. Missing M03 or M04 commands, incorrect spindle speed settings, spindle orientation commands, chuck clamping errors, or interrupted machining cycles may prevent spindle startup.

If the spindle begins rotating but quickly stops, inspect spindle bearings, chuck condition, spindle nose cleanliness, tooling setup, hydraulic clamping force, and cutting loads. Excessive vibration, overheating, unusual spindle noise, or poor workholding may indicate spindle bearing wear or mechanical damage.

Routine spindle inspections, lubrication maintenance, hydraulic servicing, and scheduled preventive maintenance help reduce unexpected spindle failures and extend machine life.

MAZAK QUICK TURN NEXUS 200MY MAINTENANCE AND PREVENTIVE CARE GUIDE

The Mazak QUICK TURN NEXUS 200MY is designed for continuous production of precision turned and milled components. Preventive maintenance is essential for maintaining machining accuracy, spindle reliability, and long-term machine performance.

Daily maintenance should include cleaning chips from the machining enclosure, spindle nose, chuck, turret, guideways, live tooling stations, and chip conveyor. Operators should inspect coolant levels, coolant concentration, lubrication systems, hydraulic pressure, compressed air supply, spindle condition, and tooling before beginning production. Keeping the spindle and chuck clean helps ensure accurate workholding and repeatable machining.

Weekly maintenance should include inspecting coolant pumps, chip conveyors, lubrication units, hydraulic systems, spindle cooling systems, turret indexing mechanisms, live tooling assemblies, chuck clamping systems, and electrical cabinet filters. Chips should be removed from guideways, turret pockets, and coolant passages to prevent premature wear.

Monthly inspections should focus on spindle runout, chuck accuracy, turret alignment, live tooling performance, ball screws, linear guideways, spindle bearings, encoder cables, electrical connections, lubrication systems, coolant filtration systems, hydraulic lines, and machine leveling. Machine geometry should also be verified periodically to maintain machining precision.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, replacing worn filters, servicing lubrication systems, inspecting hydraulic components, and maintaining complete maintenance records. Early identification of wear helps reduce repair costs and avoid unexpected production interruptions.

A disciplined preventive maintenance program extends spindle life, improves machining accuracy, enhances production efficiency, and ensures the Mazak QUICK TURN NEXUS 200MY continues delivering dependable performance throughout its service life.

FAQ

What is the Mazak QUICK TURN NEXUS 200MY?

The Mazak QUICK TURN NEXUS 200MY is a CNC turning center equipped with live tooling and Y-axis capability for performing turning, milling, drilling, tapping, and other machining operations in a single setup. It is part of the Mazak QUICK TURN NEXUS Series and is designed to improve productivity while maintaining exceptional machining accuracy.

The machine is widely used in aerospace, automotive, medical, hydraulic equipment, oil and gas, electronics, and general engineering industries. It is capable of producing shafts, bushings, valve bodies, hydraulic fittings, threaded components, flanges, and numerous other complex precision-machined parts.

Its combination of Y-axis functionality, live tooling, rigid construction, advanced CNC control, and efficient chip management makes the QUICK TURN NEXUS 200MY an excellent solution for both job shops and high-volume production environments.

What are the most common problems with the Mazak QUICK TURN NEXUS 200MY?

The most common problems with the Mazak QUICK TURN NEXUS 200MY include spindle alarms, turret indexing faults, live tooling failures, hydraulic system issues, lubrication warnings, servo drive errors, encoder failures, coolant contamination, chuck clamping problems, spindle orientation faults, electrical communication errors, and axis positioning issues.

Machines operating continuously may also experience spindle bearing wear, hydraulic pressure fluctuations, turret alignment problems, live tooling wear, thermal expansion, and normal mechanical component fatigue. Poor lubrication, contaminated coolant, worn cutting tools, excessive cutting loads, and neglected preventive maintenance can increase the likelihood of these issues.

Routine spindle inspections, lubrication servicing, hydraulic system maintenance, coolant management, live tooling inspections, turret alignment verification, machine calibration, and scheduled preventive maintenance help minimize downtime and ensure the Mazak QUICK TURN NEXUS 200MY continues to deliver reliable, accurate, and efficient machining performance.
