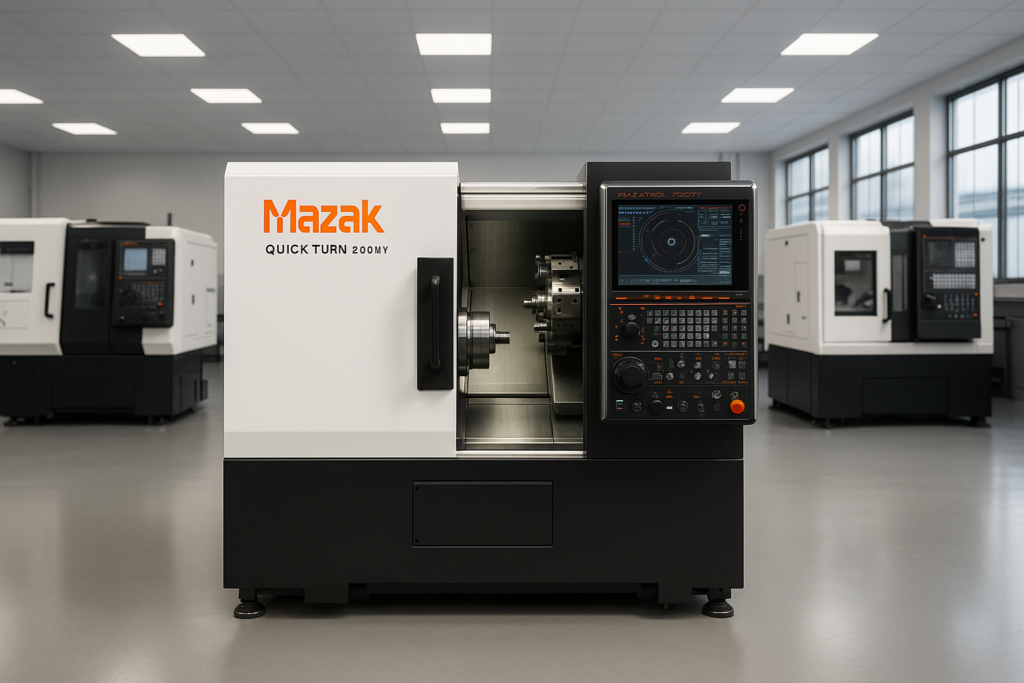

The Mazak Quick Turn 200MY is a high-performance CNC turning center equipped with live tooling (M) and a Y-axis (Y), providing significant flexibility and precision for complex part machining. Designed for high-speed, high-accuracy turning operations, this machine bridges the gap between simple 2-axis lathes and more complex multi-tasking machines by enabling milling, drilling, and off-center machining in a single setup.
Part of Mazak’s renowned Quick Turn series, the 200MY is built with a powerful integral main spindle, turret-mounted live tools, and a programmable tailstock. The addition of a Y-axis gives it the ability to handle more complex geometries, making it ideal for job shops and batch production environments where changeovers, cycle time, and part complexity are all key considerations.
The machine is operated via the Mazatrol SmoothG or Matrix Nexus control (depending on year), which offers conversational programming and G-code compatibility, providing ease of use even for operators with minimal CAM experience. With high spindle torque, rigid construction, and precision thermal control, the Quick Turn 200MY ensures consistent performance and outstanding surface finishes, even under tough machining conditions.
Whether you’re producing high-precision shafts, valves, or fittings, this model delivers excellent reliability, productivity, and return on investment for a wide range of applications.
MAZAK QUICK TURN 200MYSPECIFICATIONS
MAIN SPINDLE
Chuck Size: 8″
Spindle Nose: A2-6
Spindle Bore: 65 mm (~2.56 in)
Max Speed: 5,000 rpm
Motor Power: ~18.5 kW (~25 hp)
TURRET
Stations: 12 (live tooling capable)
Tool Type: VDI or BMT (depending on build)
Live Tool Drive: ~5.5 kW
Max Milling Speed: 4,500 rpm
AXIS TRAVELS
X-Axis: ~200 mm (~7.9 in)
Z-Axis: ~570 mm (~22.4 in)
Y-Axis: ±50 mm (Total: 100 mm / ~4 in)
C-Axis: 360° full contouring
TAILSTOCK / SUB-SPINDLE
Programmable Tailstock: Yes
Sub-Spindle: Optional in some configurations
COOLANT & CHIP HANDLING
Through-tool coolant available
Chip conveyor (optional)
Full enclosure with mist and chip collection options
CONTROL SYSTEM
Mazatrol SmoothG or Matrix Nexus
15” touch screen interface (on newer models)
Conversational + EIA/ISO (G-code) programming
AIR & ELECTRICAL
Air Pressure: ~0.5 MPa
Power Requirement: ~20–30 kVA
MAZAK QUICK TURN 200MY – GENERAL INFORMATION
Model: Mazak Quick Turn 200MY
Machine Type: CNC Turning Center with Live Tooling and Y-Axis
