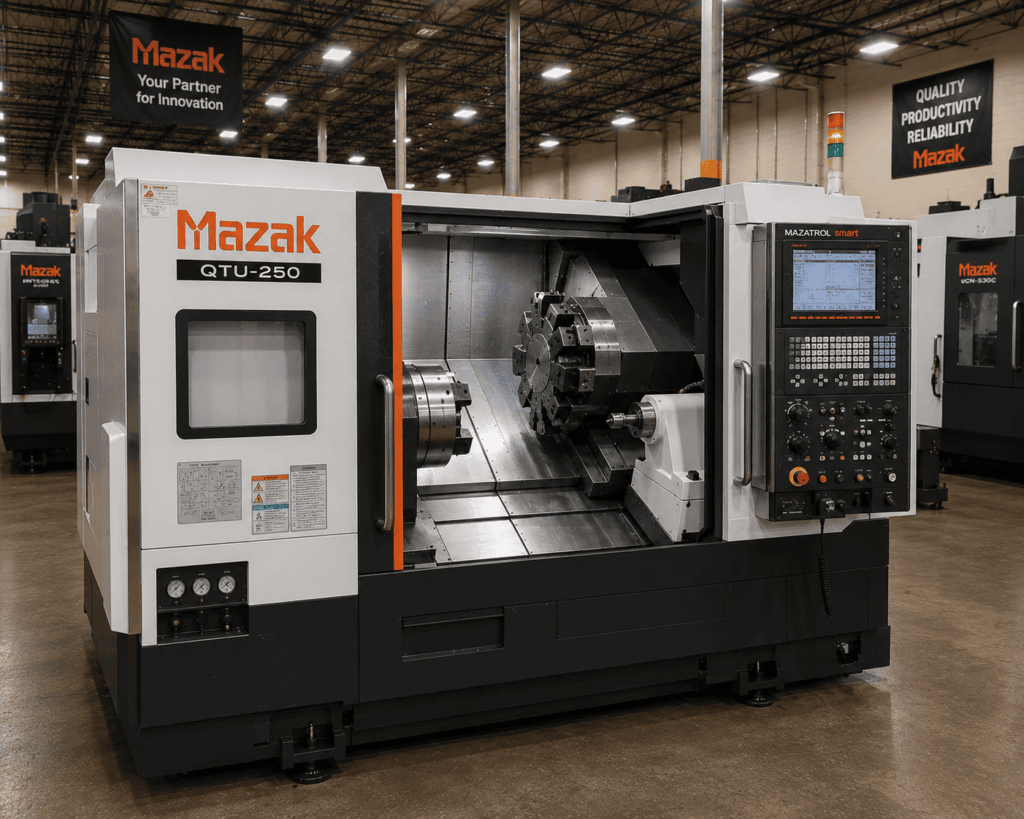

USED MAZAK QTU-250 – 1998

The 1998 Mazak QTU-250 is a heavy-duty CNC turning center engineered for precision machining of medium-sized components in demanding production environments. Part of Yamazaki Mazak’s Quick Turn Universal (QTU) Series, the QTU-250 was designed to provide higher rigidity, greater machining capacity, and improved productivity compared to earlier Quick Turn models. Built with a robust slant-bed cast iron construction, a powerful spindle, and the proven Mazatrol Fusion CNC control, the machine delivers exceptional accuracy, reliability, and long-term performance. Its combination of high metal removal capability and precise positioning makes it a popular choice for job shops and manufacturers producing medium to large precision components.

The Mazak QTU-250 features a rigid one-piece slant-bed design that minimizes vibration while maintaining excellent thermal stability during extended machining cycles. The machine provides approximately 8.5 inches (215 mm) of X-axis travel and 23.8 inches (605 mm) of Z-axis travel, supporting a maximum turning diameter of approximately 16.3 inches (410 mm) and a machining length of approximately 13.5 inches (340 mm). Equipped with an 8-inch or optional 10-inch hydraulic chuck and a 4,500 RPM spindle, the QTU-250 is capable of machining aluminum, alloy steel, stainless steel, cast iron, brass, titanium, and engineering plastics with excellent surface finishes and repeatability. The 3-inch spindle bore also allows efficient bar work for larger diameter stock, making the machine suitable for both batch production and custom machining applications.

The 1998 model is commonly equipped with the Mazatrol Fusion 640T CNC Control, offering both conversational programming and standard ISO G-code compatibility. A 12-station servo turret provides rapid indexing and repeatable tool positioning, allowing operators to perform turning, facing, grooving, threading, boring, and drilling operations efficiently. Standard equipment often includes automatic lubrication, hydraulic chuck, flood coolant system, programmable tailstock, and optional chip conveyor and parts catcher. Some configurations were also available with live tooling and C-axis capabilities depending on the specific machine configuration.

The Mazak QTU-250 is widely used in the automotive, oil and gas, aerospace, agricultural equipment, hydraulic, energy, and general precision manufacturing industries. Typical applications include shafts, flanges, hydraulic cylinders, valve bodies, couplings, bushings, bearing housings, pump components, and precision turned production parts. Its rigid construction, reliable spindle performance, and user-friendly Mazatrol programming make it well suited for both high-volume production and flexible job shop environments.

Purchasing a used 1998 Mazak QTU-250 provides manufacturers with proven Japanese CNC turning technology at a significantly lower investment than buying a new machine. Mazak machines are recognized worldwide for their excellent build quality, dependable operation, readily available replacement parts, and long service life. A properly maintained QTU-250 continues to deliver outstanding productivity and machining accuracy, making it one of the most dependable used CNC lathes available.

MAZAK QTU-250 – 1998 SPECIFICATIONS

Axis

Travels / Work Envelope

Spindle

Turret

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED MAZAK QTU-250 – 1998 COST?

A used 1998 Mazak QTU-250 typically sells for $22,000 to $45,000 USD, depending on spindle hours, overall condition, maintenance history, tooling package, CNC control configuration, and installed options such as a programmable tailstock, chip conveyor, bar feeder, parts catcher, or live tooling package. Machines with documented service records and production-ready accessories generally command higher resale values because they require minimal setup before entering production.

Before purchasing a used Mazak QTU-250, buyers should inspect the spindle bearings, turret indexing accuracy, guideways, ballscrews, lubrication system, hydraulic chuck, and overall machine geometry. A properly maintained 1998 Mazak QTU-250 offers excellent long-term value by combining rigid construction, dependable Mazatrol controls, and proven Japanese engineering, making it an outstanding investment for precision turning applications across a wide range of manufacturing industries.

MAZAK QTU-250 VS MAZAK QTU-200 – WHICH ONE TO BUY?

The Mazak QTU-250 and Mazak QTU-200 are CNC turning centers engineered for precision turning, high productivity, and dependable machining in a wide range of manufacturing environments. Both machines are part of Mazak’s QUICK TURN UNIVERSAL (QTU) Series and are known for their rigid construction, accurate spindle performance, and user-friendly CNC controls. The primary difference between the two models is machining capacity. The QTU-250 offers a larger swing, greater turning diameter, and the ability to machine longer and heavier workpieces, while the QTU-200 is designed for smaller precision components and higher production efficiency in a compact footprint.

The Mazak QTU-200 is ideal for manufacturers producing bushings, shafts, fittings, hydraulic components, valve parts, and medical components. Its smaller size allows for fast cycle times, lower operating costs, and efficient production of medium-volume to high-volume parts.

The Mazak QTU-250 expands machining capability with increased work envelope and greater rigidity for larger industrial components. It is commonly selected for machining larger shafts, flanges, pump components, oilfield parts, and general engineering components that require additional spindle capacity and workholding flexibility.

Both machines deliver excellent machining accuracy and long-term reliability. The QTU-200 is better suited for shops focused on smaller precision workpieces, while the QTU-250 is recommended for manufacturers needing additional turning capacity without moving to a much larger CNC lathe.

For businesses expecting larger workpieces or future production expansion, the Mazak QTU-250 provides greater flexibility and long-term value while maintaining the dependable performance associated with Mazak turning centers.

MAZAK QTU-250 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Mazak QTU-250 does not rotate, the issue may be caused by spindle drive faults, electrical failures, CNC control alarms, hydraulic system problems, lubrication issues, or machine safety interlocks. Proper troubleshooting helps identify the root cause quickly and minimizes production downtime.

Start by checking the CNC control for active alarms. Emergency stop activation, door interlock faults, spindle drive alarms, servo errors, hydraulic pressure warnings, lubrication alarms, chuck clamping faults, or thermal overload conditions can prevent spindle operation. Clear all alarms before attempting to restart the machine.

Inspect the spindle drive system for electrical problems. Loose wiring, damaged encoder cables, faulty spindle amplifiers, blown fuses, spindle motor overloads, or overheating conditions may stop spindle rotation. Verify that spindle lubrication, hydraulic pressure, coolant circulation, compressed air supply, and machine power are functioning correctly before continuing diagnostics.

Review the CNC program to confirm that proper spindle commands have been programmed. Missing M03 or M04 commands, incorrect spindle speed settings, spindle orientation errors, chuck clamping issues, or interrupted machining cycles may prevent spindle startup.

If the spindle starts but stops unexpectedly, inspect spindle bearings, chuck condition, hydraulic clamping force, spindle nose cleanliness, tooling setup, and cutting loads. Excessive vibration, unusual noise, overheating, or poor workholding may indicate spindle bearing wear or mechanical damage.

Routine inspections of spindle components, hydraulic systems, lubrication units, and electrical connections help prevent unexpected failures and improve long-term machine reliability.

MAZAK QTU-250 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Mazak QTU-250 is designed for continuous precision turning in demanding production environments. A consistent preventive maintenance program is essential for maintaining machining accuracy, spindle performance, and long-term machine reliability.

Daily maintenance should include removing chips from the machining enclosure, spindle nose, chuck, turret, guideways, and chip collection areas. Operators should inspect coolant levels, coolant concentration, lubrication systems, hydraulic pressure, compressed air supply, spindle cleanliness, and cutting tools before beginning production. Clean workholding components improve machining accuracy and reduce setup issues.

Weekly maintenance should include inspecting coolant pumps, chip conveyors, lubrication units, hydraulic systems, spindle cooling systems, turret indexing mechanisms, chuck clamping operation, and electrical cabinet filters. Chips should be removed from guideways, turret pockets, and coolant passages to prevent premature wear.

Monthly inspections should focus on spindle runout, chuck accuracy, turret alignment, ball screws, linear guideways, spindle bearings, encoder cables, hydraulic lines, electrical connections, lubrication systems, coolant filtration systems, and machine leveling. Machine geometry should also be checked periodically to maintain precision turning capability.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, replacing worn filters, servicing lubrication systems, inspecting hydraulic components, and maintaining detailed maintenance records. Identifying wear early helps prevent expensive repairs and unplanned downtime.

A disciplined maintenance schedule extends spindle life, improves machining accuracy, reduces operating costs, and allows the Mazak QTU-250 to provide reliable turning performance for many years.

FAQ

What is the Mazak QTU-250?

The Mazak QTU-250 is a CNC turning center designed for precision turning of medium- and large-sized components. It is part of Mazak’s QUICK TURN UNIVERSAL Series and combines rigid construction, precision spindle technology, advanced CNC control, and efficient chip management to provide accurate and reliable machining.

The machine is widely used in automotive, aerospace, oil and gas, medical, hydraulic equipment, industrial machinery, and general manufacturing industries. It is capable of producing shafts, bushings, flanges, pump components, valve bodies, threaded parts, hydraulic fittings, and numerous other precision-turned components.

Its larger machining capacity compared with the QTU-200 makes it an excellent choice for manufacturers requiring greater flexibility while maintaining high machining accuracy and dependable production performance.

What are the most common problems with the Mazak QTU-250?

The most common problems with the Mazak QTU-250 include spindle alarms, turret indexing faults, hydraulic system issues, lubrication warnings, servo drive errors, encoder failures, coolant contamination, chuck clamping problems, spindle orientation errors, electrical communication faults, and axis positioning issues.

Machines operating in demanding production environments may also experience spindle bearing wear, hydraulic pressure fluctuations, turret alignment problems, thermal expansion effects, and normal mechanical wear over time. Insufficient lubrication, contaminated coolant, worn tooling, excessive cutting forces, and delayed preventive maintenance can contribute to these issues.

Routine spindle inspections, lubrication servicing, hydraulic system maintenance, coolant management, turret alignment verification, machine calibration, and scheduled preventive maintenance help minimize downtime and ensure the Mazak QTU-250 continues to deliver accurate, reliable, and productive machining performance.
