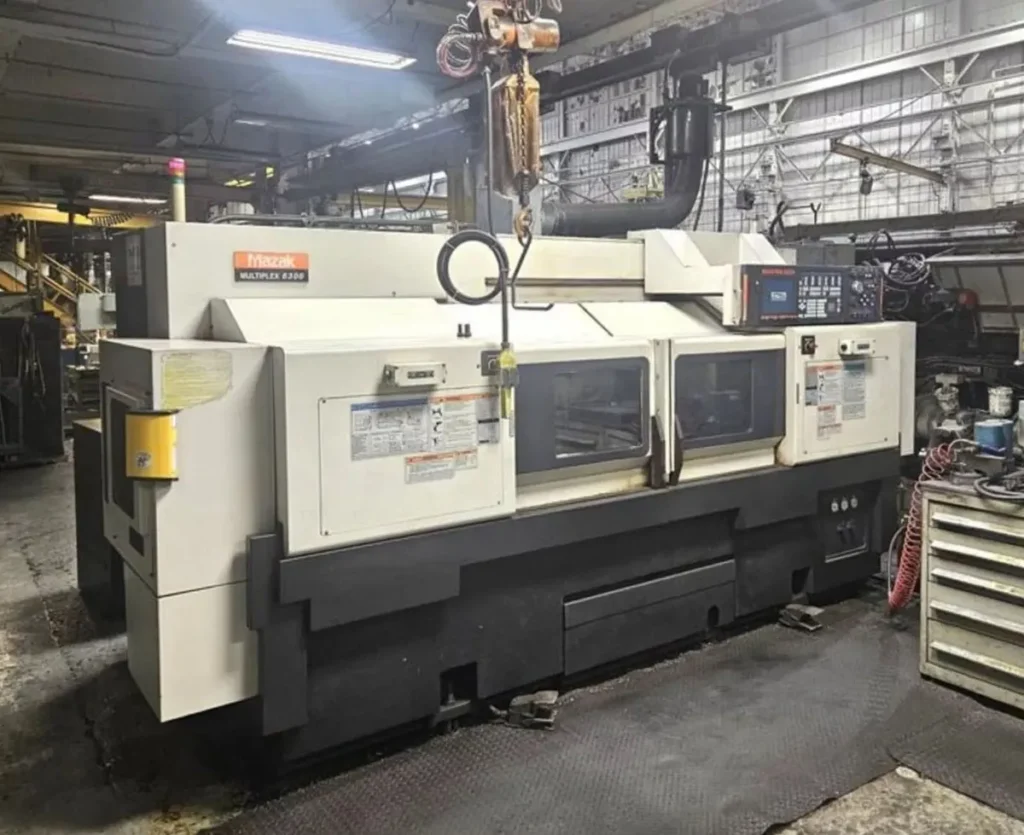

USED MAZAK MULTIPLEX 6300 – 2006

The MAZAK MULTIPLEX 6300 – 2006 is a high-production twin-spindle, twin-turret CNC turning center engineered for fast, efficient, and highly accurate machining of precision components. Manufactured by Mazak, one of the world’s leading CNC machine tool manufacturers, the MULTIPLEX series was developed specifically for manufacturers requiring reduced cycle times, automated part handling, and simultaneous machining capability. The MULTIPLEX 6300 became extremely popular in automotive, aerospace, hydraulic, medical, and industrial manufacturing sectors because of its ability to dramatically improve productivity compared to conventional CNC lathes.

The 2006 MAZAK MULTIPLEX 6300 is designed to support continuous production environments and is commonly equipped with dual 10-inch spindles, twin turrets, live tooling capability, C-axis positioning, automatic part transfer systems, and Mazatrol Fusion 640T CNC controls. The machine allows both turrets to operate simultaneously on separate spindles, enabling manufacturers to complete multiple machining operations at the same time. This significantly reduces machining cycle times and increases throughput while maintaining excellent precision and repeatability.

The machine is capable of performing turning, drilling, tapping, threading, live-tool milling, contour machining, and secondary spindle operations in one automated machining cycle. Many MULTIPLEX 6300 systems were also equipped with gantry automation systems for lights-out production capability. The machine can efficiently process steel, stainless steel, aluminum, brass, titanium, cast iron, and high-performance alloys used in demanding industrial applications.

One of the strongest advantages of the MAZAK MULTIPLEX 6300 is its ability to increase production output while minimizing operator involvement. Automated part transfer between spindles and synchronized turret operations allow the machine to produce complex components efficiently with minimal downtime.

The machine is also known for its rigid construction, excellent thermal stability, and long-term reliability. Even years after production, the MULTIPLEX 6300 remains highly desirable in the used CNC market because it delivers premium automation capability and high-volume machining performance at a significantly lower investment cost compared to newer twin-spindle production systems.

---

MAZAK MULTIPLEX 6300 – AXIS

AXIS SPECIFICATIONS	DETAILS
Number of Axes	Multi-Axis Twin-Spindle CNC System
X-Axis Travel (L&R)	12.2 in
Z-Axis Travel (L&R)	23.82 in
C-Axis Positioning	0.001° indexing
Rapid Traverse Rate	945 IPM
Simultaneous Machining	Yes
Positioning Accuracy	±0.0002 in (estimated)
Repeatability	±0.0001 in (estimated)

---

MAZAK MULTIPLEX 6300 – AXIS TRAVELS / WORK ENVELOPE

WORK ENVELOPE	DETAILS
Machine Type	Twin-Spindle Twin-Turret CNC Turning Center
Chuck Size	10 in
Maximum Swing	16.93 in
Maximum Turning Diameter	16 in
Maximum Cutting Length	25.59 in
Bar Capacity	3 in
Distance Between Spindles	57.09 in max
Setup Style	Simultaneous dual-spindle machining

---

MAZAK MULTIPLEX 6300 – CAPACITY / TABLE

CAPACITY SPECIFICATIONS	DETAILS
Machine Structure	Heavy-duty production frame
Production Type	High-volume automated production
Material Capability	Steel, Aluminum, Titanium, Cast Iron
Application Focus	Automotive / Aerospace / Industrial
Machining Capability	Turning + Milling + Drilling + Tapping
Automation Capability	Gantry robot compatible

---

MAZAK MULTIPLEX 6300 – SPINDLE

SPINDLE SPECIFICATIONS	DETAILS
Main Spindle Speed	4,000 RPM
Secondary Spindle Speed	4,000 RPM
Main Spindle Power	30 HP
Secondary Spindle Power	30 HP
Spindle Nose	A2-8
Spindle Bore	3.46 in
Spindle Torque	441 ft-lbs
Live Tool Speed	4,000 RPM

---

MAZAK MULTIPLEX 6300 – TOOL CHANGER

TOOLING SPECIFICATIONS	DETAILS
Turret Configuration	Twin Turrets
Turret Type	Drum / Dodecagonal
Tool Positions	12 per turret
Total Tool Capacity	24 tools
Tool Holder Type	Modified VDI
Rotary Tool Capability	Full live tooling
Tool Index Time	0.3 sec

---

MAZAK MULTIPLEX 6300 – CONTROL SYSTEM

CONTROL INFORMATION	DETAILS
CNC Control	Mazatrol Fusion 640T
Programming Type	Conversational + EIA/ISO
Display Type	Color LCD interface
Connectivity	Ethernet / RS232
Synchronization Control	Dual-channel machining
Advanced Features	Simultaneous twin-spindle machining

---

MAZAK MULTIPLEX 6300 – COOLANT / DUST / WATER MANAGEMENT

COOLANT SYSTEM	DETAILS
Coolant Type	Flood coolant system
Through Tool Coolant	High-pressure capable
Chip Removal	Rear chip conveyor
Tool Setter	Automatic Tool Eye
Lubrication	Automatic centralized lubrication
Automation Integration	Gantry loading system compatible

---

MAZAK MULTIPLEX 6300 – POWER REQUIREMENTS

POWER SPECIFICATIONS	DETAILS
Voltage	220V / 440V
Phase	3 Phase
Power Requirement	~68 KVA
Air Requirement	71 PSI
Electrical Type	Industrial CNC supply

---

MAZAK MULTIPLEX 6300 – DIMENSIONS

MACHINE DIMENSIONS	DETAILS
Machine Length	167.7 in
Machine Width	95.3 in
Machine Height	82.68 in
Machine Weight	~25,700 lbs
Floor Space Requirement	Large industrial footprint

---

MAZAK MULTIPLEX 6300 – GENERAL INFORMATION

GENERAL INFORMATION	DETAILS
Machine Type	Twin-Spindle Twin-Turret CNC Lathe
Manufacturer	Mazak
Year	2006
Primary Application	High-volume automated production
Typical Industries	Automotive, Aerospace, Medical
Automation Level	Very High
Used Market Demand	High
Reliability	Proven industrial production platform

---

INDUSTRIES THAT USE MAZAK MULTIPLEX 6300 – 2006

The MAZAK MULTIPLEX 6300 is widely used in automotive manufacturing for transmission shafts, hubs, drivetrain components, precision housings, bushings, and high-volume production parts requiring extremely fast cycle times.

Aerospace manufacturers utilize the machine for hydraulic fittings, aerospace connectors, valve systems, structural components, and precision-machined assemblies requiring excellent repeatability and production efficiency.

Medical device companies rely on the machine for stainless steel fittings, surgical components, orthopedic hardware, and high-volume medical production work where consistent tolerances are critical.

Hydraulic and fluid power industries use the MULTIPLEX 6300 for valve bodies, manifolds, pump components, and precision-machined fittings requiring simultaneous turning and milling operations.

General industrial manufacturers also use the machine for automated production environments where reducing labor costs and increasing throughput are major priorities.

---

TYPICAL PARTS MAZAK MULTIPLEX 6300 CAN PRODUCE

The MAZAK MULTIPLEX 6300 can produce transmission shafts, hubs, hydraulic fittings, valve bodies, pump components, aerospace fittings, automotive precision parts, and complex turned assemblies.

The machine excels at simultaneous turning, drilling, tapping, threading, live-tool milling, contour machining, and automatic part transfer between spindles.

Its twin-spindle and twin-turret capability allows manufacturers to complete multiple machining operations simultaneously while maintaining high production accuracy and repeatability.

---

WHY CHOOSE MAZAK MULTIPLEX 6300 – 2006

The MAZAK MULTIPLEX 6300 is chosen because it offers exceptional production efficiency through simultaneous machining capability. The machine’s twin-spindle and twin-turret configuration allows both sides of the machine to operate independently or simultaneously, dramatically reducing overall machining cycle times.

One of the biggest advantages of the machine is automation compatibility. Many MULTIPLEX systems are equipped with gantry robots, automatic loaders, chip conveyors, and synchronized machining software that support lights-out manufacturing environments. This allows manufacturers to improve throughput while reducing labor requirements.

The Mazatrol Fusion 640T control system provides powerful conversational programming and synchronized dual-channel machining capability. Operators can optimize production cycles while maintaining consistent machining quality.

Another major advantage is machine rigidity and reliability. Mazak machines are known for durable construction, strong thermal stability, and long-term production performance even in demanding industrial environments.

The machine also provides excellent flexibility by supporting turning, drilling, tapping, live-tool milling, contour machining, and automatic part transfer within one integrated machining cycle.

Manufacturers often choose the MULTIPLEX platform because it combines automation, multitasking capability, and high-speed production performance into one efficient CNC system.

---

WHY BUY USED MAZAK MULTIPLEX 6300 – 2006

Buying a used MAZAK MULTIPLEX 6300 – 2006 allows manufacturers to obtain a highly productive twin-spindle CNC production system at a significantly lower investment cost compared to purchasing a new automated production lathe. Even though the machine was originally built for demanding industrial production, it continues to offer excellent performance and production capability in modern manufacturing environments.

One of the biggest advantages of purchasing a used MULTIPLEX 6300 is cost efficiency. New twin-spindle CNC systems equipped with automation capability and live tooling can require extremely large capital investments. A used machine allows manufacturers to acquire advanced multitasking production capability at a fraction of the cost of new equipment.

Another major benefit is improved production throughput. The machine’s dual-spindle and dual-turret configuration allows simultaneous machining operations that dramatically reduce cycle times compared to conventional CNC lathes. This enables manufacturers to increase output while reducing labor costs and machine downtime.

Many used MULTIPLEX 6300 machines also include valuable factory-installed options such as gantry automation systems, live tooling packages, chip conveyors, automatic tool setting systems, synchronized machining software, and high-pressure coolant systems. These features add substantial value without requiring additional investment from the buyer.

Mazak machines are also widely respected for long-term mechanical durability and reliability. Properly maintained MULTIPLEX systems can continue operating productively for many years in high-volume manufacturing facilities.

The machine also maintains strong demand in the used CNC market because of its automation capability, multitasking production efficiency, and proven performance in automotive and industrial manufacturing applications.

---

HOW MUCH DOES A USED MAZAK MULTIPLEX 6300 COST?

The cost of a used MAZAK MULTIPLEX 6300 – 2006 depends on machine condition, spindle hours, automation systems, tooling packages, maintenance history, and installed options. Machines equipped with live tooling, gantry automation, low operating hours, and advanced production packages generally command higher prices in the used CNC machinery market.

USED MAZAK MULTIPLEX 6300 PRICE RANGE	ESTIMATED COST
Basic Machines	$55,000 – $85,000
Standard Production Machines	$85,000 – $130,000
Well-Maintained Machines	$130,000 – $185,000
Fully Equipped Machines	$185,000+

Machines equipped with gantry robots, automation integration, advanced tooling systems, synchronized machining software, high-pressure coolant systems, and chip conveyor packages typically sell at premium price levels.

Several factors influence the value of a used MULTIPLEX 6300. Buyers carefully inspect spindle condition, turret wear, synchronization performance, hydraulic systems, axis backlash, and Mazatrol control functionality before determining final market pricing.

Even in today’s competitive used CNC market, the MAZAK MULTIPLEX 6300 remains one of the most respected high-production twin-spindle machining systems available. Its ability to automate production, reduce cycle times, and efficiently produce precision components makes it an excellent long-term investment for advanced manufacturing operations.
