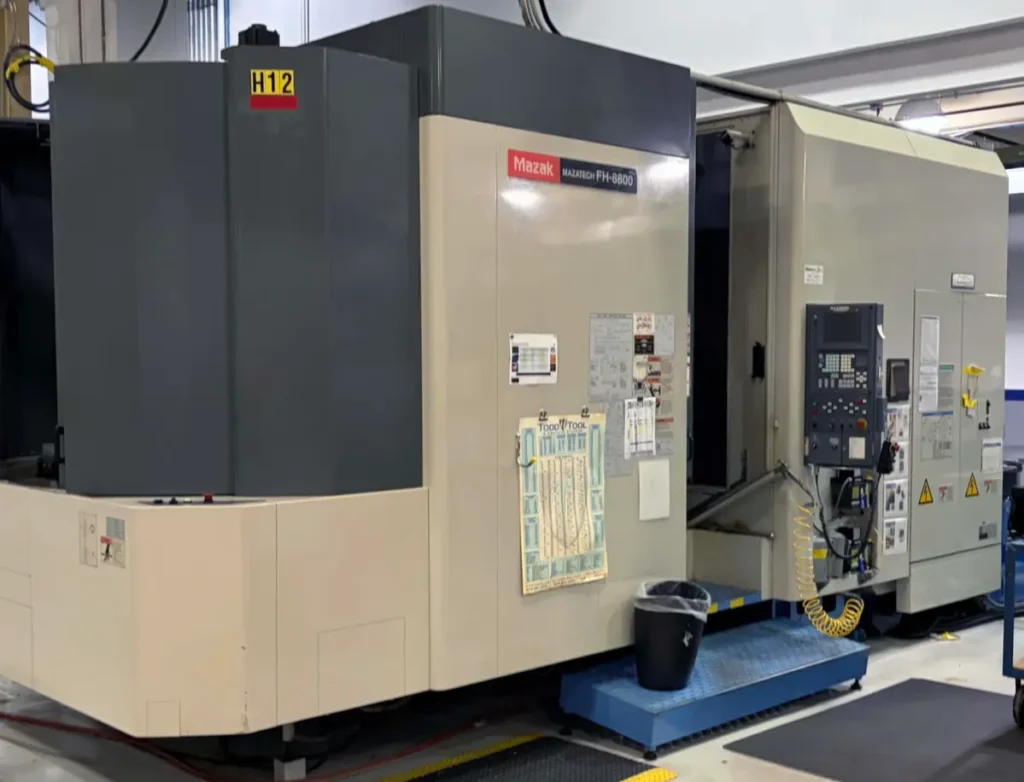

USED MAZAK MAZATECH FH-8800 – 2002

The MAZAK MAZATECH FH-8800 is a large-frame horizontal machining center engineered for heavy-duty machining, high-volume production, and large workpiece manufacturing. Designed to deliver exceptional rigidity, spindle power, and automation capabilities, the 2002 MAZATECH FH-8800 remains a highly respected machine in industries that require precision machining of large castings, forgings, and structural components. Its combination of a robust machine structure, powerful CAT 50 spindle, dual-pallet automation, and Mazatrol CNC technology makes it an ideal solution for demanding manufacturing environments.

Built around a heavily ribbed cast iron structure, the FH-8800 provides outstanding vibration dampening and thermal stability during aggressive cutting operations. The horizontal spindle configuration promotes efficient chip evacuation by allowing chips to fall away from the workpiece, reducing recutting, improving surface finish quality, and extending tool life. This design is especially beneficial when machining large steel, cast iron, and high-strength alloy components.

The machine incorporates an automatic dual-pallet system that allows setup operations to occur while machining continues on the active pallet. This significantly increases spindle utilization and reduces downtime, making the FH-8800 well suited for medium-to-high-volume production environments.

The 2002 MAZAK MAZATECH FH-8800 is widely utilized across aerospace, energy, oil and gas, mining, defense, heavy equipment, transportation, and industrial machinery manufacturing sectors. Its ability to efficiently machine large and complex components continues to make it a valuable asset in the used CNC equipment marketplace.

---

MAZAK MAZATECH FH-8800 – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	55.12″
Y-Axis Travel	47.24″
Z-Axis Travel	47.24″
B-Axis Rotary Table	Full NC Rotary
Rotary Positioning Increment	1° Standard

---

MAZAK MAZATECH FH-8800 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	55.12″
Y-Axis Travel	47.24″
Z-Axis Travel	47.24″
Pallet Size	31.5″ x 31.5″
Maximum Workpiece Diameter	55.1″
Maximum Workpiece Height	63.0″
Maximum Workpiece Weight	4,400 lbs

---

MAZAK MAZATECH FH-8800 – CAPACITY / TABLE

Specification	Details
Number of Pallets	2
Pallet Changer	Automatic
Pallet Dimensions	31.5″ x 31.5″
Maximum Pallet Load	4,400 lbs
Table Type	Precision Rotary Pallet
Multi-Sided Machining Capability	Yes

---

MAZAK MAZATECH FH-8800 – SPINDLE

Specification	Details
Maximum Spindle Speed	6,000 RPM
Spindle Motor Power	50 HP
Spindle Taper	CAT 50
Drive Type	Geared Head Spindle
Maximum Torque	High-Torque Heavy Cutting Capability
Material Removal Performance	Excellent

---

MAZAK MAZATECH FH-8800 – TOOL CHANGER

Specification	Details
Standard Tool Capacity	80 Tools
Optional Tool Capacity	Up to 240 Tools
Tool Changer Type	Automatic Tool Changer
Maximum Tool Diameter	9.8″
Maximum Tool Length	23.6″
Maximum Tool Weight	66 lbs
Random Tool Selection	Standard

---

MAZAK MAZATECH FH-8800 – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol Fusion 640M
Programming Format	Mazatrol Conversational & G-Code
EIA/ISO Compatibility	Yes
Tool Life Management	Standard
Ethernet Capability	Available
Advanced Diagnostics	Included

---

MAZAK MAZATECH FH-8800 – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Optional
Chip Conveyor	Standard
Coolant Filtration System	Standard
Automatic Chip Removal	Yes

---

MAZAK MAZATECH FH-8800 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V / 480V
Electrical Requirement	3 Phase
Connected Load	Approx. 75 kVA
Air Requirement	Shop Air Required

---

MAZAK MAZATECH FH-8800 – DIMENSIONS

Specification	Details
Length	Approx. 290″
Width	Approx. 210″
Height	Approx. 145″
Machine Weight	Approx. 48,500 lbs

---

MAZAK MAZATECH FH-8800 – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak Corporation
Model	MAZATECH FH-8800
Year	2002
Machine Category	Horizontal Machining Center
Country of Origin	Japan
Primary Application	Heavy-Duty Large-Part Machining
Production Environment	Medium to High Volume Manufacturing

---

INDUSTRIES THAT USE MAZAK MAZATECH FH-8800

The MAZAK MAZATECH FH-8800 is extensively used in industries requiring large-part machining, heavy material removal rates, and exceptional production reliability. Aerospace manufacturers use the machine for structural airframe components, landing gear assemblies, engine support structures, and large aerospace housings.

Energy and power generation companies frequently machine turbine housings, compressor casings, pump bodies, generator components, and heavy industrial equipment. The machine’s large work envelope and high-torque spindle make it ideal for machining large castings and forgings.

Heavy equipment manufacturers commonly produce transmission housings, gearbox casings, axle carriers, hydraulic systems, mining equipment components, and construction machinery structures. The large pallet capacity allows machining of substantial workpieces while maintaining precision and productivity.

Additional industries include oil and gas equipment manufacturing, defense production, transportation systems, marine equipment, agricultural machinery, industrial automation, and precision contract manufacturing.

---

TYPICAL PARTS MAZAK MAZATECH FH-8800 CAN PRODUCE

The MAZAK MAZATECH FH-8800 is capable of producing a wide variety of large precision-machined components. Aerospace applications include engine mounts, structural assemblies, landing gear supports, and large aircraft components.

Energy manufacturers frequently machine turbine casings, compressor housings, pump bodies, valve systems, power transmission components, and heavy industrial machinery parts. The machine’s robust spindle and large machining envelope make it particularly effective for large steel and cast iron workpieces.

Heavy equipment manufacturers commonly produce transmission cases, gearbox housings, hydraulic manifolds, structural frames, mining equipment components, and construction machinery assemblies. Multi-sided machining capability reduces setup time while improving dimensional accuracy.

Other applications include robotic bases, marine equipment, transportation components, industrial machine frames, tooling structures, and custom-engineered products.

---

WHY CHOOSE MAZAK MAZATECH FH-8800

The MAZAK MAZATECH FH-8800 offers manufacturers an outstanding combination of power, capacity, durability, and machining performance. One of its greatest strengths is its ability to efficiently machine large workpieces while maintaining excellent dimensional accuracy and repeatability.

The horizontal spindle design improves chip evacuation and reduces downtime caused by chip accumulation. This contributes to improved tool life, better surface finishes, and greater machining consistency.

The CAT 50 geared spindle delivers substantial torque for heavy-duty machining applications. Combined with the automatic pallet changer and large-capacity tool magazine, the machine is capable of supporting demanding production schedules with minimal interruptions.

The Mazatrol Fusion control system provides conversational programming functionality while maintaining full compatibility with standard G-code programming, offering flexibility for a wide range of manufacturing environments.

For manufacturers seeking a proven heavy-duty horizontal machining center, the FH-8800 remains one of the industry’s most respected large-frame machining platforms.

---

WHY BUY USED MAZAK MAZATECH FH-8800

Purchasing a used 2002 MAZAK MAZATECH FH-8800 allows manufacturers to acquire large-capacity machining capabilities at a fraction of the cost of a comparable new machine. This enables companies to increase production capacity while preserving capital for tooling, automation, staffing, and facility improvements.

Many used FH-8800 machines are equipped with valuable options such as through-spindle coolant, probing systems, expanded tool magazines, pallet automation systems, chip conveyors, and advanced tool management packages. These features can significantly improve productivity while reducing future upgrade costs.

Mazak horizontal machining centers have earned a reputation for long-term durability, strong reliability, and excellent resale value. Properly maintained machines often continue to perform productively for decades.

Used equipment also offers the advantage of faster deployment. While new machines often involve lengthy lead times, used machines can frequently be installed and operational much sooner.

For manufacturers seeking a powerful, reliable, and cost-effective horizontal machining solution, a used 2002 MAZAK MAZATECH FH-8800 remains an outstanding investment.

---

HOW MUCH DOES A USED MAZAK MAZATECH FH-8800 COST?

The value of a used 2002 MAZAK MAZATECH FH-8800 depends on machine condition, maintenance history, spindle hours, tooling inventory, installed options, and current market demand. Machines with documented service records, lower operating hours, and advanced options generally command higher resale values.

Options such as through-spindle coolant, probing systems, expanded tool storage, pallet automation, chip conveyors, software enhancements, and tooling packages can significantly influence pricing. Buyers typically place premium value on machines that are fully equipped and ready for immediate production.

Demand for large horizontal machining centers remains strong across aerospace, energy, defense, mining, transportation, heavy equipment, and contract manufacturing sectors. This sustained demand helps support healthy resale values for well-maintained FH-series machines.

In addition to the purchase price, buyers should evaluate transportation, rigging, installation, electrical infrastructure, tooling, operator training, programming support, and facility preparation costs. These expenses contribute to the total ownership investment and should be carefully considered during the purchasing process.

Compared to purchasing a new large-frame horizontal machining center, a used 2002 MAZAK MAZATECH FH-8800 can provide substantial cost savings while still delivering exceptional machining capacity, powerful spindle performance, automation capability, and long-term reliability. For manufacturers seeking a proven heavy-duty machining platform, the FH-8800 remains one of the strongest values available in the used CNC equipment market.
