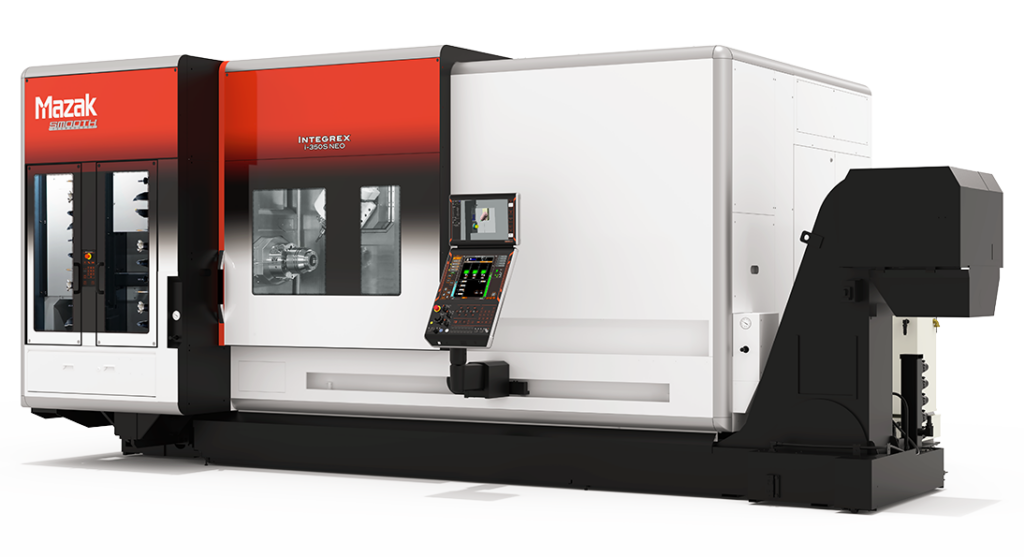

The Mazak Integrex i-200ST NEO is an advanced multi-tasking CNC machine designed to deliver maximum productivity by combining turning, milling, and simultaneous operations in a single platform. As part of Mazak’s i-NEO series, it follows the “DONE IN ONE” concept, enabling complete part machining in one setup. The “ST” configuration includes a main spindle, a second spindle, and a lower turret, allowing simultaneous machining processes that significantly reduce cycle times and increase throughput.
The machine supports full 5-axis simultaneous machining through a B-axis milling spindle and high-precision C-axis control, enabling complex geometries and tight tolerances. It is typically equipped with an 8-inch chuck and offers a maximum machining diameter of approximately 600 mm and a machining length of around 1000 mm, with a Y-axis travel of about 210 mm. This makes it suitable for a wide range of medium-sized components.
The milling spindle operates at 12,000 RPM as standard, with optional higher-speed configurations for precision machining. Advanced features such as Mazatrol SmoothAi control, AI-based thermal compensation, and improved ergonomics enhance accuracy and efficiency during long cutting cycles. Overall, the Integrex i-200ST NEO is ideal for industries such as aerospace, automotive, and precision engineering where productivity and precision are critical.
MAZAK INTEGREX I-200ST NEOSPECIFICATIONS
MAZAK INTEGREX I-200ST NEO – AXIS
X-Axis (Cross Movement for Turning & Milling)
Y-Axis (Vertical Offset for Complex Machining)
Z-Axis (Longitudinal Travel for Workpiece Length)
B-Axis (Rotary Milling Head for Full Multi-Axis Machining)
C-Axis (Main & Sub-Spindle Indexing)
Dual Spindles (Main + Second Spindle for DONE-IN-ONE Machining)
Lower Turret (Parallel Turret for Simultaneous Operations)
MAZAK INTEGREX I-200ST NEO – POWER & AIR REQUIREMENTS
Power Requirement: Approx. 30–50 kVA
Air Supply: Clean and Dry Industrial Air
Air Pressure: Approx. 5–7 bar
Energy Efficient System Design
MAZAK INTEGREX I-200ST NEO – DIMENSIONS
Compact Multi-Tasking Machine Footprint
Machine Weight: Approx. 9,000–13,000 kg
Rigid Structure for High Precision
Shop-Friendly Layout
MAZAK INTEGREX I-200ST NEO – GENERAL INFORMATION
Advanced Multi-Tasking CNC Machine
ST Configuration = Second Spindle + Lower Turret
Enables Simultaneous Dual-Channel Machining
Reduces Setup Time and Improves Throughput
Equipped with Ai Thermal Shield for Accuracy Stability
INDUSTRIES THAT USE MAZAK INTEGREX I-200ST NEO
Aerospace
Automotive
Medical Devices
Oil & Gas
Precision Engineering
TYPICAL PARTS MAZAK INTEGREX I-200ST NEO CAN PRODUCE
Precision Shafts
Complex Housings
Aerospace Components
Medical Implants
Multi-Operation Turned & Milled Parts
WHY CHOOSE MAZAK INTEGREX I-200ST NEO
Complete Done-In-One Machining with Dual Spindles
Simultaneous Machining with Lower Turret
Reduced Cycle Time and Setup Changes
High Precision with Thermal Compensation
Ideal for High-Mix, High-Precision Manufacturing
WHY BUY USED MAZAK INTEGREX I-200ST NEO
Buying a used Mazak Integrex i-200ST NEO is a strategic choice for manufacturers seeking high productivity and process integration at a reduced investment. The ST configuration, which includes dual spindles and a lower turret, allows simultaneous operations, making it significantly more efficient than standard machines. Used machines typically offer savings in the range of 20% to 50% compared to new units, depending on age, configuration, and cutting hours.
Cutting time is one of the most critical factors when evaluating a used i-200ST NEO. Machines with higher cutting hours are generally more affordable but may require maintenance on key components such as both turning spindles, the milling head, and the lower turret system. However, due to Mazak’s advanced engineering and thermal stability features, even machines with moderate cutting time can maintain excellent accuracy and performance. Machines with low cutting time command a premium because they offer longer service life and reduced wear.
Another major advantage is productivity. The ability to perform multiple operations simultaneously reduces cycle time and increases output. Additionally, used machines are often available much faster than new ones, which can involve long lead times. Overall, buying used provides a strong balance of efficiency, capability, and return on investment.
HOW MUCH DOES A USED MAZAK INTEGREX I-200ST NEOCOST?
The cost of a used Mazak Integrex i-200ST NEO depends on machine condition, configuration, and especially cutting time. As a relatively new-generation machine, models before 2000 or even 2000–2010 are not applicable, with most available units falling within the 2015–2025 range.
Early-generation NEO or near-NEO equivalent machines from around 2015 to 2018 typically range between $300,000 and $450,000, especially if they have moderate to high cutting hours. These machines offer full ST configuration benefits, including dual spindles and a lower turret, at a lower entry cost but may require maintenance depending on usage.
More recent machines from 2018 to 2025 generally range from $450,000 to over $900,000, depending on configuration, automation features, and cutting hours. Machines with low cutting time command significantly higher prices due to reduced wear and longer operational life. Units equipped with additional features such as automation systems, high-speed spindles, and expanded tooling capacity can further increase pricing.
Cutting time remains one of the most important factors in determining value, as it directly impacts spindle condition, turret wear, and long-term reliability. Overall, the i-200ST NEO maintains strong resale value due to its advanced design, simultaneous machining capability, and high demand in precision manufacturing industries.
