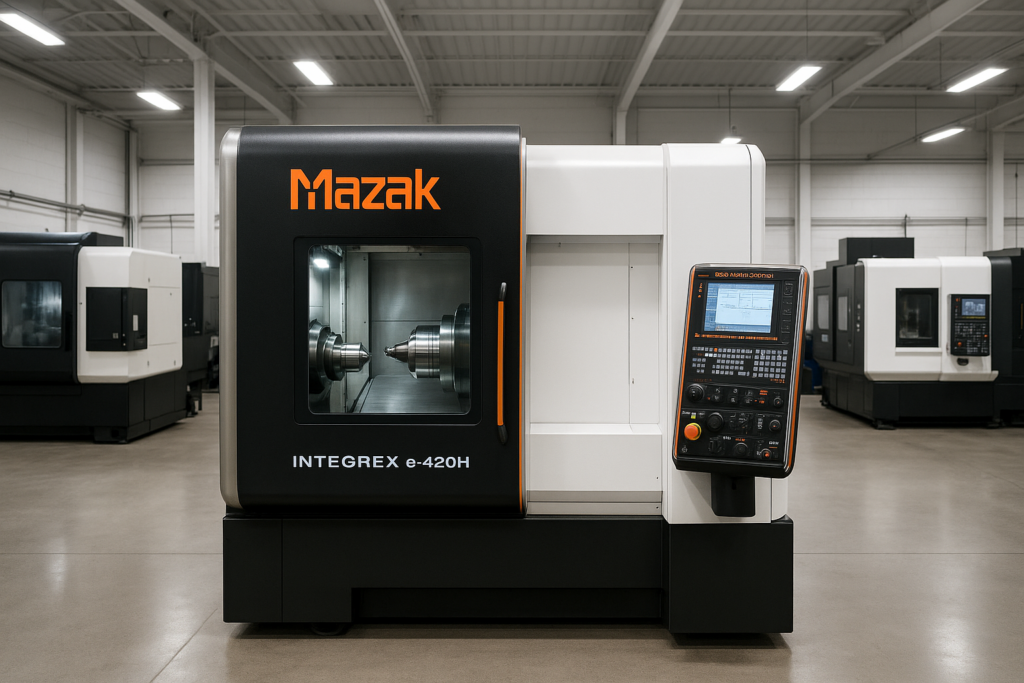

The Mazak Integrex e‑420H is a premium multi-tasking CNC machine designed for the heavy-duty, high-precision machining of large and complex parts. As part of Mazak’s e-series Integrex line, this model stands out with its horizontal construction, long bed capacity, and integrated turning and milling spindles — enabling full 5-axis machining in a single setup.
This machine is a true DONE-IN-ONE solution, built to handle operations such as turning, milling, drilling, boring, and threading in one cycle. It significantly reduces setup time, eliminates multiple machines, and enhances part accuracy. The e‑420H is engineered with dual spindles, a B-axis milling head, and long Z-axis travel, making it ideal for applications involving long shaft work, aerospace parts, energy components, and heavy structural elements.
It features Mazak’s SmoothX or SmoothAi CNC control, offering intuitive programming, high-speed calculation, real-time simulation, and advanced error compensation. The machine’s rigid construction and thermal compensation system ensure stable, accurate performance over extended operation periods. With tool magazine capacities of up to 120 tools and optional automatic pallet changers, it can also be highly automated for lights-out production.
The e‑420H combines power, flexibility, and efficiency — making it a strategic investment for manufacturers looking to produce large-scale, high-complexity parts with minimal intervention and maximum throughput.
MAZAK INTEGREX E‑420HSPECIFICATIONS
MAIN TURNING SPINDLE
Chuck Size: 12″ – 15″ (varies by model year)
Spindle Speed: Up to 3,300 rpm
Power: ~35 – 45 kW
Bore Size: Up to 100 mm
SECOND SPINDLE (OPTIONAL)
Chuck Size: Up to 12″
Spindle Speed: Up to 3,300 rpm
Power: ~22 – 30 kW
Synchronization with main spindle for part transfer
MILLING SPINDLE (B-AXIS)
Spindle Taper: HSK-A100 or Capto C8
Max Speed: 10,000 – 12,000 rpm
Power: ~37 kW (~50 hp)
B-Axis Tilt Range: ± 240° or more
5-Axis Contouring: Yes
AXIS TRAVELS
X-Axis: ~630 mm (24.8 in)
Y-Axis: ~450 mm (±225 mm)
Z-Axis: Up to 3,000 mm (118 in)
B-Axis: Continuous tilt with 0.0001° resolution
C-Axis: Full contouring rotation on spindle
TOOL CHANGER
Standard Capacity: 40 tools
Optional: 60, 80, 100, or 120 tools
Max Tool Diameter: ~120 mm
Max Tool Length: ~400 mm
Max Tool Weight: ~25 kg
COOLANT AND CHIP SYSTEM
Through-Spindle Coolant: Up to 70 bar
High-capacity chip auger and conveyor
Mist and heat extraction options
POWER & AIR
Electrical Power: ~80 – 100 kVA (depends on spindle & options)
Air Pressure: ~0.5 MPa (~5 bar)
MAZAK INTEGREX E‑420H – GENERAL INFORMATION
Model: Mazak Integrex e 420H
Type: Multi-Tasking Horizontal CNC Turning & Milling Center
Configuration: 5-Axis, Twin Spindle, Horizontal Bed
Control: Mazatrol SmoothX or SmoothAi
Machine Style: Horizontal, slant-bed
Structure: Integrated turning and milling with B-axis milling head
Automation Options: Pallet changer, tool magazine up to 120 tools
MAZAK INTEGREX E‑420H – KEY CAPABILITIES
Full 5-axis simultaneous machining
Heavy-duty turning of large diameter and long parts
Milling with B-axis tilting spindle (± 240° or more tilt range)
Single-setup machining for multiple complex features
Dual spindles for front-and-back machining
High-torque, high-speed cutting
Intelligent thermal compensation and vibration control
High tool storage capacity for complex parts requiring many tools
INDUSTRIES THAT USE MAZAK INTEGREX E‑420H
Aerospace
Oil & Gas
Power Generation
Defense and Military Equipment
Shipbuilding
Heavy Equipment Manufacturing
Transportation (Rail, Marine)
TYPICAL PARTS MAZAK INTEGREX E‑420H CAN MANUFACTURE
Turbine shafts and impellers
Landing gear and aerospace structural components
Large valve bodies and flanges
Energy sector drilling components
Long hydraulic and transmission shafts
Heavy-duty bearing housings
Electric motor casings
WHY CHOOSE THE MAZAK INTEGREX E 420H
Combines lathe + 5-axis mill functions in one footprint
Reduces part setups and machine transfers — boosting efficiency
Ideal for large part machining in demanding industries
Built with rigid, thermally stable frame for tight tolerances
High spindle power supports heavy-duty metal removal
Designed for unattended operation with optional automation
Long-term reliability backed by Mazak’s global support system
Summary Table
PARAMETER
VALUE
Turning Spindle
12–15″ chuck, up to 3,300 rpm, 45 kW
Milling Spindle
HSK-A100 / Capto C8, up to 12,000 rpm
B-Axis Tilt
±240° or more, full contouring
X / Y / Z Travels
630 / ±225 / up to 3,000 mm
Tool Magazine
40 std, up to 120 tools optional
Control
Mazatrol SmoothX / SmoothAi
Automation
Pallet changer, bar feeder (optional)
Coolant System
Thru-spindle, high-pressure, chip removal
Machine Type
Horizontal 5-axis Multi-Tasking Center
How much does used MAZAK INTEGREX E‑420H cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Basic (Single spindle, 40 tools, SmoothX)
$220,000 – $280,000
Mid-Spec (Dual spindle, 60+ tools)
$290,000 – $350,000
High-Spec (Full automation, 120 tools)
$380,000 – $480,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
