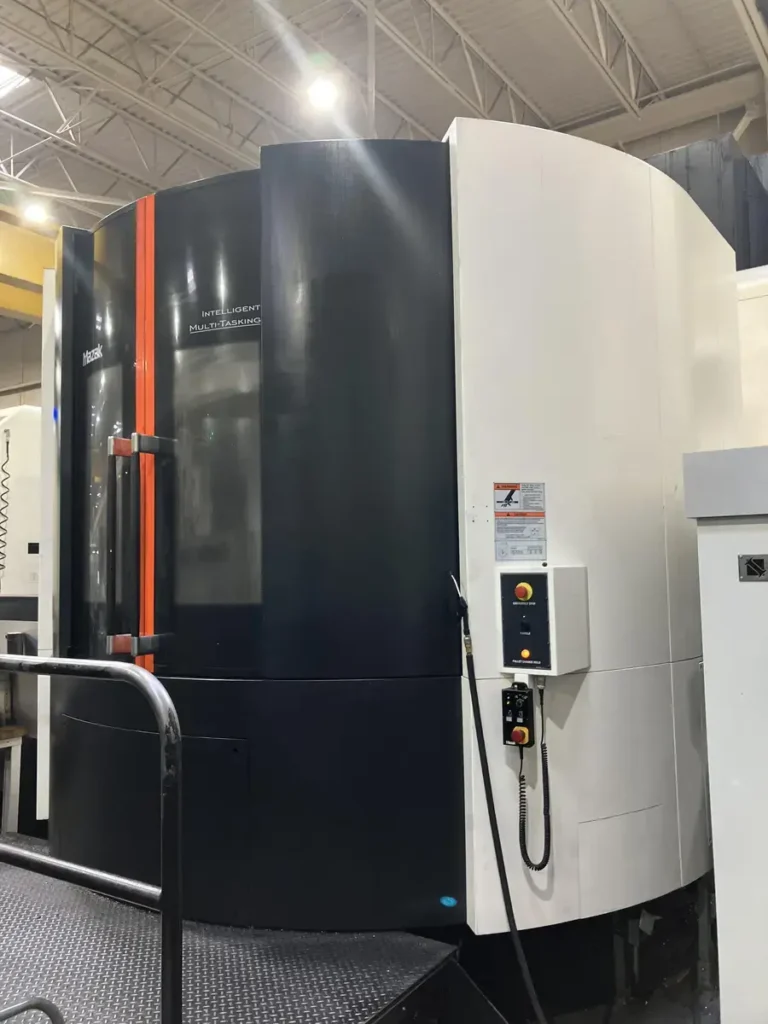

MAZAK INTEGREX E-1060V/8-II – 2014

MAZAK INTEGREX E-1060V/8-II – 2014

MAKE: MAZAK
MODEL: INTEGREX E-1060V/8-II
TYPE: Horizontal Machines
YEAR: 2014
SKU: 103383
DEALER: Toolquip, Inc
COUNTRY: USA

USED MAZAK INTEGREX E-1060V/8-II – 2014

The MAZAK INTEGREX E-1060V/8-II is a world-class multitasking machining center that combines the capabilities of a vertical machining center, horizontal machining center, turning center, and full simultaneous 5-axis machining platform into a single machine. Designed for manufacturers producing large, complex, high-value components, the 2014 INTEGREX E-1060V/8-II delivers exceptional flexibility, accuracy, and productivity while significantly reducing setups and part handling requirements. Its advanced multitasking architecture allows milling, drilling, boring, turning, and 5-axis contouring operations to be completed in a single setup.

Built around a rigid bridge-style structure, the machine features a powerful CAT 50 milling spindle, full contouring B-axis head, C-axis rotary table, and dual pallet automation system. The machine is designed to handle large workpieces while maintaining exceptional rigidity and thermal stability. Simultaneous 5-axis machining capability enables manufacturers to produce highly complex aerospace, energy, medical, mold, and industrial components with fewer setups and improved geometric accuracy.

The machine incorporates Mazak’s advanced MAZATROL Matrix 2 CNC Control, providing conversational programming, full EIA/ISO compatibility, tool center point control, adaptive machining functions, and advanced 5-axis tool compensation. Combined with high-pressure coolant, probing systems, laser tool measurement, and large tool storage capacity, the INTEGREX E-1060V/8-II remains one of the most capable multitasking machines available on the used CNC equipment market.

For manufacturers seeking to consolidate multiple machining operations into a single platform while maximizing precision and throughput, the 2014 MAZAK INTEGREX E-1060V/8-II represents an outstanding production solution.

MAZAK INTEGREX E-1060V/8-II – AXIS

SpecificationDetails
Machine TypeMultitasking 5-Axis Machining Center
Axis ConfigurationSimultaneous 5-Axis
X-Axis Travel73.82″
Y-Axis Travel41.73″
Z-Axis Travel52.95″
B-Axis Travel150° (-30° to +120°)
C-Axis RotationContinuous 360°
Rotary Resolution0.0001°

MAZAK INTEGREX E-1060V/8-II – AXIS TRAVELS / WORK ENVELOPE

SpecificationDetails
X-Axis Travel73.82″
Y-Axis Travel41.73″
Z-Axis Travel52.95″
Maximum Workpiece Diameter49.21″
Maximum Workpiece Height49.21″
Maximum Workpiece Weight4,784 lbs
Simultaneous 5-Axis MachiningYes

Specifications may vary based on configuration and installed options.

MAZAK INTEGREX E-1060V/8-II – TABLE / PALLET SYSTEM

SpecificationDetails
Number of Pallets2
Pallet Diameter39.4″
Pallet ChangerAutomatic
Maximum Pallet Load4,784 lbs
Table TypeRotary Multi-Tasking Table
Continuous C-AxisYes

MAZAK INTEGREX E-1060V/8-II – SPINDLE

SpecificationDetails
Milling Spindle Speed10,000 RPM
Milling Spindle Power50 HP
Spindle TaperCAT 50 / BBT50
Drive TypeBuilt-In High Performance Spindle
Turning Table Speed500 RPM
High-Speed Machining CapabilityExcellent

MAZAK INTEGREX E-1060V/8-II – TOOL CHANGER

SpecificationDetails
Standard Tool Capacity120 Tools
Optional Tool CapacityUp to 160+ Tools
Tool Changer TypeAutomatic Tool Changer
Maximum Tool Diameter10.24″
Maximum Tool Length19.69″
Maximum Tool Weight66 lbs
Tool Management SystemStandard

MAZAK INTEGREX E-1060V/8-II – CONTROL SYSTEM

SpecificationDetails
CNC ControlMAZATROL Matrix 2
Programming FormatMazatrol Conversational & G-Code
Simultaneous 5-Axis ProgrammingYes
Tool Center Point ControlStandard
Adaptive Feed ControlIncluded
Ethernet ConnectivityStandard
LAN CapabilityYes
Advanced DiagnosticsStandard

MAZAK INTEGREX E-1060V/8-II – COOLANT / CHIP MANAGEMENT

SpecificationDetails
Flood Coolant SystemStandard
Through-Spindle CoolantYes
High-Pressure Coolant1,000 PSI
Chip ConveyorStandard
Coolant Washdown SystemStandard
Automatic Chip RemovalYes

MAZAK INTEGREX E-1060V/8-II – PROBING & MEASUREMENT

SpecificationDetails
Workpiece ProbeRenishaw OMP60
Tool Measurement SystemRenishaw NC4 Laser
Automatic Tool CalibrationYes
Inspection Plus SoftwareAvailable
Tool Breakage DetectionIncluded

MAZAK INTEGREX E-1060V/8-II – POWER REQUIREMENTS

SpecificationDetails
Voltage220V / 440V / 480V
Electrical Requirement3 Phase
Air RequirementShop Air Required
Connected LoadApprox. 75 kVA

MAZAK INTEGREX E-1060V/8-II – DIMENSIONS

SpecificationDetails
LengthApprox. 309″
WidthApprox. 210″
HeightApprox. 174″
Machine WeightApprox. 85,600 lbs

MAZAK INTEGREX E-1060V/8-II – GENERAL INFORMATION

SpecificationDetails
ManufacturerMazak Corporation
ModelINTEGREX E-1060V/8-II
Year2014
Machine CategoryMultitasking 5-Axis Machining Center
Country of OriginJapan
Primary ApplicationComplex Multi-Process Machining
Production EnvironmentMedium to High Volume Manufacturing

INDUSTRIES THAT USE MAZAK INTEGREX E-1060V/8-II

The MAZAK INTEGREX E-1060V/8-II is widely used by manufacturers producing highly complex components that require multiple machining operations. Aerospace companies utilize the machine for structural components, engine casings, landing gear parts, turbine housings, and titanium aerospace assemblies. Its simultaneous 5-axis capability allows complex geometries to be machined in a single setup while maintaining exceptional accuracy.

Energy and power generation manufacturers use the machine for turbine components, compressor housings, pump bodies, valve assemblies, and large precision-machined castings. The machine’s large work envelope and heavy-duty spindle make it well suited for difficult materials and large workpieces.

Additional industries include defense manufacturing, medical equipment production, oil and gas, mold and die manufacturing, semiconductor equipment, transportation systems, and high-precision contract machining operations.

TYPICAL PARTS MAZAK INTEGREX E-1060V/8-II CAN PRODUCE

The INTEGREX E-1060V/8-II can manufacture a wide variety of complex parts that traditionally require multiple machines. Aerospace applications include turbine casings, engine housings, structural assemblies, impellers, blisks, and landing gear components.

Energy manufacturers frequently machine compressor housings, turbine components, pump bodies, valve systems, and power generation equipment. The machine’s ability to perform turning and milling operations within a single setup significantly improves manufacturing efficiency.

Other applications include molds, dies, robotic structures, medical implants, semiconductor equipment components, industrial machinery parts, hydraulic systems, marine components, and custom-engineered products.

WHY CHOOSE MAZAK INTEGREX E-1060V/8-II

The MAZAK INTEGREX E-1060V/8-II provides manufacturers with the ability to consolidate multiple manufacturing processes into a single machine platform. Milling, drilling, boring, turning, and simultaneous 5-axis machining can all be performed without transferring the workpiece between machines. This dramatically reduces setup times, improves part accuracy, and shortens production cycles.

Its large work envelope, powerful CAT 50 spindle, advanced rotary axes, and dual pallet automation system make it particularly attractive for high-value manufacturing applications. The machine is capable of producing large and complex components while maintaining tight tolerances and excellent surface finishes.

The MAZATROL Matrix 2 control provides sophisticated 5-axis programming functionality, adaptive machining features, and advanced process monitoring systems that support efficient production and reduced operator intervention.

WHY BUY USED MAZAK INTEGREX E-1060V/8-II

Purchasing a used 2014 MAZAK INTEGREX E-1060V/8-II allows manufacturers to acquire one of the industry’s most advanced multitasking machining platforms at a significantly lower cost than purchasing a new machine.

Many used machines are equipped with premium options including Renishaw probing systems, laser tool measurement, 1,000 PSI through-spindle coolant, chip conveyors, pallet automation, Heidenhain linear scales, and expanded software packages. These options can add substantial value while reducing future upgrade costs.

Because the machine combines multiple manufacturing processes into one platform, companies can often reduce floor space requirements, decrease setup labor, improve quality control, and shorten production lead times. These advantages frequently create significant long-term operational savings.

HOW MUCH DOES A USED MAZAK INTEGREX E-1060V/8-II COST?

The value of a used 2014 MAZAK INTEGREX E-1060V/8-II depends on spindle hours, maintenance history, machine condition, tooling packages, automation options, software licenses, and overall market demand. Machines equipped with dual pallets, Renishaw probing, high-pressure coolant, expanded tool magazines, and advanced 5-axis software packages generally command premium resale values.

Demand for large multitasking machines remains strong across aerospace, defense, energy, medical, and industrial manufacturing sectors because these platforms significantly reduce setup requirements and improve production efficiency. This continued demand helps support strong resale values for well-maintained INTEGREX machines.

In addition to the purchase price, buyers should consider transportation, rigging, installation, electrical infrastructure, tooling, programming support, operator training, and facility preparation costs. These factors contribute to the overall ownership investment and should be evaluated carefully before purchase.

Compared with purchasing a new multitasking machining center, a used 2014 MAZAK INTEGREX E-1060V/8-II can provide substantial cost savings while still delivering world-class 5-axis machining capability, turning functionality, advanced automation, and exceptional long-term reliability. For manufacturers seeking a highly capable multitasking platform, the INTEGREX E-1060V/8-II remains one of the most impressive machines available in the used CNC equipment market.
