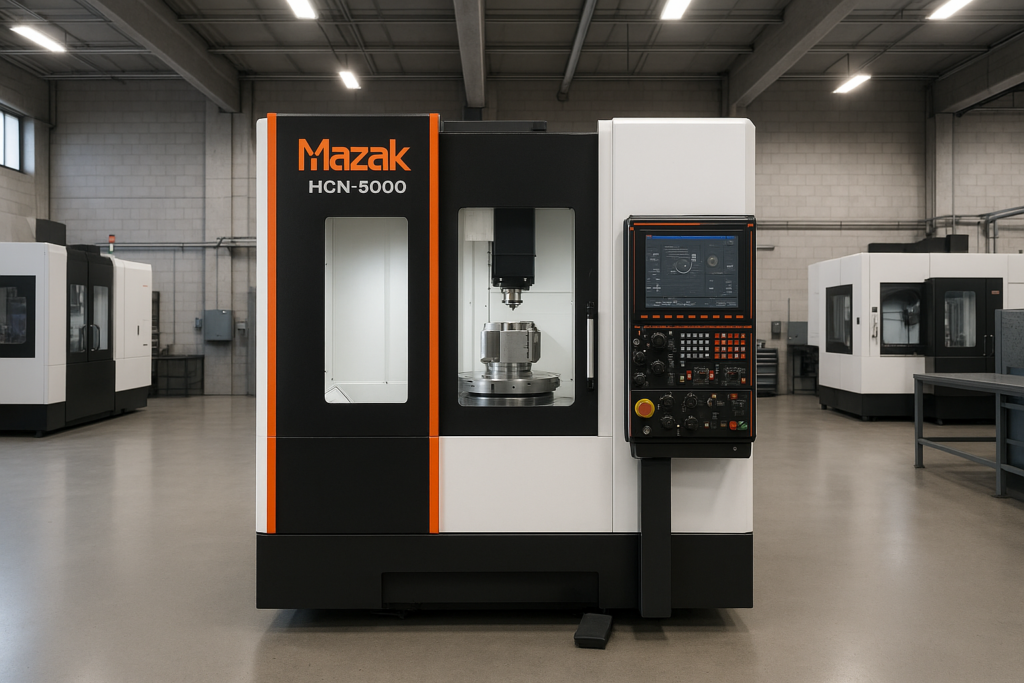

MAZAK HCN-5000

MAKE: MAZAK

MODEL: HCN-5000

TYPE: Horizontal Machines

YEAR: 2011

SKU: 110038

DEALER: Used CNC Exchange

COUNTRY: USA

STATE: Texas

USED MAZAK HCN-5000

The Mazak HCN-5000 is a high-speed horizontal machining center engineered for fast, precise, and highly efficient metal cutting operations. It is part of Mazak’s HCN (Horizontal Center Nexus) series and is widely respected in the industry for its reliability, rigidity, and adaptability to high-mix, high-volume manufacturing environments.

This machine is designed for pallet-based automation, making it ideal for production lines, machining cells, and unattended operation. It comes standard with twin pallets, a 40-taper high-speed spindle, and powerful axis drives that deliver fast acceleration and positioning accuracy.

With generous axis travels, a robust design, and powerful Mazatrol control (SmoothG or SmoothX depending on model year), the HCN-5000 excels in medium- to large-size part machining across a wide range of industries including automotive, aerospace, energy, defense, and industrial equipment. The machine is optimized for high-precision cube-shaped parts, with features like through-spindle coolant, chip evacuation, and high-capacity tool magazines.

The HCN-5000 is also known for its expandability. It is compatible with Mazak’s PALLETECH system, making it perfect for shops looking to scale up with lights-out, high-efficiency manufacturing.

MAZAK HCN-5000 SPECIFICATIONS

TRAVELS
X-Axis: 730 mm (28.74 in)
Y-Axis: 730 mm (28.74 in)
Z-Axis: 800 mm (31.5 in)
B-Axis: 0.001° indexing (360° full rotation)

SPINDLE
Spindle Taper: CAT-40 / BT-40 (some variants with HSK-A63)
Max Speed: 12,000 rpm (standard), optional 18,000 rpm
Spindle Power: 30 – 50 hp (~22 – 37 kW)
Spindle Cooling: Air and oil-cooled for thermal stability

TOOL CHANGER
Magazine Capacity: 40 tools (standard), optional up to 120
Tool-to-tool Time: ~1.3 seconds
Max Tool Length: 400 mm
Max Tool Diameter: 125 mm (non-adjacent), 80 mm (adjacent)
Max Tool Weight: 12 kg

FEEDRATES
Rapid Traverse (X/Y/Z): 60 m/min
Cutting Feedrate: Up to 30 m/min
B-Axis Indexing: 0.001°, 360° rotation

COOLANT & CHIP HANDLING
Through-Spindle Coolant: Up to 70 bar (optional)
Flood Coolant System: Standard
High-capacity Chip Conveyor
Mist Collection and Air Purge Options

CONTROL SYSTEM
CNC: Mazatrol SmoothG or SmoothX
Interface: Touchscreen with conversational and EIA/ISO support
Connectivity: USB, Ethernet, remote monitoring capable

AIR & ELECTRICAL
Air Requirement: ~0.5 MPa
Power Requirement: ~50–60 kVA

MAZAK HCN-5000 – GENERAL INFORMATION
Model: Mazak HCN-5000
Machine Type: Horizontal Machining Center (4-Axis)
Control: Mazatrol SmoothG or SmoothX
Configuration: Twin-pallet, B-axis indexing
Structure: Rigid, box-type casting with high dynamic stability

MAZAK HCN-5000 – KEY CAPABILITIES
4-axis machining with full B-axis rotary table
Fast automatic pallet changer for uninterrupted machining
High-speed spindle for both roughing and finishing operations
Wide axis travels to accommodate a variety of part sizes
Chip conveyor and through-spindle coolant for continuous production
Expandable with Mazak’s PALLETECH for high-mix/low-volume automation

INDUSTRIES THAT USE MAZAK HCN-5000
Automotive (engine blocks, gearbox housings)
Aerospace (structural components, brackets)
Defense and Military Production
Energy and Oilfield Equipment
Industrial Machinery and Equipment
Tool & Die Manufacturers

TYPICAL PARTS MAZAK HCN-5000 CAN PRODUCE
Cylinder heads and blocks
Gearbox housings
Hydraulic manifolds
Aerospace brackets and frames
Complex valve bodies
Electrical enclosures and machine bases

WHY CHOOSE THE MAZAK HCN-5000
High-speed cutting with excellent surface finish and dimensional control
Exceptional reliability for long production runs
Designed for high-productivity operations with automatic pallet change
Rigid box construction ensures vibration control and durability
Ideal for cell-based or lights-out manufacturing
SmoothG/SmoothX control offers easy programming and cycle optimization
Scalable with automation for long-term ROI

Summary Table

PARAMETER	VALUE
Travels (X/Y/Z)	730 / 730 / 800 mm
Pallet Size	500 × 500 mm
Max Workpiece Size	Ø800 mm × 1,000 mm
Max Load per Pallet	500 kg
Spindle Speed	12,000 rpm (optional: 18,000 rpm)
Spindle Power	30–50 hp (22–37 kW)
Tool Magazine	40 tools (standard), up to 120 optional
Rapid Traverse	60 m/min (X/Y/Z)
B-Axis Indexing	Full 360°, 0.001° increments
Control	Mazatrol SmoothG / SmoothX

How much does used MAZAK HCN-5000 cost?
Used Machine Price Range (Approximate)

CONFIGURATION	ESTIMATED PRICE (USD)
Base Model (12k rpm, 40 tools, Matrix)	$90,000 – $120,000
Mid-Spec (SmoothG, 60 tools, TSC)	$130,000 – $170,000
High-End (SmoothX, 120 tools, PALLETECH)	$180,000 – $250,000+

Prices vary depending on build year, spindle hours, tool count, and installed options.
