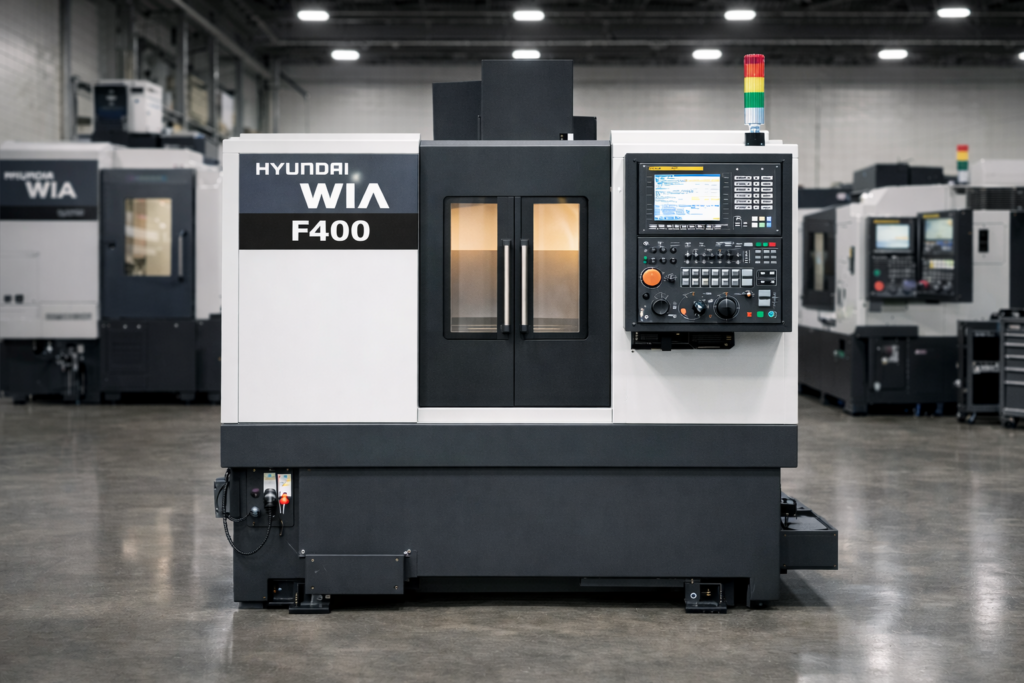

The HYUNDAI WIA F400 is a high-performance vertical machining center designed for precision milling, drilling, and tapping operations in demanding manufacturing environments. Built with a rigid cast-iron structure and advanced thermal stability design, the F400 provides excellent vibration damping and long-term dimensional accuracy, ensuring consistent machining results during high-speed and heavy-duty cutting operations. Its compact yet robust design makes it suitable for both job shops and production facilities that require reliable performance, accuracy, and efficient use of floor space.
The F400 is equipped with a high-speed spindle capable of delivering both high torque and rotational speed, enabling efficient machining of materials such as aluminum, steel, cast iron, and engineering alloys. With linear guideways and fast rapid traverse rates, the machine offers smooth axis movement and reduced non-cutting time, improving cycle efficiency and overall productivity. Advanced CNC control systems, typically Fanuc-based, provide intuitive programming, high-speed processing, and seamless integration with CAD/CAM software to optimize tool paths and maintain tight tolerances. A high-capacity tool magazine and optional probing systems further enhance flexibility and support automated machining workflows.
The HYUNDAI WIA F400 is widely used in automotive, aerospace, mold and die, and general engineering industries for producing precision components with high surface finish and dimensional accuracy requirements. Its combination of rigid construction, spindle performance, and user-friendly control makes it a dependable vertical machining solution for manufacturers seeking consistent quality, high productivity, and long-term operational reliability in modern CNC machining environments.
HYUNDAI WIA F400SPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: ~800 mm
Y-Axis Travel: ~460 mm
Z-Axis Travel: ~520 mm
Table Size (L×W): ~1000 × 460 mm
Max Workpiece Weight: ~600 kg
Axis Count: 3
SPINDLE
Max Spindle Speed: ~12,000 rpm
Spindle Power: ~15 kW
Spindle Taper: BT40 / CAT40
Drive Type: Belt / Motor drive
High performance geared or belt spindle
TOOL CHANGER
Type: Side/magazine ATC
Tool Capacity: 24 tools
Tool Change Time: Standard industrial (varies)
Supports wide range of milling tools
FEEDRATES
Rapid Traverse (X/Y/Z): ~32–36 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC i-Series or FANUC HW-M
Programming: Standard G-code
Interface: Operator panel with overrides and diagnostics
MPG handwheel & connectivity options
COOLANT & CHIP HANDLING
Coolant: Flood coolant standard
Through-Spindle Coolant: Optional / Available
Chip Handling: Chip conveyor optional
Coolant gun included often
POWER & AIR REQUIREMENTS
Power Supply: 3-phase industrial power
Power Draw: ~20-25 kVA typical
Air Pressure: ~0.5–0.7 MPa (75–100 psi)
Air Supply: Required for tool clamping & ATC
HYUNDAI WIA F400 — GENERAL INFORMATION
Model: HYUNDAI WIA F400
Machine Type: 3-Axis Vertical Machining Center
CNC Control: FANUC (i-Series / HW-M or similar)
Spindle Taper: BT40 / CAT40 (varies by region)
Year/Origin: Korea
Designed for general milling and precision machining
Wide table and travel for medium-sized parts
Robust spindle and ATC for high productivity
HYUNDAI WIA F400 — KEY CAPABILITIES
Large X/Y/Z work envelope suitable for many parts
High-speed spindle up to ~12,000 rpm
24-station automatic tool changer
Flexible FANUC CNC system with common industrial programming
Good rapid traverse rates for efficient machining
Suitable for high-volume or precision production
INDUSTRIES THAT USE HYUNDAI WIA F400
Automotive components machining
General engineering & fabrication
Precision milling and tooling manufacturing
Prototype and small-batch production
Aerospace component machining
TYPICAL PARTS HYUNDAI WIA F400 CAN PRODUCE
Medium-size machined housings
Precision brackets and plates
Milling complex contours and slots
Drilled and tapped components
Tooling fixtures and dies
WHY CHOOSE THE HYUNDAI WIA F400
Reliable FANUC CNC control widely supported
High spindle RPM for fine surface finishes
Standard 24-tool magazine for flexible tooling
Large travel envelope for versatile job types
Sturdy construction for industrial use
Good balance of performance and cost
Summary Table
PARAMETER
VALUE
X-Axis Travel
~800 mm
Y-Axis Travel
~460 mm
Z-Axis Travel
~520 mm
Table Size
~1000 × 460 mm
Max Workpiece Weight
~600 kg
Spindle Speed
~12,000 rpm
Spindle Power
~15 kW
Tool Capacity
24 tools
Rapid Traverse
~32–36 m/min
Control
FANUC i-Series / HW-M
How much does used HYUNDAI WIA F400 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard vertical mill)
$30,000 – $45,000
Mid Spec (24 tool, coolant & extras)
$45,000 – $60,000
High Spec (TS coolant, chip conveyor, options)
$60,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED HYUNDAI WIA F400
A used HYUNDAI WIA F400 offers an excellent opportunity to acquire a reliable and capable vertical machining center at a significantly reduced cost compared to a new machine. Hyundai WIA machines are known for their durable build quality and long service life, so a well-maintained used unit can continue to deliver consistent performance for many years. Purchasing a used F400 allows manufacturers to expand milling capacity, reduce lead times, and improve production flexibility while preserving capital for tooling, automation, or additional equipment. For job shops and growing manufacturers, a used F400 provides strong machining capability, proven reliability, and a high return on investment.
