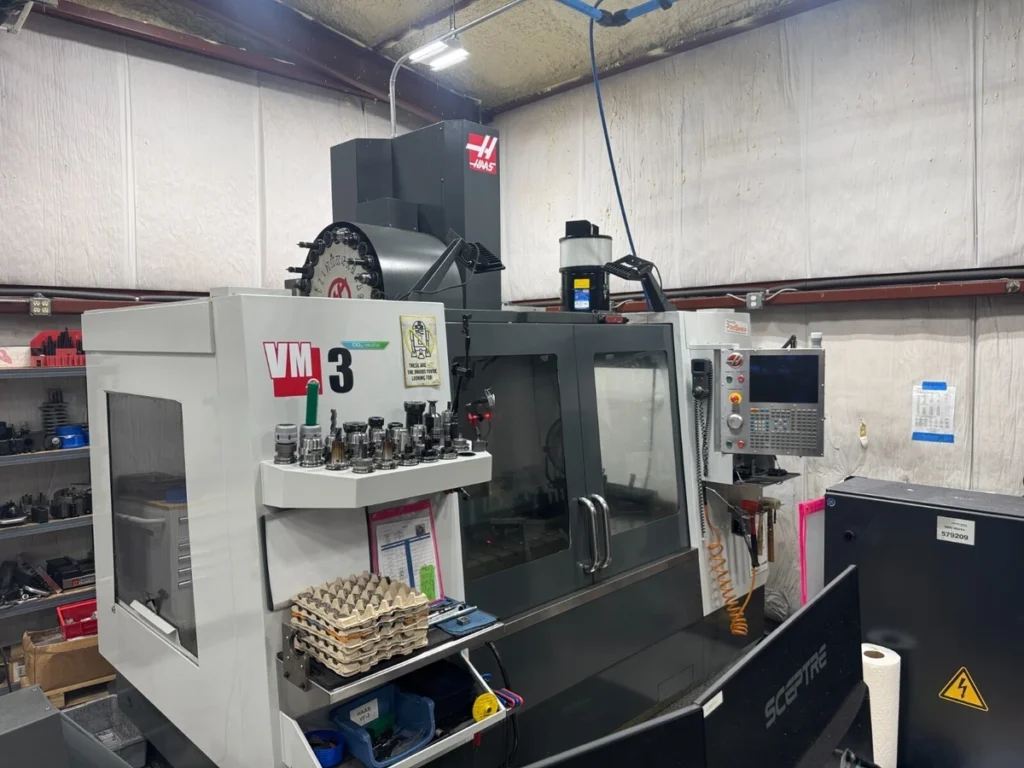

The 2015 Haas VM3 is a premium CNC vertical machining center designed for high-precision mold making, die manufacturing, aerospace, medical, and complex component machining. Built with a rigid cast-iron frame, oversized linear guideways, and a 40-taper inline direct-drive spindle, the VM3 delivers exceptional accuracy, superior surface finishes, and excellent thermal stability. Equipped with the proven Haas CNC Control, the 2015 VM3 is ideal for shops requiring high-speed machining with outstanding precision and reliability.
The machine features 40 in (1,016 mm) of X-axis travel, 26 in (660 mm) of Y-axis travel, and 25 in (635 mm) of Z-axis travel. It comes standard with a 12,000 RPM inline direct-drive spindle producing 30 HP (22.4 kW) and a 30+1 side-mount automatic tool changer. With rapid traverse rates of 1,200 IPM (30.5 m/min), rigid tapping, and optional through-spindle coolant, the 2015 Haas VM3 is built for demanding production and precision machining applications.
HAAS VM3 2015 – AXIS
Specification
Details
X-Axis Travel
40 in (1,016 mm)
Y-Axis Travel
26 in (660 mm)
Z-Axis Travel
25 in (635 mm)
Axis Configuration
3-Axis Vertical Machining Center
Rapid Traverse (X/Y/Z)
1,200 IPM (30.5 m/min)
Guideway Type
Linear Guideways
HAAS VM3 2015 – TABLE
Specification
Details
Table Size
54 × 25 in (1,372 × 635 mm)
Maximum Table Load
3,500 lbs (1,588 kg)
T-Slots
5
T-Slot Width
0.625 in (16 mm)
HAAS VM3 2015 – SPINDLE
Specification
Details
Maximum Spindle Speed
12,000 RPM
Spindle Power
30 HP (22.4 kW)
Maximum Torque
90 ft-lb (122 Nm)
Spindle Taper
CT40
Drive Type
Inline Direct Drive
HAAS VM3 2015 – TOOL CHANGER
Specification
Details
Tool Capacity
30 + 1 Tools
Tool Changer Type
Side-Mount Tool Changer
Tool-to-Tool Time
1.8 sec
Chip-to-Chip Time
2.4 sec
Maximum Tool Weight
12 lbs (5.4 kg)
Maximum Tool Diameter
3.5 in (89 mm)
HAAS VM3 2015 – CONTROL SYSTEM
Specification
Details
CNC Control
Haas CNC Control
Programming
ISO G-Code
USB
Standard
Ethernet
Standard
Rigid Tapping
Standard
High-Speed Machining
Optional
HAAS VM3 2015 – COOLANT SYSTEM
Specification
Details
Flood Coolant
Standard
Through-Spindle Coolant
Optional
Programmable Coolant Nozzle
Optional
Chip Conveyor
Optional
Automatic Lubrication
Standard
HAAS VM3 2015 – POWER REQUIREMENTS
Specification
Details
Electrical Supply
220V / 440V, 3-Phase
Connected Load
Approx. 40 kVA
Air Requirement
4 SCFM @ 100 PSI
HAAS VM3 2015 – DIMENSIONS
Specification
Details
Machine Length
Approx. 140 in (3,556 mm)
Machine Width
Approx. 120 in (3,048 mm)
Machine Height
Approx. 120 in (3,048 mm)
Machine Weight
Approx. 13,500 lbs (6,123 kg)
HAAS VM3 2015 – GENERAL INFORMATION
Specification
Details
Manufacturer
Haas Automation
Model
VM3
Year
2015
Machine Type
CNC Vertical Machining Center
Condition
Used
Country of Origin
USA
WHY BUY USED HAAS VM3 2015
Purchasing a used Haas VM3 2015 provides a cost-effective way to acquire a high-performance machining center designed for precision applications. Its large work envelope, high-speed direct-drive spindle, and rigid construction make it ideal for mold & die work, aerospace components, medical parts, and precision tooling. Many used machines are equipped with factory-installed options such as through-spindle coolant, Renishaw probing, chip conveyor, high-speed machining, and rotary tables, increasing overall productivity.
HOW MUCH DOES A USED HAAS VM3 2015 COST?
The value of a used Haas VM3 2015 depends on spindle hours, maintenance history, tooling package, installed options, and overall machine condition.
Most used Haas VM3 2015 machines typically sell between $65,000 and $110,000, depending on condition and configuration. Machines equipped with probing systems, through-spindle coolant, 4th-axis capability, and documented maintenance records generally command higher resale values.
Before purchasing, buyers should inspect the spindle, guideways, ballscrews, lubrication system, tool changer, coolant system, and machine geometry to ensure long-term reliability.
INDUSTRIES THAT USE HAAS VM3 2015
Aerospace Manufacturing
Mold & Die Manufacturing
Medical Device Manufacturing
Automotive Industry
Precision Engineering
Tool & Fixture Manufacturing
Defense Manufacturing
Electronics Manufacturing
Prototype Development
General CNC Machine Shops
TYPICAL PARTS HAAS VM3 2015 CAN PRODUCE
Injection Mold Cavities
Aerospace Components
Medical Implants
Precision Fixtures
Automotive Components
Tooling Plates
Mold Inserts
Aluminum Precision Parts
Prototype Components
High-Precision Mechanical Parts
WHY CHOOSE HAAS VM3 2015
The Haas VM3 2015 combines high-speed machining, outstanding precision, and a generous work envelope into a dependable CNC machining platform. Its 12,000 RPM inline direct-drive spindle, 30+1 side-mount tool changer, and rigid machine construction make it an excellent choice for manufacturers producing high-value precision components.
Whether machining molds, aerospace components, medical devices, tooling, or precision production parts, the Haas VM3 2015 delivers exceptional accuracy, reliable performance, low operating costs, and strong resale value, making it one of the most capable used vertical machining centers in its class.
