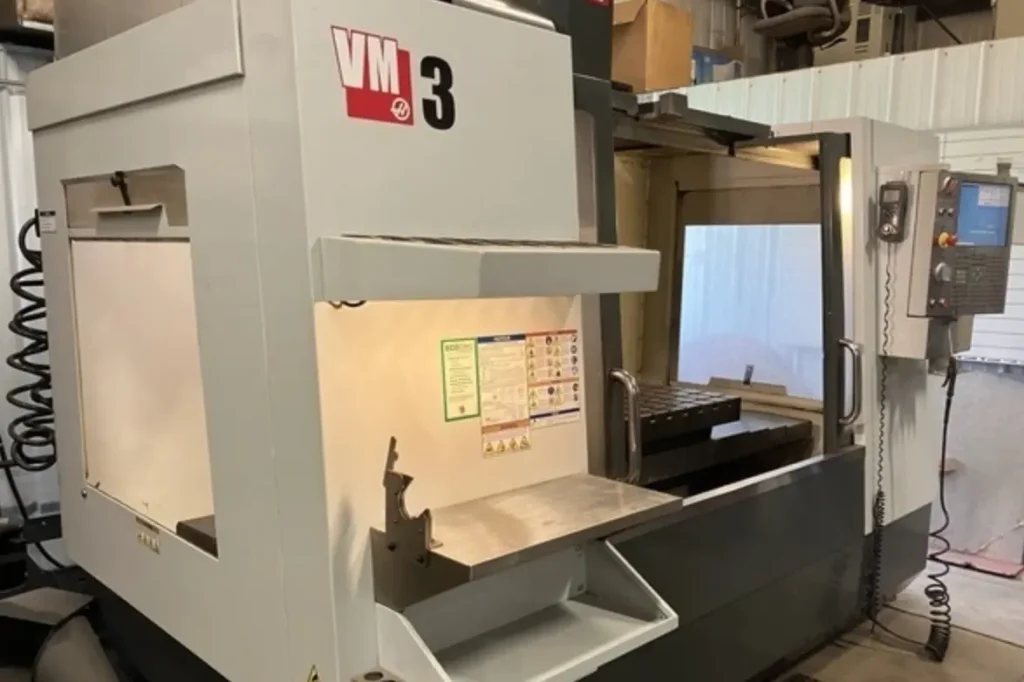

The 2010 Haas VM3 is a high-performance CNC vertical machining center designed for precision mold making, die manufacturing, aerospace, medical, and complex machining applications. Built with a rigid cast-iron frame, oversized linear guideways, and a 40-taper inline direct-drive spindle, the VM3 delivers exceptional accuracy, excellent surface finishes, and long-term reliability. Its generous work envelope and high-speed machining capabilities make it an ideal choice for manufacturers producing precision components and tooling.
The machine features 40 in (1,016 mm) of X-axis travel, 26 in (660 mm) of Y-axis travel, and 25 in (635 mm) of Z-axis travel. It is equipped with a 12,000 RPM inline direct-drive spindle producing 30 HP (22.4 kW) and a 24+1 side-mount automatic tool changer. Combined with rapid traverse rates, rigid tapping, and the proven Haas CNC Control, the 2010 VM3 provides outstanding productivity and machining performance.
HAAS VM3 2010 – AXIS
Specification
Details
X-Axis Travel
40 in (1,016 mm)
Y-Axis Travel
26 in (660 mm)
Z-Axis Travel
25 in (635 mm)
Axis Configuration
3-Axis Vertical Machining Center
Rapid Traverse (X/Y/Z)
1,200 IPM (30.5 m/min)
Guideway Type
Linear Guideways
HAAS VM3 2010 – TABLE
Specification
Details
Table Size
54 × 25 in (1,372 × 635 mm)
Maximum Table Load
3,500 lbs (1,588 kg)
T-Slots
5
T-Slot Width
0.625 in (16 mm)
HAAS VM3 2010 – SPINDLE
Specification
Details
Maximum Spindle Speed
12,000 RPM
Spindle Power
30 HP (22.4 kW)
Maximum Torque
90 ft-lb (122 Nm)
Spindle Taper
CT40
Drive Type
Inline Direct Drive
HAAS VM3 2010 – TOOL CHANGER
Specification
Details
Tool Capacity
24 + 1 Tools
Tool Changer Type
Side-Mount Tool Changer
Tool-to-Tool Time
1.8 sec
Chip-to-Chip Time
2.4 sec
Maximum Tool Weight
12 lbs (5.4 kg)
Maximum Tool Diameter
3.5 in (89 mm)
HAAS VM3 2010 – CONTROL SYSTEM
Specification
Details
CNC Control
Haas CNC Control
Programming
ISO G-Code
USB
Standard
Ethernet
Optional
Rigid Tapping
Standard
High-Speed Machining
Optional
HAAS VM3 2010 – COOLANT SYSTEM
Specification
Details
Flood Coolant
Standard
Through-Spindle Coolant
Optional
Programmable Coolant Nozzle
Optional
Chip Conveyor
Optional
Automatic Lubrication
Standard
HAAS VM3 2010 – POWER REQUIREMENTS
Specification
Details
Electrical Supply
220V / 440V, 3-Phase
Connected Load
Approx. 40 kVA
Air Requirement
4 SCFM @ 100 PSI
HAAS VM3 2010 – DIMENSIONS
Specification
Details
Machine Length
Approx. 140 in (3,556 mm)
Machine Width
Approx. 120 in (3,048 mm)
Machine Height
Approx. 120 in (3,048 mm)
Machine Weight
Approx. 13,500 lbs (6,123 kg)
HAAS VM3 2010 – GENERAL INFORMATION
Specification
Details
Manufacturer
Haas Automation
Model
VM3
Year
2010
Machine Type
CNC Vertical Machining Center
Condition
Used
Country of Origin
USA
WHY BUY USED HAAS VM3 2010
Purchasing a used Haas VM3 2010 is an excellent way to acquire a precision vertical machining center at a significantly lower cost than buying new. Its rigid construction, direct-drive spindle, and generous work envelope make it ideal for machining molds, dies, aerospace components, medical parts, and precision tooling. Many used machines include factory-installed options such as through-spindle coolant, probing systems, chip conveyors, and rotary tables to improve productivity.
HOW MUCH DOES A USED HAAS VM3 2010 COST?
The value of a used Haas VM3 2010 depends on spindle hours, maintenance history, tooling package, installed options, and overall machine condition.
Most used Haas VM3 2010 machines typically sell between $45,000 and $85,000, depending on condition and configuration. Machines equipped with probing systems, through-spindle coolant, 4th-axis capability, and documented maintenance records generally command higher resale values.
Before purchasing, buyers should inspect the spindle, guideways, ballscrews, lubrication system, tool changer, coolant system, and machine geometry to ensure dependable long-term performance.
INDUSTRIES THAT USE HAAS VM3 2010
Aerospace Manufacturing
Mold & Die Manufacturing
Medical Device Manufacturing
Automotive Industry
Precision Engineering
Tool & Fixture Manufacturing
Defense Manufacturing
Electronics Manufacturing
Prototype Development
General CNC Machine Shops
TYPICAL PARTS HAAS VM3 2010 CAN PRODUCE
Injection Mold Cavities
Aerospace Components
Medical Components
Precision Fixtures
Automotive Parts
Tooling Plates
Mold Inserts
Aluminum Precision Parts
Prototype Components
Precision Mechanical Components
WHY CHOOSE HAAS VM3 2010
The Haas VM3 2010 combines high-speed machining, excellent rigidity, and precision performance into a reliable machining platform. Its 12,000 RPM inline direct-drive spindle, 24+1 side-mount tool changer, and large work envelope make it an excellent solution for demanding machining applications.
Whether producing molds, aerospace components, medical devices, tooling, or high-precision production parts, the Haas VM3 2010 delivers outstanding accuracy, dependable operation, and excellent long-term value, making it one of the most desirable used vertical machining centers in the Haas VM Series.
