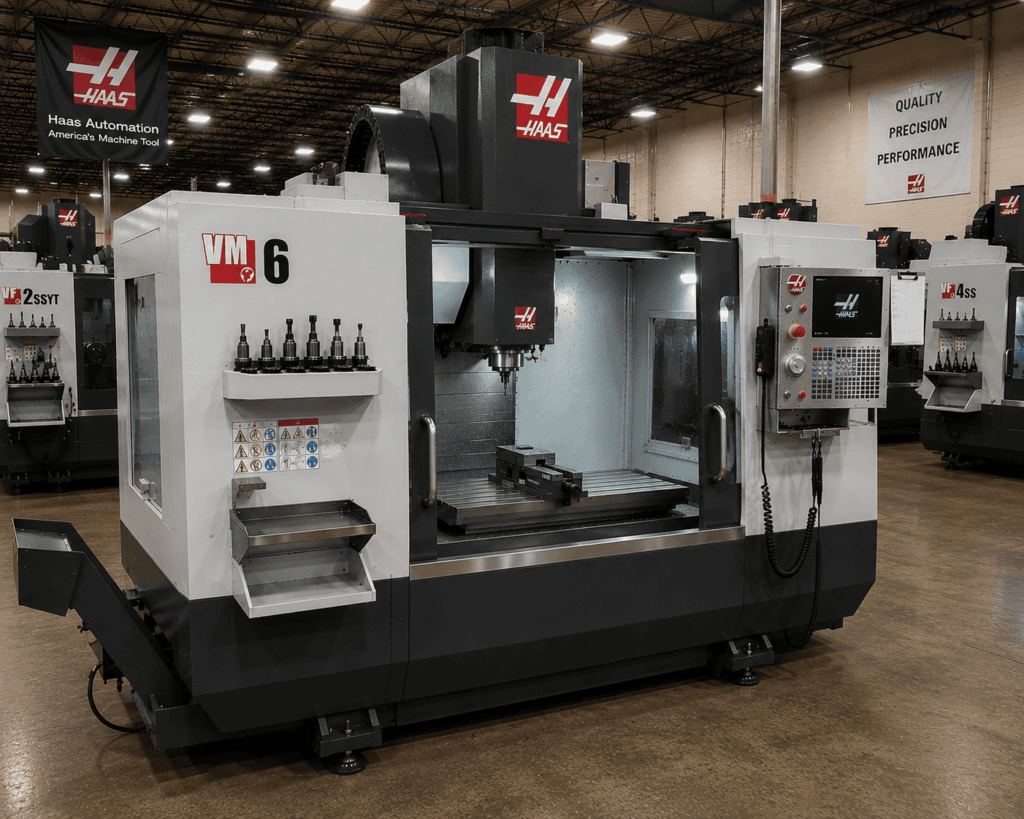

USED HAAS VM-6 – 2012

The 2012 Haas VM-6 is a high-performance 3-axis CNC vertical machining center (VMC) specifically designed for precision mold making, die manufacturing, and complex high-accuracy machining applications. Part of the Haas VM Series (Vertical Mold Machines), the VM-6 combines the proven rigidity and reliability of Haas VMC platforms with features optimized for mold, tool, and die work, including a large work envelope, high-speed spindle, advanced CNC control, and enhanced surface-finish capabilities. Manufactured by Haas Automation, the VM Series is widely recognized among mold manufacturers and precision machining companies for delivering reliable performance at an affordable operating cost.

Built with a rigid cast-iron structure and precision linear guideways, the Haas VM-6 provides excellent vibration damping, thermal stability, and machining accuracy during long production cycles. The machine features 64 inches of X-axis travel, 32 inches of Y-axis travel, and 30 inches of Z-axis travel, providing a large machining envelope suitable for oversized molds, tooling plates, fixtures, and complex components. The VM-6 is equipped with a 12,000 RPM inline direct-drive CAT 40 spindle powered by a 30 HP (22.4 kW) motor, delivering smooth high-speed cutting performance and excellent surface finishes. The direct-drive spindle design reduces vibration and improves accuracy when machining detailed contours, hardened materials, and complex 3D surfaces.

The 2012 Haas VM-6 typically features the Haas High-Speed CNC Control, providing advanced capabilities such as full look-ahead processing, high-speed machining software, rigid tapping, cutter compensation, and user-friendly conversational programming. The machine includes a 30+1 side-mount automatic tool changer, allowing manufacturers to use multiple specialized tools for roughing, finishing, engraving, and detailed mold work while reducing setup time. Additional features such as programmable coolant, automatic air gun, chip auger, probing systems, fourth-axis rotary capability, and through-spindle coolant options further improve machining flexibility.

The Haas VM-6 is commonly used in industries including mold and die manufacturing, aerospace, automotive, medical, defense, electronics, and precision engineering. Typical applications include injection molds, die cavities, mold inserts, electrodes, aerospace structural components, fixtures, tooling plates, medical components, and prototype parts. Its large work envelope and high-speed machining capability make it especially valuable for manufacturers producing complex parts that require exceptional accuracy and surface quality.

Purchasing a used 2012 Haas VM-6 provides manufacturers with advanced mold-making capabilities at a significantly lower investment compared with purchasing a new CNC machining center. Haas machines are known for their straightforward operation, readily available replacement parts, reliable service support, and economical ownership costs. A properly maintained VM-6 continues to provide excellent precision, productivity, and long-term value, making it one of the most desirable used CNC vertical machining centers for mold and precision manufacturing applications.

HAAS VM-6 – 2012 SPECIFICATIONS

Axis

Specification	Value
Machine Type	Vertical Machining Center (VMC)
Controlled Axes	3 Axes
X-Axis Travel	64.0 in (1,626 mm)
Y-Axis Travel	32.0 in (813 mm)
Z-Axis Travel	30.0 in (762 mm)

Travels / Work Envelope

Specification	Value
X Travel	64.0 in (1,626 mm)
Y Travel	32.0 in (813 mm)
Z Travel	30.0 in (762 mm)
Spindle Nose to Table	4.0–34.0 in (102–864 mm)

Table

Specification	Value
Table Size	64 × 28 in (1,626 × 711 mm)
Maximum Table Load	4,000 lbs (1,814 kg)
Number of T-Slots	Multi-Fixturing Table
T-Slot Width	0.626 in (15.9 mm)

Spindle

Specification	Value
Spindle Taper	CAT 40
Maximum Spindle Speed	12,000 RPM
Spindle Motor	30 HP (22.4 kW)
Maximum Torque	90 ft-lb (122 Nm) @ 2,000 RPM
Drive Type	Inline Direct Drive
Bearing Lubrication	Air / Oil Injection

Tool Changer

Specification	Value
Tool Changer Type	Side-Mount Automatic Tool Changer
Tool Capacity	30+1 Tools
Maximum Tool Diameter	2.5 in (64 mm)
Maximum Tool Diameter (Adjacent Pockets Empty)	5.0 in (127 mm)
Maximum Tool Length	16.0 in (406 mm)
Maximum Tool Weight	12 lbs (5.4 kg)
Tool-to-Tool Time	Approx. 2.8 sec
Chip-to-Chip Time	Approx. 3.6 sec

CNC Control

Specification	Value
CNC Control	Haas High-Speed Control
Programming	ISO G-Code
High-Speed Machining	Standard
Rigid Tapping	Standard
Look-Ahead Processing	Standard
Ethernet / USB Connectivity	Standard

Coolant / Chip Management

Specification	Value
Coolant System	Flood Coolant
Coolant Tank Capacity	95 gal (360 L)
Chip Removal	Chip Auger
Programmable Coolant Nozzle	Standard
Automatic Air Gun	Standard
Chip Conveyor	Optional

Power Requirements

Specification	Value
Electrical Supply	220V or 440V, 3-Phase
Connected Load	Approx. 25–30 kVA
Full Load Current	Approx. 70A @ 220V
Pneumatic Supply	80–100 PSI (5.5–6.9 bar)

Dimensions

Specification	Value
Floor Space	Approx. 195 × 102 in (4,953 × 2,591 mm)
Machine Height	Approx. 129 in (3,277 mm)
Machine Weight	Approx. 24,000 lbs (10,887 kg)

General Information

Specification	Value
Manufacturer	Haas Automation
Model	VM-6
Year	2012
Machine Category	Vertical Mold Machining Center
Materials Machined	Aluminum, Tool Steel, Hardened Steel, Stainless Steel, Titanium, Graphite, Engineering Plastics
Typical Applications	Injection Molds, Die Cavities, Mold Inserts, Aerospace Parts, Fixtures, Tooling Plates, Precision Components

HOW MUCH DOES A USED HAAS VM-6 – 2012 COST?

A used 2012 Haas VM-6 typically sells for $80,000 to $130,000 USD, depending on spindle hours, machine condition, maintenance records, tooling package, and installed options such as probing systems, fourth-axis rotary tables, through-spindle coolant, chip conveyor, or additional mold machining software. Machines with low spindle hours, documented service history, and production-ready accessories generally command higher resale values.

Before purchasing a used Haas VM-6, buyers should inspect spindle condition, axis accuracy, ballscrews, guideways, lubrication system, tool changer operation, and overall machine geometry. A properly maintained VM-6 provides excellent long-term value by combining a large machining envelope, high-speed precision cutting, and reliable Haas performance, making it an ideal investment for mold shops and manufacturers producing complex, high-accuracy components.

---

HAAS VM-6 VS HAAS VM-3 – WHICH ONE TO BUY?

The Haas VM-6 and Haas VM-3 are precision CNC vertical machining centers designed specifically for mold making, die manufacturing, tooling, and complex high-accuracy machining applications. Both machines belong to the Haas VM Series and feature rigid cast-iron construction, Haas CNC control technology, precision machining capabilities, and features designed to achieve excellent surface finishes. The primary difference between these two models is size and machining capacity, with the Haas VM-6 providing a larger work envelope and greater machining capability compared with the smaller Haas VM-3.

The Haas VM-3 is a compact precision mold machining center designed for manufacturers producing smaller molds, dies, electrodes, fixtures, and complex components. It provides excellent accuracy and is ideal for shops requiring precision machining capability in a smaller footprint.

The Haas VM-6 expands on the VM Series platform by offering increased axis travels, a larger work area, and greater capacity for machining larger molds, tooling components, aerospace parts, and industrial components. Its larger table size allows manufacturers to handle bigger fixtures and more complex setups while maintaining high precision.

Both machines are designed for industries requiring tight tolerances, excellent surface finishes, and reliable long-term performance. The VM-3 is better suited for smaller precision components and limited-floor-space applications, while the VM-6 is designed for larger molds, dies, and production environments requiring additional machining capacity.

For manufacturers focused on mold making, tooling, and complex 3D machining, the Haas VM-6 provides greater flexibility and future expansion capability. However, companies producing smaller precision components may find the Haas VM-3 provides excellent performance with lower operating costs.

---

HAAS VM-6 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VM-6 does not turn, the issue may be caused by spindle drive faults, electrical problems, safety interlocks, lubrication failures, cooling system issues, or CNC programming errors. Since the VM-6 is designed for precision mold and tooling applications, spindle reliability is essential for maintaining accuracy, surface finish, and production efficiency.

Begin troubleshooting by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive alarms, lubrication warnings, servo faults, thermal overload conditions, or tool changer issues can prevent spindle operation. Clear all alarms and confirm the machine is ready before attempting spindle startup.

Inspect the spindle drive system for electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Verify spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power because these systems are critical for protecting the spindle assembly.

Review the CNC program and machining setup. Incorrect M03 or M04 spindle commands, incorrect RPM settings, spindle orientation errors, interrupted tool changes, or improper cutting parameters may prevent spindle startup. If recent software updates, maintenance work, or parameter changes were performed, verify spindle-related settings.

If the spindle attempts to rotate but stops immediately, inspect mechanical components including spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and cutting loads. Excessive vibration, overheating, or unusual spindle noise may indicate bearing wear or mechanical damage.

Regular spindle inspections, proper lubrication, electrical cabinet maintenance, and preventive servicing reduce unexpected failures. If spindle alarms continue after basic troubleshooting, professional Haas diagnostic procedures should be performed.

---

HAAS VM-6 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VM-6 is a high-precision CNC vertical machining center designed for demanding mold, die, and tooling applications. Because these industries require exceptional accuracy and surface quality, regular preventive maintenance is essential for maintaining spindle performance, axis precision, and machine reliability.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideway areas. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before starting machining operations. Proper cleaning prevents contamination that can affect accuracy.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, coolant nozzles, chip management systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Guideways and protective covers should be inspected for smooth movement and proper protection from chips.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. For mold and die applications, checking machine geometry and calibration is especially important to maintain dimensional accuracy.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine alignment. Detailed maintenance records help identify potential issues before they impact machining quality.

A consistent maintenance program improves spindle life, machining accuracy, surface finish quality, and production reliability. The Haas VM-6 is built for precision manufacturing environments, and proper preventive care ensures dependable performance for complex mold and tooling applications.

---

FAQ

What is the Haas VM-6?

The Haas VM-6 is a precision CNC vertical machining center designed for mold making, die manufacturing, tooling, and complex high-accuracy machining applications. It is part of the Haas VM Series, which is engineered specifically for manufacturers requiring excellent surface finishes, tight tolerances, and reliable 3D machining capability.

The VM-6 features a rigid cast-iron structure, Haas CNC control system, precision spindle system, automatic tool changer, and a large machining envelope suitable for larger molds, dies, fixtures, electrodes, and industrial components.

It is widely used in aerospace, automotive, medical, electronics, plastics, and tool-and-die industries where accuracy and repeatability are critical. The larger capacity of the VM-6 allows manufacturers to machine bigger workpieces and more complex setups compared with smaller VM Series models.

The Haas VM-6 provides the flexibility of a production machining center with specialized features required for precision mold and tooling operations.

---

What are the most common problems with the Haas VM-6?

The most common problems with the Haas VM-6 include spindle alarms, automatic tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, drawbar problems, tool retention issues, electrical communication faults, and axis positioning errors.

Because the VM-6 is commonly used for precision machining, problems affecting accuracy and surface finish can also occur. These may include spindle runout, axis calibration errors, backlash, thermal growth issues, and improper tooling conditions.

Common causes include insufficient lubrication, coolant contamination, excessive cutting loads, component wear, improper maintenance, and incorrect operating procedures. Regular spindle inspections, coolant management, lubrication checks, machine calibration, electrical inspections, and preventive maintenance help reduce downtime and maintain reliable VM-6 performance.
