Used HAAS VF4SS 2012 - CNC Machine For Sale - Indiana - USA

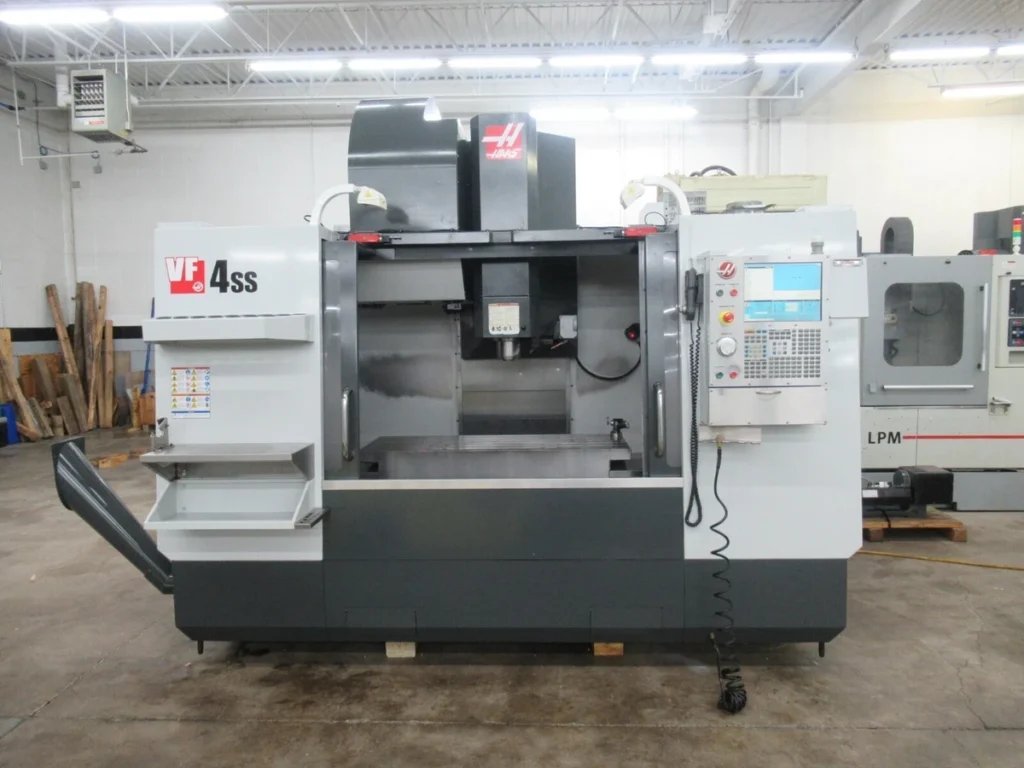

HAAS VF4SS 2012

HAAS VF4SS 2012

MAKE: HAAS
MODEL: VF4SS
TYPE: Vertical Machine
YEAR: 2012
SKU: 111529
DEALER: Toolquip, Inc
COUNTRY: USA
STATE: Indiana

USED HAAS VF4SS 2012

The 2012 Haas VF4SS is a high-performance Super Speed CNC Vertical Machining Center designed for high-production machining, precision manufacturing, aerospace components, automotive parts, molds, fixtures, and complex production applications. Built with a rigid cast-iron structure, 40-taper inline direct-drive spindle, and high-speed machining capabilities, the VF4SS delivers faster cycle times, excellent accuracy, and reliable performance for demanding CNC operations.

The machine features 50 in (1,270 mm) of X-axis travel, 20 in (508 mm) of Y-axis travel, and 25 in (635 mm) of Z-axis travel. Equipped with a 12,000 RPM spindle, 30 HP motor, and 30+1 high-speed side-mount tool changer, the VF4SS 2012 is designed for manufacturers requiring speed, flexibility, and productivity in a compact vertical machining center.

HAAS VF4SS 2012 – AXIS

SpecificationDetails
X-Axis Travel50 in (1,270 mm)
Y-Axis Travel20 in (508 mm)
Z-Axis Travel25 in (635 mm)
Axis Configuration3-Axis Vertical Machining Center
Rapid Traverse (X/Y/Z)1,400 IPM (35.6 m/min)
Maximum Cutting Feed833 IPM (21.2 m/min)
Guideway TypeLinear Guideways

HAAS VF4SS 2012 – TABLE

SpecificationDetails
Table Size52 × 19.5 in (1,321 × 495 mm)
Maximum Table Load1,750 lbs (794 kg)
T-Slots5
T-Slot Width0.626 in (15.9 mm)

HAAS VF4SS 2012 – SPINDLE

SpecificationDetails
Maximum Spindle Speed12,000 RPM
Spindle Power30 HP (22.4 kW)
Maximum Torque90 ft-lb @ 2,000 RPM
Spindle TaperCT40 / BT40
Drive TypeInline Direct Drive
Cooling SystemLiquid Cooled
Bearing LubricationAir/Oil Injection

HAAS VF4SS 2012 – TOOL CHANGER

SpecificationDetails
Tool Capacity30 + 1 Tools
Tool Changer TypeHigh-Speed Side-Mount Tool Changer
Tool-to-Tool Time1.8 sec
Chip-to-Chip Time2.4 sec
Maximum Tool Weight12 lbs (5.4 kg)
Maximum Tool Diameter2.5 in (64 mm)
Maximum Tool Diameter (Adjacent Empty)5 in (127 mm)

HAAS VF4SS 2012 – CONTROL SYSTEM

SpecificationDetails
CNC ControlHaas CNC Control
ProgrammingISO G-Code
EthernetStandard
USB PortStandard
Rigid TappingStandard
High-Speed MachiningOptional
Program MemoryConfiguration Dependent

HAAS VF4SS 2012 – COOLANT SYSTEM

SpecificationDetails
Flood CoolantStandard
Coolant Tank Capacity55 gal (208 L)
Multi-Stage Coolant PumpStandard
Chip WashdownStandard
Window Air BlastStandard
Through-Spindle CoolantOptional
Chip ConveyorOptional

HAAS VF4SS 2012 – POWER REQUIREMENTS

SpecificationDetails
Electrical Supply220V / 440V, 3-Phase
Full Load Current70A @ 220V
High Voltage Current35A @ 440V
Air Requirement4 SCFM @ 100 PSI

HAAS VF4SS 2012 – DIMENSIONS

SpecificationDetails
Machine LengthApprox. 152 in
Machine WidthApprox. 99 in
Machine HeightApprox. 106 in
Machine WeightApprox. 11,700 lbs

HAAS VF4SS 2012 – GENERAL INFORMATION

SpecificationDetails
ManufacturerHaas Automation
ModelVF4SS
Year2012
Machine TypeSuper Speed CNC Vertical Machining Center
ConditionUsed
Country of OriginUSA

WHY BUY USED HAAS VF4SS 2012

Purchasing a used Haas VF4SS 2012 provides manufacturers with a fast and reliable production machining solution at a lower investment compared to buying new. Its 12,000 RPM spindle, high-speed tool changer, and rapid axis movement make it ideal for shops focused on reducing cycle times and increasing production output.

The VF4SS 2012 is especially valuable for machining aluminum, steel, plastics, and composite materials where speed and accuracy are critical. Options such as probing systems, through-spindle coolant, chip conveyors, and rotary axis capability further improve productivity.

HOW MUCH DOES A USED HAAS VF4SS 2012 COST?

The price of a used Haas VF4SS 2012 depends on spindle hours, machine condition, installed options, tooling package, and maintenance history.

Most used Haas VF4SS 2012 machines typically sell between:

$55,000 – $100,000

Machines equipped with:

  • Renishaw probing
  • Through-spindle coolant
  • Chip conveyor
  • 4th-axis rotary preparation
  • High-speed machining options
  • Low spindle hours

generally command higher resale values.

Before purchasing, buyers should inspect:

  • Spindle condition and runout
  • Ballscrews and guideways
  • Tool changer operation
  • Coolant system
  • Machine geometry
  • CNC control functionality

INDUSTRIES THAT USE HAAS VF4SS 2012

  • Aerospace Manufacturing
  • Automotive Manufacturing
  • Medical Manufacturing
  • Mold & Die Manufacturing
  • Defense Manufacturing
  • Precision Engineering
  • Prototype Manufacturing
  • Electronics Manufacturing
  • Production CNC Shops
  • General Machining

TYPICAL PARTS HAAS VF4SS 2012 CAN PRODUCE

  • Aerospace Components
  • Automotive Parts
  • Medical Components
  • Mold Inserts
  • Precision Fixtures
  • Aluminum Components
  • Tooling Plates
  • Prototype Parts
  • Production Components
  • Complex Machined Parts

WHY CHOOSE HAAS VF4SS 2012

The Haas VF4SS 2012 combines high-speed machining capability, reliable Haas engineering, and a large work envelope into a versatile production CNC platform. Its 50-inch X-axis travel, 12,000 RPM spindle, and 30+1 tool capacity make it an excellent choice for manufacturers requiring speed, accuracy, and flexibility.

For companies looking for a dependable used Super Speed vertical machining center, the Haas VF4SS 2012 delivers excellent productivity, precision, and long-term value in the used CNC machine market.
